9. Connecting the satellite receiver

The following illustrations show cable connections for a television and other devices connected
with the receiver. If you require any assistance in connecting individual devices, contact your
local technician. Before connecting or altering cabling, disconnect the receiver from the
mains !!!

9.1 Connection by means of an HDMI cable (recommended)

1. Connect the antenna to the LNB IN socket of the receiver.
2. Connect the HDMI to the receiver out and the television in.
Connection by means of an HDMI cable allows you to obtain the highest image quality.
If you have an amplifier with an HDMI out and in, which supports sound sent over HDMI,

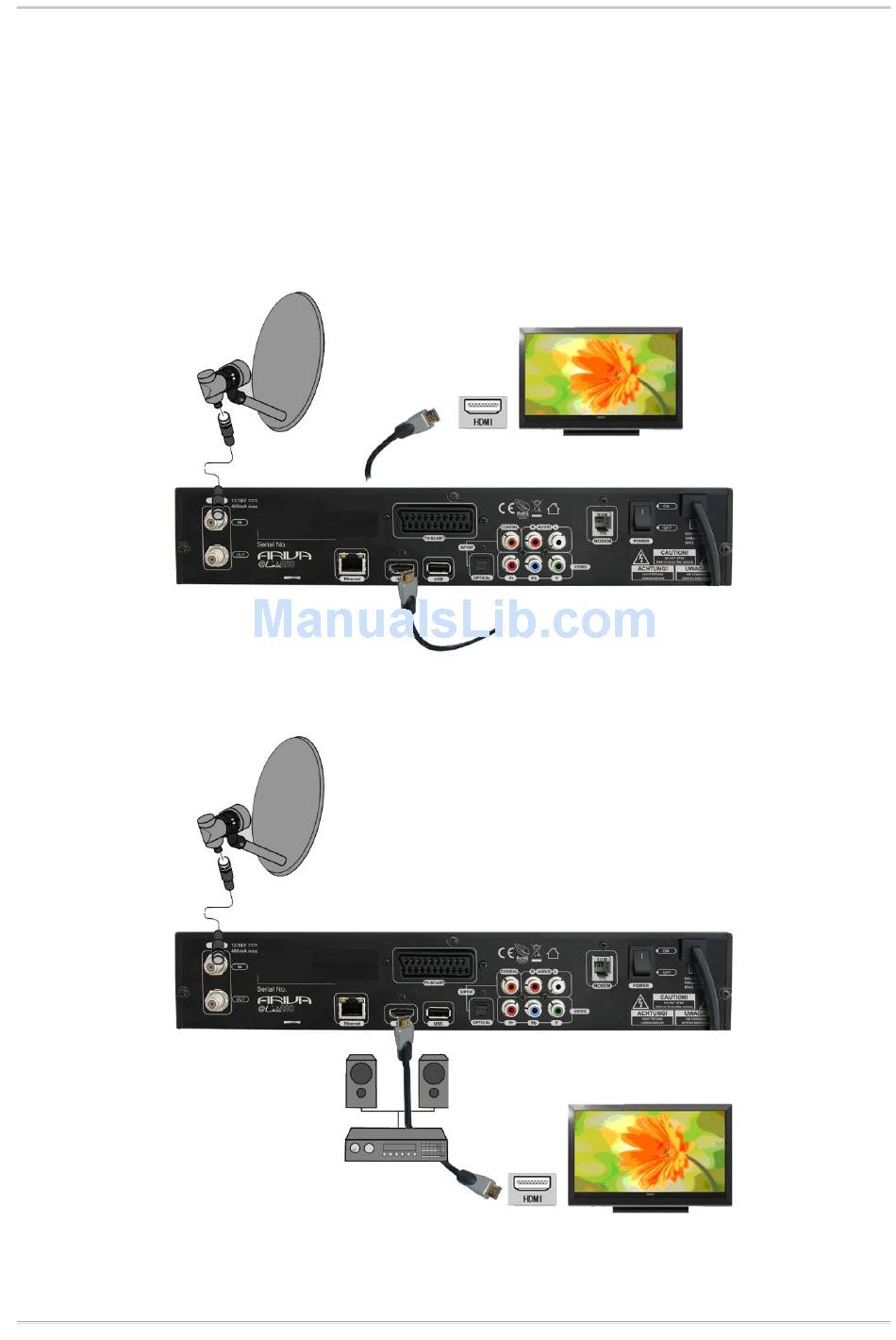

connect the devices by two HDMI cables. As in the following figure: one cable to the
amplifier, and the other from the amplifier to the television set.
