Page 2: Limited Warranty
Hawking Customer Service in order to obtain a Return Authorization number. Warranty is for repair or replacement only. Hawking Technology does not issue any refunds. BE SURE TO HAVE YOUR PROOF OF PURCHASE. RETURN REQUESTS CAN NOT BE PROCESSED WITHOUT PROOF OF PURCHASE. -
Page 3: Federal Communication Commission Interference Statement
Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. - Page 4 Federal Communications Commission (FCC) RF Exposure Requirements SAR compliance has been established in the laptop computer(s) configurations with PCMCIA slot on the side near the center, as tested in the application for Certification, and can be used in laptop computer(s) with substantially similar physical dimensions, construction, and electrical and RF characteristics.
-
Page 5: Table Of Contents
1 INTRODUCTION ... 6 Features 6 Specifications 6 Package Contents 7 2 INSTALLATION PROCEDURE ... 8 3 CONFIGURATION UTILITY ... 13 Wireless Connection Status 13 General Connection Setting 15 WEP and WPA Encryption 3.3.1 WEP Setting ... 18 3.3.2 WPA Setting ... 19 Advanced Setting 21 Software AP Mode 23 3.5.1... -
Page 6: Introduction

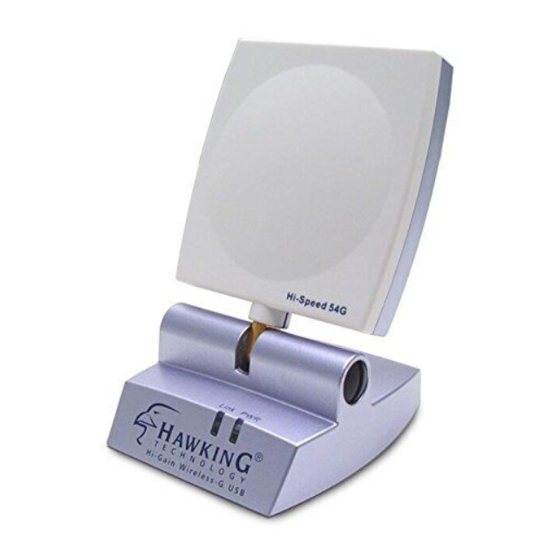

Directional Antenna makes the HWU54D a very powerful wireless adapter capable of obtaining wireless distances up to 2 times that of normal Wireless-G cards. The HWU54D is also very versatile thanks to its USB 2.0 interface making it compatible with both laptops and desktops. -
Page 7: Package Contents
• Data Rate: 54/48/36/24/18/12/11/9/6/5.5/2/1Mbps auto fallback • Security: 64/128/256-bit WEP Data Encryption, WPA (IEEE 802.1x with TKIP) and AES • Antenna: Directional 6dBi Hi-Gain Antenna • Drivers: Windows 98/SE/Me/2000/XP/2003 Server • LED: Link/Activity • Transmit Power: 22~23 dBm (Typical) • Dimension: 4.75”(H) x 3”(W) x 3.5”(D) •... -
Page 8: Installation Procedure
2 Installation Procedure Before you proceed with the installation, please notice following descriptions. Note1: Please do not install the USB adapter into your computer before installing the software program from the CD. Note2: The following installation was operated in Windows XP. (Procedures are similar for Windows 98SE/Me/2000/2003 Server.) Note3: If you have previously installed a wireless adapter card or adapter, please uninstall the driver and utility. - Page 9 If you want to install the software program in another location, click “Browser” and select an alternative destination. Then, click “Next”.
- Page 10 Click “Continue Anyway” to finish the installation. II. Install the USB Adapter Plug the USB Adapter into the USB port of your computer. The “Found New Hardware Wizard” is displayed, select “Install the software automatically (Recommended)” and click “Next”.
- Page 11 Click “Continue Anyway” and the system will start to install the USB adapter.
- Page 12 Click “Finish” to complete the installation. III. Using the Configuration Utility To setup the USB adapter, double-click the icon in the system tray. For Windows XP, there is a “Windows Zero Configuration Tool” by default for you to setup wireless clients. If you want to use the Hawking Utility of the USB adapter, please follow one of the ways as below.
-
Page 13: Configuration Utility
3 Configuration Utility The Configuration Utility is a powerful application that helps you configure the Hawking Technologies 802.11g Wireless LAN Hi-Gain USB Adapter and monitor the link status during the communication process. The Configuration Utility appears as an icon on the system tray of Windows while the card is running. - Page 14 Parameter Mode Network Adapter Available Network Current Network Information Display the information about the wireless network this More Setting Link Status Description Station – Set the USB adapter as a wireless client. Access Point – Allows the USB adapter to function as a wireless AP.
-
Page 15: General Connection Setting
BSSID Parameter Signal Strength Link Quality TX Frame RX Frame General Connection Setting Clicking “More Settings”, allows users to setup more advanced features, such as wireless connection settings, Encryption Settings of the USB adapter and other functions. Parameter Display the MAC Address of the network the adapter is connecting to. - Page 16 General Connection Setting Channel Parameter Tx Rate SSID Network Type Change/Apply Clicking “Change/Apply“ will allow the configuration of the Encryption Setting Selects the radio channel to be used for wireless networking. The channel setting of the wireless stations within a network should be the same.
- Page 17 Parameter Authentication Mode WEP Encryption Key Setting Click this button to setup the WEP key. Please refer to WPA Encryption Setting Profile Profile Name Load Save Current Delete Other Advanced Setting... Information Description This setting must be consistent with the wireless networks that the adapter intends to connect with.
-
Page 18: Wep And Wpa Encryption
WEP and WPA Encryption WEP is a data encryption algorithm, which protects Wireless networks from outside intruders or “eavesdropping.” The second generation of WEP is WPA (Wi-Fi Protected Access) which combines IEEE 802.1x and TKIP (Temporal Key Integrity Protocol) technologies. WPA provides higher security standards as well as the ability to authenticate each individual user for a more controlled and secure wireless environment. -
Page 19: Wpa Setting
Parameter Key1 ~ Key4 Change/Apply 3.1.2 WPA Setting The adapter can automatically detect the WPA settings of the AP which the adapter intends to connect to. To connect to the AP, you should match the same settings with the AP and the client. There are two kinds of WPA modes: WPA and WPA-PSK. - Page 20 Parameter Connect Information Protocol User Name Password Description It is the setting for WPA mode. This adapter supports two kind of protocol for authentication including TLS and PEAP. TLS and PEAP requires a certificate which is provided by the Certificate Server. PEAP requires a set of user name and password in addition.
-
Page 21: Advanced Setting
Pre-shared Key Certificate Parameter WEP Key WEP KEY SETTING Change/Apply Advanced Setting The “Advanced Setting” allows user to enable/disable country roaming and power consumption mode, setup the fragmentation threshold and RTS/CTS threshold of the adapter. Parameter User Interface It is the setting for WPA-PSK mode. Input a key that is 8 to 63 digits in length using ASCII format as the password for the authentication within the network. - Page 22 Country Roaming Parameter Power Consumption Setting Continuous Access Mode (CAM) – The adapter will always Fragmentation Threshold RTS / CTS Threshold enabled: English and Chinese. IEEE 802.11d (Country Roaming) is a standard that enable the wireless devices work at the proper transmission power and radio channel regulated by the country where the user is located.
-
Page 23: Software Ap Mode
Software AP Mode The HWU54D Hi-Gain USB Wireless-G adapter has a unique feature that allows it to function as a Wireless Access Point. By changing the mode in the Configuration Utility the HWU54G can provide wireless access to surrounding clients. Configuring... -
Page 24: Ap General Connection Setting
RX Frame 3.1.4 AP General Connection Setting Click “More Setting”, users are allowed to setup the AP connection setting, Encryption Setting and other advanced functions. Parameter General Connection Setting Channel Basic Rate the AP successfully. It shows the number of data frames which are received by the AP successfully. - Page 25 Parameter Tx Rate SSID Hide SSID Tx Power Change/Apply Clicking “Change“ will enable you to setup the parameters for Setting Description There are several options including Auto/1/2/5.5/11/6/9/12/18/24/36/48/54Mbps for you to select. When “Auto” is selected, the device will choose the most suitable transmission rate automatically.
-
Page 26: Mac Address Filter
Authentication Mode Parameter Fragment RTS / CTS Preamble MAC Address Filter Bridge Adapter 3.1.5 MAC Address Filter Open System – No authentication is needed for connecting to the AP. Shared Key – Only wireless adapters using a shared key (WEP Key identified) are allowed to connect to the AP. Description The value defines the maximum size of packets, any packet size larger than the value will be fragmented. - Page 27 Parameter Filter Type Filter MAC Address Description Disable – Disable the MAC Address filter function. Accept – Only the wireless adapters with the MAC Address setup in the table can connect to the AP. Reject – The wireless adapters with the MAC Address setup in the table will be rejected to connect to the AP.
-
Page 28: Troubleshooting
4 Troubleshooting This chapter provides solutions to problems usually encountered during the installation and operation of the adapter. 1. What is the IEEE 802.11g standard? 802.11g is the new IEEE standard for high-speed wireless LAN communications that provides for up to 54 Mbps data rate in the 2.4 GHz band. 802.11g is quickly becoming the next mainstream wireless LAN technology for the home, office and public networks. - Page 29 5. What is Infrastructure？ An integrated wireless and wireless and wired LAN is called an Infrastructure configuration. Infrastructure is applicable to enterprise scale for wireless access to central database, or wireless application for mobile workers. 6. What is BSS ID？ A specific Ad hoc LAN is called a Basic Service Set (BSS).
- Page 30 12. What is DSSS？What is FHSS？And what are their differences？ Frequency-hopping spread-spectrum (FHSS) uses a narrowband carrier that changes frequency in a pattern that is known to both transmitter and receiver. Properly synchronized, the net effect is to maintain a single logical channel. To an unintended receiver, FHSS appears to be short-duration impulse noise.
