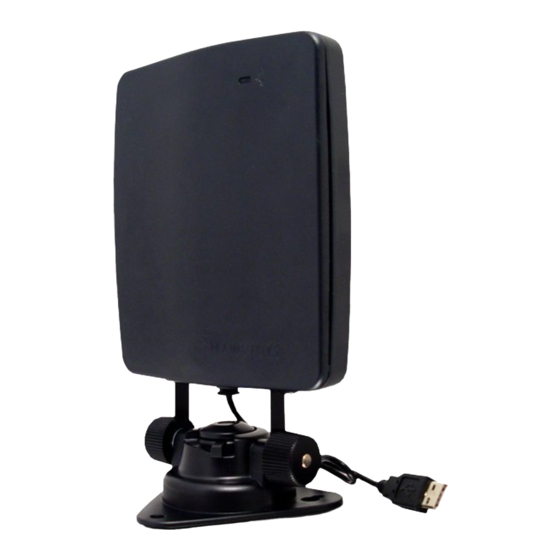

Hawking Hi-Gain HAWNU2 Quick Installation Manual

Hawking Hi-Gain HAWNU2 Quick Installation Manual

Usb wireless-150n window adapter with range amplifier
Hide thumbs Also See for Hi-Gain HAWNU2:

Advertisement

Quick Links

Q
I
UICK
Hi-Gain
USB Wireless-150N
TM
Window Adapter with Range Amplifier
Mac OS X
NSTALLATION
Windows XP
G
UIDE
Windows 7 & Vista
STA
START
HERE
HAWNU2

Advertisement

loading
Need help?

Need help?

Do you have a question about the Hi-Gain HAWNU2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hawking Hi-Gain HAWNU2

  • Page 1 UICK NSTALLATION UIDE Hi-Gain USB Wireless-150N Window Adapter with Range Amplifier Mac OS X Windows XP Windows 7 & Vista START HERE HAWNU2...
  • Page 2 OVERVIEW Check Package Contents - One Hi-Gain USB Wireless-150N Window Adapter - 5 ft. USB Extension Cable - 4-in-1 Mounting kit (Desktop, Suction, Wall Mount) - CD (Drivers and User’s Manual) Installation Instructions are divided into four sections (Windows 7 & Vista, Windows XP, and Mac OS X): Windows 7 &...
  • Page 3 Windows 7 & Vista Installation Instructions for Windows 7 & Vista IMPORTANT! Do not connect the USB Wireless-N Adapter into the USB port until you have installed the driver from the CD and are instructed to do so. Otherwise, the Adapter may not operate properly.
  • Page 4 Windows 7 & Vista When the User Account Control appears, select “Allow” to proceed. InstallShield Wizard to guide you through the setup. Read through the License Agreement. Select “I accept the terms of the license agreement” and “Next”. Select the Default option and click “Next”.
  • Page 5 Windows 7 & Vista Select “Install” to continue. The wizard may prompt you to insert the USB Adapter into your PC, ignore the message for now and select “OK” to go on. (It is recommended to finish with the driver installation before plugging in the Adapter.) You are now finished installing the software...
  • Page 6 Windows 7 & Vista Now, insert the Adapter into an available USB Port. Insert the Adapter into an available USB Port. Then tighten the knobs and face the antenna side (three imprinted waves ) toward your wireless source. Wait a few seconds until your system detects the new hardware (Adapter).
  • Page 7 Windows 7 & Vista [Windows 7 ]Step 2: If you are connecting to a Security-enabled Network, your system will prompt you to enter your security key. If you don’t have the security key, please contact your network administrator or the person who set up the selected wireless network.
  • Page 8 Windows 7 & Vista [Windows Vista] Step 2: Select a Network and click Connect. Please wait until the adapter connects. [Windows Vista] Step 3: If you are connecting to an unsecured network, select ‘Connect Anyway’ . (See the right image) If you are connecting to a security-enabled Network, type in the network security...
  • Page 9 Windows 7 & Vista [Windows Vista] Step 4 You are now connected to a wireless network. To save this specific network for fu- ture access, select Save this network. Select a location or you may customize the name and location type, etc. Close the Set Network Location when you are done.
  • Page 10 Windows XP Installation Instructions for Windows XP Important: Do Not connect the Network Adapter into the USB port until you have installed the driver from the CD and are instructed to do so. Otherwise, the Adapter may not operate correctly. Driver &...
  • Page 11 Windows XP Select “Install driver and Hawking Wireless Utility” and “Next”. Select “Hawking Wireless Configuration”, then click “Next” . Please wait a few seconds. Your system is installing the software. Select “Finish” , when it is done. Setup Instructions: Windows XP...
  • Page 12 Windows XP Plug-in the Adapter into your USB port and the correct side with three wave Insert the Adapter into an available USB Port. Then tighten the knobs and face the antenna side (three imprinted waves) toward your wireless source. A Welcome to the Found New Hardware Wizard screen will guide you through the rest of the...
  • Page 13 For more settings, please refer to the User Manual located on the Setup CD. Hawking Wireless Utility Locate the Hawking icon in the system tray, right click on it and then choose Hawking Wireless Utility. Connect To: Step 1: In the Hawking Wireless Utility, click on the NETWORK tab.
  • Page 14 Windows XP Step 2: In the Authentication and Security window, please enter in your network’s security information. If you don’t have this information, please request it from your network administrator who set up your network. WPA Encryption a. Encryption Type: Select TKIP or AES b.
  • Page 15: Wireless Status

    Windows XP WEP Encryption a. Select 64-bit or 128- b. Passphrase - this is case sensitive and contains no more than 16 alphanumeric characters. ( Must be the same as your network). c. 64-bit WEP key: exactly 10 hexadecimal characters and must be the same as your network.
  • Page 16: Installation For Mac Os

    Mac OS Installation for Mac OS X Important: 1) Do not connect the USB Wireless Adapter to your computer until you have installed the driver from the CD and are instructed to do so. Otherwise, the adapter may not operate correctly. 2) Installation software requires you to restart your computer, be sure to save all your work before installation.
  • Page 17 Mac OS Next, select the appropriate Mac OS X to install. Hi Ga Hi-Gain in USB W W W irel Wireless 1 ess-150N Mac OS X 10.6 ~ Snow Leopard Window Adapte e r with Range Amp plifier Mac OS X 10.5 ~ Leopard Mac OS X 10.4 ~ Tiger Mac OS X10.3 ~ Panther If you are uncertain...
  • Page 18 Mac OS Select a destination for the driver. Select “Continue”. (Typically, the default destination is the Macintosh HD.) Select Install Install If your computer is password protected*, enter the password and click OK. If it is not password protected, leave the password field blank and click OK to continue.
  • Page 19 Mac OS At this point, if you have not saved all your work, please do so. Then, select continue to Install. Please wait for the installation process to complete. Select Finish when it is done and your computer will reboot. Setup Instructions: Mac - page 18 -...
  • Page 20 Mac OS CONNECTING TO YOUR WIRELESS NETWORK After your computer reboots, insert the HAWNU2 Adapter into an available USB port Insert the Adapter into an available USB Port. Then tighten the knobs and face the antenna side (three imprinted waves) toward your wireless source. Note: To make sure the HAWNU2 Adapter works properly, you must turn off any previously installed wireless card (including the built-in airport card.)
  • Page 21 Mac OS From the menu that appears, double click the NETWORK icon to begin enabling your Hawking wireless device before using the wireless utility. Your computer will automatically detect the USB Wireless-N adapter. Be sure to note the port number - i.e.
  • Page 22 Mac OS Mac OS 10.3-10.4 In the Network screen, click on the “Show” field, make sure the Ethernet Adapter (en... is selected. “Using DHCP” should be selected in the Configure IPv4 field. Mac OS 10.5 Leopard Finally, select “Apply Now” to confirm and close the window (if you cannot choose “Ap- ply Now”...
  • Page 23 The handshake icon ( ) means you are connected to the associat- ed network with the SSID next to the icon. (the example above shows the HAWNU2 is connected to a network with the name Hawking.) If you wish to connect to a different network, select the network you wish to connect to, either double click on it or click on the connect button.
  • Page 24 Mac OS 10. SECURITY When logging on to a secured network, the Wireless Utility will prompt you to enter the Encryption Key. If you are unsure about your security key, please contact your network administrator. Be sure to enter the correct Authentication Type and Encryption Type.
  • Page 25: Suction Mount

    Mounting Instructions Windows 7 & Vista Before mounting your Adapter, determine where M o u t i n g the wireless source is coming from and be sure to face the side with three waves toward your wireless source. Face this side toward the wireless source Suction Mount...
  • Page 26: Magnetic Mount

    Mounting Instructions To remove the suction cup, gently set the lever to the right side and lift up the suction cup Figure 1.3 Figure 1.3 Magnetic Mount The base has a built-in magnetic mount. Find a flat metal surface, such as a file cabinet, then place the magnetic base on the flat magnetic surface (Figure 2).
  • Page 27: Wall Mount

    Mounting Instructions Windows 7 & Vista Wall Mount M o u t i n g 1. Please check all parts shown in figure 4. Parts for Wall Mount Figure 4 2. Set up the plastic anchors (you might need to use a drill to place the anchors into your wall).
  • Page 28 SALES INFORMATION sales@hawkingtech.com Hawking is a registered trademark of Hawking Technologies, Inc. ©2010 Hawking Technologies, Inc. All rights reserved. Other brands and product names are trademarks or registered trademarks of their respective owners. Apple, Mac, and Airport are registered trademarks of Apple Computer, Inc, No affiliation is implied or expressed.
