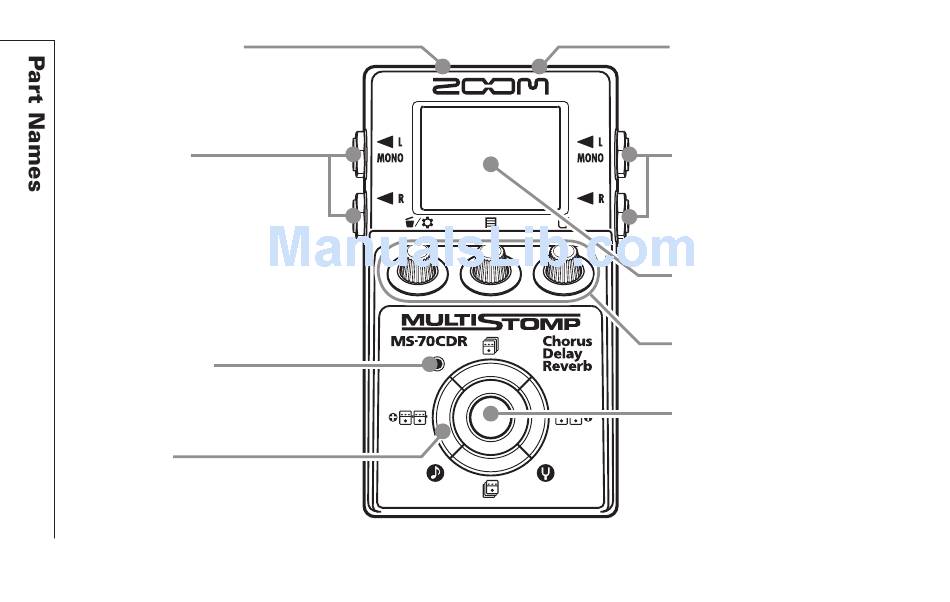

Part Names - Zoom Multistomp MS-70CDR Operation Manual

DC9V AC adapter jack
To power the unit from an outlet,
connect an AD-16 adapter here
(→P6).
OUTPUT jacks
Connect to an amp or another
effector.
Use the MONO jack for a mono
connection.
ON/OFF indicator
Lights when the current effect is ON.
Does not light when the effect is
OFF (→P8).
Cursor keys
(→P5)
4

Part Names

USB connector
Use to connect to a computer and
update firmware (→P23).
INPUT jack
Connect the output of a guitar,
bass, other electronic instrument or
effector here.
Use the MONO jack for a mono
connection.
Display
Shows the currently selected effect
and various other screens (→P7).
Parameter knobs
(→P5)
Footswitch
Turns the effect shown on the
display ON and OFF (→P8).
Press and hold for 1 second to open
the Tuner or Tap Tempo (→P14, 16).
