5-6

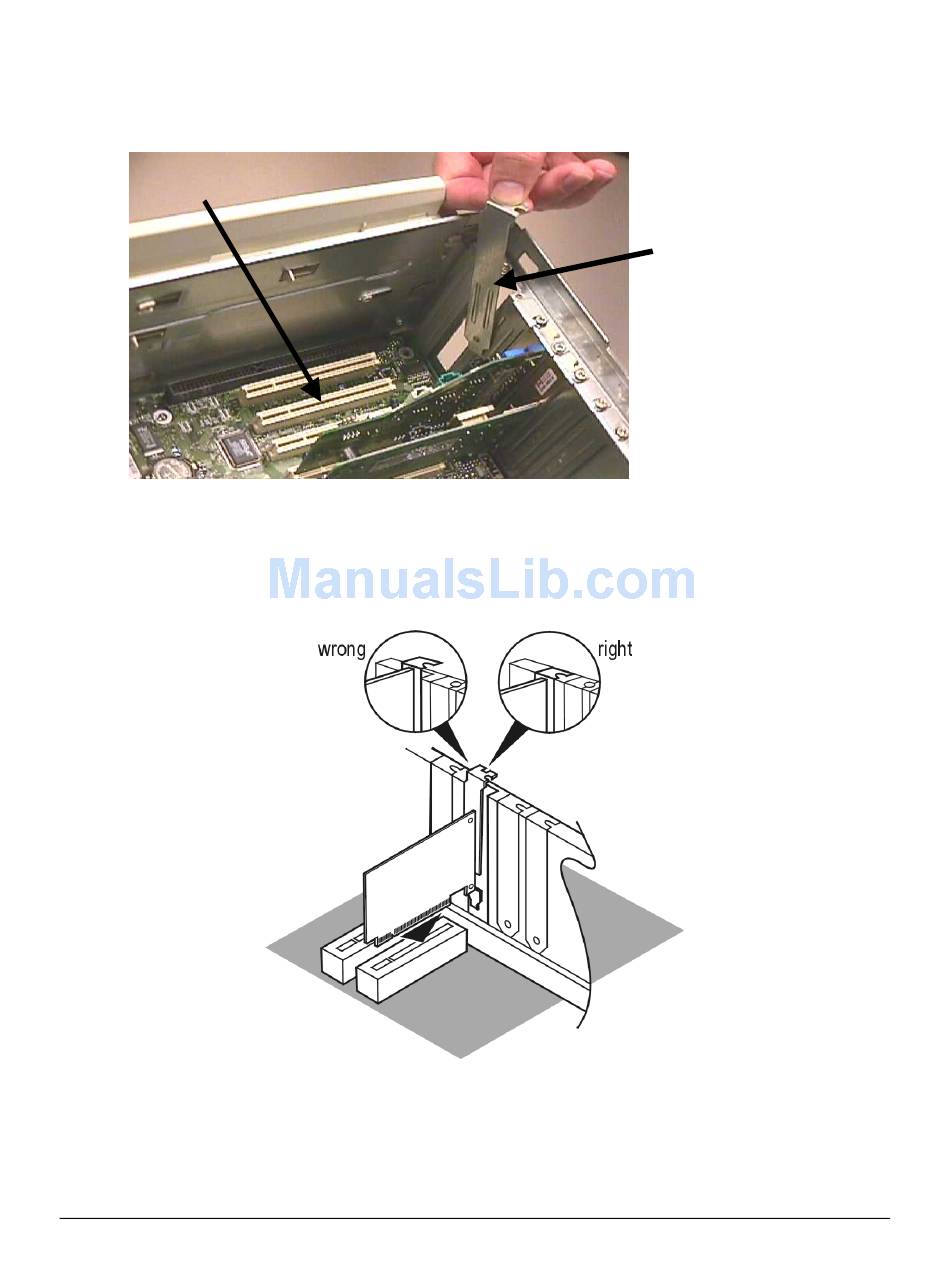

Remove the metal PCI slot cover from the unused PCI slot, and retain the screw.
PCI Slot
5-7
Carefully insert the Ethernet Adapter into any empty PCI slot. Make sure the card is
completely seated by pressing firmly.
5-8
Verify that the end bracket is flush against the chassis. Make sure the gold connectors
along the base of the Ethernet Adapter are completely and evenly inserted into the PCI
slot.
5-9
Fasten the card into the computer chassis with the screw you set aside earlier.
5-10
Replace the computer cover. Plug the power cord back into the electrical outlet and turn
on your PC, making sure the SBC Express CD is in the CD-ROM drive. Proceed to step
5-15.
Installation Guide for Customer Self-Install: Efficient Networks® 5260, Windows 95/98Me/2000
©2001 SBC Advanced Solutions, Inc. All rights reserved.
Remove PCI slot
cover
Page 15
