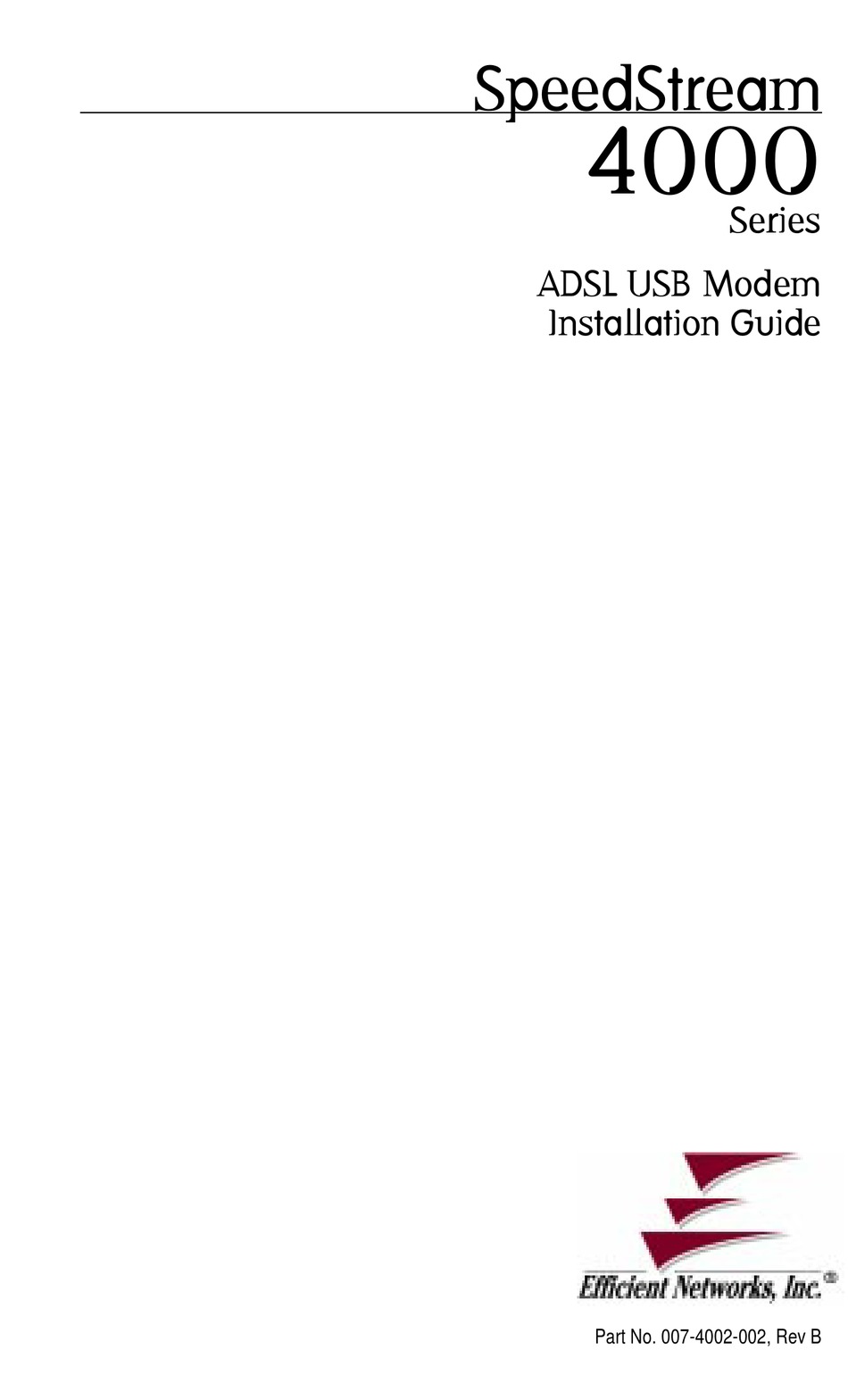

- Page 1 6SHHG6WUHDP 6HULHV $'6/ 86% 0RGHP ,QVWDOODWLRQ *XLGH Part No. 007-4002-002, Rev B...
- Page 2 This documentation and the accompanying computer programs (collectively, the Software) are licensed, not sold, to the End User by EFFICIENT NETWORKS, INC. (“ENI”) for use only under the following terms. ENI reserves any right not expressly granted to the End User. The End User owns the media on which the Software is recorded but ENI retains ownership of all copies of the Software itself.
- Page 3 If the NIC, USB or RAU does not function as warranted during the warranty period, Efficient Networks, Inc. will either repair the defective product or replace it with a new or remanufactured functionally equivalent product of equal value.
-
Page 4: Installation Requirements
Introduction About the 4000 Series Modems The SpeedStream 4000 series external Asymmetric Digital Subscriber Line (ADSL) modem provides a high-speed internet connectivity for a single PC running Windows 98. The modem sends and receives data over standard phone lines using Discrete Multi-tone (DMT) digital subscriber line (DSL) transmission. - Page 5 Classical IP over ATM Central Office Discrete Multi-tone Digital Subscriber Line Firmware Software, in binary form, stored within a flash PROM POST Power-On Self Test Point-to-Point Protocol Universal Serial Bus Virtual Private Networking About the 4000 Series Modems Efficient Networks, Inc.
-
Page 6: Hardware Installation
) as shown in the figure below. Open Here by Pulling out on Lip Ferrite Choke Attach choke by looping USB cable and clipping it on the doubled strand. Attach as close as possible to modem-end of USB cable. Efficient Networks, Inc. Installation Instructions... - Page 7 Green Unit is functional, ADSL line is connected and ATM cell delineation is present Hardware failure detected Blinking Yellow Modem in maintenance state (occurs with new firmware download or factory testing) Installation Instructions Efficient Networks, Inc.
-
Page 8: Software Installation
Software Installation Product Overview The SpeedStream 4000 Series Modem provides high-speed connectivity using Asynchronous Transfer Mode (ATM) over an Asymmetric Digital Subscriber Line (ADSL). There are two types of software that can be installed on the 4000-series modem: Point-to-Point Protocol (PPP) software driver •... - Page 9 This dialog indicates that an unknown device is Wizard installed. Insert the installation CD-ROM and click Next On the next dialog, the first option Search for the best driver for should be selected. your device (Recommended) PPP Driver Installation Efficient Networks, Inc.
- Page 10 On the next dialog, select only the checkbox labeled Specify a . Then click the button. location Browse In the browse list, locate your CD-ROM drive letter and double-click on it; then double-click the folder followed by the Ppp folder. Click Efficient Networks, Inc. PPP Driver Installation...
- Page 11 Click when you are finished. • Click Next Click the button to complete the configuration. Finish When the driver installation is complete, set up your dial-up connection as described in the next section. PPP Driver Installation Efficient Networks, Inc.
-
Page 12: Setting Up A Ppp Connection
Double-click on the connection icon. Enter a password. Select the “ ” button to create the Connect connection. A modem icon will appear on the taskbar when the connection has been established. Efficient Networks, Inc. PPP Driver Installation... - Page 13 This dialog indicates that an unknown device is Wizard installed. Insert the installation CD-ROM and click Next On the next dialog, the first option Search for the best driver for should be selected. your device (Recommended) CIP/1483 Driver Installation Efficient Networks, Inc.
- Page 14 On the next dialog, select only the checkbox labeled Specify a . Then click the button. location Browse In the browse list, locate your CD-ROM drive letter and double-click on it; then double-click the folder followed by the Cip-1483 folder. Efficient Networks, Inc. CIP/1483 Driver Installation...
- Page 15 You may need to configure a specific IP address or you can configure the system to obtain an IP address automatically. Follow your service provider’s instructions to configure the IP address of your system. CIP/1483 Driver Installation Efficient Networks, Inc.
- Page 16 C:\. Then log in as each individual user and copy the .dun files to the Dial-Up Networking Folder. Removing the Modem Software Disconnect the modem’s USB connector from your PC. Select then and open the Start Settings Control Panel From the Control Panel, select Network Efficient Networks, Inc. SpeedStream Status...
- Page 17 Select the tab, and select our product from the list. Configuration Click on the button and select to close the Remove Network dialog. When prompted, restart Windows. Removing the Modem Software Efficient Networks, Inc.
-
Page 18: Technical Reference
Technical Reference SpeedStream 4000 Series Specifications Size 5.56 in. x 7.3 in. x 1.75” (14.12 cm x 18.54 cm x 4.44 cm) Weight 2 lbs, 11 oz (1.2 Kg ) (includes modem, power supply and cable) Power (standard) Wall-mount AC to DC adapter. 10-21vDC @ 1.1 amp output.
