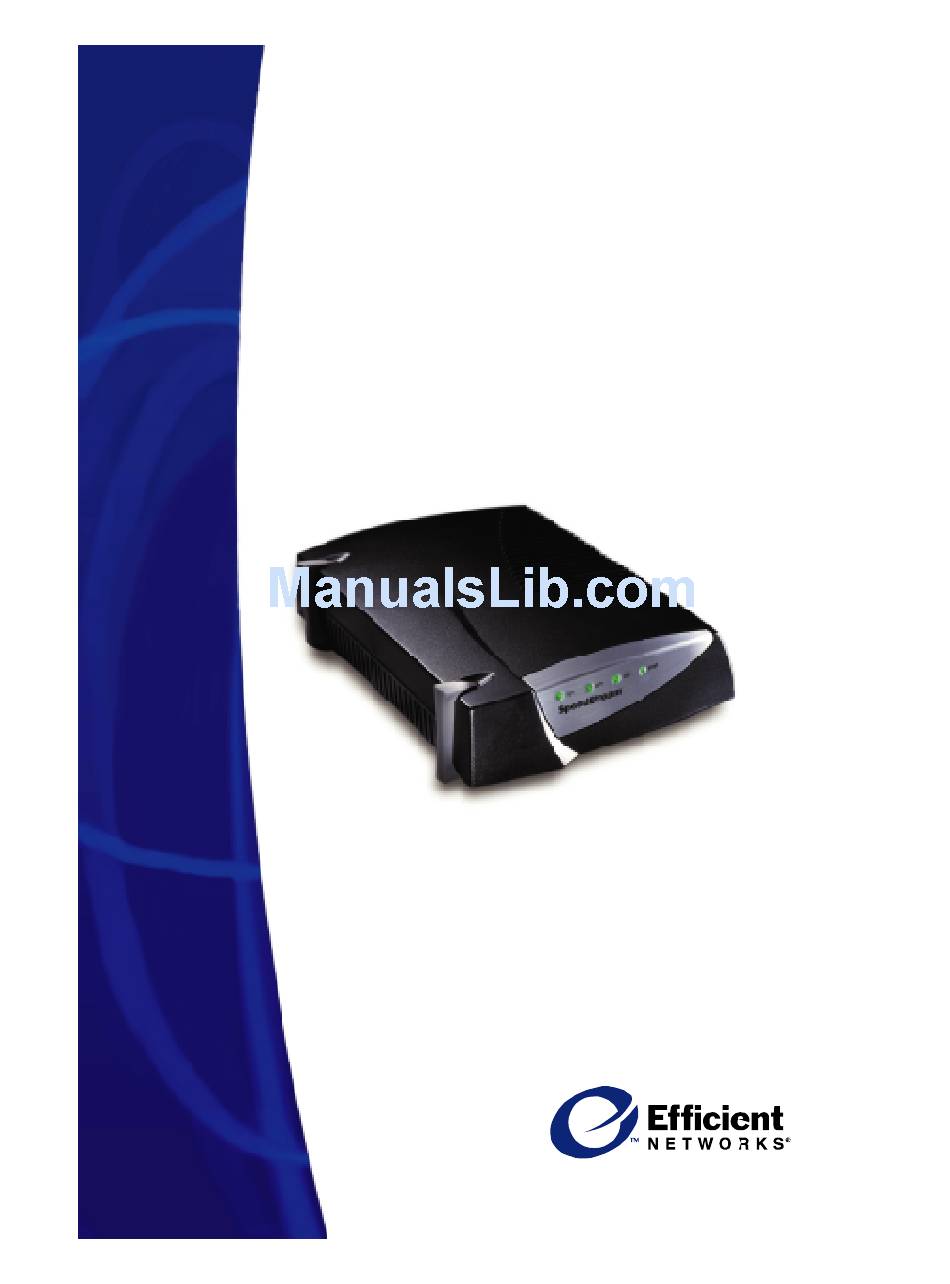

- Page 1 SpeedStream 5251/5260 ® DSL LAN Modem Quick-Start Guide 007-0066-002...
-
Page 2: Before You Begin
Before you begin: Verify that the following items came with your DSL kit: 5251 or 5260 Modem Documentation Power supply RJ-45 Ethernet cable R-11 DSL cable RJ-45 crossover straight-through (Xover) Ethernet cable Your service provider may include a wall-mount filter, two-to-one adapter(s), line filter(s), and an Ethernet adapter in your DSL kit. - Page 3 Step Step Install Line Filters Stand-alone Line Filter For each device that shares the DSL phone number: Unplug the device’s cord from the phone jack. Plug the filter into the phone jack. Plug the phone cord (or other device cord) into the filter.
- Page 4 Step Step Install the Ethernet Adapter You will need to install an Ethernet adapter if your computer does not already have one installed. Refer to your Ethernet adapter manufacturer’s documentation for complete installation instructions. Step Step Connect the DSL Modem With your computer off, connect the Ethernet Cable to the Ethernet port on the modem.
-
Page 5: Troubleshooting
Normal system ATM ready (occurs after Ready for data traffic Ethernet ready Green operation dsl goes solid green) Blinking: Blinking: Blinking: Line not ready Ethernet traffic flow ATM traffic flow For more information about Efficient Networks visit our website: www.efficient.com... -
Page 6: Specifications
Eight-contact, shielded RJ45 DSL Interface Connector: Two-contact, shielded RJ45 (pins 4 and 5) isolation per IEC 950. (Consult Efficient Networks for alternate available pinouts) Operating 18,000 feet max. at 192KB on standard 26 AWG copper pair wire distance: (varies by data transmission rate) - Page 7 5260 Specifications Size: 5.5" W x 7" D x 1.5" H (14 cm W x 17.8 cm D x 3.8 cm H) Weight: 1.25 lb. bridge only (0.57 kg) Power: Wall-mount 12 watt AC to DC adapter. 11-18vDC @ 1.1 amp output. AC input to meet country-specific input requirements.
- Page 8 ©2000 Efficient Networks, Inc. All rights reserved. Efficient Networks, its logos, and SpeedStream are registered and unregistered trademarks of Efficient Networks, Inc. All other brand names and trademarks are held by their respective companies. Efficient Networks reserves the right to make changes to product specifications at any time without notice.
