Summary of Contents for LG L1530TM

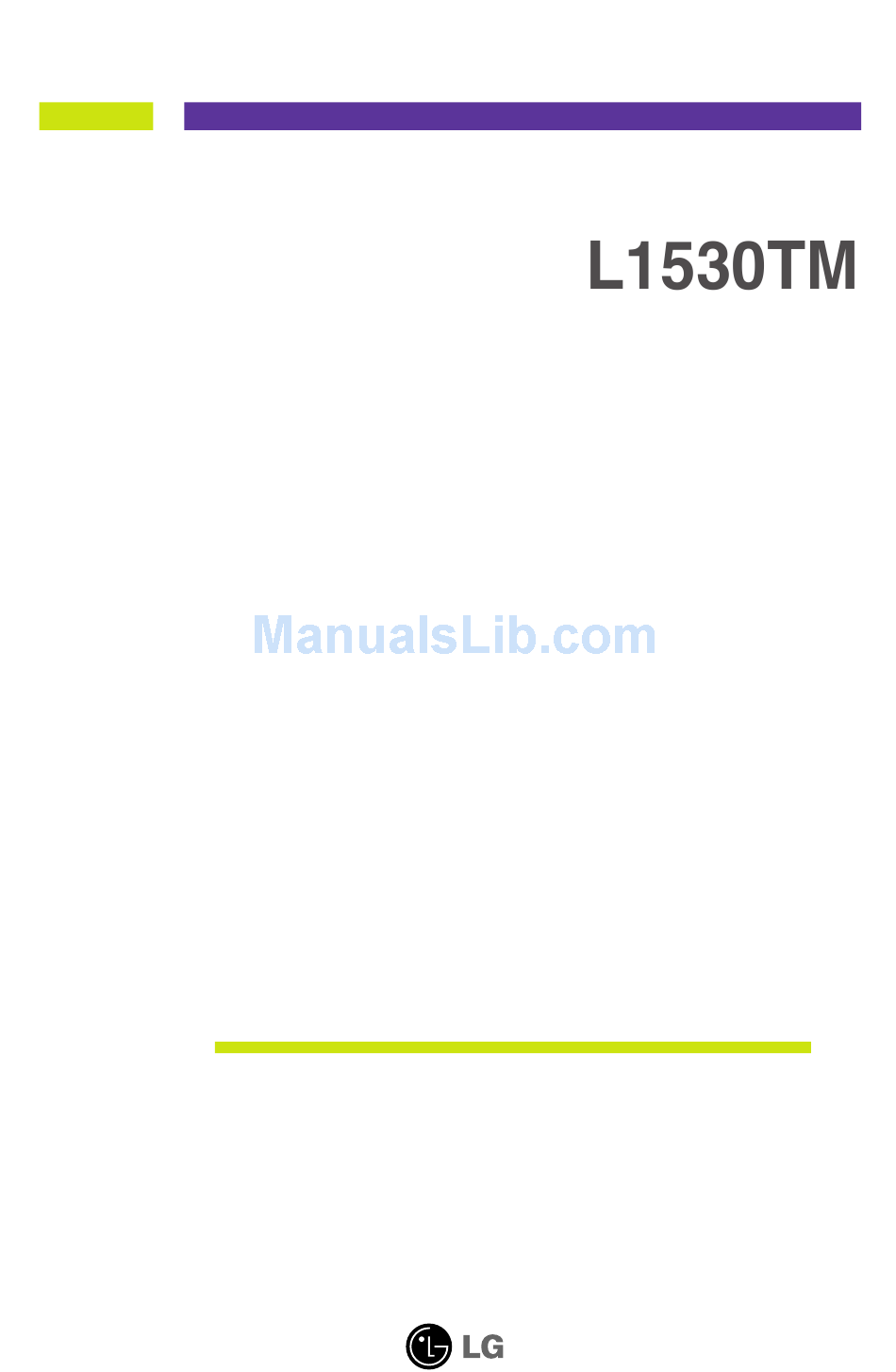

- Page 1 User’s Guide ake sure to read the Safety Precautions before using the product. Keep the User's Guide(CD) in an accessible place for furture reference. ee the label attached on the back cover and quote this information to your dealer when you require service.
-
Page 2: Table Of Contents
Table of Contents Safety Precautions Accessories Major Monitor Features How to Use a Stand Connecting to a PC Using a Tablet Monitor Installing USB Tablet Manager (tablet running driver) Using a Pen Tablet Application Software Screen Selection and Adjustment Adjustment on the OSD (On Screen Display) Screen OSD(On Screen Display) Screen Adjustment Adjusting Screen Picture/Color/Position Track/Factury Reset/Setup... -
Page 3: Safety Precautions
Safety Precautions If you ignore the warning message, you may be seriously injured or there is a possibility of accident or death. If you ignore the caution message, you may be slightly injured or the product may be damaged - Electrical shock, fire, malfunction or deformation may occur. - Anti-moisture material is harmful if swallowed. - Page 4 - You may be electrocuted or injured. - The monitor can be damaged, or you may be electrocuted. - You may be electrocuted or a fire can break out. - A fire can break out due to overheating. - You may be electrocuted due to excess moisture. - Covering dust can cause a fire, or insulation deterioration can cause electric leakage, electric shock or fire.
- Page 5 Safety Precautions - You may be electrocuted or the monitor can be damaged - If you drop the monitor, the damaged monitor can cause electric shock or fire. Contact with the service center for repair. - Fire or electric shock accident can occur. - Contact the service center for check, calibration or repair.
-
Page 6: Accessories A4
Accessories Please check all accessories are included in the monitor. * The actual monitor and accessories may look differently than shown in this manual. Monitor Back Door Pen Holder Pen/ Pen Content (2 ea.) User’s Manual 15-pin D-Sub Signal Battery (1 ea.)/ Pen Tweezers (1ea.) CD/Cards/Software CD Cable... -
Page 7: Major Monitor Features
Major Monitor Features Tablet Function You can write a letter or draw a picture using the electronic pen. Handwriting can also be saved as an image file, which allows intuitive use of the computer. Extending the handwriting recognition function, you can directly add a letter or a picture on the various document types including MS Word or PDF. -
Page 8: How To Use A Stand
How to Use a Stand Basic connection – using a stand You can adjust a stand angle by taking the following steps. Set your preferences. 18˚ Lift up the monitor panel to face upwards. Pull out and hold down the monitor * Maximum tilt angle: 18˚... - Page 9 How to Use a Stand You can separate a stand according to your own requirements. Put the monitor on a cushion Press the button ( Ease out the upper side of or soft cloth with the front screen at the rear of the monitor until the stand while holding down the facing downwards.
-
Page 10: Connecting To A Pc
Connecting to a PC Basic connection – connecting a signal input cable/power cord Hold the middle of the back door at the rear side of the monitor and push down to open. Connect the signal input cable first and then, power cord and USB cable When connecting with a D-Sub signal input cable/For IBM. - Page 11 Connecting to a PC Please refer to the following figure to tie up the cables. Once the cable is connected up as shown in the figure, it will be arranged properly, which facilitates stand angle adjustment. Close the back door when the connection is complete Press the Power button on the front side of the monitor to turn it on.
-
Page 12: Using A Tablet Monitor
Using a Tablet Monitor Installing USB Tablet Manager (tablet running driver) First, see if the signal input cable, power cord and USB cable are connected properly. Then, install the driver as described below. The main window will be automatically displayed when you insert the software CD into your CD-ROM driver, which is included in the User’s Manual. - Page 13 Using a Tablet Monitor : You can set the function of the pen side button. By default, the upper side of the side button (Side Button 2) triggers a double click event, whereas the lower side (Side Button 1) triggers a right mouse click event.
-
Page 14: Using A Pen
Using a Pen ON/OFF Button Pen Cab Side Button (Upper) Side Button (Lower) Pen Holder Pen Content [Inserting a Battery] [When Using a Pen] [When Keeping a Pen] Open the pen cab and insert the provided battery into it. Hold the pen as if you’re holding a normal pen or pencil. -
Page 15: Tablet Application Software
Using a Tablet Monitor Tablet Application Software Insert the software CD-ROM included in this manual into the PC DC-ROM drive. Then, the main window will be automatically populated. Click the icon of the software to install and follow the instructions displayed on the screen. Free Notes Free Notes is an exclusive document handling program that enables you to import the picture like a general word processor and modify a... - Page 16 Art Dabbler Art Dabbler from Corel, the specialized graphic tool vendor, allows you to present the graphics with rich texture selection and modification as well as various types of pens and colors. Its text input function enables you to enter the description on the picture, if necessary. The presented graphic can be saved with various formats.
-
Page 17: Screen Selection And Adjustment
Screen Selection and Adjustment Name of the Buttons on the Screen Adjustment Unit Screen at the front side Buttons at the rear side of the monitor of the monitor Power LED A green LED will be displayed in a normal operation mode, or an orange LED will be displayed in a power saving mode. - Page 18 Use this button to select the icon or make an adjustment in the OSD (On Screen Display) menu. When two computers are connected, use this button to select the input signal for the destination computer. If only one computer is connected, it will be recognized automatically. Use this button to select the optimized image conditions, depending on the surrounding environment (brightness, type of the image).
-
Page 19: Adjustment On The Osd (On Screen Display) Screen
Screen Selection and Adjustment Adjustment on the OSD (On Screen Display) Screen Press the MENU button to open the OSD screen. Adjust the OSD menu item using the button. When the menu icon is selected, press the AUTO/SET button Adjust the item values using the button. -
Page 20: Language Setup
OSD Adjustment Menu PICTURE Brightness You can adjust screen contrast and brightness Contrast Gamma PRESET You can set the preferred screen COLOR color GREEN BLUE H POSITION You can adjust screen position POSITION V POSITION CLOCK You can adjust screen clock and TRACKING phase PHASE... -
Page 21: Osd(On Screen Display) Screen Adjustment
Screen Selection and Adjustment OSD(On Screen Display) Screen Adjustment You were introduced to the procedure of selecting and adjusting an item using the OSD system. Listed below are the icons, icon names, and icon descriptions of the all items shown on the Menu. Press the MENU Button, then the main menu of the OSD appears. - Page 22 Main menu Sub menu Description PICTURE To adjust the brightness of the screen. To adjust the contrast of the screen. Set your own gamma value. : -50/0/50 On the monitor, high gamma values display whitish images and low gamma values display high contrast images.
-
Page 23: Factory Reset
Screen Selection and Adjustment Main menu Sub menu Description TRACKING T R A C K I N G To minimize any vertical bars or stripes visible on the screen background.The horizontal screen size will also change. To adjust the focus of the display. This item allows you to remove any horizontal noise and clear or sharpen the image of characters. -
Page 24: Lightview
Press the LIGHTVIEW( ) Button, then the main menu of the OSD appears. Main menu Sub menu Description LIGHTVIEW This feature lets you easily select the best desired image condition optimized to the environment (ambient illumination, image types etc). : Bright ambient illumination : Dark ambient illumination TEXT : For text images (Word processing etc.) MOVIE : For animation images in videos... -
Page 25: Troubleshooting
Troubleshooting The monitor is not working Make sure to connect the power cord to the monitor. See if the power switch is on. Adjust brightness ( ) and contrast ( ) again. If the monitor is in the power saving mode, move the mouse or press any key to activate the screen again. - Page 26 When the monitor is connected, the “Unknown Monitor” message appears • Install the provided monitor driver again or download the driver from the LG Electronics web site (http://www.lge.com). See if the plug & play function is supported by the video card by referring to the video card user’s...
- Page 27 Troubleshooting Tablet pen is not working normally • See if the tablet driver (USB Tablet Manager) is properly installed. (See the page A10) • See if the USB cable is connected properly. If you have connected the USB cable again, wait until the USB tablet icon appears on the Windows Task Bar before using the pen.
-
Page 28: Product Specification
Product Specification Product specification is subject to change without a prior notice to improve the product. Type 15 inch (38.0 cm) TFT (Thin Film Transistor) LCD (Liquid Crystal Display) Panel Size of Visible Diagonal Line: 38.0cm Pixel Pitch 0.297mm Max. Resolution Digital/Analog: 1024x768 @ 75 Hz Recommended Resolution 1024x768 @ 60 Hz Horizontal Frequency... - Page 29 Product Specification 31.468 640 x 350 31.468 720 x 400 31.469 640 x 480 35.000 VESA 66.67 640 x 480 37.861 VESA 72.8 640 x 480 37.500 VESA 640 x 480 VESA 35.156 56.25 800 x 600 VESA 37.879 800 x 600 VESA 48.077 800 x 600...
- Page 30 DVI-D T.M.D.S. Data 2- T.M.D.S. Data 2+ T.M.D.S. Data 2/4 Shield T.M.D.S. Data 4- T.M.D.S. Data 4+ DDC Clock DDC Data Analog Vertical Synchronization T.M.D.S. Data 1- T.M.D.S. Data 1+ T.M.D.S. Data 1/3 Shield T.M.D.S. Data 3- T.M.D.S. Data 3+ +5V Power Groundings (return for +5V, horizontal and vertical synchronization) Hot Plug Detect...
- Page 31 MEMO...
- Page 32 Digitally yours...
