User's Guide
M
ake sure to read the Important Precautions before using the product.
Keep the User's Guide(CD) in an accessible place for furture reference.
S
ee the label attached on the back cover and quote this information to your
dealer when you require service.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L1530S and is the answer not in the manual?

Questions and answers

Related Manuals for LG L1530S

Summary of Contents for LG L1530S

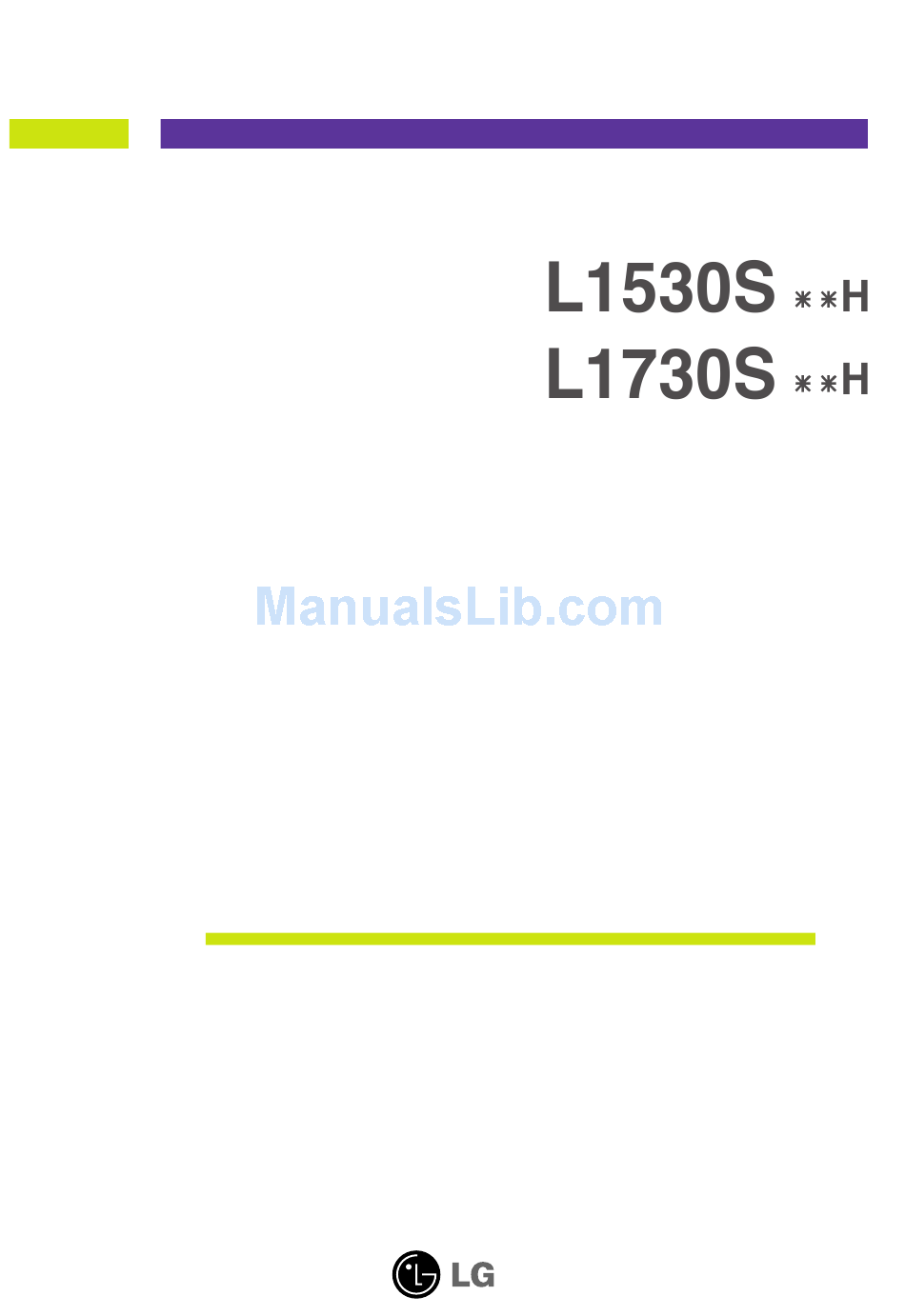

  • Page 1 User’s Guide ake sure to read the Important Precautions before using the product. Keep the User's Guide(CD) in an accessible place for furture reference. ee the label attached on the back cover and quote this information to your dealer when you require service.

  • Page 2: Important Precautions

    Important Precautions This unit has been engineered and manufactured to ensure your personal safety, however improper use may result in potential e shock or fire hazards. In order to allow the proper operation of all safeguards incorporated in this display, observe the following basic rules for its installation, use, and servicing.
  • Page 3 Important Precautions On Installation Do not allow anything to rest upon or roll over the power cord, and do not place the display where the power cord is subject to damage. Do not use this display near water such as near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool.

  • Page 4: Connecting The Display

    Connecting the stand base Place the monitor with its front facing downward on a cushion or soft cloth. Align the hooks on the stand base with the matching slots in the base of the monitor.

  • Page 5: Positioning Your Display

    Push down the top of monitor While pressing the PUSH button. Adjust the height. It is recommended that in order to maintain an ergonomic and comfortable viewing position, the forward tilt angle of the monitor should not exceed 5 degrees. 70.0mm PUSH Button...

  • Page 6: Using The Computer

    Connecting the Display Using the Computer Slide up the Sliding Door and tilt the monitor backward for easily connecting the cables. Connect the signal cable. When attached, tighten the thumbscrews to secure the connection. Connect the power cord into a proper power outlet that is easily accessible and close to the display.
  • Page 7 If you want to adjust the monitor while in use, or wish to manually run this function once again, push the ‘AUTO’ button on the front panel of the monitor. Otherwise, you may execute the ‘FACTORY RESET’...

  • Page 8: Front Panel Controls

    Control Panel Functions Front Panel Controls Bottom O S D V E R R O U I L L A G E O S D D E V E RROU IL LA GE E LightView SET/AUTO MENU Use this button to enter or exit the On Screen Display. This function allows you to lock the current control settings, so that they cannot be inadvertently changed.
  • Page 9 (display mode). The best display mode is 15 inch monitor : 17 inch monitor : R E G L A G E A U T O M A T I Q U E D E L ' I M A G E Use this button to turn the display on or off.

  • Page 10: Screen Adjustment

    Push the MENU Button twice to exit from the OSD. Automatic save With the OSD open, once you have made an adjustment the monitor automatically save any adjustments you have made, even if you exit the menu or open another menu. If you make an adjustment and then wait for the OSD to disappear, the adjustment will also been saved.
  • Page 11 On Screen Display(OSD) Selection and Adjustment The following table indicates all the On Screen Display control, adjustment, and setting menus. BRIGHTNESS PICTURE CONTRAST GAMMA PRESET COLOR GREEN BLUE H POSITION POSITION V POSITION CLOCK TRACKING PHASE FACTORY RESET FACTORY RESET WHITE BALANCE LANGUAGE SETUP...

  • Page 12: On Screen Display(Osd) Selection And Adjustment

    Press the MENU Button, then the main menu of the OSD appears. Menu Name Icons Sub-menus Button Tip OSD (On Screen Display) menu languages on the monitor may differ from the manual. MENU : Exit : Adjust (Decrease/Increase) : Enter...
  • Page 13 To adjust the brightness of the screen. To adjust the contrast of the screen. Set your own gamma value. : -50/0/50 On the monitor, high gamma values display whitish images and low gamma values display high contrast images. Select the screen color.

  • Page 14: Factory Reset

    Restore all factory default settings except If you want to reset the monitor, select the and then press the - or + button to execute. If the output of the video card is different the required specifications, the color level may deteriorate due to video signal distortion.
  • Page 15 On Screen Display(OSD) Selection and Adjustment Press the LIGHTVIEW( / ) Button, then the main menu of the OSD appears. Menu Name Icons Sub-menu Name Main menu LIGHTVIEW : Select another sub-menu To adjust the sub-menu function, Press the Button U S E R 1 : Exit : Decrease...

  • Page 16: Troubleshooting

    Troubleshooting Check the following before calling for service. No image appears No image appears Do you see a "OSD LOCKED" message on the screen? Check and see if the power cord is connected properly to the power outlet. Press the Power button. Adjust the brightness and the contrast.

  • Page 17: Display Image Is Incorrect

    Troubleshooting Display image is incorrect Press the button to automatically adjust your display image to the ideal setting. If the results are unsatisfactory, adjust the image position using the icon in the on screen display. Check and see if the frequency or the resolution were changed.

  • Page 18: Have You Installed The Display Driver

    Troubleshooting Have you installed the display driver? PICTURE and COLOR menus can not be activated from the OSD menu. Be sure to install the display driver from the display driver CD (or diskette) that comes with your display. Or, you can also download the driver from our web site: http://www.lge.com.

  • Page 19: Specifications

    Specifications 15 inches (38.1cm) Flat Panel Active matrix-TFT LCD Anti-Glare coating 15 inches viewable 0.3 mm pixel pitch Horizontal Freq. Vertical Freq. Input Form Signal Input Input Form Recommend DDC 2B Normal Stand-by/Suspend ≤ DPMS Off Width Height Depth Tilt Height AC 100-240V~ 50/60Hz 0.6A Operating Conditions...
  • Page 20 Specifications 17 inches (43.2cm) Flat Panel Active matrix-TFT LCD Anti-Glare coating 17 inches viewable 0.26 mm pixel pitch Horizontal Freq. Vertical Freq. Input Form Signal Input Input Form Recommend DDC 2B Normal Stand-by/Suspend ≤ DPMS Off Width Height Depth Tilt Height AC 100-240V~ 50/60Hz 1.0A Operating Conditions...

  • Page 21: Preset Modes (Resolution)

    Specifications Preset Modes (Resolution) 15 inch monitor Display Modes (Resolution) 640 x 350 720 x 400 640 x 480 VESA 640 x 480 VESA 640 x 480 VESA 640 x 480 VESA 800 x 600 VESA 800 x 600 VESA...
  • Page 22 Specifications Indicator MODE Normal Stand-by/Suspend DPMS Off LED Color green amber amber...
  • Page 23 This monitor meets VESA-compliant mounting interface pad specifications. Remove the Sliding Door. Please the monitor on a piece of cloth or other soft surface with the front side facing downward. Separate the stand base using a screwdriver as shown in the picture.
  • Page 24 Digitally yours...
