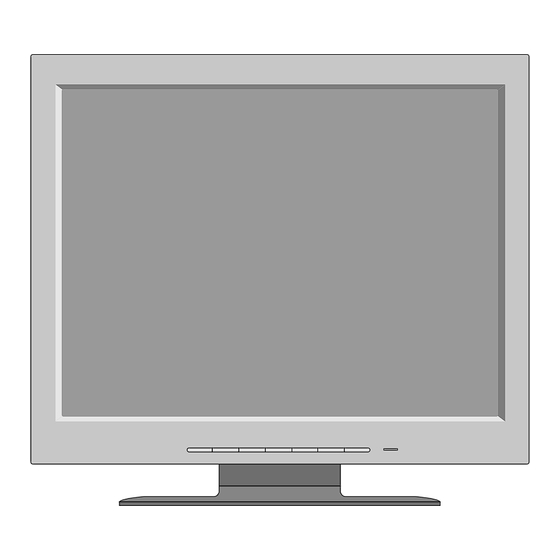

COLOR MONITOR

SERVICE MANUAL

CHASSIS NO. : CL-61
MODEL:
(
) **Same model for Service
CAUTION
BEFORE SERVICING THE UNIT,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
Website:http://biz.LGservice.com
E-mail:http://www.LGEservice.com/techsup.html
L1515S
(L1515SM-AL**R, AG**R)
L1515S(S)
(L1515SM-AG**S)
L1515S(K)
(L1515SM-AG**B)
*Same looking with new chassis

Advertisement

Table of Contents
loading

Related Manuals for LG FLATRON L1515S

Summary of Contents for LG FLATRON L1515S

  • Page 1: Color Monitor

    Website:http://biz.LGservice.com E-mail:http://www.LGEservice.com/techsup.html COLOR MONITOR SERVICE MANUAL CHASSIS NO. : CL-61 MODEL: L1515S (L1515SM-AL**R, AG**R) L1515S(S) (L1515SM-AG**S) L1515S(K) (L1515SM-AG**B) ) **Same model for Service CAUTION BEFORE SERVICING THE UNIT, READ THE SAFETY PRECAUTIONS IN THIS MANUAL. *Same looking with new chassis...

  • Page 2: Table Of Contents

    CONTENTS SPECIFICATIONS ........... 2 DESCRIPTION OF BLOCK DIAGRAM ....8 PRECAUTIONS ............3 ADJUSTMENT ............10 TIMING CHART ............4 TROUBLESHOOTING GUIDE ......12 OPERATING INSTRUCTIONS ........ 5 EXPLODED VIEW...........17 WIRING DIAGRAM ..........6 REPLACEMENT PARTS LIST .......18 BLOCK DIAGRAM ........... 7 SCHEMATIC DIAGRAM .........

  • Page 3: Precautions

    PRECAUTION WARNING FOR THE SAFETY-RELATED COMPONENT. WARNING BE CAREFUL ELECTRIC SHOCK ! • There are some special components used in LCD monitor that are important for safety. These parts are • If you want to replace with the new backlight (CCFL) or marked on the schematic diagram and the inverter circuit, must disconnect the AC adapter...

  • Page 4: Timing Chart

    TIMING CHART VIDEO SYNC Total Video Blanking Sync Back Front Sync Frequency MODE H / V Resolution Period Active Time Duration Porch Porch Polarity Clock ( E ) Time ( A ) ( B ) ( D ) ( F ) ( C ) 25.175 31.468 KHz...

  • Page 5: Operating Instructions

    OPERATING INSTRUCTIONS FRONT VIEW REAR VIEW Power Connect D-Sub Signal Connect See Front Control Panel Front Control Panel 1. Power ON/OFF Button Use this button to turn the monitor on or off. This feature lets you easily select the best desired image Power Indicator condition optimized to the environment (ambient illumination, image types etc.).

  • Page 6: Wiring Diagram

    CONTROLS LOCKED/UNLOCKED : MENU and This function allows you to secure the current control settings, so that they cannot be inadvertently changed. Press and hold the MENU button and button for 3 seconds: the message “CONTROLS LOCKED” appears. You can unlock the OSD controls at any time by pushing the MENU button and button for 3 seconds: the message “CONTROLS UNLOCKED”...

  • Page 7: Block Diagram

    BLOCK DIAGRAM - 7 -...

  • Page 8: Description Of Block Diagram

    DESCRIPTION OF BLOCK DIAGRAM 1. Video Controller Part. This part amplifies the level of video signal for the digital conversion and converts from the analog video signal to the digital video signal using a pixel clock. The pixel clock for each mode is generated by the PLL. The range of the pixel clock is from 25MHz to 135MHz.

  • Page 9: Lips Board Block Diagram

    LIPS Board Block Diagram 50 ~ 60Hz 100KHz HVDC INPUT RECTIFIER ENERGY OUTPUT RECTIFIER COMPONENTS AND FILTER TRANSFER AND FILTER LINE 100 ~ 240V SIGNAL PHOTO- COLLECTI CONTROL COUPLER CIRCUIT ISOLATION PRIMARY SECONDARY Operation description_LIPS 1. EMI components. This part contains of EMI components to comply with global marketing EMI standards like FCC, VCCI CISPR, the circuit included a line-filter, across line capacitor and of course the primary protection fuse.

  • Page 10: Adjustment

    ADJUSTMENT Windows EDID V1.0 User Manual 2. EDID Read & Write 1) Run WinEDID.exe Operating System: MS Windows 98, 2000, XP Port Setup: Windows 98 => Don’t need setup Windows 2000, XP => Need to Port Setup. This program is available to LCD Monitor only. 1.

  • Page 11: Service Osd

    SERVICE OSD 1) Turn off the power switch at the front side of the display. 2) Wait for about 3 seconds and press MENU, POWER switch with 1 second interval. 3) The SVC OSD menu contains additional menus that the User OSD menu as described below. a) MODULE : To select applied module.

  • Page 12: Troubleshooting Guide

    TROUBLESHOOTING GUIDE 1. NO POWER NO POWER (POWER INDICATOR OFF) CHECK POWER BOARD, AND FIND CHECK J705 OUT A SHORT POINT VOLTAGE PIN5, PIN6 (5V)? AS OPENING EACH POWER LINE CHECK CHECK 5VS LINE U501 PIN 8 Voltage (OPEN CHECK) (5V) ? NO PROBLEM CHECK KEY CONTROL...
  • Page 13 2. NO RASTER (OSD IS NOT DISPLAYED) – LIPS NO RASTER (OSD IS NOT DISPLAYED) J705 PIN5, PIN6 CHECK LIPS CHECK MICOM INV J705 PIN9 ON/OFF PORT. 1. CONFIRM BRIGHTNESS OSD CONTRL STATE. J705 PIN10 2. CHECK MICOM DIM-ADJ PORT CHECK PULSE AS CONTACTING SCOPE...
  • Page 14 3. NO RASTER (OSD IS NOT DISPLAYED) – MST9011B NO RASTER (OSD IS NOT DISPLAYED) U201 POWER PIN8, 114 CHECK U801 3.3V? 1. CHECK PIN122, 123 U201 SOLDERING CONDITION PIN122, 123 OSCILLATE AS 2. CHECK X501 12MHZ? 3. TROUBLE IN U201 U501 PIN43 IS 48KHz H-SYNC? CHECK CONNECTION LINE...
  • Page 15 4. TROUBLE IN DPM TROUBLE IN DPM CHECK CHECK PC R773, R775 PC IS NOT GOING (SYNC) ? INTO DPM OFF MODE CHECK CHECK H/V SYNC U501 PIN 43.44 LINE SYNC PULSE ? TROUBLE IN U501 - 15 -...
  • Page 16 - 16 -...

  • Page 17: Exploded View Parts List

    PWB(PCB) ASSEMBLY, POWER, 15" M-CHASSIS POWER TOTAL LIEN CHANG "A INTEGRATED LIPS" 6871TPT271A CONNECTOR ASSEMBLY, 20P H-H 140MM UL20276 PANEL LINK CABLE LM567D -LG PHILPS TFT COLOR Module 6631T11012R CONNECTOR ASSEMBLY, 20P H-H 120MM UL20276 UNIXTAR LB500J -CHIMEI TFT COLOR Module...

  • Page 18: Replacement Parts List

    REPLACEMENT PARTS LIST CAUTION: BEFORE REPLACING ANY OF THESE COMPONENTS, READ CAREFULLY THE SAFETY PRECAUTIONS IN THIS MANUAL. * NOTE SAFETY Mark AL ALTERNATIVE PARTS DATE: 2004. 2. 11. DATE: 2004. 2. 11. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION *S *AL LOC.
  • Page 19 DATE: 2004. 2. 11. DATE: 2004. 2. 11. *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION *S *AL LOC. NO. PART NO. DESCRIPTION / SPECIFICATION R209 0RJ1500D677 150 OHM 1/10 W 5% 1608 R/TP R745 0RJ4701D677 4.7K OHM 1/10 W 5% 1608 R/TP R210 0RJ1500D677 150 OHM 1/10 W 5% 1608 R/TP...

  • Page 20: Schematic Diagram

    SCHEMATIC DIAGRAM 1. SCALER - 20 -...
  • Page 21 2. MICOM - 21 -...
  • Page 22 3. POWER - 22 -...
  • Page 23 4. CONNECTOR & JACKS - 23 -...
  • Page 24 Feb. 2004 P/NO : 3828TSL097J Printed in Korea...
