- Page 1 FlexDock DX1, DX2, DX4 User Guide...
- Page 2 Intermec Technologies Corporation. Information and specifications contained in this document are subject to change without prior notice and do not represent a commitment on the part of Intermec Technologies Corporation. © 2011-2013 by Intermec Technologies Corporation. All rights reserved.
- Page 3 Document Change Record This page records changes to this document. The document was originally released as Revision 001. Version Number Date Description of Change 8/2013 Added support for the SF61 scanner. 3/2012 Added support for the PR2 and PR3 printers. 7/2011 Added support for the CK3, CN3, and CN4 computers.
- Page 4 FlexDock User Guide...
-
Page 5: Table Of Contents
Connect the DX1 ........ - Page 6 FlexDock User Guide...
-
Page 7: About The Flexdocks
The FlexDocks include the DX1 Desktop Dock, the DX2 Dual Dock, and the DX4 Quad Dock. DX1 Desktop Dock and DX2 Dual Dock: DX2 is also available with two product cups or two battery cups. FlexDock User Guide... -
Page 8: What You Need

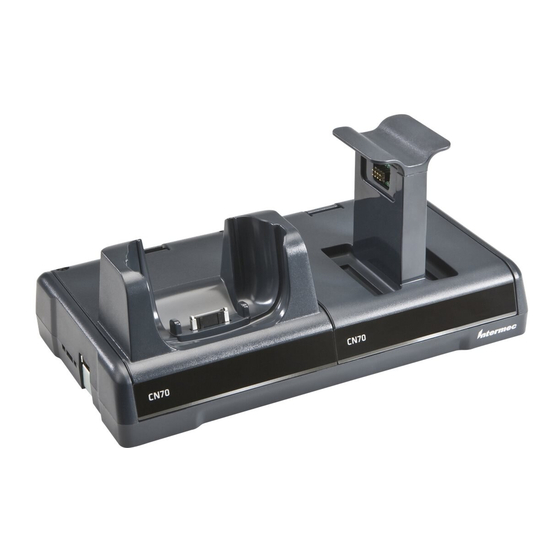

The DX1 Desktop Dock has one computer cup and one battery cup. You can connect the DX1 to a desktop PC through its USB port. Note: Use the optional Ethernet Adapter (P/N 871-238-001) to connect the DX1 to your network. Or, use the optional Modem Adapter (P/N 871-238-002) to connect the DX1 to a phone line. -
Page 9: Connect The Dx1
About the DX1 USB Ports Use the USB client port (requires a Micro-USB connector) to connect the DX1 to your desktop PC. The USB host port is intended for use with the Ethernet or Modem Adapter accessories. Other USB devices may not be supported. -
Page 10: Connect The Dx2
Optional Power Cord Retaining Clip for DX1 and DX2: DX1 shown here. Connect the DX2 To Ethernet devices (Ethernet docks only) To power To Ethernet supply network (Ethernet docks only) Note: To install the optional retaining clip for the power cord, see the previous section. -
Page 11: Connect The Dx4
Connect the DX4 To power supply To Ethernet To Ethernet devices network (Ethernet (Ethernet docks only) docks only) FlexDock User Guide... -
Page 12: Charge Batteries
Charge Batteries 1 Place the end of the battery into the battery cup. 2 Press the top of the battery under the tab on top of the cup. The Charge LED for that cup flashes slowly or stays on, indicating the current charge status. -
Page 13: Charge Computers, Printers, And Scanners
35 °C (41 °F to 95 °F). Flashing Amber Battery fault. Something is wrong with the battery, or you are trying to charge a battery not approved by Intermec. Note: If you place a battery in the cup and the Charge LED does not flash or stay on, the FlexDock may not be connected to power. -
Page 14: About The Ethernet Leds
About the Ethernet LEDs For the DX2 and DX4 Ethernet docks, the Ethernet LED turns on when a docked computer is communicating with the dock or with your Ethernet network. Ethernet LED Ethernet LED Descriptions (DX2 and DX4 Only) LED Color Description Steady Green Computer is communicating with the dock. -
Page 15: About Custom Configurations
If you need a custom configuration for your FlexDock, you can order a Desktop, Dual, or Quad Base without product or battery cups, and then order cups for your specific combination of Intermec products and batteries. You can also order blank covers for bays you are not using. -
Page 16: Troubleshoot The Flexdock
The SR61 scanner and the PR2/PR3 printer cups have been tested and certified for use with the Dual and Quad Bases. Note: For a list of certified products, please see the associated compliance insert, located on the Intermec website at www.intermec.com > Products > Computers > Handhelds >... -
Page 17: Optional Flexdock Accessories
Accessory Description Ethernet Adapter Connects the DX1 to your Ethernet network. Modem Adapter Connects the DX1 to your wired phone network. Computer, Printer, Additional computer, printer, scanner, and battery Scanner, and Battery cups mount in the FlexDock for custom Cups configurations. - Page 18 Worldwide Headquarters 6001 36th Avenue West Everett, Washington 98203 U.S.A. tel 425.348.2600 fax 425.355.9551 www.intermec.com © 2013 Intermec Technologies Corporation. All rights reserved. FlexDock User Guide *934-058-005* P/N 934-058-005...
