Crestron PT-AMFMXM Quick Start Manual

PT-AMFMXM
1

Introduction

The PT-AMFMXM is three radios in one: AM, FM, amd XM. Listen
to AM or FM in high quality while simultaneously enjoying com-
mercial free XM radio in a completely different room. Crestron
radio technology delivers easy control and a crystal clear signal in
an easy to integrate package.
Intelligent Control
• Station, artist and song information is displayed on any
Prodigy touchpanel
®
• Select favorite stations from any touchpanel around the house
Versatile Radio
Multiple radios in one unit.
• Listen to AM or FM in one room while listening to XM in
another
• Station presets provide instant access to favorite programs
Expands Any System
Whole home audio distribution made easy.
• Add the PT-AMFMXM to a Prodigy system whenever
budget allows
• Connect to an existing AV receiver or a PAMP-4X100
Processor Amplifier
XM Satellite Radio
XM offers more than 170 satellite radio channels of commercial-
free music and premier sports, news, talk, and entertainment. XM
is broadcast via satellites to millions of listeners across the
continental United States. XM subscribers listen to XM on satellite
radio receivers for the car, home, and portable use. More
information about XM is available online at www.xmradio.com.
Listeners can subscribe by visiting XM on the Web at
www.xmradio.com or by calling XM's Listener Care at
(800) 967-2346. Customers should have their Radio ID and credit
card ready. The Radio ID can be found by selecting channel 0 on
the radio.
1
For Regulatory Compliance information, refer to the latest
version of Doc. 6964.
QUICKSTART DOC. 6963B (2027132)
Radio Tuner
2

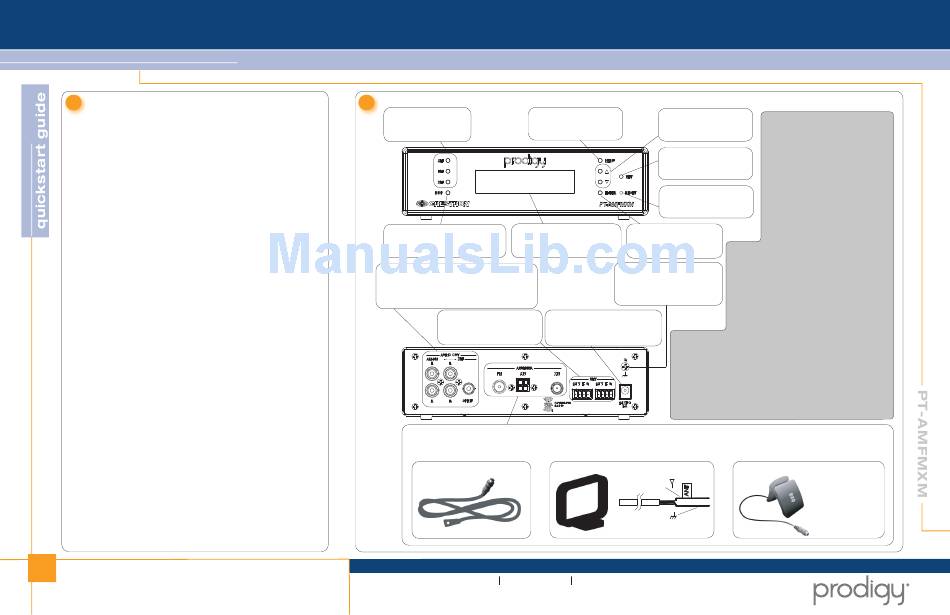

Connection and Control

BAND SELECTION
Press AM, FM, or XM
® to select radio band
DISP
Press DISP to display information
about the tuned station
AUDIO OUT
CONNECTS TO:
Unbalanced stereo line level audio outputs
connect to PAMP-4X100 or other amplifiers
ANTENNA (FM, AM, and XM)
CONNECTS TO:
Included antennae.
FM
www.crestron.com/prodigy
07.10
©2010 Specifications subject to
change without notice.
MENU
Press to display options
for selected tuner
LCD DISPLAY
Displays information on tuned
station and menu options
G
CONNECTS TO:
Ground Lug on PAMP-4X100
or AV Receiver
NET PWR
CONNECTS TO: CONNECTS TO:
Other Prodigy components AC power via included adapter
AM Connector End of AM Antenna
888.273.7876 201.767.3400
All brand names, product names, and trademarks
are the property of their respective owners.
J and K
Notes on Antenna Orientation:
Press to tune or scroll
through menu options
AM: Orient the AM loop antenna so
that the flat surface of the loop
antenna faces the metropolitan area
NET LED
originating the broadcast signals. This
Indicates communication
is particularly necessary when signals
with PMC2
are weak. If you are not aware of the
source or directions of the signals to
RESET BUTTON
which you will listen, simply rotate the
Press to reset loop antenna in clear space for
PT-AMFMXM maximum signal strength. The
supplied antenna has a folding stand
that allows the antenna to stand on a
ENTER
flat surface.
Press to confirm displayed
FM: The recommended FM antenna is an
selection
outdoor type available in electronics stores. Use
the included FM antenna if an outdoor antenna
cannot be used. The included antenna may
require reorientation if the signal is weak. Best
results can occur if the length of the antenna
faces the metropolitan area from which the
desired FM signal originates. The supplied
antenna has a fitting at its end that will enable
you to fasten it in place.
XM: Aim the antenna toward the southern sky, where the satellite
is located. If the antenna is placed outdoors, it should be in an
area where there are no obstacles within 20 to 60 degrees of
elevation facing the southern sky. The antenna should be placed
on a flat surface that is parallel to the ground. If the antenna is
placed where obstacles such as buildings or trees are in the path
to the satellite, the antenna may not receive radio waves from the
satellite. Certain areas provide satellite radio ground repeaters
that retransmit satellite radio signals. Extension cables are
available from Crestron.
XM
Attach to XM port using
included adapter
Connect to
Connect to
