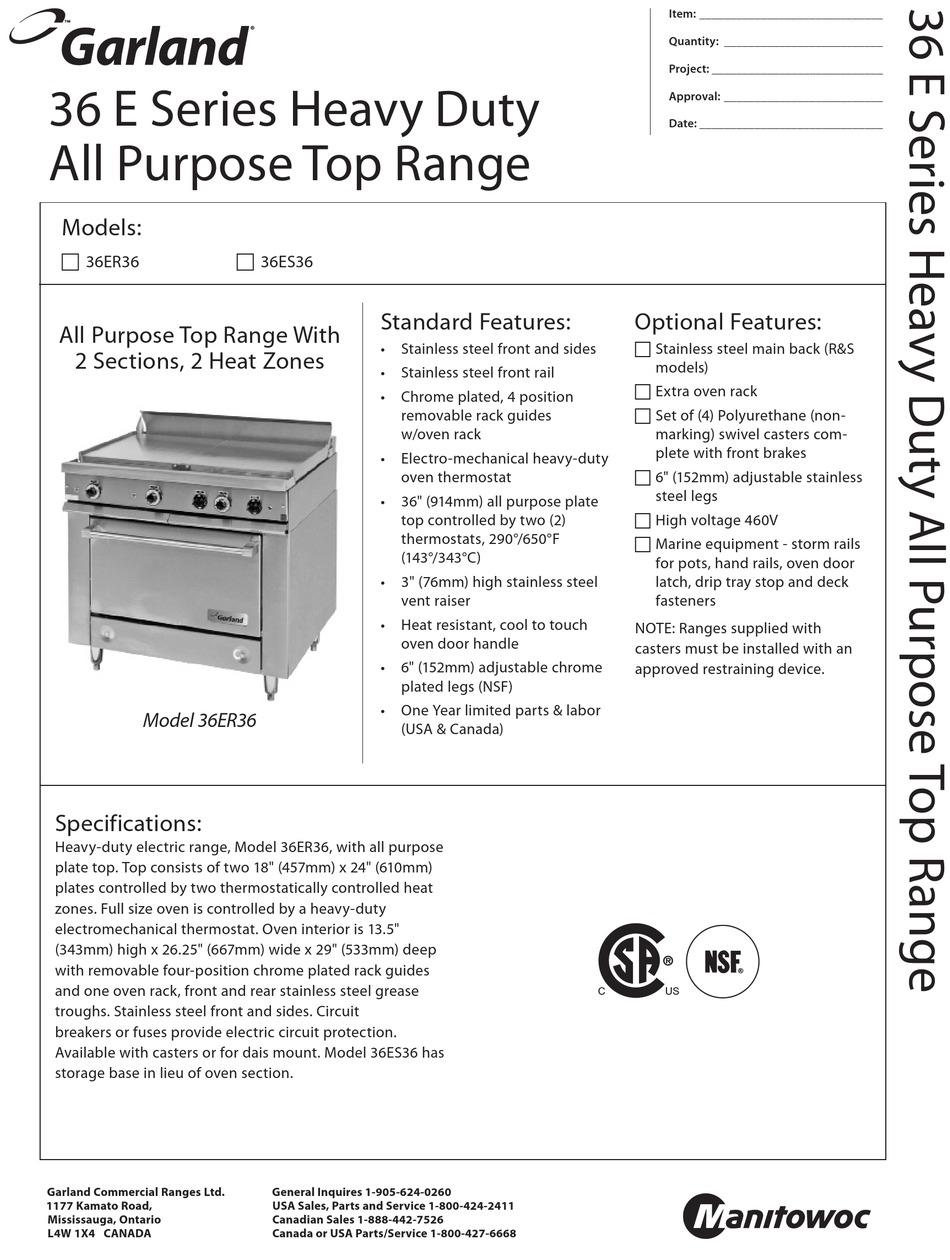

Garland 36ER36 Quick Manual

36 E Series Heavy Duty
All Purpose Top Range
Models:
 36ER36
All Purpose Top Range With
2 Sections, 2 Heat Zones

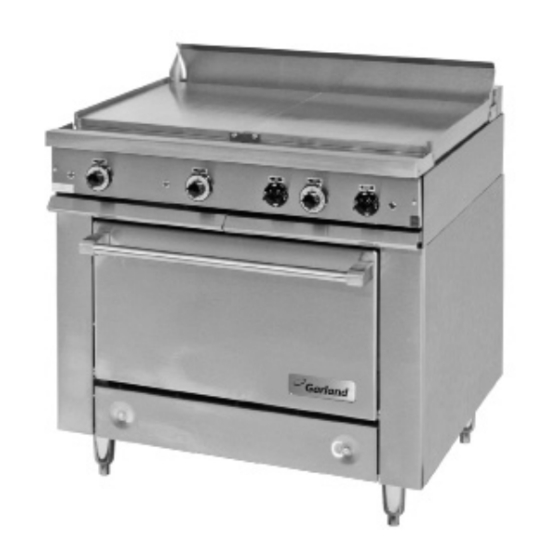

Model 36ER36

Specifications:

Heavy‑duty electric range, Model 36ER36, with all purpose
plate top. Top consists of two 18" (457mm) x 24" (610mm)
plates controlled by two thermostatically controlled heat
zones. Full size oven is controlled by a heavy‑duty
electromechanical thermostat. Oven interior is 13.5"
(343mm) high x 26.25" (667mm) wide x 29" (533mm) deep
with removable four‑position chrome plated rack guides
and one oven rack, front and rear stainless steel grease
troughs. Stainless steel front and sides. Circuit
breakers or fuses provide electric circuit protection.
Available with casters or for dais mount. Model 36ES36 has
storage base in lieu of oven section.
Garland Commercial Ranges Ltd.
1177 Kamato Road,
Mississauga, Ontario
L4W 1X4 CANADA
 36ES36
Standard Features:
• Stainless steel front and sides
• Stainless steel front rail
• Chrome plated, 4 position
removable rack guides
w/oven rack
• Electro‑mechanical heavy‑duty
oven thermostat
• 36" (914mm) all purpose plate
top controlled by two (2)
thermostats, 290°/650°F
(143°/343°C)
• 3" (76mm) high stainless steel
vent raiser
• Heat resistant, cool to touch
oven door handle
• 6" (152mm) adjustable chrome
plated legs (NSF)
• One Year limited parts & labor
(USA & Canada)
General Inquires 1-905-624-0260
USA Sales, Parts and Service 1-800-424-2411
Canadian Sales 1-888-442-7526
Canada or USA Parts/Service 1-800-427-6668
Item: ______________________________
Quantity: __________________________
Project: ____________________________
Approval: __________________________
Date: ______________________________
Optional Features:
 Stainless steel main back (R&S
models)
 Extra oven rack
 Set of (4) Polyurethane (non‑
marking) swivel casters com‑
plete with front brakes
 6" (152mm) adjustable stainless
steel legs
 High voltage 460V
 Marine equipment ‑ storm rails
for pots, hand rails, oven door
latch, drip tray stop and deck
fasteners
NOTE: Ranges supplied with
casters must be installed with an
approved restraining device.
®
C US
