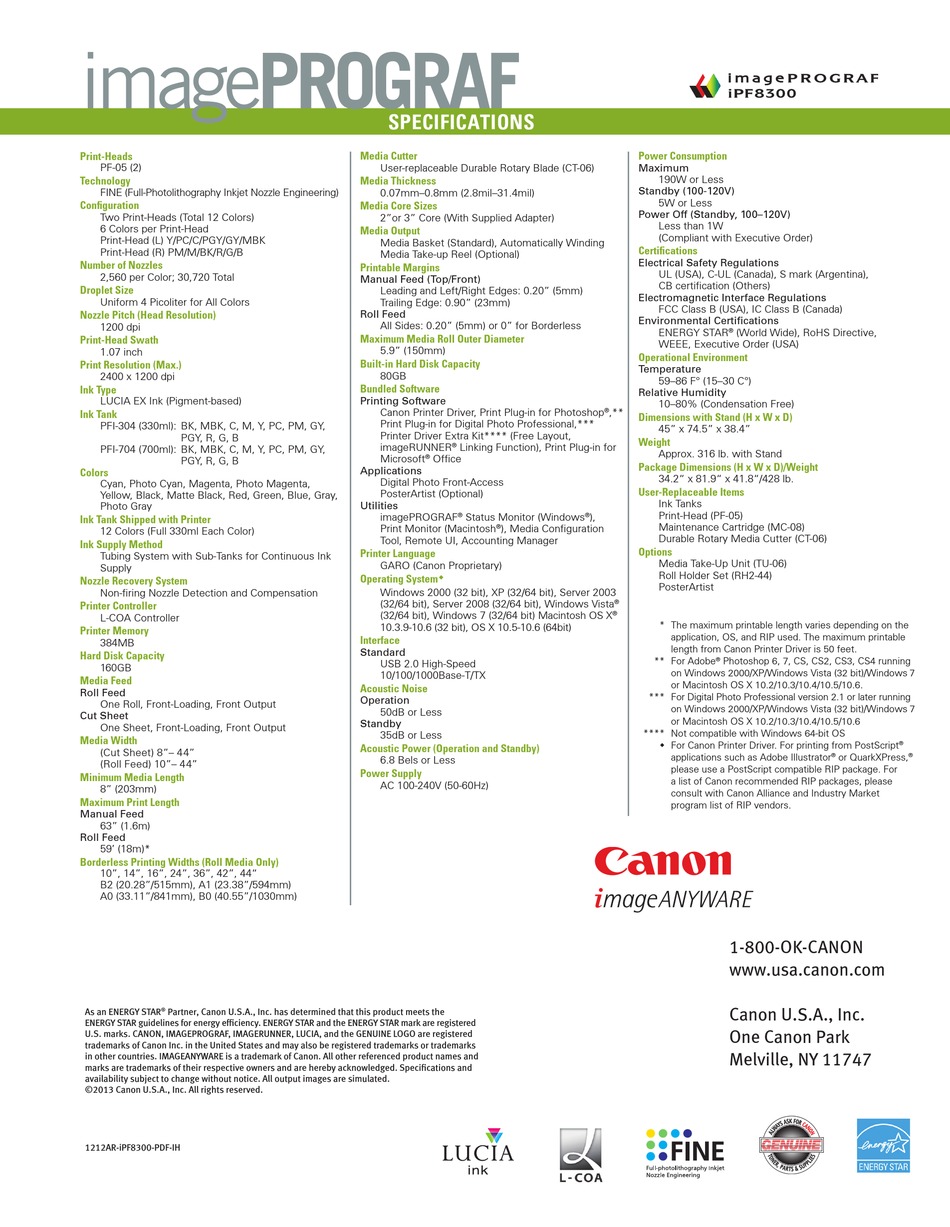

Canon imagePROGRAF iPF8300 Specifications page 2

imagePROGRAF
Print-Heads
PF-05 (2)
Technology
FINE (Full-Photolithography Inkjet Nozzle Engineering)
Configuration
Two Print-Heads (Total 12 Colors)
6 Colors per Print-Head
Print-Head (L) Y/PC/C/PGY/GY/MBK
Print-Head (R) PM/M/BK/R/G/B
Number of Nozzles
2,560 per Color; 30,720 Total
Droplet Size
Uniform 4 Picoliter for All Colors
Nozzle Pitch (Head Resolution)
1200 dpi
Print-Head Swath
1.07 inch
Print Resolution (Max.)
2400 x 1200 dpi
Ink Type
LUCIA EX Ink (Pigment-based)
Ink Tank
PFI-304 (330ml): BK, MBK, C, M, Y, PC, PM, GY,
PGY, R, G, B
PFI-704 (700ml): BK, MBK, C, M, Y, PC, PM, GY,
PGY, R, G, B
Colors
Cyan, Photo Cyan, Magenta, Photo Magenta,
Yellow, Black, Matte Black, Red, Green, Blue, Gray,
Photo Gray
Ink Tank Shipped with Printer
12 Colors (Full 330ml Each Color)
Ink Supply Method
Tubing System with Sub-Tanks for Continuous Ink
Supply
Nozzle Recovery System
Non-firing Nozzle Detection and Compensation
Printer Controller
L-COA Controller
Printer Memory
384MB
Hard Disk Capacity
160GB
Media Feed
Roll Feed
One Roll, Front-Loading, Front Output
Cut Sheet
One Sheet, Front-Loading, Front Output
Media Width
(Cut Sheet) 8"– 44"
(Roll Feed) 10"– 44"
Minimum Media Length
8" (203mm)
Maximum Print Length
Manual Feed
63" (1.6m)
Roll Feed
59' (18m)*
Borderless Printing Widths (Roll Media Only)
10", 14", 16", 24", 36", 42", 44"
B2 (20.28"/515mm), A1 (23.38"/594mm)
A0 (33.11"/841mm), B0 (40.55"/1030mm)
As an ENERGY STAR Partner, Canon U.S.A., Inc. has determined that this product meets the
®
ENERGY STAR guidelines for energy efficiency. ENERGY STAR and the ENERGY STAR mark are registered
U.S. marks. CANON, IMAGEPROGRAF, IMAGERUNNER, LUCIA, and the GENUINE LOGO are registered
trademarks of Canon Inc. in the United States and may also be registered trademarks or trademarks
in other countries. IMAGEANYWARE is a trademark of Canon. All other referenced product names and
marks are trademarks of their respective owners and are hereby acknowledged. Specifications and
availability subject to change without notice. All output images are simulated.
©2013 Canon U.S.A., Inc. All rights reserved.
1212AR-iPF8300-PDF-IH
SPECIFICATIONS
Media Cutter
User-replaceable Durable Rotary Blade (CT-06)
Media Thickness
0.07mm–0.8mm (2.8mil–31.4mil)
Media Core Sizes
2"or 3" Core (With Supplied Adapter)
Media Output
Media Basket (Standard), Automatically Winding
Media Take-up Reel (Optional)
Printable Margins
Manual Feed (Top/Front)
Leading and Left/Right Edges: 0.20" (5mm)
Trailing Edge: 0.90" (23mm)
Roll Feed
All Sides: 0.20" (5mm) or 0" for Borderless
Maximum Media Roll Outer Diameter
5.9" (150mm)
Built-in Hard Disk Capacity
80GB
Bundled Software
Printing Software
Canon Printer Driver, Print Plug-in for Photoshop
Print Plug-in for Digital Photo Professional,***
Printer Driver Extra Kit**** (Free Layout,
imageRUNNER ® Linking Function), Print Plug-in for
Microsoft Office
®
Applications
Digital Photo Front-Access
PosterArtist (Optional)
Utilities
imagePROGRAF ® Status Monitor (Windows
Print Monitor (Macintosh ), Media Configuration
®
Tool, Remote UI, Accounting Manager
Printer Language
GARO (Canon Proprietary)
Operating System 
Windows 2000 (32 bit), XP (32/64 bit), Server 2003
(32/64 bit), Server 2008 (32/64 bit), Windows Vista
(32/64 bit), Windows 7 (32/64 bit) Macintosh OS X
10.3.9-10.6 (32 bit), OS X 10.5-10.6 (64bit)
Interface
Standard
USB 2.0 High-Speed
10/100/1000Base-T/TX
Acoustic Noise
Operation
50dB or Less
Standby
35dB or Less
Acoustic Power (Operation and Standby)
6.8 Bels or Less
Power Supply
AC 100-240V (50-60Hz)
Power Consumption
Maximum
190W or Less
Standby (100-120V)
5W or Less
Power Off (Standby, 100–120V)
Less than 1W
(Compliant with Executive Order)
Certifications
Electrical Safety Regulations
UL (USA), C-UL (Canada), S mark (Argentina),
CB certification (Others)
Electromagnetic Interface Regulations
FCC Class B (USA), IC Class B (Canada)
Environmental Certifications
ENERGY STAR (World Wide), RoHS Directive,
®
WEEE, Executive Order (USA)
Operational Environment
Temperature
59–86 F° (15–30 C°)
Relative Humidity
10–80% (Condensation Free)
® ,**
Dimensions with Stand (H x W x D)
45" x 74.5" x 38.4"
Weight
Approx. 316 lb. with Stand
Package Dimensions (H x W x D)/Weight
34.2" x 81.9" x 41.8"/428 lb.
User-Replaceable Items
Ink Tanks
Print-Head (PF-05)
® ),
Maintenance Cartridge (MC-08)
Durable Rotary Media Cutter (CT-06)
Options
Media Take-Up Unit (TU-06)
Roll Holder Set (RH2-44)
PosterArtist
®
®
* The maximum printable length varies depending on the
application, OS, and RIP used. The maximum printable
length from Canon Printer Driver is 50 feet.
** For Adobe Photoshop 6, 7, CS, CS2, CS3, CS4 running
®
on Windows 2000/XP/Windows Vista (32 bit)/Windows 7
or Macintosh OS X 10.2/10.3/10.4/10.5/10.6.
*** For Digital Photo Professional version 2.1 or later running
on Windows 2000/XP/Windows Vista (32 bit)/Windows 7
or Macintosh OS X 10.2/10.3/10.4/10.5/10.6
**** Not compatible with Windows 64-bit OS
 F or Canon Printer Driver. For printing from PostScript
applications such as Adobe Illustrator
please use a PostScript compatible RIP package. For
a list of Canon recommended RIP packages, please
consult with Canon Alliance and Industry Market
program list of RIP vendors.
