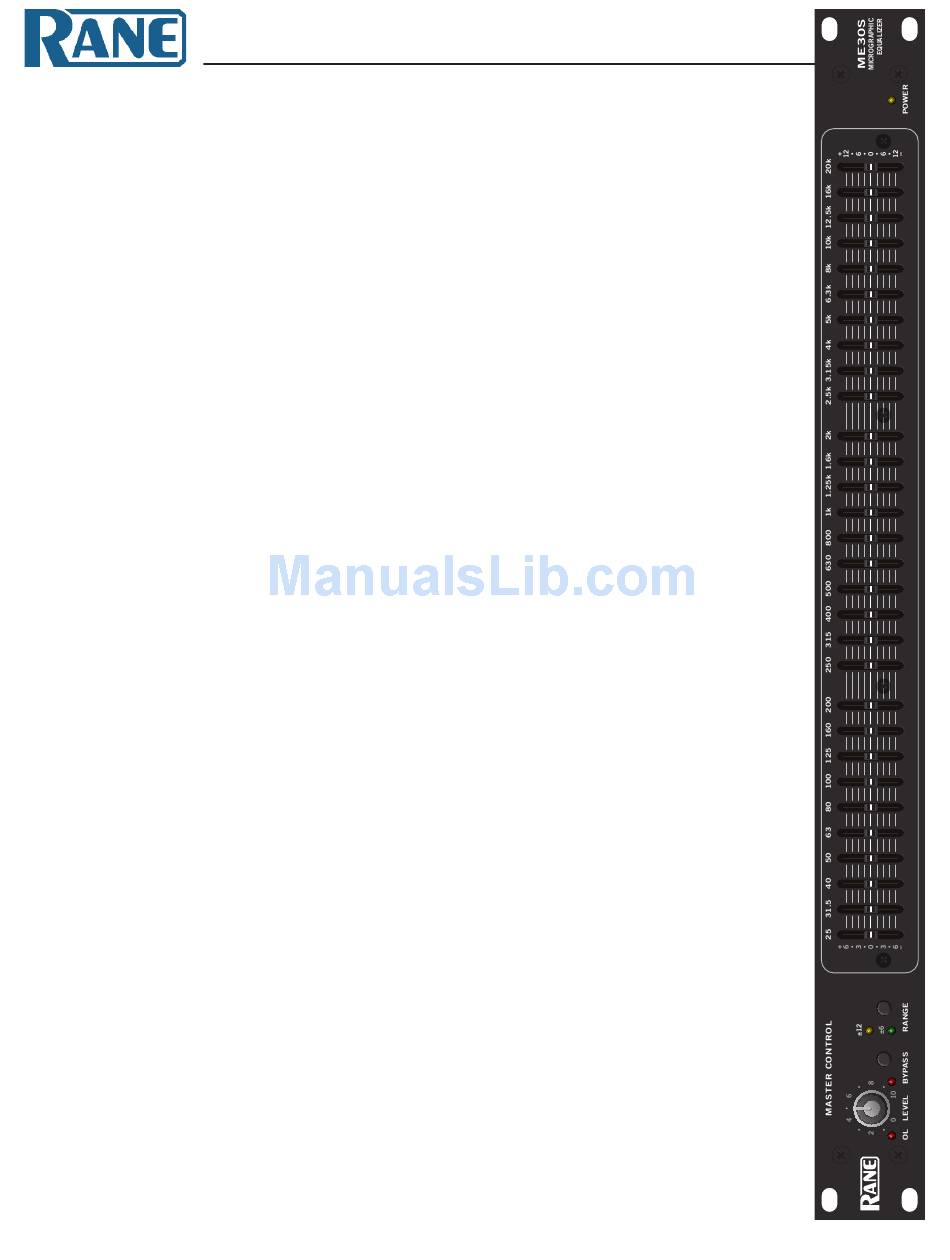

- Page 1 ME30S microGRAPHIC EQUALIZER...
-
Page 2: Important Safety Instructions
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. CAUTION: Changes or modifications not expressly approved by Rane Corporation could void the user's authority to operate the equipment. This Class B digital apparatus complies with Canadian ICES-003. -
Page 3: Quick Start
Anyone familiar with other graphic equalizers finds the Hook-up is intuitive. Just follow the silkscreened instructions ME30S just as familiar. Setting curves is as easy as it is on all on the rear of the unit. Polarity convention is per IEC/ANSI/ Rane graphics thanks to our innovative constant-Q circuitry. -
Page 4: Front Panel Description
POWER 1 LEVEL control: Sets the level of signal coming into the ME30S. Turn this control down if the OverLoad LED lights up steadily (meaning too strong an Input signal). Since actual unity gain depends on varying slider settings (which is why we have not marked a unity gain position on the front panel), use the BYPASS switch to determine the exact unity gain position of this LEVEL control by comparing EQ and BYPASS volumes. -
Page 5: Rear Panel Description
1 XLR INPUT jack: Accommodates balanced signals. Rane adheres to the international and U.S. standard for balanced pin con- figurations: Pin 1 is chassis ground (neutral), pin 2 is hot (positive), and pin 3 is signal return (negative). Choose between this and the ¼"... - Page 6 ©Rane Corporation 10802 47th Ave. W., Mukilteo WA 98275-5000 TEL 425-355-6000 FAX 425-347-7757 WEB rane.com Manual-4 109721...
