- Page 1 MP 22z CLUB MIXER...
-
Page 2: Important Safety Instructions
10. Protect the power cord and plug from being walked on or pinched particularly at plugs, convenience receptacles, and the point where it exits from the apparatus. 11. Only use attachments and accessories specified by Rane. 12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. -
Page 3: Quick Start
QUICK START If you won’t read the manual (we know how it is) here are a few basic “plug it in and get signal thru it” facts. The MP 22z has all unbalanced RCA connectors, except for the XLR & ¼" Mic Inputs, ¼" Mic Loop, and the balanced ¼" TRS Master Outputs. Be sure your amplifier is off... -
Page 4: Front Panel Description

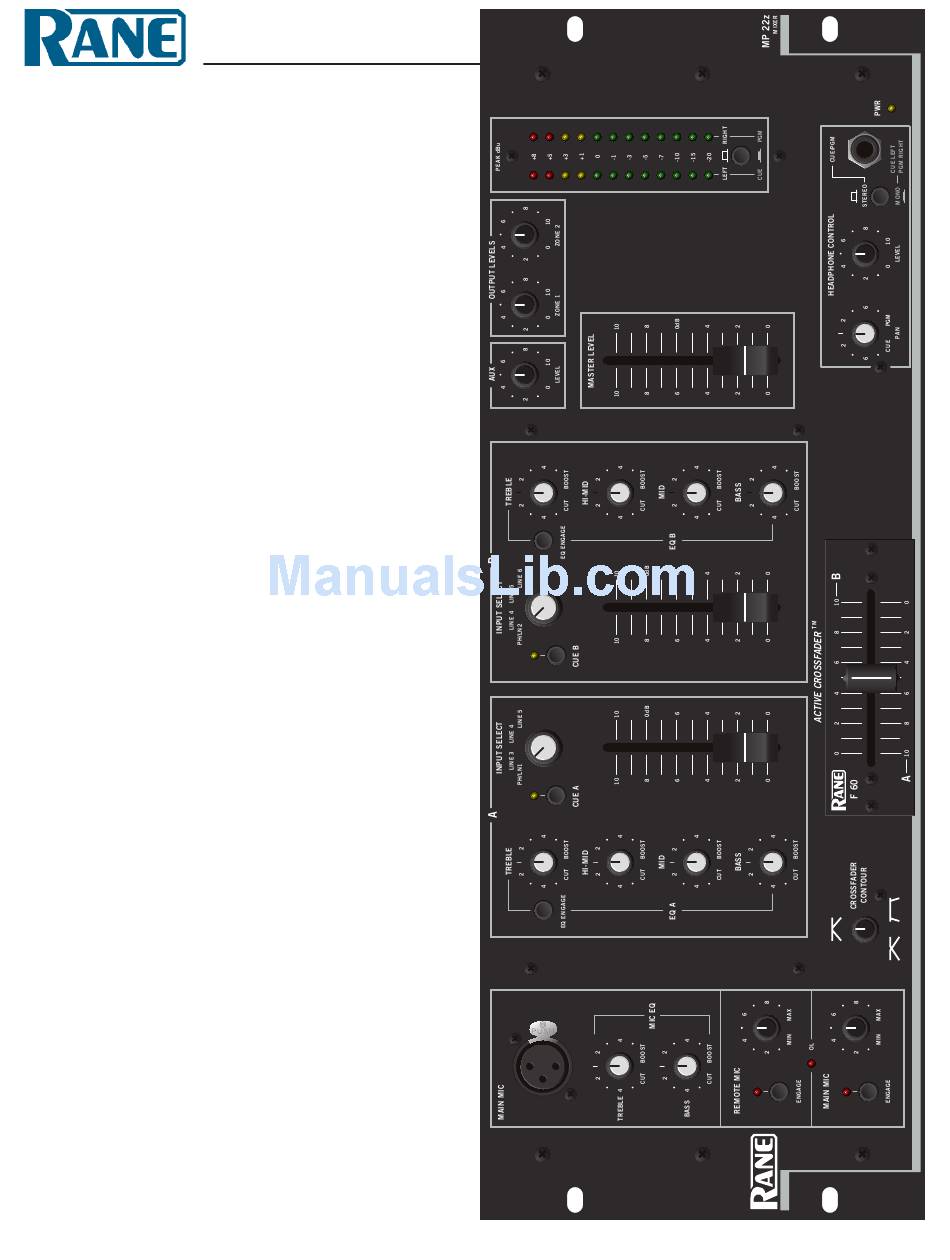

BOOST BOOST BOOST MIC EQ EQ A EQ B BASS BOOST BOOST BOOST LEFT RIGHT REMOTE MIC BASS BASS MP 22z MIXER BOOST BOOST ENGAGE MAIN MIC HEADPHONE CONTROL CUE/PGM F 60 CROSSFADER CONTOUR STEREO ENGAGE CUE LEFT LEVEL MONO PGM RIGHT 1 Front panel MAIN MIC input: Use this XLR connector for connecting a balanced microphone of any impedance. -
Page 5: Fader Cleaning
Mono Cue to the Left ear and Mono Program to the Right ear. d HEADPHONE Output jack: A ¼" tip-ring-sleeve stereo jack delivers signal to stereo headphones. f POWER “ON” indicator: Illuminates when the MP 22z is connected to an appropriate power source (see Rear Panel r). FADER CLEANING... -
Page 6: Rear Panel Description
POWER input connector: This is not a telephone jack! Connect an 18 volt AC center-tapped transformer only. Use only a Rane model RS 1, shipped with the unit, or other RS 1 compatible power supply approved by Rane. -
Page 7: Important Note
If you are connecting balanced devices (3-conductor) to panel and sums with the other signals before the Master and either the Input or Output of the MP 22z, consult the included Zone Level controls. RaneNote “Sound System Interconnection” for proper wiring The Main Mic Input on the front panel allows use of a goose- procedures. - Page 8 ENGAGE switch again to its up position, extinguishing the CD on each player. Now lower the TRIM on the louder player (the other one should be up all the way) so the MP 22z meter LED. Should the microphone preamp become overloaded, the peaks match for both players.
