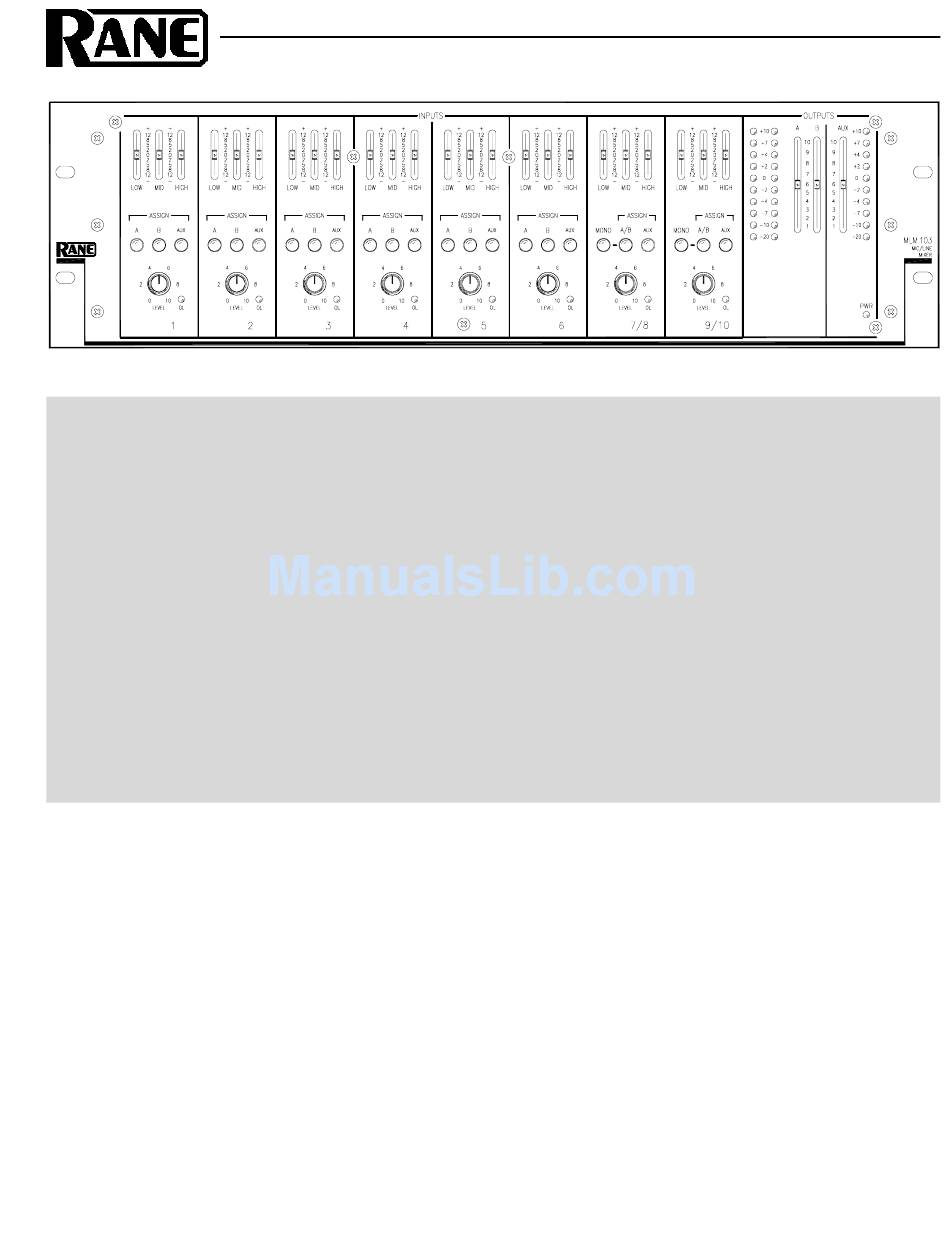

OPERATORS MANUAL

QUICK START

If you don't get any further, at least read this section to get the best gain structure out of the MLM 103.
INPUTS 1 through 6 may be microphone or line level. The choice between the two is made by setting the Input's LINE
push-button on the rear panel.
Push the PHANTOM POWER button (when needed) for each pair of Inputs.
Using a screwdriver, adjust the TRIM for each Input so that the front panel OL LED illuminates only occasionally
during extreme peaks. The three-band Equalizer settings will influence this, so keep an eye on the OL when making EQ
adjustments. Now adjust the LEVEL for each Input.
Assign each Input to the desired Output by pushing any combination of the A, B, or AUX ASSIGN buttons.
INPUTS 7/8 and 9/10 are stereo line level Inputs.
Assign each stereo input to the desired output as follows:
When the A/B ASSIGN button is engaged and the MONO button is not engaged, INPUT 7 (or 9) is routed to the A
Output, while INPUT 8 (or 10) is routed to the B Output.
When the both the A/B ASSIGN and MONO buttons are engaged, both Inputs of 7/8 (or 9/10) will route to both the A
and B Output.
The AUX ASSIGN button is always a mono mix of the stereo channel.

MLM 103 CONNECTION

INPUTS

The MLM 103 has ten balanced Euroblock Inputs. Use
only shielded cable. For best noise rejection use two-conduc-
tor-plus-shielded wire, even for unbalanced operation.
Connect the non-inverting (positive) audio lines to the "+"
terminals, and the inverting (negative) lines to the "–"
terminals. Connect the shields to the "ground" terminals.
For those installations where the MLM 103's internal
shield-to-chassis connection causes interference, connect the
shields directly to chassis PEM nuts directly above each pair
of Euroblock connectors. Be sure to bite through the paint
with the star washer and keep the shields wrapped around the
audio conductors as mush as possible. For the "theoretical"
best ElectroMagnetic Interference (EMI) immunity, connect
the shields at both ends of the cables. (For more information
WEAR PARTS: This product contains no wear parts.
on connections, see RaneNote 110, "Sound System Intercon-
nection" later in this manual or on Rane's web site.)
MONO INPUTS 1-6 can accept either mic or line level
sources. When connecting line level signals, push the rear
panel button in for LINE. For mic signals, be sure the button
is in the MIC (out) position.
STEREO INPUTS 7/8 and 9/10 accept line level stereo
and mono sources.

OUTPUTS

The MLM 103's OUTPUTS (and DIRECT OUTPUTS)
are balanced. The same wiring conventions as the Euroblock
Inputs apply.
MLM 103
MIC/LINE MIXER
Manual-1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MLM 103 and is the answer not in the manual?

Questions and answers

Summary of Contents for Rane MLM 103

  • Page 1: Quick Start

    QUICK START If you don't get any further, at least read this section to get the best gain structure out of the MLM 103. INPUTS 1 through 6 may be microphone or line level. The choice between the two is made by setting the Input’s LINE push-button on the rear panel.
  • Page 2: Front Panel Description

    FRONT PANEL DESCRIPTION Equalizer level controls are used to contour the frequency response of the desired Input. Mic/Line OUTPUT ASSIGN buttons. When the A button is engaged, the Mic/Line Input’s audio is routed to Output A. When the B button is engaged, the Mic/Line Input’s audio is routed to Output B. When the AUX button is engaged, the Mic/Line Input’s audio is routed to the Aux Output.
  • Page 3: Rear Panel Description

    REAR PANEL DESCRIPTION MIC/LINE INPUT TRIM controls 1-6 adjust the input gain of the Mic/Line Inputs. The gain range for Mic level is 15 to 60 dB. The gain range for Line level is 0 to 12 dB. LINE/mic INPUT buttons 1-6 switch the sensitivity and input impedance for either a microphone or line input. Mic level is selected when the button is in the “out”...
  • Page 4 After all of the Mic/Line and Stereo Input Levels have been adjusted and routed, adjust the OUTPUT faders so the Meters peak average around 0 to +2. ©Rane Corporation 10802 47th Ave. W., Mukilteo WA 98275-5098 TEL (425)-355-6000 FAX (425)-347-7757 WEB http://www.rane.com Manual-4 104195...
