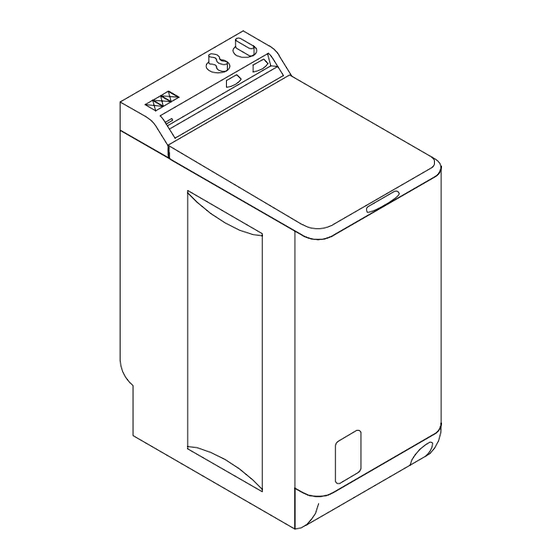

Zanussi TL493 Instruction Book

Washing machine tl 493
Hide thumbs

Advertisement

Quick Links

Z Z Z Z Z ANUSSI
ANUSSI
ANUSSI
ANUSSI
ANUSSI
LAVADORA AUTOMÁTICA
WASHING MACHINE
TL 493
MANUAL DE INSTRUCCIONES
INSTRUCTIONS BOOK
146 0568 03

Advertisement

loading

  Related Manuals for Zanussi TL493

  Summary of Contents for Zanussi TL493

  • Page 1 Z Z Z Z Z ANUSSI ANUSSI ANUSSI ANUSSI ANUSSI LAVADORA AUTOMÁTICA WASHING MACHINE TL 493 MANUAL DE INSTRUCCIONES INSTRUCTIONS BOOK 146 0568 03...
  • Page 2: Table Of Contents

    CONTENTS For the user For the installer Safety instructions 22/23 Technical information Description of the appliance Installation Use of your appliance Unpacking Operating instructions 26/27 Installation Programme chart 28/29 Levelling Hints & Tips 30-32 Moving of the appliance Cleaning and maintenance Water connection If something doesn't work 34/35...
  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS You must read the whole of this instruction book Small and delicate objects (e.g. baby socks, before you use the appliance. Follow the advice stockings) can be easily washed inside a small carefully. Keep the book for future reference. If you pillowcase with a zip fastener or in larger sell or give away the appliance, make sure that the socks.
  • Page 4 Safeties Lid : your washing machine is equipped with a safety avoiding the switching of the appliance when the flapdoors of the drum are opened ; the closure of the lid is so impossible. An electromechanic safety prohibits the opening of the lid when the washing machine works and 2 minutes after the end of the programme.
  • Page 5: Description Of The Appliance

    DESCRIPTION OF THE APPLIANCE Temperature selector Timer Control panel Pushbuttons Handle for opening lid Lever for castors Trap door for lint filter Detergent dispenser Symbols ( ) Washing powder for programmes with pre-wash (1). ( ) Washing powder or liquid detergent for the main wash (2).
  • Page 6: Use Of Your Appliance

    USE OF YOUR APPLIANCE The control panel Never turn the programme selector when the appliance is working. 1 ON/OFF pushbutton " " 5 Programme selector Press the ON/OFF pushbutton, the programme It enables to select the most adapted programme starts : the control lamp lights on. to the nature and degreees of soil of your laundry.
  • Page 7: Operating Instructions

    OPERATING INSTRUCTIONS Before using your appliance for the first time, we recommend that you do a preliminary wash with the machine empty, as a precaution to clean the drum, the tub and the detergent dispenser. 1. Pour a dose of detergent in the “washing” compartment. 2.
  • Page 8: Select The Temperature

    5. Press the half load pushbutton " " and/or rinse hold pushbutton " " if required. 6. Select the temperature Choose the temperature which corresponds to the chosen programme, with the help of the indica- tions or the programme table, according to the fibers and the fastness of the colours.
  • Page 9: Programme Chart

    PROGRAMMES CHART Programmes for cotton/linen Maximum load : 4,5 kg (cotton) Programmes description Temperatures Detergent Water Time in dispensers (°C) consumption minutes to use in liters Whites with prewash 60 - 90 Whites without prewash( ) 60 - 90 Resistant coloureds 40 - 60 Delicate coloureds 30 - 40...
  • Page 10 Programmes for synthetics/delicates/wool Maximum loads : 2,0 kg (synthetics), 1 kg (wool). Programmes description Temperatures Detergent Water Time in dispensers (°C) consumption minutes to use in liters Resistant synthetics 30 - 60 with prewash Resistant synthetics 30 - 60 without prewash Delicate synthetics - 40 Wool...
  • Page 11: Hints And Tips

    HINTS AND TIPS Resistant white and coloured synthetics can Washing hints normally be washed at 60°C but also in this case You are advised not to leave your laundry too long, 40°C is sufficient if the laundry is not excessively especially when damp.
  • Page 12: Liquid Detergents

    To remove paint stains, for example, use a volatile Liquid detergents substance such as turpentine: in this case, you Using the new automatic dispenser for liquid should wait for it to dry completely before washing. detergents, it is possible to use a liquid detergent The manufacturer of your washing machine is not for main wash phases if you start the washing responsible for any damage deriving from the use...
  • Page 13 Wasch code symbols These symbols appear on fabric label, in order to help you choose the best way to treat your laundry. Strong wash Max. wash Temperature 60°C Temperature 40°C Temperature 30°C Hand wash Temperature 95°C Do not wash Delicate wash at all BLEACHING Bleach in cold water...
  • Page 14: Cleaning And Maintenance

    CLEANING AND MAINTENANCE Make sure that the machine is unplugged and the water tap turned off before undertaking any kind of maintenance. Bodywork The outside or the machine can be cleaned with warm water and a neutral non-abrasive household detergent. Wipe with clean water and dry after cleaning.
  • Page 15: If Something Doesn't Work

    IF SOMETHING DOESN'T WORK ? Problems Problems Problems Problems Problems Solutions Solutions Solutions Solutions Solutions The wash results are not as usual The wash results are not as usual The wash results are not as usual The wash results are not as usual The wash results are not as usual Check that : was the wrong quantity or the wrong detergent...
  • Page 16 IF SOMETHING DOESN'T WORK ? Problems Problems Problems Problems Problems Solutions Solutions Solutions Solutions Solutions The machine vibrates or is too noisy Check that : all the transit bolts and packing have been removed. all the feet resting firmly on the ground, the lock nuts have been secrured.
  • Page 17: Service

    SERVICE If you have unable to identify or solve the problem, consult our servicing department. Before telephoning, make a note of the make, model and date of purchase of your machine : the service department will require this information. Data plate You will find these informations on the data plate of the appliance.
  • Page 18: For The Installer

    FOR THE INSTALLER Technical information Dimensions height with panel 895 mm height without panel 850 mm width 397 mm depth 600 mm Power supply voltage / frequency 230 V / 50 Hz Total power absorbed 2300 W (10 A) Heater rating 1950 W Water pressure minimum...
  • Page 19: Installation

    Installation The floor must be clean and dry, free from floor 10 A + Earth polish and other greasy substances, so that the machine does not slide about. Do not use any grease as lubrification. Installation on deep pile carpets and floor coverings with foam backings is not recommended, as the stability of the machine is no longer guaranteed.
  • Page 20: Water Connection

    Water connection Connect the water inlet hose to a cold water tap with a 3/4" gas threaded orifice, after having inserted the rugger sealing washer into the hose collar (fig.1). If the water connection is made onto new pipes or onto pipes which have not been used for a long time, it is advisable to run off a certain amount of water before connecting the machine.
