Z Z Z Z Z ANUSSI
ANUSSI
ANUSSI
ANUSSI
ANUSSI

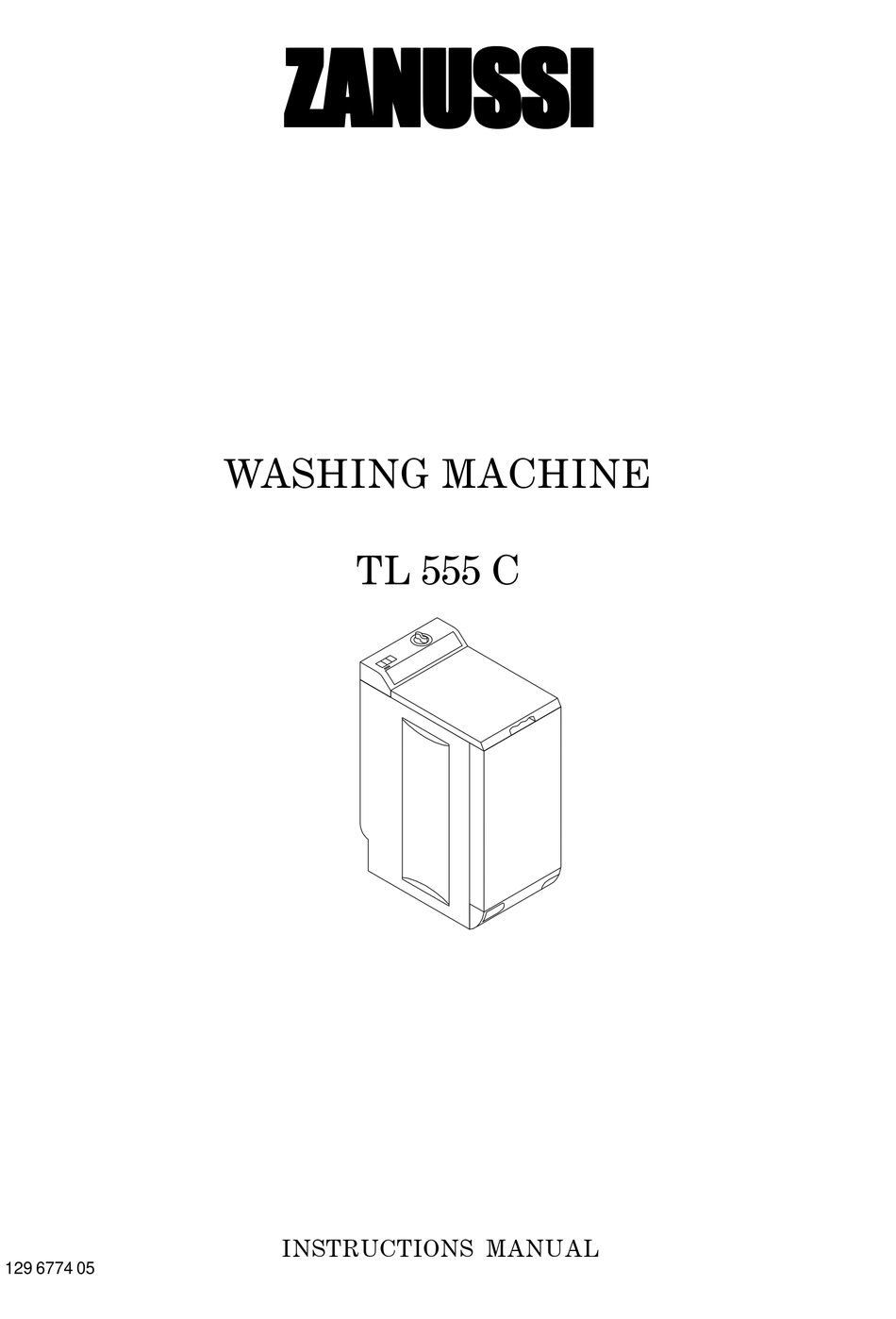

WASHING MACHINE
TL 555 C
INSTRUCTIONS MANUAL
129 6774 05

Advertisement

loading

  Related Manuals for Zanussi TL 555 C

  Summary of Contents for Zanussi TL 555 C

  • Page 1 Z Z Z Z Z ANUSSI ANUSSI ANUSSI ANUSSI ANUSSI WASHING MACHINE TL 555 C INSTRUCTIONS MANUAL 129 6774 05...
  • Page 2: Table Of Contents

    For the user Safety instructions Description of the appliance Use of your appliance Operating instructions Programme chart Hints & Tips Cleaning and maintenance If something doesn't work Guarantee Service CONTENTS For the installer Technical information Installation Unpacking Installation Levelling 11-13 Moving of the appliance Water connection 15/16...
  • Page 3: Safety Instructions

    You must read the whole of this instruction book before you use the appliance. Follow the advice carefully. Keep the book for future reference. If you sell or give away the appliance, make sure that the book is passed to the new owner. The following warnings are provided in the interest of overall safety.
  • Page 4 Safeties Lid : your washing machine is equipped with a safety avoiding the switching of the appliance when the flapdoors of the drum are opened ; the closure of the lid is so impossible. An electromechanic safety prohibits the opening of the lid when the washing machine works and 2 minutes after the end of the programme.
  • Page 5: Description Of The Appliance

    DESCRIPTION OF THE APPLIANCE Timer Pushbuttons Detergent dispenser Symbols ( ) Washing powder or liquid detergent for programmes with pre-wash (1). ( ) Washing powder or liquid detergent for the main wash (2). Bleach compartment (3). Liquid additives (fabric softener and conditioner...) (4).
  • Page 6: Use Of Your Appliance

    USE OF YOUR APPLIANCE The control panel Never turn the programme selector when the appliance is working. TL 555 C 1 ON/OFF pushbutton " Press the ON/OFF pushbutton, the programme starts : the control lamp lights on. 2 Control lamp The control lamp lights on when the appliance is working (on/off pushbutton "...
  • Page 7: Operating Instructions

    OPERATING INSTRUCTIONS 1. Place the laundry in the drum lift up the lid of the machine. open the drum with your two hands by pressing the button A and the two flapdoors till they disengage. introduce the laundry into the drum ; close the drum and the lid of the machine.
  • Page 8: Select The Programme

    6. Select the programme Choose the programme according to the nature and the degree of soil of the laundry. Turn the programme selector clockwise to select the chosen programme. 7. Starting of the programme The ON/OFF pushbutton " " enables to switch on your machine.
  • Page 9: Programme Chart

    Programmes for cotton/linen and for synthetics/delicates/wool Maximum loads : 5 kg (cotton),2,5 kg (synthetics), 1 kg (wool). Programmes description White + White White + White Short programme Rinsing Spinning Synthetics + Synthetics Delicate Wool Rinsing Drain (*) If the laundry can withstand the bleaching treatment. When the selected programme is over, the washing machine stops automatically.
  • Page 10: Hints And Tips

    Washing hints You are advised not to leave your laundry too long, especially when damp. Damp laundry produces moult and unpleasant smells. Moult stains cannot be removed. Sort your laundry. Study carefully the chart in this booklet explaining the symbols used on clothes labels (see page 13).
  • Page 11: Liquid Detergents

    To remove paint stains, for example, use a vola- tile substance such as turpentine: in this case, you should wait for it to dry completely before washing. The manufacturer of your washing machine is not responsible for any damage deriving from the use of volatile, inflammable or toxic substances.
  • Page 12: Wash Code Symbols

    Wash code symbols These symbols appear on fabric label, in order to help you choose the best way to treat your laundry. Strong wash Max. wash WASH temperature 95°C Delicate wash BLEACHING Hot iron max. 200°C IRONING Dry cleaning DRY CLEANING in all solvents DRYING Flat...
  • Page 13: Cleaning And Maintenance

    CLEANING AND MAINTENANCE Make sure that the machine is unplugged and the water tap turned off before undertaking any kind of maintenance. Bodywork The outside or the machine can be cleaned with warm water and a neutral non-abrasive household detergent. Wipe with clean water and dry after cleaning.
  • Page 14: If Something Doesn't Work

    IF SOMETHING DOESN'T WORK ? Problems Problems Problems Problems Problems The wash results are not as usual The wash results are not as usual The wash results are not as usual The wash results are not as usual The wash results are not as usual The washing cycle is very much too The washing cycle is very much too The washing cycle is very much too...
  • Page 15 IF SOMETHING DOESN'T WORK (continue) Problem Problem Problem Problem Problem The machine vibrates or is too noisy The machine empties as it fills There is water on the floor Softener detergent flows out the overflow orifice Solutions Solutions Solutions Solutions Solutions Check that : all the transit bolts and packing have been...
  • Page 16: Service

    SERVICE If you have unable to identify or solve the problem, consult our servicing depar tment. Before telephoning, make a note of the make, model and date of purchase of your machine : the service department will require this information. Data plate You will find these informations on the data plate of the appliance.
  • Page 17: For The Installer

    Technical information Dimensions height with panel height without panel width depth Power supply voltage / frequency Total power absorbed Heater rating Water pressure minimum maximum Maximum load cotton synthetics wool Spinning speed Electrical consumption (washing at 60°C) This appliance complies with the following EC Directive : - 72/23/EEC of 19.02.1973 - Low-Voltage Directive - 89/336/EEC of 03.05.1989 (including Amentment Directive 92/31/EEC) - EMV Directive.
  • Page 18: Installation

    Installation The floor must be clean and dry, free from floor polish and other greasy substances, so that the machine does not slide about. Do not use any grease as lubrification. Installation on deep pile carpets and floor coverings with foam backings is not recommended, as the stability of the machine is no longer guaranteed.
  • Page 19: Water Connection

    Water connection Connect the water inlet hose to a cold water tap with a 3/4" gas threaded orifice, after having inserted the rugger sealing washer into the hose collar. If the water connection is made onto new pipes or onto pipes which have not been used for a long time, it is advisable to run off a certain amount of water before connecting the machine.
  • Page 20 129 6774 05...
