Summary of Contents for Zektor MAS7.1

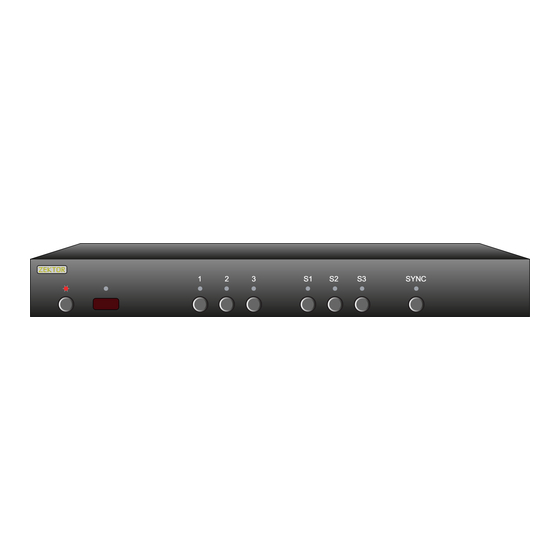

- Page 1 Home Theater Solutions MAS7.1 SYNC Multichannel Audio / HDMI Switch Rev 2 07/17/2007...
-
Page 2: Table Of Contents
Easy, Simple, Instructions! ....7 Please take this time to ver ify the contents of the MAS7.1 box. Using a Different Remote ....11 The following should be included: More Remote Options ...... -
Page 3: An Overview Of The Mas7.1
SYNC The Dual Switch Design of the MAS7.1 With the SYNC LED lit, the MAS7.1 is simply a Multi- channel 7.1 Au- dio/Digital Audio/HDMI switch. Pressing either '1'-'' or 'S1'-'S' will selec t bet ween the three inputs. -
Page 4: Rear Panel Connectors
The Multi- channel 5.1 Audio I nputs and Outputs can be switched separately from the Stereo Audio I nputs and Outputs. (S ee: A n O ver- view of the MAS7.1) All Coax and Optical Digital Audio inputs are automatically conver t- ed, and you can use both the Coax and Optical Digital Audio outputs at the same time to dr ive t wo different devices. -
Page 5: Easy, Simple, Instructions
To switch bet ween any of the three inputs, simply press the button for the desired input. I f the MAS7.1 is in the standby mode, it will tur n on. The MAS7.1 will then switch to the se - lec ted input, and the associated LEDs will light to indicate this. - Page 6 Using the supplied Remote Control Using the supplied Remote Control • Use the sec tion of the remote controlled labeled: MAS7 for controlling the MAS7.1. ( The other sec tions are used to SYNC control other Zektor produc ts.) •...
-
Page 7: Using A Different Remote
"More Remote O ptions". • That ’s it! The MAS7.1 will retur n to the state it was in before setup, and will now wor k with your new remote! Press the following sequence of buttons on POWER The new control buttons on your remote are... -
Page 8: More Remote Options
The remote may be using a car r ier frequenc y outside the SYNC range of the MAS7.1 (KH z to 2KH z), or it may be using one of the few protocols the MAS7.1 does not understand, like the Philip's RC5 and RC protocols. -
Page 9: Learning New Discrete Ir Codes
Step 1: Put the MAS7.1 into the Setup Mode Learning New Discrete IR Codes SYNC The MAS7.1 allows discrete IR control over all of it's func tions. These codes can also be reprogrammed to use any remote, as descr ibed here. -
Page 10: Controlling The Front Panel Lights
Step 1: Enter the Setup Mode SYNC • The MAS7.1 is placed into the setup mode by pressing and holding the Power button for about seconds. Step 2: Select the Light Mode option After ‘’ is pressed, the standby •... -
Page 11: Adjusting The Front Panel Intensity
The new intensit y settings are saved in non-volatile When things look good, press the memor y and are not affec ted by a power failure. power button to exit the setup mode. 1 MAS7.1 Component Video Switch MAS7.1 Component Video Switch... -
Page 12: Setting The Initial Power On State
SYNC However, if power is removed (for instance a plug str ip used to power the MAS7.1 is tur ned off ), and then re -applied, the MAS7.1’s Setup the MAS7.1 to the initial default behavior is to enter into the standby mode. -
Page 13: Control Functions
(About seconds.) front panel switches and only operating the MAS7.1 with a remote. To enable / disable the front panel switches, and other control func tions... -
Page 14: Changing Switching Delays
(About seconds.) Step 1: Place the MAS7.1 into the Setup Mode • The MAS7.1 is placed into the setup mode by pressing and holding the Power button for about seconds. Step 2: Enter the Switching Delay Setup Mode •... -
Page 15: Primary / Secondary Mapping
Step 1: Place the MAS7.1 into the Setup Mode Primary / Secondary Mapping SYNC The MAS7.1 can be configured as a single Multi- channel Audio / Digital Audio / HDMI switch, or it can be used as t wo independent switches, by simply pressing the SYNC button. -
Page 16: Resetting To Factory Defaults
Resetting to Factory Defaults Step 1: Reset All Parameters to Factory Defaults I f, for whatever reason, you’d like to reset your MAS7.1 back to its fac tor y default condition, this is easily done... SYNC Step 1: Reset All Parameters to Factory Defaults... -
Page 17: Rs-232 Port
RS-232 Port K.I.S.S.™ (Keep It Simple Serial!™) The RS -22 on the MAS7.1 is the same for mat as a PC-modem, and Zektor ’s exclusive K .I.S.S.™ (Keep I t Simple S er ial™) protocol was de - uses the same t ype cable as a ser ial modem would, which is a stan- signed by engineers who have been controlling RS -22 devices for dard straight through cable. -
Page 18: 12V On / Off Control
The rear panel jack labeled "IR-IN", when not being used as an IR The rear panel jack labeled "IR-IN" allows the MAS7.1 to be con- Jack , can allow the MAS7.1 to be tur ned on and off using a 12V con- trolled by hardwired IR controllers. -
Page 19: Ir Code Format
IR Code Format IR Codes The default IR codes used by the MAS7.1 are 2 bits long, based on The following are the fac tor y default codes used by the MAS7.1: the NEC transmission protocol and use a car r ier frequenc y of KH z. -
Page 20: Features
Greater than 100dB, 20Hz-20KHz, worst case all channels analog and digital signals. • Digital Video Channels Use the MAS7.1 as a Multi-channel 7.1 audio switch, or at the Protocols: DVI 1.0, HDMI 1.0 through HDMI 1.3a press of button it can become two independent switches, where... -
Page 21: Warranty Policy
Phone: 858-748-8250 us at once and tell us your concer ns, so we may make ever y effor t to Fax: 858-748-8224 satisfy your purchase. E-mail: customerservice@zektor.com Website: www.zektor.com MAS7.1 Component Video Switch MAS7.1 Component Video Switch... - Page 22 This page intentionally left (nearly) blank. This page intentionally left (nearly) blank. 0 MAS7.1 Component Video Switch MAS7.1 Component Video Switch...
- Page 23 Z E K T O R 1275 Danielson Ct Suite 01 Poway, CA 20 5•7•250 www.zektor.com...
