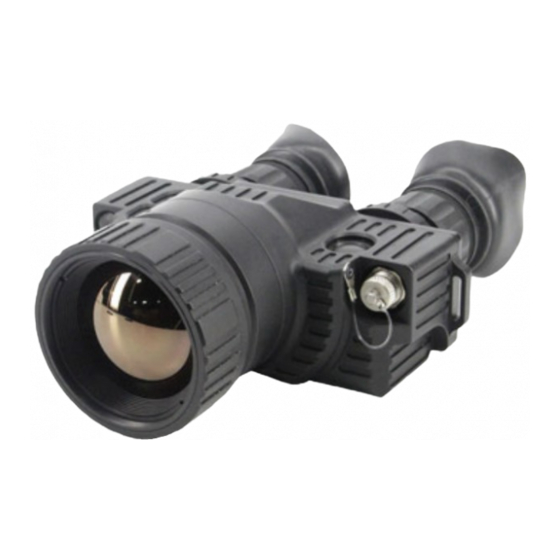

Thermal imaging binoculars
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

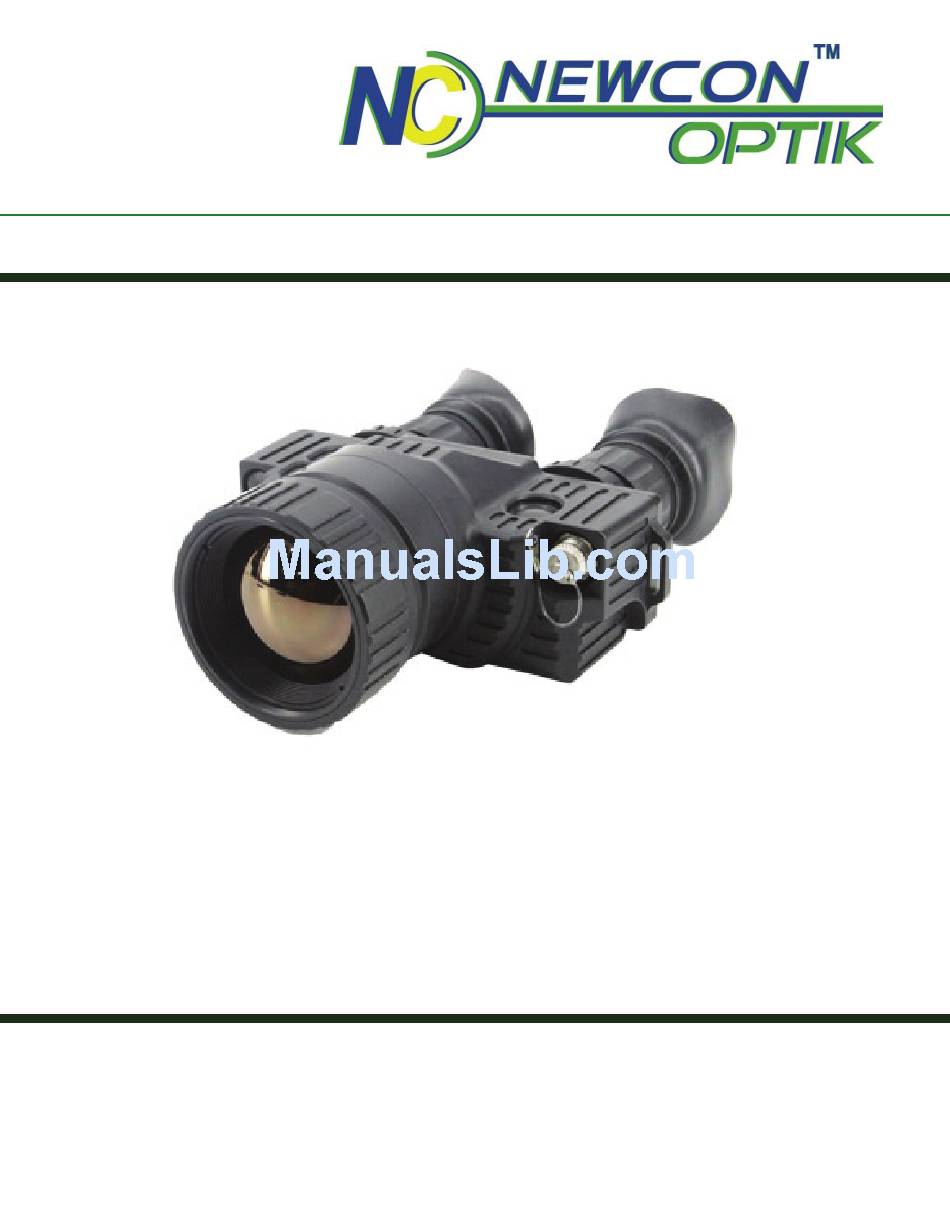

Operation Manual
THERMAL IMAGING BINOCULARS
SENTINEL
105 Sparks Ave., Toronto, ON, M2H 2S5, Canada

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sentinel and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Newcon Optik Sentinel

Summary of Contents for Newcon Optik Sentinel

  • Page 1 Operation Manual THERMAL IMAGING BINOCULARS SENTINEL 105 Sparks Ave., Toronto, ON, M2H 2S5, Canada...

  • Page 3: Table Of Contents

    CONTENTS BRIEF DESCRIPTION ..........3     Overview ................. 3   Key Features of the SENTINEL ........4   DESIGN OF THE SENTINEL ........5     DELIVERY SET ............6     Standard Delivery Set ............6   Optional Delivery Set ............6  ...

  • Page 4: Brief Description

    The SENTINEL is equipped with a digital USB interface for programming in the field. Power supply options include Li-Ion rechargeable batteries (optional), four AA batteries or external power through a watertight connector.

  • Page 5: Key Features Of The Sentinel

    Key Features of the SENTINEL  High quality image within the entire field of view  MIL-SPEC housing, waterproof to 1 meter  Low battery indicator shown in field of view  Variable colour schemes (image polarity)  PAL + NTSC video output ...

  • Page 6: Design Of The Sentinel

    2. DESIGN OF THE SENTINEL     FIGURE 1. Fixed objective lens SENTINEL Objective lens focus adjustment ring Multifunctional Connector with Protective Cap Menu button Rubber eye guard Eyepieces with Diopter Adjustment Ring Digital Zoom “Black-hot” / “White-hot” / Sepia Control button Battery compartment cover 10.

  • Page 7: Delivery Set

    3. DELIVERY SET Standard Delivery Set QUANTITY SENTINEL Objective Lens Cap Operation Manual Soft Case AA Batteries Car power adaptor USB Cable Video/Charge Cable Shoulder Strap Optional Delivery Set Tripod Hard case Attention: Exact Delivery Set is subject to the specific contract...

  • Page 8: Specifications

    4. SPECIFICATIONS Detector Resolution 324x256 640x512 Full Frame Rates 30 Hz (NTSC); 25 Hz (PAL) Exportable Frame Rates 7.5 Hz (NTSC); 8.3 Hz (PAL) Pixel Size 25μ 17μ Operating wavelength 7.5 - 13.5 μm Sensitivity <50mK at F1.0 Optics Objective Lens 60 mm Objective F Number F1.25...
  • Page 9 Mechanical Temperature Range -40 °C to +50 °C Shock Resistance 300g Battery Type 4 x AA Hours of Operation 6 (rechargeable) / 8 (battery) Dimensions 150x146x72 mm Weight with Battery 0.775kg...

  • Page 10: Startup And Initial Testing

    5. STARTUP AND INITIAL TESTING Use of Standard Power Supply The unit is powered by either 4 AA alkaline or 4 AA NiCad rechargeable (optional) batteries. Ensure the rechargeable batteries are completely charged before operating (you must not charge the batteries inside of the device). If the battery is completely discharged, the battery indicator blinks will turn red.

  • Page 11: Connecting With Video Recorder

    The SENTINEL can be connected to an external monitor or video recorder. The video output is combined with the multifunctional interface connector. Use the cable that is included in the device delivery set to connect the SENTINEL to external devices Testing the Unit’s Readiness 1.

  • Page 12: System Controls

    7. SYSTEM CONTROLS The ON-OFF control button is used not only to turn on and off the device, but to activate the MENU as well. One short press on this button activates the screen menu that controls brightness and contrast of the screen. An extended press of this button in the main mode turns the device off.
  • Page 13 Control Button Functionalities in the Brightness/Contrast Menu , result of rapid press , result of extended Control Button Diagram and (≤0.5 seconds) press (≥1.0 second) Name Button 3* Increases selected parameter by one unit WH|BH Toggles between Button 4* brightness/contrast Exits menu MENU parameters...

  • Page 14: Display

    8. DISPLAY In the main mode display provides an image of the observed object. Permanently depicted service information includes the battery status indicator and zoom number (if different from 1x). Information about image presentation appears for five seconds after this parameter is changed. In the menu mode the user can control brightness and contrast settings.

  • Page 15: Warranty

    Newcon Optik Dealer. Newcon Optik will repair (or, at its option, replace with the same or comparable model), the product or part thereof, if upon inspection, it is found to be defective in material or workmanship.

  • Page 16: Customer Support

    CUSTOMER SUPPORT Should you experience any difficulties with your Newcon Optik product, consult this manual first. If the problem persists, contact our customer support department at +1 (416) 663-6963 or toll free at 1-877-368-6666 (North America only). Our operating hours are 9am-5pm, Monday - Friday, Eastern Standard Time.
  • Page 17 This page was intentionally left blank...
  • Page 18 This page was intentionally left blank...

  • Page 19: Acceptance Certificate

    ACCEPTANCE CERTIFICATE Thermal Imaging System Resolution SENTINEL 60 mm lens Unit serial number: _________________________________ The unit complies with all technical specifications and has passed the inspection. Date of production: _________________________________ Quality Inspector’s signature: __________________________ Quality Assurance Seal...
  • Page 20 NEWCON OPTIK Printed in Canada...
