Adjusting the azimuth
** The cartridge needle must be vertical in the record groove in order to trace
the groove wall modulations correctly.

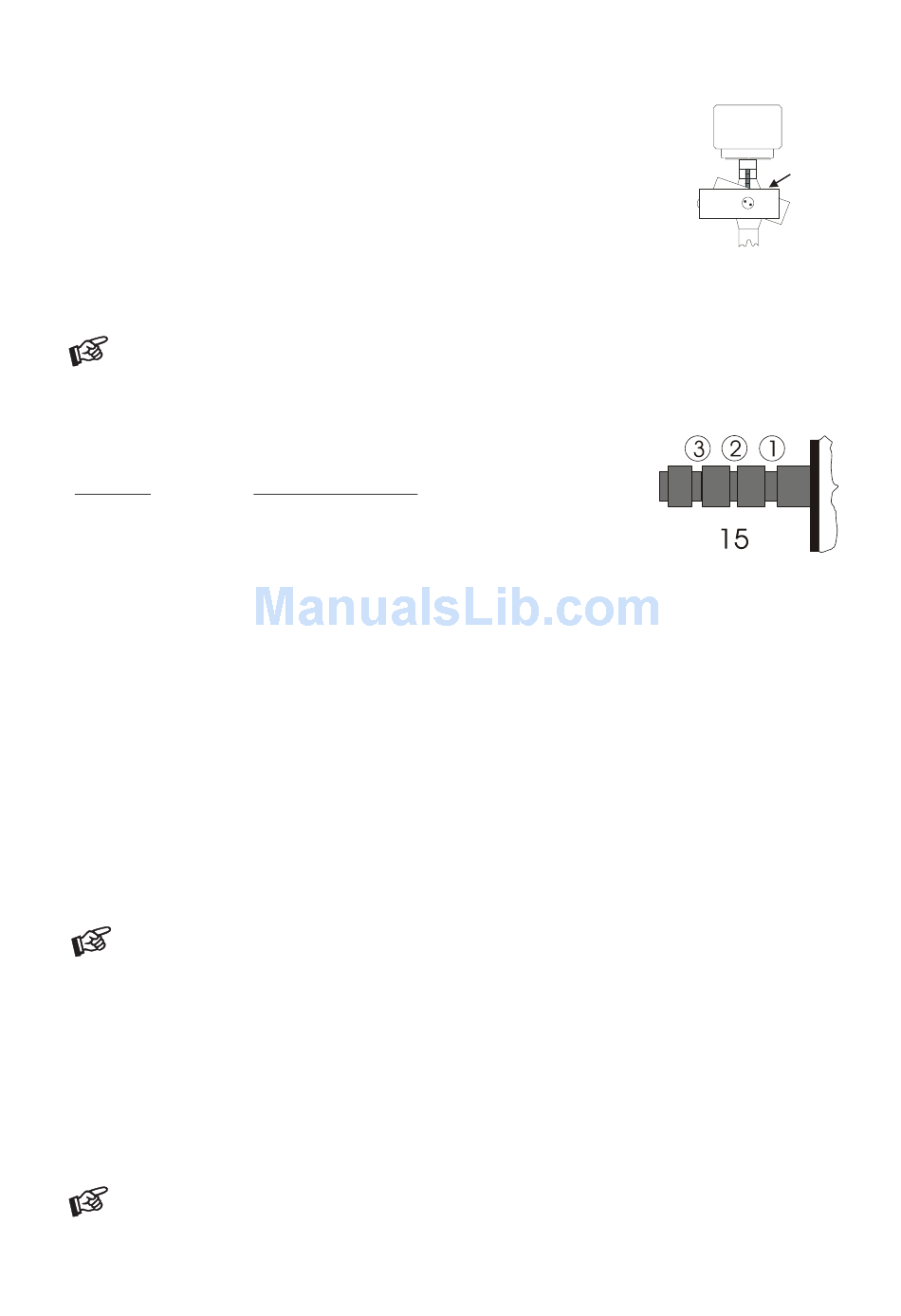

A small screw at the bearing end of the arm allows incorrect azimuth to be
corrected if your needle is not mounted exactly perpendicular to the cartridge
body (which is often the case).
Slacken off the screw just enough to be able to revolve the arm tube without
applying force. Note! Do not remove the screw completely!
With the aid of a good magnifying glass adjust the needle until it is vertical in the groove (i.e. perpendicular
to the record's surface). Ideally this should correspond to the top surface of the cartridge body being parallel
to the record surface. When you are satisfied that the needle is vertical retighten the screw carefully.
Under no circumstances should the arm tube be adjusted with the needle still in the record groove!
Irreparable damage may be caused to the cantilever suspension! The arm must be lifted to make
each adjustment and lowered afterwards to check it.
Anti-skating force adjustment
The anti-skating force must be adjusted according to the mass of the cartridge
as follows:
Downforce
10 - 14mN
15 - 19mN
20mN and bigger
Slip the loop of the anti-skating weight's thread over the third groove of the stub to set the correct anti-skating
force for the factory-fitted cartridge. Feed the thread through the loop of the wire support (17).
Connection to the amplifier
The record player has gold plated female RCA phono sockets (14) so you can substitute the interconnect
cables supplied with those of your choice for connection to the amplifier if you wish. Your dealer can advise
you on alternative cables. Use the Phono input (sometimes labelled gram, disc or RIAA) on your amplifier. Make
sure that the phono input offers correct matching and amplification for the type of cartridge used. Line inputs
(such as CD, Tuner, Tape or Video) are not suitable.
Take care to connect the left and right channels correctly. The right channel is usually marked red, the left
channel black or white. Check the manual supplied with your amplifier for relevant information. The earthing
wire of the tonearm lead should be connected to the earth terminal on your amplifier (if provided).
If your amplifier does not have an input suitable for phono cartridges you will require a separate phono
amplifier stage for MM or MC cartridges such as the PRO-JECT PHONO BOX or the PRO-JECT TUBE BOX
which is then connected between the record player and a free line level input of the amplifier.
For detailed product information please refer to the Pro-Ject web site www.project-audio.com.
The recommended load resistance for the factory fitted cartridge is: 47kohms /MM-input
Fitting the lid
Fit the lid (dust cover 10) carefully over the hinge prongs and adjust the screws (12) until the lid stays open
where you want it to without being too stiff to open or close.
Using the automatic start & stop facility
Before starting record replay, lower the tonearm lift lever until it is about horizontal. By switching the power
on/off switch (20) record replay can be started and stopped at any position across the record. The tonearm
lift is raised or lowered accordingly when the power is turned on or off.
The tonearm cannot be lowered manually whilst the turntable is turned off, as it is held in position by
an electromagnetic switch.
The manual lift function is only available when the turntable is turned on and the platter is revolving.
© Audio Trade GmbH · Pro-Ject 1 Xpression III Comfort / Ortofon 2M Red · Revision 1.6.08/1.7.08
Groove in the stub (15)
1
st
from bearing rings
nd
2
"
"
"
3
rd
"
"
"
Screw
5
