Before Setting Surface Controls
Burner Cap
Fixed Burner Head

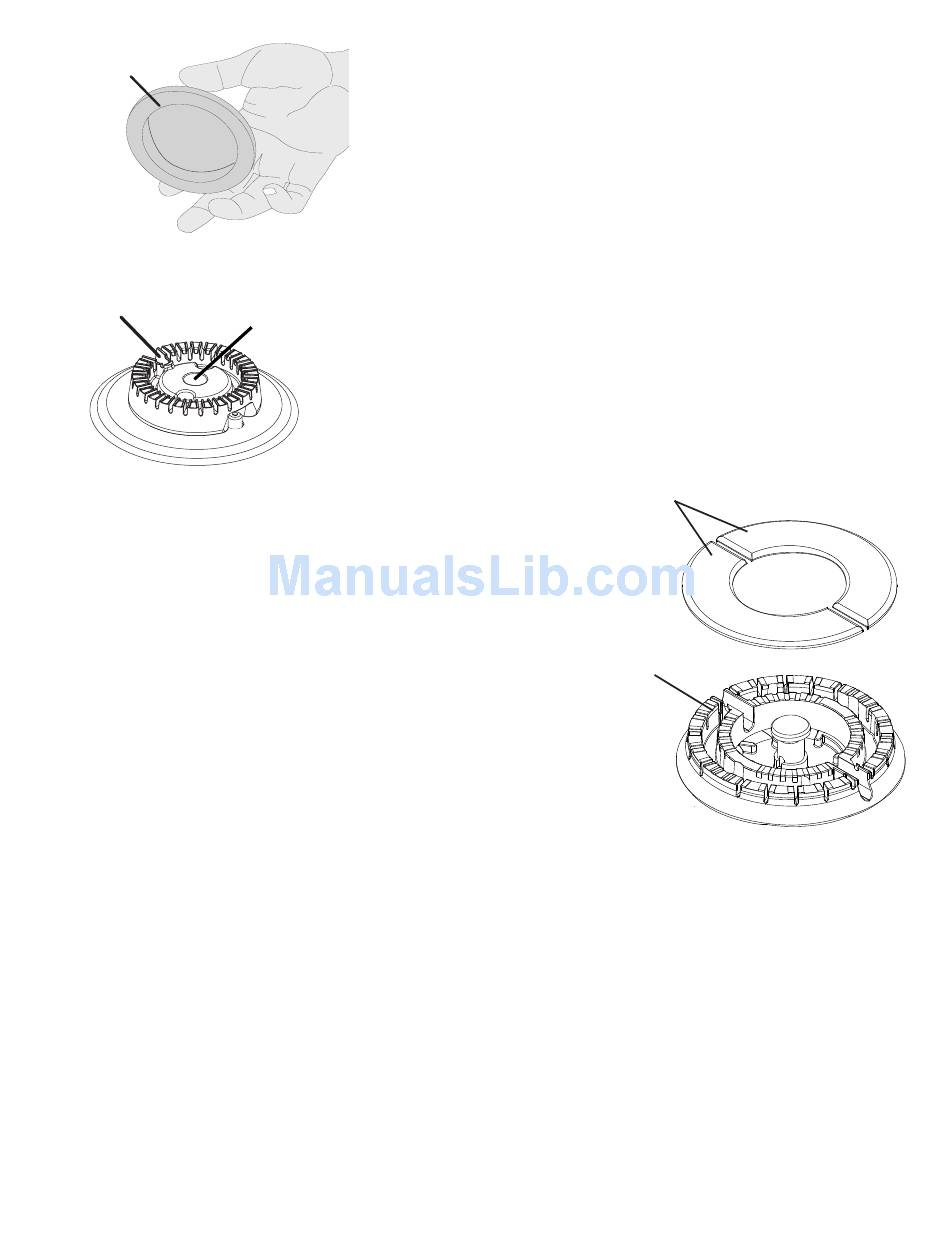

Figure 1
Dual Ring Burner Head Assembly
Make sure that the Burner Caps and Burner Grates are installed properly
and at the correct locations.
1. Remove all packing tape from cooktop and the dual burner.
2. Discard all packing material located under all Burners (if applicable).
3. To install Burner Caps, refer to figure 2 and make sure both caps are
aligned properly with the burner head.
4. Put back the grates on the cooktop.
REMEMBER — DO NOT ALLOW SPILLS, FOOD, CLEANING AGENTS
OR ANY OTHER MATERIAL TO ENTER THE GAS ORIFICE HOLDER
OPENING. Always keep the Burner Caps and Burner Heads in place
whenever the surface burners are in use.
Assembly of the simmer, regular and power surface
burner caps and burner grates
It is very important to make sure that all of the Surface Burner Caps
and Surface Burner Grates are installed correctly and at the correct
locations.
1.
Remove all packing material from cooktop area.
2. Discard all packing material (if applicable).
3. Position the burner caps in the correct position.
4. Unpack Burner Grates and position on the cooktop.
Note: Burner heads are fixed. Do not try to remove them.
REMEMBER — DO NOT ALLOW SPILLS, FOOD, CLEANING AGENTS
Gas Opening
OR ANY OTHER MATERIAL TO ENTER THE GAS OPENING. Always
keep the Burner Caps in place whenever the surface burners are in use.
Burner Caps
Fixed Burner Head
Figure 2
