Zanussi WI 1018 N Instruction Booklet

Washer-dryer wi 1018 n
Hide thumbs

Advertisement

Quick Links

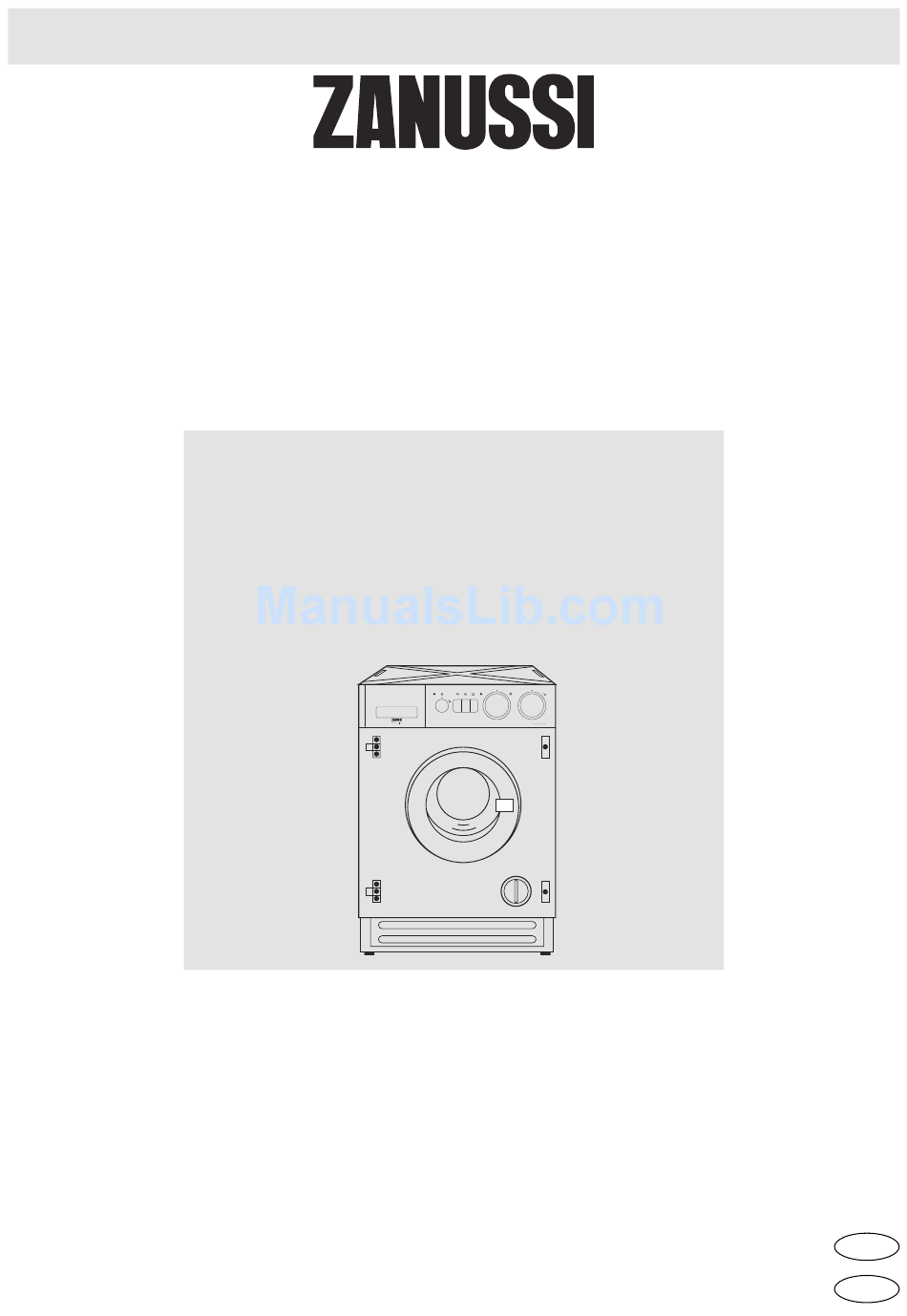

WASHER-DRYER
WI 1018 N
INSTRUCTION BOOKLET
GB
CN
132987050

Advertisement

loading

  Related Manuals for Zanussi WI 1018 N

  Summary of Contents for Zanussi WI 1018 N

  • Page 1 WASHER-DRYER WI 1018 N INSTRUCTION BOOKLET 132987050...
  • Page 2 Dear customer, Please read these operating instructions carefully and pay particular attention to the safety notes indicated in the first pages. We recommend that you keep this instruction booklet for future reference and pass it on to any future owners. Transport damages When unpacking the appliance, check that it is not damaged.
  • Page 3: Table Of Contents

    Contents International wash code symbols Warnings Operating sequence 15-17 Disposal Washing only 15-16 Drying only Tips for environmental protection 5 Automatic washing and drying Washing programmes 18-19 Technical specifications Drying programmes Installation Maintenance Unpacking Bodywork Positioning Detergent dispenser drawer Water inlet Drain filter Water drainage Water inlet filter...
  • Page 4: Warnings

    Warnings The following warnings are provided in the interests of overall safety. You must read them carefully before installing or using the appliance. • Use only the recommended quantities of fabric Installation softener. An excessive amount could damage the • All internal packing must be removed before using laundry.
  • Page 5: Disposal

    • Keep all detergents in a safe place out of children’s Child safety reach. • Children are often not aware of how dangerous • Make sure that children or pets do not climb into electrical appliances can be. When the machine is the drum.
  • Page 6: Technical Specifications

    Technical specifications DIMENSIONS Height 82 cm Width 60 cm Depth 54 cm WASHING DRYING MAXIMUM LOAD Cotton 5 kg 2.5 kg Synthetics 2 kg Delicates 2 kg Woollens 1 kg SPIN SPEED 1000 rpm max. POWER SUPPLY VOLTAGE/FREQUENCY 220-230 V/50 Hz TOTAL POWER ABSORBED 2200 W MINIMUM FUSE PROTECTION...
  • Page 7: Installation

    Installation Pull out the three plastic spacers from the holes into Unpacking which the bolts were fitted. Plug the open holes with the plugs which are All transit bolts and packing must be removed supplied with the instruction booklet. before using the appliance. You are advised to keep all transit devices so that they can be refitted if the machine ever has to be transported again.
  • Page 8: Water Drainage

    Water drainage Electrical connection This machine is designed to operate on a 220-230 V, The end of the drain hose can be positioned in three single-phase, 50 Hz supply. ways: Hooked over the edge of a sink using the plastic Check that your domestic electrical installation can hose guide supplied with the machine.
  • Page 9: Description Of The Appliance

    Description of the appliance 1 Detergent dispenser drawer 2 Programme chart 3 Control panel 4 Door handle 5 Drain filter 6 Adjustable feet Detergent dispenser drawer Prewash Main wash Fabric softener, starch...
  • Page 10: Use

    Control panel 1 Detergent dispenser drawer and 6 On/Off button programme chart By depressing this button the machine starts operating. When depressed again, the machine stops. 2 Drying indicator light This light illuminates when the machine is drying. 7 Mains-on light This light illuminates when the machine starts 3 Drying time selector dial working (depressing ON/OFF button) and goes out...
  • Page 11: Washing Hints

    Laundry weights Washing hints The following weights are indicative: Sorting the laundry bathrobe 1200 g napkin 100 g Follow the wash code symbols on each garment label and the manufacturer’s washing instructions. quilt cover 700 g Sort the laundry as follows: sheet 500 g whites, coloureds, synthetics, delicates, woollens.
  • Page 12: Detergents And Additives

    residual marks with bleach. Quantity of detergent to be used Ink: depending on the type of ink, moisten the fabric The type and quantity of detergent will depend on first with acetone (*), then with acetic acid; treat any the type of fabric, load size, degree of soiling and residual marks on white fabrics with bleach and then hardness of the water used.
  • Page 13: Drying Hints

    Drying symbols on garment labels Drying hints Always look at the garment label to check whether As a dryer, the machine works on the condensation garments can be machine dried. principle. The following symbols refer to drying: Therefore, the water tap must be open and the drain hose must drain water into a sink or into Machine drying is usually possible the drain pipe, even during the drying cycle.
  • Page 14: International Wash Code Symbols

    International wash code symbols These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry. Energetic wash Max. wash Max. wash Max. wash Max. wash temperature temperature temperature temperature 95°C 60°C 40°C 30°C Hand wash Do not...
  • Page 15: Operating Sequence

    4. Depress button Operating sequence required Washing only Before washing your first load of laundry, we 5. Select the temperature recommend that you run a cotton cycle at 60°C, with the machine empty, in order to remove any Turn the dial to the required setting. manufacturing residue from the drum and tub.
  • Page 16: At The End Of The Programme

    8. At the end of the programme The machine stops automatically. If you have selected a programme which ends with the water of the last rinse in the tub, drain the water before opening the door by selecting programme P (drain) or J (drain and short spin).
  • Page 17: Drying Only

    Drying only Automatic washing and drying (NON-STOP programme) Warning! Do not exceed the maximum laundry loads: Warning! For NON-STOP programmes, it is also - 2.5 kg for linen and cottons essential not to exceed the maximum load sizes of 2.5 kg for cotton and 2 kg for synthetics. kg for synthetics.
  • Page 18: Washing Programmes

    Washing Programmes Programmes for cotton and linen Programme/ Degree of soil Possible Max. Wash programme Description Temperature and type of laundry option load Prewash at 40 °C WHITES For heavy soiled Wash at 60-95°C 5 kg WITH cotton items. 3 rinses 60°-95°...
  • Page 19: Washing Programmes

    Washing Programmes Programmes for synthetics , mixed fabrics, delicates and wool Degree of soil Programme/ Possible Max. Wash programme Description and type of laundry Temperature option load Synthetic or mixed Wash at 30°-60° C fabrics, underwear, SYNTHETICS 3 rinses 2 kg coloured garments, WITHOUT Stop with water left...
  • Page 20: Drying Programmes

    Drying Programmes Timed drying Degree of Drying time Type of fabric Max. load Spin speed drying mins Grey section Cotton and linen 1000 2.5 kg (towels, T-shirts, bathrobes) Store dry 1 kg 1000 Programme F Suitable for items to put Yellow section away without Synthetic and mixed...
  • Page 21: Maintenance

    Maintenance 1. Bodywork 3. Drain filter Clean the outside of the machine with warm water The drain filter collects threads and small objects and a detergent used to handwash dishes. Rinse inadvertently left in the laundry. Check regularly that with clean water and dry with a soft cloth. the filter is clean.
  • Page 22: Emergency Emptying Out

    5. Emergency emptying out If the water is not discharged (outlet pump is blocked, filter or drain hose are clogged), proceed as follows to empty out the machine: • pull out the plug from the power socket; • close the water tap; •...
  • Page 23: Something Not Working

    Something not working? Problems which you can resolve yourself. Problem Possible cause • The door is not firmly closed. • The machine does not start up: • The machine is not plugged in or there is no power at the socket. •...
  • Page 24 Problem Possible cause • The electronic unbalance detection device has cut • Spinning starts late or the in because the laundry is not evenly distributed in laundry is not spun enough: the drum. The laundry is redistributed by reverse rotation of the drum. This may happen several times before the unbalance disappears and normal spinning can resume.
  • Page 25 MADE IN ITALY...
