  • Page 1 LAVASCIUGA LAVADORA-SECADORA MAQUINA DE LAVAR E SECAR WASHER-DRYER WIJ 1074 LIBRETTO ISTRUZIONI MANUAL DE USO MANUAL DE UTILIZAÇÃO INSTRUCTION BOOKLET 124987993...
  • Page 2 YOUR NEW WASHER-DRYER This new washing machine, which is fitted with Measure out detergent according to the the Jet System, patented Zanussi, meets all water hardness, the degree of soiling and the modern needs for effective treatment of laundry quantity of laundry being washed.
  • Page 3: Table Of Contents

    CONTENTS Warnings Maintenance Bodywork Description of the appliance Detergent dispenser drawer Detergent dispenser drawer Drain filter Water inlet filter Technical specifications Emergency emptying out Frost precautions Installation Transit devices Something not working? 89-90 Positioning Water inlet Water drainage Electrical connection Building-in 76-77 Control panel...
  • Page 4: Warnings

    WARNINGS It is important that this instruction book be kept with the appliance for future reference. If you sell or give the appliance away, make sure that the book is passed to the new owners so that they can familiarise themselves with its operation and relevant warnings. The following warnings are provided in the interests of overall safety.
  • Page 5: Description Of The Appliance

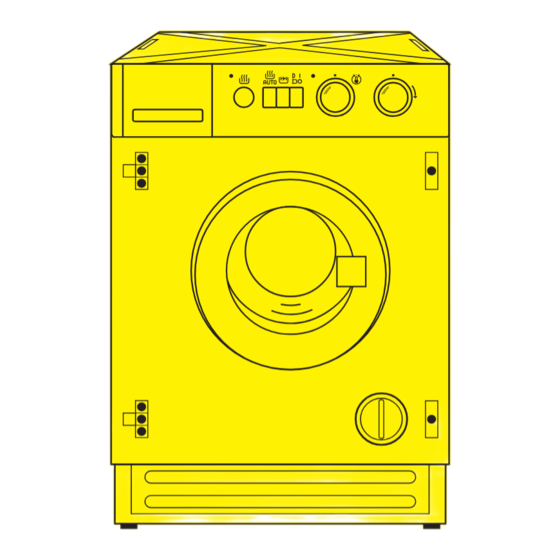

    DESCRIPTION OF THE APPLIANCE 01 Detergent dispenser drawer 34 5 6 7 8 02 Programme card 03 Drying pilot light 04 Drying time selector dial 05 Option buttons 06 On/Off button 07 Operating pilot light 08 Temperature selector dial 09 Programme selector dial 10 Door handle 11 Filter 12 Adjustable feet...
  • Page 6: Installation

    INSTALLATION Transit devices All transit bolts and packing must be removed before using the appliance. You are advised to keep all transit devices so that they can be refitted if the machine ever has to be transported again. 1. Using a spanner, unscrew and remove the rear right-hand bolt.
  • Page 7: Positioning

    Positioning Install the machine on a flat hard floor. Make sure that air circulation around the machine is not impeded by carpets, rugs etc. Check that the machine does not touch the wall or other kitchen units. Carefully level by screwing the adjustable feet in or out.
  • Page 8: Electrical Connection

    Electrical connection Before connecting the machine check that the mains voltage corresponds to the voltage given in the technical specifications. Check that your domestic electrical installation can take the maximum load required, also taking into account any other appliances in use. Connect the machine to an earthed socket, in accordance with current wiring regulations.
  • Page 9 a) Door The dimensions of the door should be: - width 595-598 mm - thickness 16-22 mm The height (C-Fig. C) depends on the height of the adjacent furniture's base. b) Hinges To mount the hinges it is necessary to drill two Ø...
  • Page 10: Use

    Control panel 4 5 6 1 Detergent dispenser drawer 5 Quick wash button With this option there is a reduction of the 2 Drying pilot light washing time. Ideal for lightly soiled laundry. It illuminates when drying starts. Maximum recommended temperature 60°C. Use with cotton (progr.
  • Page 11: Programme Selection

    Programme selection Automatic washing and drying (NON- Washing only STOP programme) Load size: Automatic washing and drying is only – cotton, linen max 4.5 kg possible with linen, cotton and synthetics – synthetics, delicate fabrics programmes. – woollens The maximum load size is 2.25 kg for cotton –...
  • Page 12: Washing And Drying Hints

    Washing and drying hints Washing a maximum load makes the most efficient use of water and energy. For heavily soiled laundry, reduce the load size. Sorting the laundry Follow the wash code symbols on each garment Laundry weights label and the manufacturer’s washing instructions. Sort the laundry as follows: The following weights are indicative: whites, coloureds, synthetics, delicates, woollens.
  • Page 13: Detergents And Additives

    Red wine: soak in water and detergent, rinse Follow the product manufacturer’s and treat with acetic or citric acid, then rinse. recommendations on quantities to use and do Treat any residual marks with bleach. not exceed the «MAX» mark in the detergent dispenser drawer.
  • Page 14: Operating Sequence

    Operating sequence Automatic washing and drying (non-stop programme) This option is only possible for cottons and synthetics. Maximum load: – cotton, linen 2.25 kg – synthetics 1.50 Before washing your first load of laundry, we recommend that you run a cotton cycle at 60°C, with the machine empty, in order to remove any manufacturing residue from the drum and tub.
  • Page 15: Select The Drying Time

    6. Select the drying time Turn the selector dial clockwise to the required time setting (blue or green sector). Depress button M0031S 7. Select the programme and start the machine Turn the programme selector dial clockwise to the required programme and press the On/Off button: the operating pilot light comes on and the machine starts to operate.
  • Page 16: Washing And Drying Programmes

    Energetic programmes for cotton and linen Maximum load: washing 4.5 kg washing+drying 2.25 kg Washing Possible Progr. Temp. Type of laundry Cycle description option Wash at 60°-90°C Whites, 60°-90° 3 rinses normally soiled Long spin Wash at 40°-60°C Coloureds, 40°-60° 3 rinses normally soiled Long spin...
  • Page 17 Delicate programmes for synthetics, mixed fibres, delicates, and woollens Maximum load: washing 2 kg (woollens 1 kg) washing+drying (synthetics) 1.5 kg At the end of these programmes, the last rinse water is not emptied out, so as to avoid creasing of the fabrics.
  • Page 18: International Wash Code Symbols

    International wash code symbols These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry. Energetic wash Max. wash Max. wash Max. wash Max. wash temperature temperature temperature temperature 95°C 60°C 40°C 30°C Hand wash Do not...
  • Page 19: Maintenance

    MAINTENANCE 1. Bodywork Clean the outside of the machine with warm water and a neutral, non-abrasive household detergent. Rinse with clean water and dry with a soft cloth. Important: do not use methylated spirits, solvents or similar products to clean the bodywork.
  • Page 20: Water Inlet Filter

    4. Water inlet filter If you notice that the machine is taking longer to fill, check that the filter in the water inlet hose is not blocked. Turn off the water tap. Unscrew the hose from the tap and remove the filter.
  • Page 21: Something Not Working

    SOMETHING NOT WORKING? Problems which you can resolve yourself Problem Possible cause The machine does not start up: Check that the door is firmly closed. Check that the machine is plugged in and that there is power at the socket. Check that the main fuse has not blown.
  • Page 22 The door will not open: The programme is still running. The door lock has not been released. A programme which stops with water in drum has been selected. Spinning starts late or the The electronic unbalance detection device has cut in because the laundry is not evenly machine does not spin: distributed in the drum.
