FD8133V/8134V
Quick Installation Guide
繁中
簡中
日本語
English
FD8133V: 3-axis • ePTZ
I FD8134V: IR Illuminators
Deutsch
Français
Español
Fixed Dome
Network Camera
Italiano
Türkçe
Português
Русский
Česky
Svenska
Polski

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FD8133V and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Vivotek FD8133V

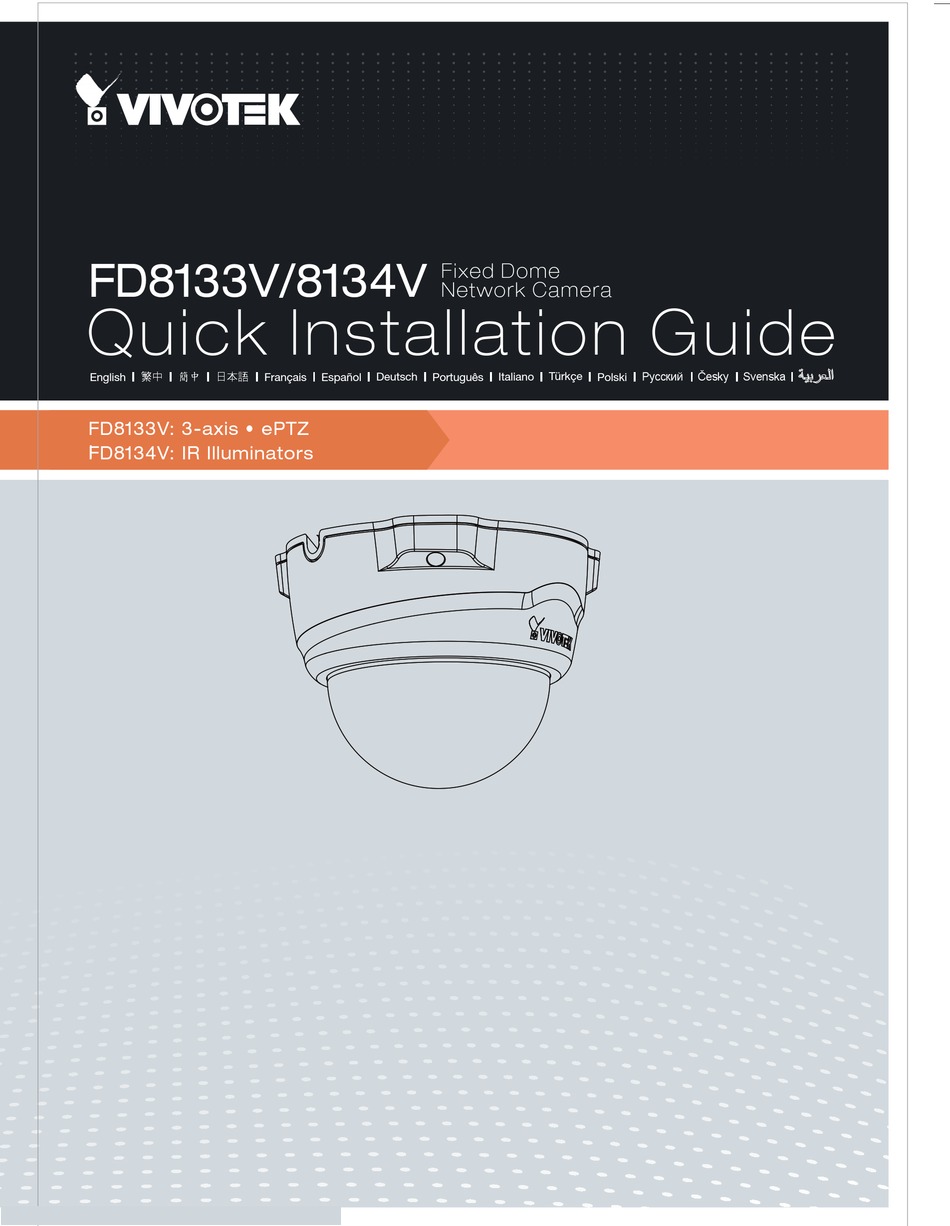

  • Page 1 FD8133V/8134V Fixed Dome Network Camera Quick Installation Guide Русский Česky Svenska 繁中 簡中 日本語 Deutsch Italiano Türkçe English Français Español Português Polski FD8133V: 3-axis • ePTZ I FD8134V: IR Illuminators...
  • Page 2 Warning Before Installation Power off the Network Camera as Keep the Network Camera away soon as smoke or unusual odors are from water. If the Network Camera detected. becomes wet, power off immediately. Contact your distributor in the event of Contact your distributor in the event of occurrence.
  • Page 3 Do not place the Network Camera on Do not touch the Network Camera unsteady surfaces. during a lightning storm. Do not disassemble the Network Do not drop the Network Camera. Camera. Do not insert sharp or tiny objects Replacing or failing to properly into the Network Camera.
  • Page 4: Package Contents

    Package Contents FD8133V or FD8134V Power Adapter Alignment Sticker Software CD Drill hole Cable hole Cable hole Quick Installation Guide / RJ45 Female/Female Coupler / Warranty Card Screwdriver/ Screws / Clamp Core EN - 3...
  • Page 5: Physical Description

    Physical Description Black Cover Light Sensor IR LEDs (8 units, distance 10m) Lens (FD8134V only) MicroSD/SDHC Card Slot General I/O Terminal Block Ethernet 10/100 Reset Button RJ45 Plug Power Cord Socket Status LED Hardware Installation First, follow the instructions below to remove the dome cover. Dome Cover Network Camera Model No: FD8134V...
  • Page 6 Then remove the black cover as shown below. Tilt Adjustment Screw With idiot-proof mechanism design and very compact size, this Network Camera is very easy for user to install in diverse indoor environment. Ceiling Mount Wall Mount 1. Attach the alignment sticker to the ceilling/wall. 2.
  • Page 7: Network Deployment

    6. Buckle the supplied clamp core onto the cable to against the EMI radiation. The clamp core should be away from the device at least 5 cm. 5 cm Network Deployment General Connection (without PoE) 1. If you have external DI devices, make the connection from general I/O terminal block. 2.
  • Page 8 Power over Ethernet (PoE) (FD8134V only) When using a PoE-enabled switch This Network Camera is PoE-compliant, allowing transmission of power and data via a single Ethernet cable. Follow the below illustration to connect the Network Camera to a PoE-enabled switch via Ethernet cable. PoE Switch When using a non-PoE switch Use a PoE power injector (optional) to connect between the Network Camera and a...
  • Page 9 IMPORTANT! Although the camera and the cable gland on the camera's end are waterproof, the cable molding at the other end is not waterproof. Measures should be taken to prevent water from leaking in through the cable-end molding, such as the use of expanding foam sealant, putties, and so on. Note that the cable gland on the camera should also be securely fastened to attain its waterproof functionality.
  • Page 10: Assigning An Ip Address

    “Next” button to continue the program. Installation Wizard 2 3. The program will search for VIVOTEK Video Receivers, Video Servers, and Network Cameras on the same LAN. 4. After searching, the main installer window will pop up. Click on the MAC that matches the one labeled on the bottom of your device to connect to the Network Camera via Internet Explorer.
  • Page 11: Ready To Use

    Ready to Use 1. Access the Network Camera on the LAN. 2. Retrieve live video through a web browser or recording software. For further setup, please refer to the user's manual on the software CD. EN - 10...
  • Page 12: Adjusting The Lens

    3. Turn the lens to adjust the image orientation. Rotate the screw Turn the lens Pan 350° Tighten Loosen Tilt: FD8133V: 85° Rotate 350° FD8134V: 70° 3-axis Mechanism Design The sophisticated 3-axis mechanism design offers very flexible, easy hardware installation for either ceiling or wall mount. Pan 350°...
  • Page 13 Completion 1. Align the inner side of the black cover with the notch on both sides of the lens, fix the black cover. 2. If you choose to the feed the cable through the ceiling/wall, arrange the cable neatly through the cable hole. If you choose to feed the cable from the side, remove plate B. 3.
  • Page 14 P/N:625013701G Rev. 1.1 All specifications are subject to change without notice. Copyright 2012 VIVOTEK INC. All rights reserved. VIVOTEK INC. VIVOTEK USA, INC. 6F, No.192, Lien-Cheng Rd., Chung-Ho, New Taipei City, 235, Taiwan, R.O.C. 2050 Ringwood Avenue, San Jose, CA 95131 |T: +886-2-82455282| F: +886-2-82455532| E: sales@vivotek.com...

This manual is also suitable for:

Fd8134v
