Summary of Contents for Zanussi ZOU 885 ALU

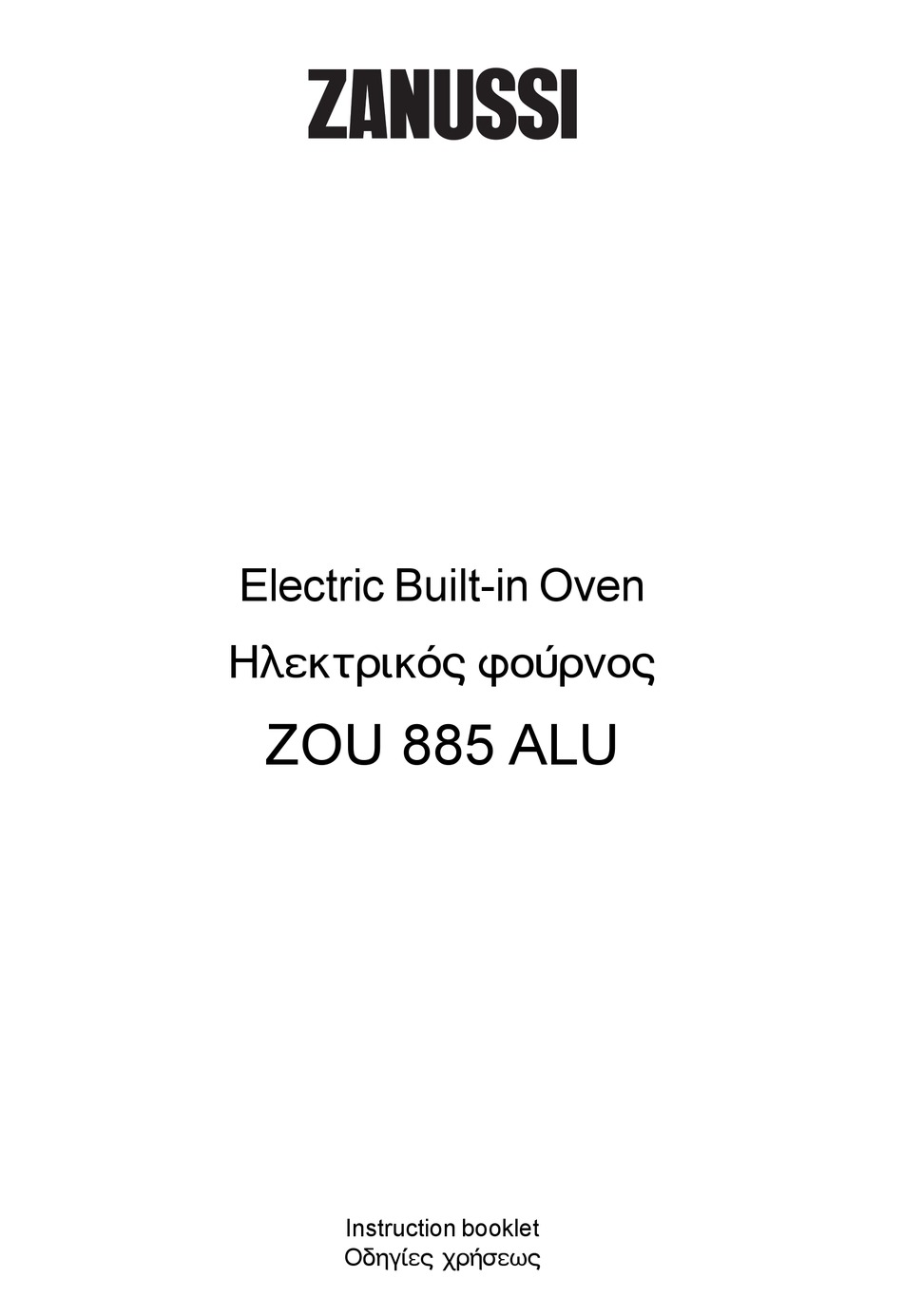

  • Page 1 Electric Built-in Oven «ÎÂÍÙÒÈÍ¸Ú ˆÔ˝ÒÌÔÚ ZOU 885 ALU Instruction booklet œ‰Á„flÂÚ ˜ÒfiÛ¢Ú...
  • Page 2: Important Safety Information

    ENGLISH Important Safety Information These warnings are provided in the interest of safety. You read them carefully before MUST installing or using the appliance. Installation • It is mandatory that all operations required for the • This appliance is meant to operate with a single-phase installation are carried out by a qualified or competent or a three-phase connection to 230V electrical supply, person, in accordance with existing rules and...
  • Page 3: Table Of Contents

    Contents For the User For the Installer Important Safety Information Technical data Description of the Oven Installation The Oven Electronic Control Electrical Connection The Oven Safety Devices Building In When the oven is first installed Before the first use of the oven Cooking Functions Programming the Oven Safety and Energy Saving Functions...
  • Page 4: Description Of The Oven

    Description of the Oven Control Knobs for the hob Contro Panel Oven Electronic Control Grill Element Oven Light Oven Fan Rating Plate Control Knobs for the Hob This appliance is provided with push-pull control knobs. (Fig. 1). These knobs can be completely sunken inside the control panel when the oven is not working.
  • Page 5: The Oven Electronic Control

    The Oven Electronic Control Cooking Duration Cooking Functions Time Temperature End Of Cooking Time Symbol display display display Symbol Clock Minute Minder Symbol Symbol Thermometer Symbol General Features of The Oven The Oven Electronic Control Electronic Control Buttons All the oven functions are controlled by an electronic ON / OFF Button device.
  • Page 6: When The Oven Is First Installed

    When the oven is first installed When the oven is first connected to the electrical supply, or when supply is restored after a long power failure, the upper section of the display shows this message: "WELCOME TO KRONOS-3 * BASIC-G * DANSK * DEUTSCH * ENGLISH * ESPANOL * FRANCAIS * ITALIANO * NEDERLANDS * NORSK * PORTUGUES * SVENSKA"...
  • Page 7: Before The First Use Of The Oven

    Before the first use of the oven Remove all packaging, both inside and outside the oven, before using it. The oven will work only if the time of day has been set. To switch the oven on and off The oven must be switched on before setting any cooking function or programme.
  • Page 8 To select a Cooking Function 1. Switch on the oven by pressing the "On/Off" button 2. Press the "Cooking Functions" button to select the required oven function. Each time button pressed, a different cooking symbol appears in the lower section of the display and the description of the cooking function appears as a message in the upper section.
  • Page 9: Cooking Functions

    Cooking Functions The following list displays in sequence all the available PIZZA - The bottom element provides direct cooking functions. heat to the base of pizzas, quiches or pies, while the fan ensures air is circulated to cook FAN COOKING - This setting allows you to the pizza toppings or pie fillings.
  • Page 10 To programme the Oven to switch off 1. Switch the oven on, place food in the oven, select a cooking function and adjust the cooking tempe- rature, if required. 2. Press the "Time Function" button . The symbol flashes near the "Cooking Duration" symbol Fig.
  • Page 11: Safety And Energy Saving Functions

    Safety and Energy Saving Functions Safety Cut-Off Function The oven will switch off automatically if any change of setting is made, according to the table below (Fig. 18). If temperature setting is: the oven will switch off: 250°C after 1 hours Fig.
  • Page 12: Residual Heat Function

    Residual Heat Function When a Cooking Duration time is set, the heating elements of the oven will automatically go off a few minutes before the end of the programmed time, and the oven will use the residual heat to finish your dishes without energy consumption.
  • Page 13: The "Recipe Selection" Function

    The "Recipe Selection" Function Some recipes have been stored into the Oven Electronic Control memory to allow you to cook ten different dishes using pre-set cooking functions, temperatures and cooking times. The available recipes are listed at the bottom of this page. To choose a recipe: 1.
  • Page 14: Using The Oven

    Using the Oven Hints and Tips on Cooking Shelf Positions Fish and Meat The oven shelves can be placed at different heights to obtain better cooking results. You can place meat in oven proof dishes, or directly on the The levels are shown in Fig. 27. oven shelf.
  • Page 15: Cooking Tables

    Cooking Tables Cooking times do not include pre-heating time. A short oven pre-heating (about 10 minutes) is necessary before any cooking. Traditional cooking and fan ducted cooking Traditional Cooking Fan Oven Cooking time NOTES TYPE OF DISH Level Level temp. temp.
  • Page 16: Thermal Grilling

    Cooking times do not include pre-heating time. A short oven pre-heating (about 10 minutes) is necessary before any cooking. Grilling Cooking time Level Quantity (minutes) Temperature TYPE OF DISH °C Upper Lower Pieces Weight side side Fillet steaks 12 ~ 15 12 ~ 14 Beef-steaks 10 ~ 12...
  • Page 17: Cleaning The Oven

    Cleaning the Oven Oven Shelves and Shelf Before cleaning always allow the cooling fan to cool the oven down before switching off at the Supports electricity supply. This appliance cannot be cleaned with steam or To clean the oven shelves and the shelf supports, soak in with a steam cleaning machine.
  • Page 18: Cleaning The Oven Door

    Cleaning The Oven Door Before cleaning the oven door, we recommend you to remove it from the oven. Proceed as follows: 1. Open the oven door completely; 2. Find the hinges linking the door to the oven (fig. 29); 3. Unlock and turn the small levers located on the two hinges (fig.
  • Page 19 The Hinged Grill This oven is supplied with a hinged grill element, to enable you to clean the roof of the oven easily. Before proceeding ensure the oven is cool and is isolated from the electricity supply. 1. Undo the screws which hold the grill in place (see Fig. 7). When doing this operation for the first time, we recommend using a screwdriver.
  • Page 20: Something Not Working

    Something not working If the appliance is not working correctly, please carry out the following checks, before contacting your local Service Centre. SYMPTOM SOLUTION The oven does not come on. Switch on the oven using push button , then select a cooking function.
  • Page 21: Technical Data

    Technical Data Heating element ratings Oven recess dimensions Top heating element 800 W Height 593 mm Width 560 mm Bottom heating element 1000 W Depth 550 mm Conventional cooking function (top+bottom) 1800 W Grill heating element 1650 W This appliance can only be connected to the Full Grill Function (grill+top) 2450 W following cast iron or ceramic hobs:...
  • Page 22: Building In

    Connecting the terminal board The appliance incorporates an easily accessible 6-pole terminal board whose jumpers (bridges) are already pre-set for operation on 400V tri-phase with neutral wire (Fig.35). In case a different mains voltage is present, the jumpers on the terminal board must be rearranged as shown in the diagram (Fig.36).
