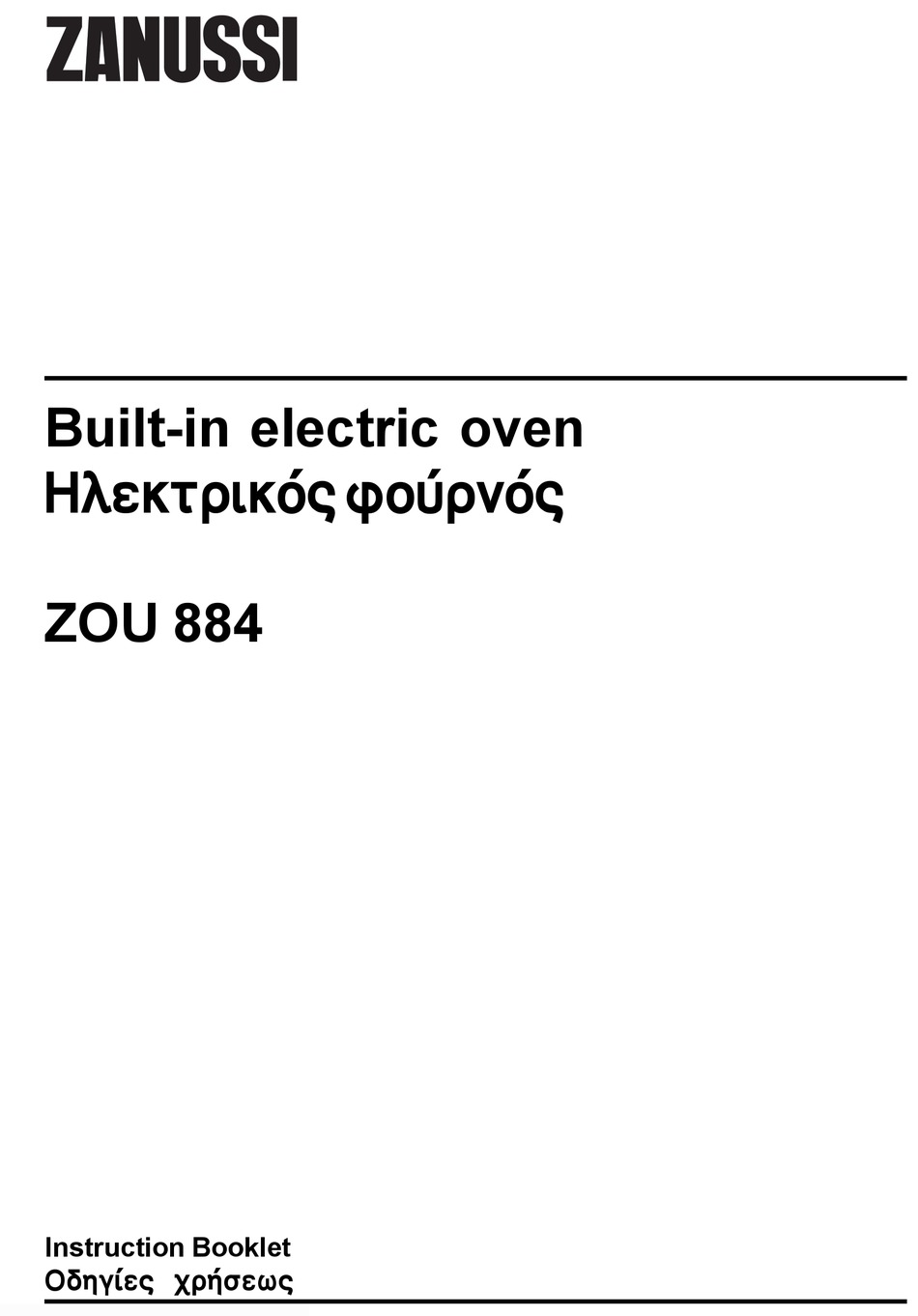

Built-in electric oven
«ÎÂÍÙÒÈÍ¸Ú ˆÔ˝Ò̸Ú
ZOU 884
Instruction Booklet
œ‰Á„flÂÚ ˜ÒfiÛ¢Ú

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZOU 884 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Zanussi ZOU 884

  • Page 1 Built-in electric oven «ÎÂÍÙÒÈÍ¸Ú ˆÔ˝ÒÌ¸Ú ZOU 884 Instruction Booklet œ‰Á„flÂÚ ˜ÒfiÛ¢Ú...
  • Page 2: During Use

    English Warnings - Built-in ovens It is most important that the instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is supplied with the appliance in order that the new owner can be acquainted with the functioning of the appliance and the relevant warnings.
  • Page 3: When The Oven Is First Installed

    Technical assistance This appliance should be serviced by an The symbol on the product or on its authorized Network Service Centre, and packaging indicates that this product may only genuine spare parts should be used. not be treated as household waste. Instead Under no circumstances should you it shall be handed over to the applicable attempt to repair the appliance yourself.
  • Page 4: Description Of The Appliance

    Description of the appliance 1. Control Panel 8. Cooking function control knob 2. Front right hotplate/cooking zone control knob 9. Operating control light 3. Rear right hotplate/cooking zone control knob 10. Electronic programmer 4. Rear left hotplate/cooking zone control knob 11.
  • Page 5: Electric Oven

    Electric oven Push-Pull control knobs Some models are provided with push-pull control knobs (Fig. 1). These knobs can be completely sunken inside the control panel when the oven is not working. Oven Function (Fig. 2) and Thermostat (Fig. 3) control knobs Fig.
  • Page 6: Hotplate Control Knobs

    Hotplate control knobs The Control Knobs for the hotplates (Fig. 4) can be found on the oven control panel. The energy regulator of the hotplates can be set by means of a 9-position control knob: 0 = Off 1 = Minimum 9 = Maximum The intermediate positions give an increasing Fig.
  • Page 7: Electronic Programmer

    Electronic programmer 1. Push button for selecting a function 2. Decreasing control button “ ” 3. Increasing control button “ ” 4. Display 5. “Cooking Duration” pilot lamp 6. “End of cooking” pilot lamp 7. “Minute minder” pilot lamp 8. “Time of day” pilot lamp The oven will work only if the time of day has been set.
  • Page 8: End Of Cooking" Function

    To set the duration time: 1. press button “ ” or “ ”. 2. After the setting is carried out, wait for 5 seconds: the "Cooking Duration" pilot lamp will come on and the display will revert to the time of day. 3.
  • Page 9: Cooking Duration

    To cancel the End of cooking time: 1. Press button repeatedly to select the “End of cooking” function. The relevant pilot lamp will flash and the display will show the programmed End of cooking time. 2. Press button “ ” until the display shows the current time of day.
  • Page 10: Shelf Supports

    How to switch off the display 1. Press two or three programmer push buttons simoultaneously and keep them pressed for about 5 seconds. The display will switch off. 2. To switch on the display, press any button. The display can be switched off only if no other functions have been set.
  • Page 11: Hints And Tips For Using The Oven

    Hints and tips for using the oven Always cook with the oven door tins of biscuits and mini pizzas to be eaten closed. immediately or subsequently deep frozen. Naturally the oven can also be used for cooking The oven is supplied with an exclusive system on just one shelf.
  • Page 12: Cooking Times

    Some hints steaks, the inside of which should remain fairly pink in color, cooking times must be For baking cakes short. Cakes require a moderate temperature The meat can be cooked in a baking pan or (normally between 150 and 200°C). In else directly on the shelf - in this case a addition, the oven must be heated up dripping pan must obviously be placed...
  • Page 13: Cooking Tables

    Cooking Tables Traditional cooking and fan ducted cooking Traditional Cooking Fan Oven Cooking time TYPE OF DISH NOTES Level Level temp. temp. °C °C minutes CAKES Whipped up kneading 2 (1 and 3)* 45 ~ 60 In cake mould Shortbread dough 2 (1 and 3)* 20 ~ 30 In cake mould...
  • Page 14: Thermal Grilling

    Grilling (**) Cooking time Grilling Quantity (minutes) TYPE OF DISH Lower Upper °C Pieces Weight temp. Level side side Fillet steaks 12 ~ 15 12 ~ 14 Beef-steaks 10 ~ 12 6 ~ 8 Sausages — 12 ~ 15 10 ~ 12 Pork chops 12 ~ 16 12 ~ 14...
  • Page 15: Cleaning And Maintenance

    Cleaning and Maintenance The Hinged Grill Before any cleaning switch the oven off and let it cool down. This appliance is supplied with a hinged grill Never use steam or steam element, to enable you to clean the roof of the machines to clean the appliance.
  • Page 16: Replacing The Oven Light

    Oven door cleaning For a better cleansing of the oven door, you are suggested to remove it from the appliance with the following procedure: 1. Open the oven door completely; 2. Find the hinges linking the door to the oven (Fig. 8); Fig.
  • Page 17 What happens if something goes wrong If the appliance is not working correctly, please carry out the following checks, before contacting your local Service Centre. SYMPTOM SOLUTION The oven does not come on Check the appliance is wired in properly, and the socket switch or the switch from the mains supply to the oven are ON.
  • Page 18: Service And Spare Parts

    Service and Spare Parts If your appliance does not work correctly, Original spareparts, certified by the product even after carrying out all the checks which manufacturer and carrying this symbol are are listed in the previous chapter, then only available at our Service Centre and please contact your local Service Centre, authorized spareparts shops.
  • Page 19: Technical Data

    Technical Data Dimension of the oven This appliance can only be connected to the following cast iron or ceramic recess hobs: Height 593 mm Width 560 mm Cast iron hotplate hobs Type: ZMF 2105 Depth 550 mm Maximum power absorbed 7,0 kW Power supply voltage (50 Hz) 230 V...
  • Page 20: Instructions For The Installer

    Instructions for the installer The instructions given below are any given point a temperature 50°C higher designed specifically for a qualified than the ambient temperature. installer and should aid him or her to Suitable power supply cables are the following types, considering the respective perform all installation, adjustment, necessary section of cable: H07 RN-F, H05 and maintenance operations with...
  • Page 21: Building-In

    Electrical connection with the hob This oven can only be connected to hobs indicated in the paragraph "Technical data". The socket for connecting the hob is located at the top of the oven cabinet. The hobs come complete with connecting leads for the hot plates/heat areas and ground cable;...
