Summary of Contents for Zanussi ZI 922

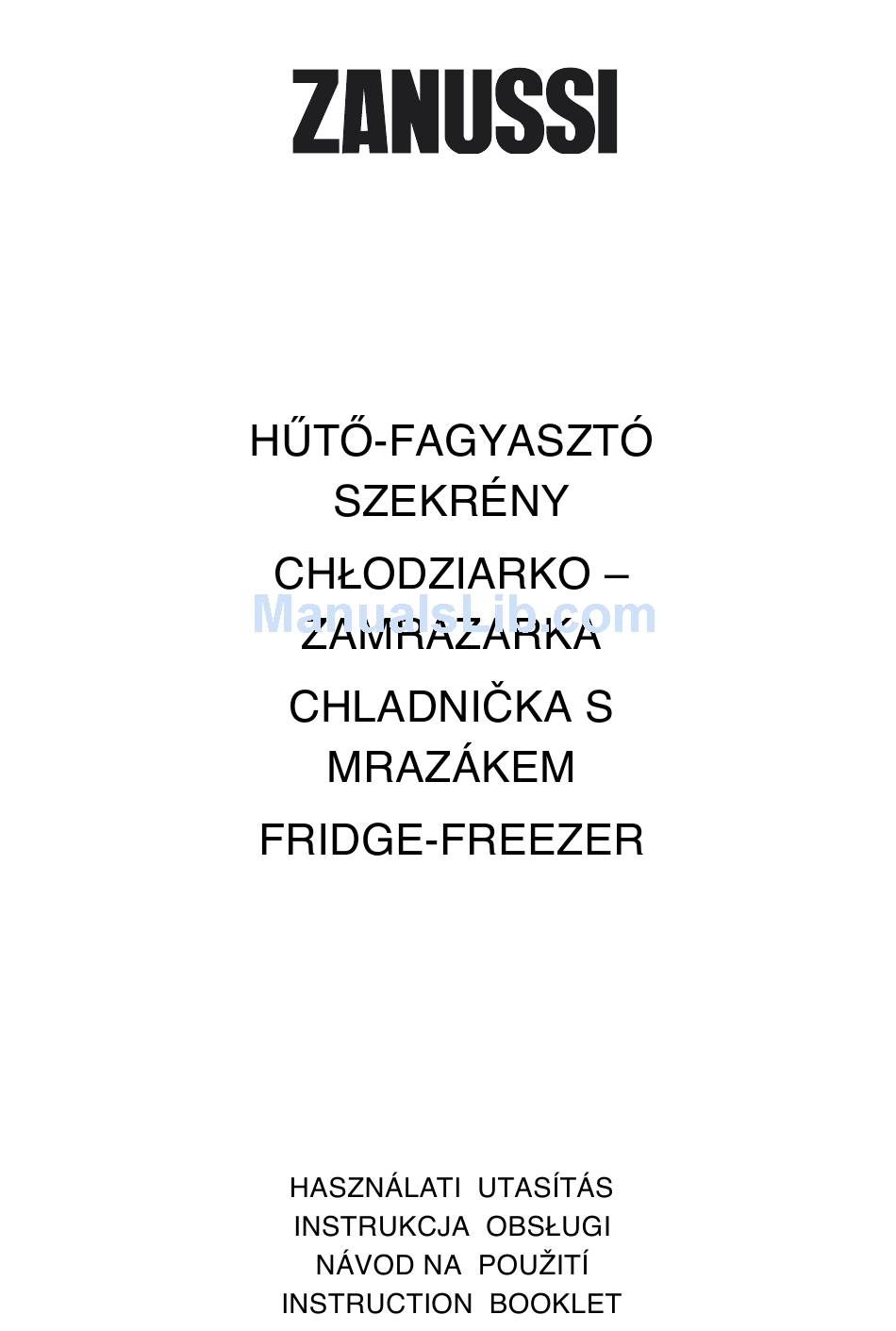

- Page 1 ZI 922/9 KA 2223 337-44...
-
Page 2: Warnings
WARNINGS It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is supplied with the appliance in order that the new owner can be acquainted with the functioning of the appliance and the relevant warnings. -
Page 3: Table Of Contents
• Do not place carbonated or fizzy drinks in the • If the appliance has been transported freezer as it creates pressure on the container, horizontally, it is possible that the oil contained in which may cause it to explode, resulting in the compressor flows in the refrigerant circuit. -
Page 4: Quick-Freezing - The Temperature Alarm Light - Freezing Fresh Food
Control panel A. Pilot light B. SUPER operating control light C. Warning light D. Normal/Super (quick-freezing) switch E. Thermostat knob Cleaning the interior Before using the appliance for the first time, wash • the quantity of food stored; the interior and all internal accessories with luke- •... -
Page 5: Use / Storage Of Frozen Food - Thawing - Ice Cube Production
Storage of frozen food When the freezer is being turned on for the first time, or after a prolonged period of disuse, turn the N/S knob to the Quick-freezing position and then wait at least two hours before introducing the food to be conserved. -
Page 6: Use / Use Of The Refrigerator - Temperature Regulation - Fresh Food Refrigeration
Use of the refrigerator Temperature regulation To start the appliance, turn the thermostat knob, located inside the compartment, to the required position. This thermostat has six operating positions and an «0» (Stop) position. The higher the number selected, the lower the temperature in the refrigerator. -
Page 7: Use / Movable Shelves - Positioning The Door Shelves
Movable shelves The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired. For better use of space, the front half-shelves can lie over the rear ones. D338 Positioning the door shelves To permit storage of food packages of various sizes, the door shelves can be placed at different heights. -
Page 8: Hints / Hints For Refrigeration - Hints For Freezing - Hints For Storage Of Frozen Food
HINTS Hints for refrigeration The numbers indicate storage times in months for the appropriate types of frozen goods. Whether Useful hints: the upper or lower value of the indicated storage time is valid depends on the quality of the foods Meat (all types): wrap in polythene bags and place and pre-treating before freezing. -
Page 9: Maintenance / Periods Of Non Operation - Periodic Cleaning - Interior Light - Defrosting
MAINTENANCE Unplug the appliance before carrying out Periods of non-operation any maintenance operation. When the appliance is not in use for long periods, Warning take the following precautions: This appliance contains hydrocarbons in its cooling unit; maintenance and recharging must therefore remove the plug from the wall socket;... -
Page 10: Customer Service And Spare Parts
However, when the ice becomes very thick on the inner liner, complete defrosting should be carried out as follows: 1. pull out the plug from the wall socket or turn the thermostat knob (E) to the «O» setting; 2. remove any stored food, wrap it in several layers of newspaper and put it in a cool place;... -
Page 11: Noise Level
Noise level Hereunder you will find some normal causes of noise that do not jeopardise normal functioning of the product. Brrrr Noise due to the adjustment of the unit’s structure Possible noise sources that are Compressor motor noise easy to eliminate: The appliance is not well levelled: Simply adjust the levelling foot. -
Page 12: Technical Information / Installation / Location - Shelf Holders
TECHNICAL INFORMATION Modell ZI 922/9 KA Gross Freezer Capacity lt. Net Freezer Capacity lt. Gross Fridge Capacity lt. Net Fridge Capacity lt. Dimensions (width*height*depth, cm) 178x56x55 Tension (V/Hz) 220-240/50 Energy Consumption (kWh/24h) 0,871 Freezing Capacity (kg/24h) Temperature increase time h... -
Page 13: Installation/ Electrical Connection
Electrical connection Before plugging in, ensure that the voltage and frequency shown on the serial number plate correspond to your domestic power supply. Voltage can vary by ±6% of the rated voltage. For operation with different voltages, a suitably sized auto-transformer must be used. -
Page 14: Installation / Instructions For Totally Built-In Appliances
Instructions for totally built-in appliances Door reversibility The appliance is supplied with the right or left doors opening. To change the opening direction of the doors proceed as in the following instructions before installing it. 1. Unscrew the upper pin and remove the spacer 2. - Page 15 Fit the appliance in the niche by making sure that it stands against the interior surface of the unit on the side where the door hinges of the appliances are fitted. Insert the appliance until the upper strip butts up against the unit (1) and make sure that the lower hinge is in line with the surface of the unit (2).
- Page 16 Place guide (Ha) on the inside part of the furniture ca. 50 mm door, up and down as shown in the figure and mark the position of external holes. After having drilled holes, fix the guide with the screws supplied. ca.
- Page 17 Fix cover (Hd) on guide (Hb) until it clips into place. PR167/1 If the appliance is fixed to the side of the kitchen unit, simply slacken the screws in the fixing brackets (E), move the brackets as shown in the figure and re-tighten the screws.
