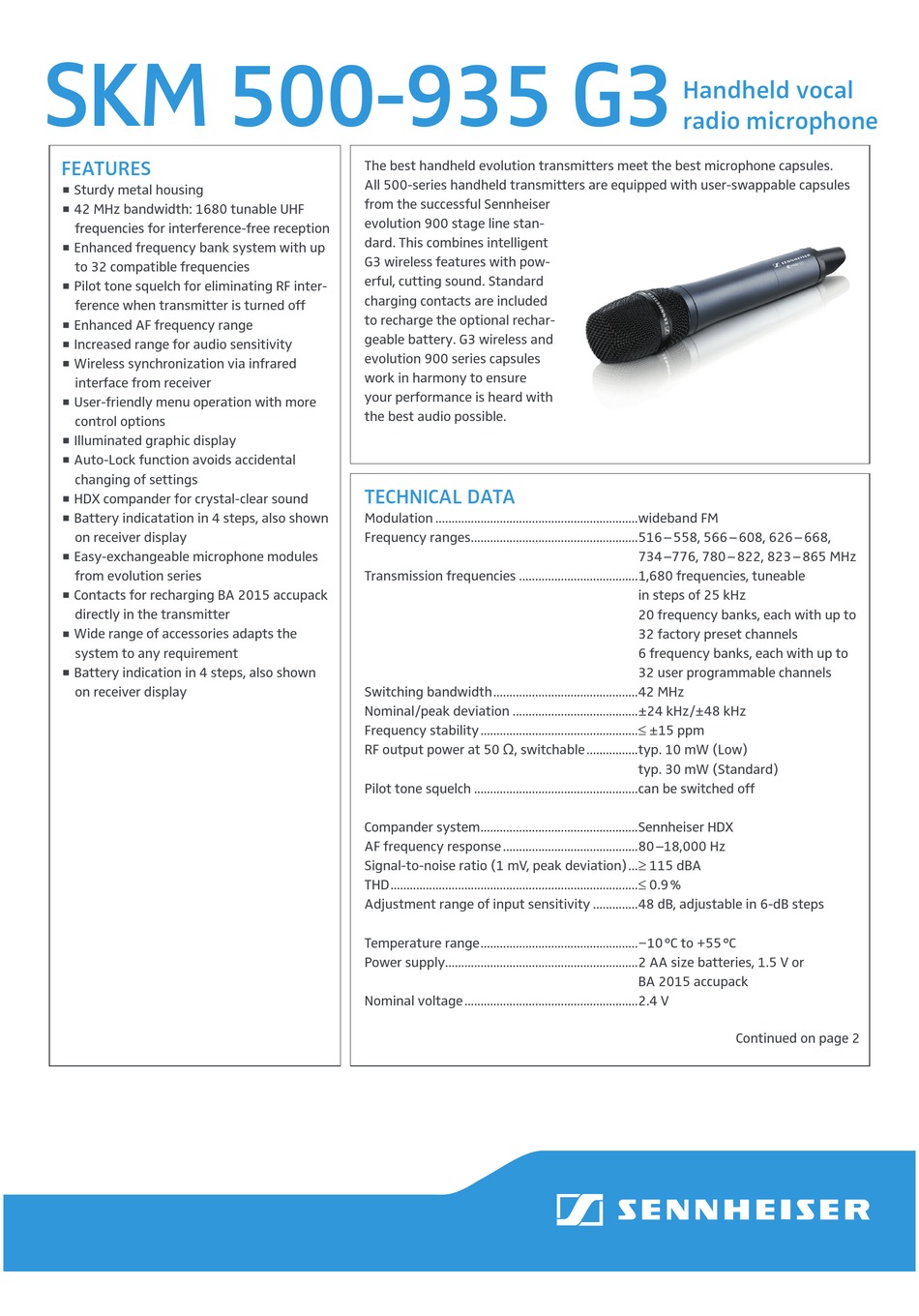

SKM 500-935 G3
FEATURES
Sturdy metal housing

42 MHz bandwidth: 1680 tunable UHF

frequencies for interference-free reception
Enhanced frequency bank system with up

to 32 compatible frequencies
Pilot tone squelch for eliminating RF inter-

ference when transmitter is turned off
Enhanced AF frequency range

Increased range for audio sensitivity

Wireless synchronization via infrared

interface from receiver
User-friendly menu operation with more

control options
Illuminated graphic display

Auto-Lock function avoids accidental

changing of settings
HDX compander for crystal-clear sound

Battery indicatation in 4 steps, also shown

on receiver display
Easy-exchangeable microphone modules

from evolution series
Contacts for recharging BA 2015 accupack

directly in the transmitter
Wide range of accessories adapts the

system to any requirement
Battery indication in 4 steps, also shown

on receiver display
The best handheld evolution transmitters meet the best microphone capsules.
All 500-series handheld transmitters are equipped with user-swappable capsules
from the successful Sennheiser
evolution 900 stage line stan-
dard. This combines intelligent
G3 wireless features with pow-
erful, cutting sound. Standard
charging contacts are included
to recharge the optional rechar-
geable battery. G3 wireless and
evolution 900 series capsules
work in harmony to ensure
your performance is heard with
the best audio possible.

TECHNICAL DATA

Modulation ...............................................................wideband FM
Frequency ranges.................................................... 516 – 558, 566 – 608, 626 – 668,
Transmission frequencies ..................................... 1,680 frequencies, tuneable
Switching bandwidth .............................................42 MHz
Nominal/peak deviation .......................................±24 kHz/±48 kHz
Frequency stability .................................................≤ ±15 ppm
RF output power at 50 O, switchable ................ typ. 10 mW (Low)
Pilot tone squelch ...................................................can be switched off
Compander system .................................................Sennheiser HDX
AF frequency response ..........................................80 –18,000 Hz
Signal-to-noise ratio (1 mV, peak deviation) ...≥ 115 dBA
THD .............................................................................≤ 0.9 %
Adjustment range of input sensitivity ..............48 dB, adjustable in 6-dB steps
Temperature range .................................................−10 °C to +55 °C
Power supply............................................................ 2 AA size batteries, 1.5 V or
Nominal voltage ......................................................2.4 V
Handheld vocal
radio microphone
734 –776, 780 – 822, 823 – 865 MHz
in steps of 25 kHz
20 frequency banks, each with up to
32 factory preset channels
6 frequency banks, each with up to
32 user programmable channels
typ. 30 mW (Standard)
BA 2015 accupack
Continued on page 2
