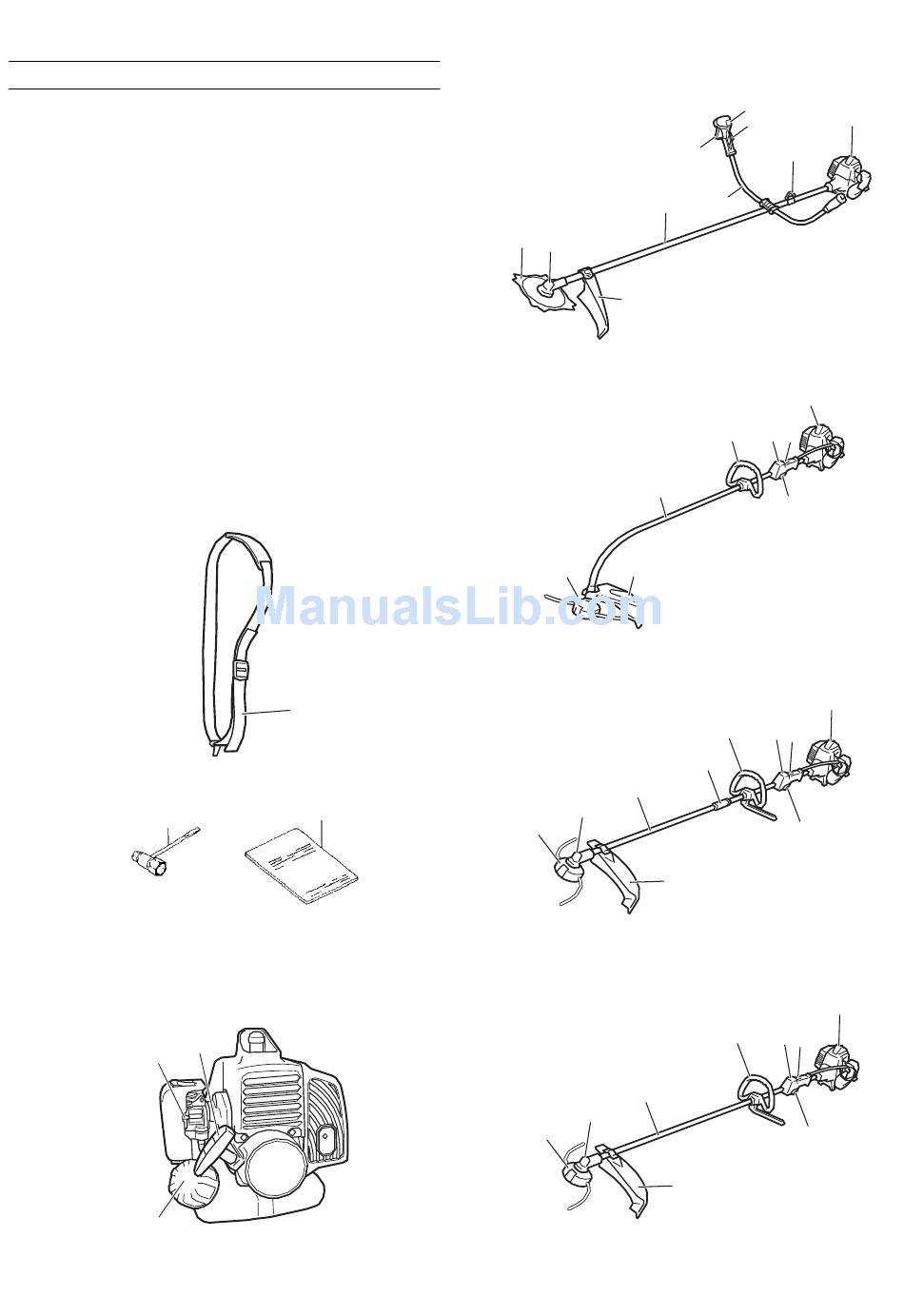

WHAT IS WHAT

Since this manual covers several models, there may be some
diff erence between pictures and your unit. Use the instructions that
apply to your unit.
1.
Fuel cap
2. Throttle trigger
3. Starter handle
4. Blade guard
5. Cutting attachment
6. Drive shaft tube
7.
Handle
8. Suspension eyelet
9.
Ignition switch
10. Harness
11. Throttle trigger lockout
12. Choke lever
13. Engine
14. Angle transmission
15. Joint case
16. Combi box spanner
17. Handling instructions
16
12
1
10
17
3
2
6
5
14
4
6
4
5
6
14
5
4
6
14
5
4
9
13
11
8
7
CG22EAS (S)
CG24EAS (S)
CG27EAS (S)
13
9 11
7
2
CG22EAB (SL)
13
7
9
11
15
2
CG22EAD (SL)
13
7
9
11
2
CG22EAS (SL)
CG24EAS (SL)
CG27EAS (SL)
