Audiovox SRXM-001 Installation Manual

Xm satellite digital audio receiver system
Hide thumbs Also See for SRXM-001:

Advertisement

Quick Links

®
ELECTRONICS CORP .
®
XM
SATELLITE DIGITAL AUDIO
RECEIVER SYSTEM MODEL SRXM-001

INSTALLATION MANUAL

FOR USE WITH THE RADIO RECEIVER
UNIT (RRU) MODEL XM-RCV
F or C ustom er S ervice
Vis it O ur W ebsite A t
999
P roduct Inform ation, P h otos,
FA Q 's O w ner 's M anuals

Advertisement

loading

Summary of Contents for Audiovox SRXM-001

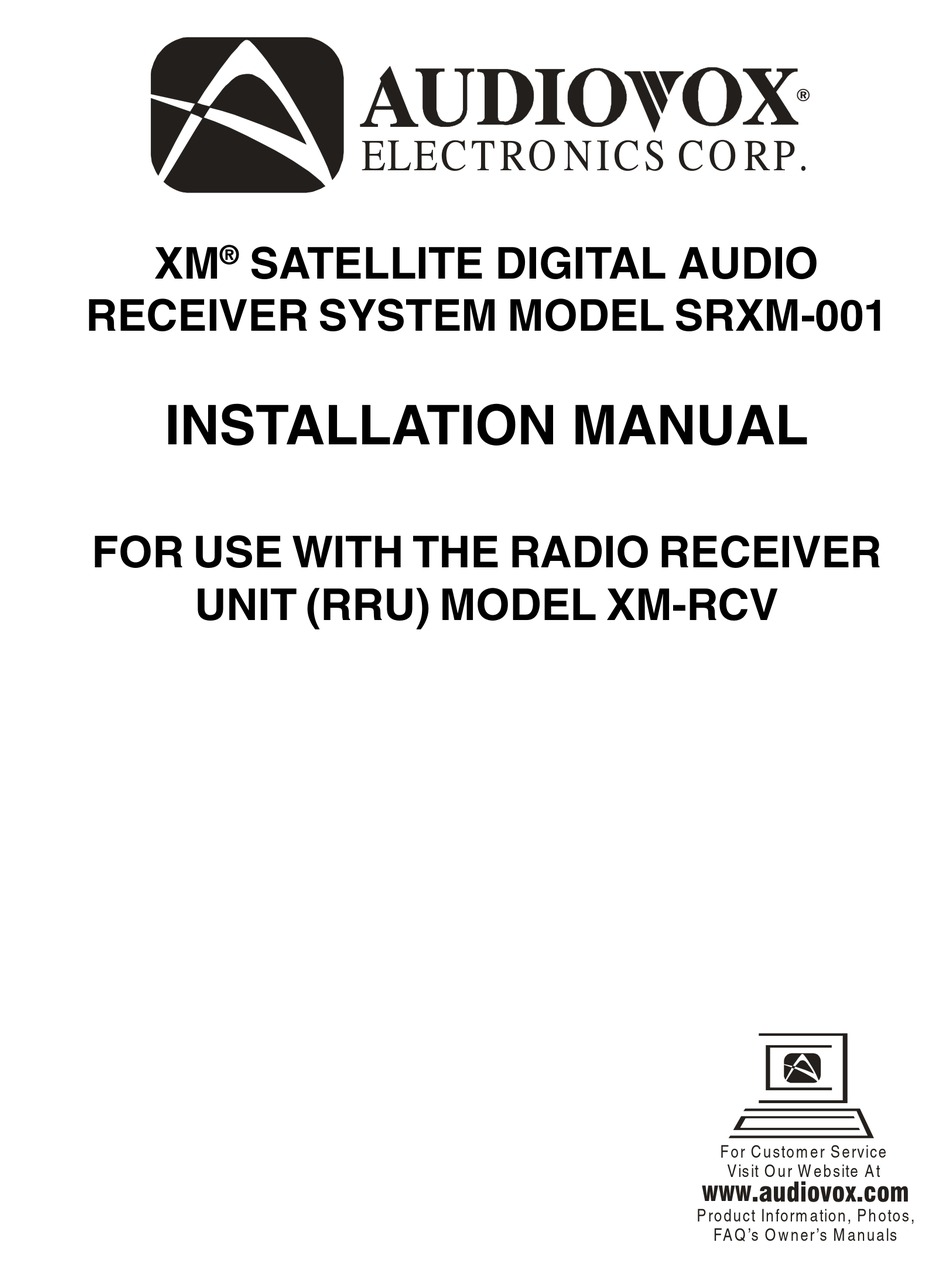

  • Page 1: Installation Manual

    ® ELECTRONICS CORP . ® SATELLITE DIGITAL AUDIO RECEIVER SYSTEM MODEL SRXM-001 INSTALLATION MANUAL FOR USE WITH THE RADIO RECEIVER UNIT (RRU) MODEL XM-RCV F or C ustom er S ervice Vis it O ur W ebsite A t P roduct Inform ation, P h otos,...
  • Page 2 INTRODUCTION ® The Audiovox Electronics XM Satellite Digital Audio Control And Receiver System (Model SRXM-001) was developed to allow the user to listen to a huge selection of programming ® ® supplied by a subscription to XM Radio. (XM -compatible antenna also required).
  • Page 3: Installation And Wiring Precautions

    Connect power wires last. NOTE: If the SRXM-001 System is to be installed in a car that is equipped with an on-board drive or navigation computer, do not disconnect the battery cable. If the cable is discon- nected, the computer memory may be lost.
  • Page 4: Packing List

    PACKING LIST SRXM-001 MAIN SYSTEM COMPONENTS (NOTE: Components are not drawn to scale.) RADIO RECEIVER UNIT (RRU) SATELLITE SYSTEM CONTROL FM MODULATOR / UNIT (SCU) Model # XM-RCV CONTROL INTERFACE Model # SAT-COM 1 pc. 1 pc. 1 pc. (P/O SAT-COM)
  • Page 5 TYPICAL FM MODULATED SYSTEM INSTALLATION...
  • Page 6 TYPICAL AUXILLARY AUDIO SYSTEM INSTALLATION...
  • Page 7 Attach this wire to the chassis of the car. Be sure that the surface is free of paint and is not rusty. If a proper ground connection is not made, the SRXM-001 System may not From Existing operate correctly and stray noise may be Vehicle Antenna picked up by the unit.
  • Page 8: System Installation

    SYSTEM INSTALLATION RADIO RECEIVER UNIT (RRU) PROCEDURE for HORIZONTAL INSTALLATION of the RRU Attach the mounting brackets to each side of the RRU, using the 4 Phillips Round Head Screws (4mm x 8mm). Bracket Phillips Head Screws (4mm x 8mm) used in 4 places Determine the mounting location and drill 4x 1/8”...
  • Page 9 PROCEDURE for VERTICAL INSTALLATION of the RRU Attach a mounting bracket to each side of the RRU, using the 4 Phillips Round Head Screws (4mm x 8mm). Phillips Head Screws (4mm x 8mm) used in 4 places Bracket Determine the mounting location and drill 4 x 1/8” (4mm) mounting holes. WARNING Never mount the unit near the fuel tank.
  • Page 10 PROCEDURE for the MOUNTING of the RRU UNDER THE REAR DECK Attach the mounting brackets to each side of the RRU, using the 4 Phillips Round Head Screws (4mm x 8mm). Bracket Phillips Head Screws used in 4 places (4mm x 8mm) Determine the mounting location and drill four 4mm mounting holes.
  • Page 11 INSTALLING THE SATELLITE SYSTEM CONTROL UNIT (SCU) PROCEDURE for a TYPICAL INSTALLATION of the SCU USING HOOK & LOOP ADHESIVE TAPE (SUPPLIED) 1. Determine where the SCU is to be located (flat surface) NOTE: The chosen position must allow a clear view of the display and easy access to the controls for both the Driver and Passenger of the vehicle.
  • Page 12 PROCEDURE FOR A TYPICAL BRACKET INSTALLATION OF THE SCU (Bracket not supplied) Audiovox suggests this type of installation over the Hook & Loop type of installation though the Hook & Loop installation (if done correctly) is a secure and sufficient mounting option. Installation of the SCU using a bracket results in a professional, factory-installed look, without visibly damaging the interior of the vehicle.
