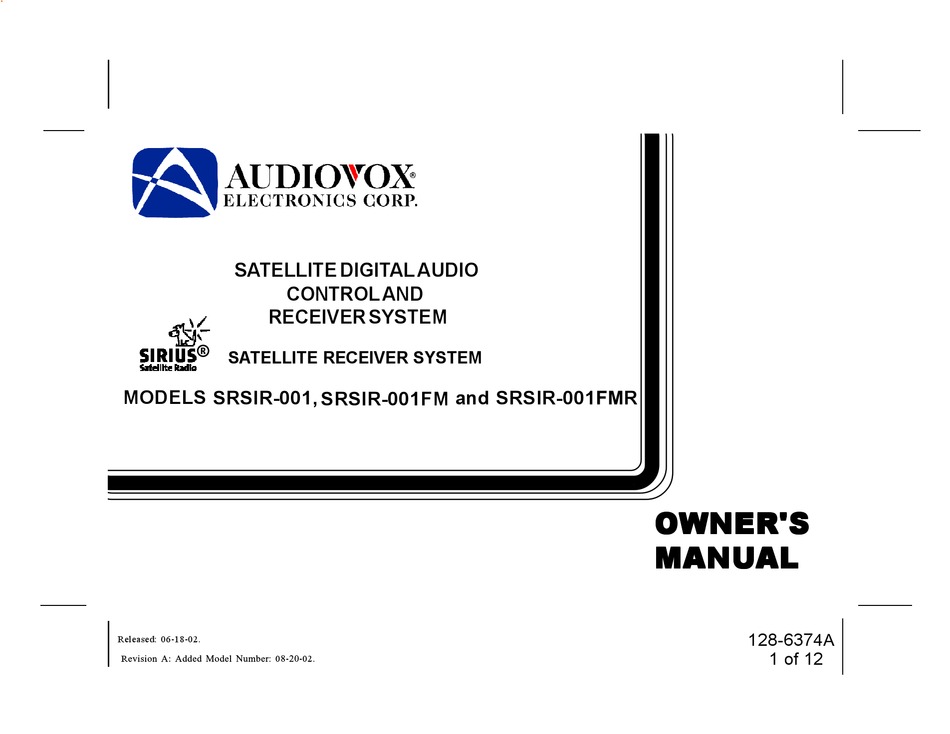

- Page 1 SATELLITE DIGITAL AUDIO CONTROL AND RECEIVER SYSTEM ® SATELLITE RECEIVER SYSTEM MODELS SRSIR-001, SRSIR-001FM and SRSIR-001FMR Released: 06-18-02. Revision A: Added Model Number: 08-20-02. O O O O O WNER'S WNER'S WNER'S WNER'S WNER'S MANU MANU MANU MANUAL MANU 128-6374A...
-
Page 2: Table Of Contents
Control of system functions is achieved by the wired SCU, which can be conveniently mounted to the dashboard in a number of configurations. In addition, an optional wireless remote (Audiovox P/N SAT-RC) to control SCU functions is also available. The SIRIUS ® Satellite Radio signals are received by the antenna and are routed to the RRU, whose RF output is supplied to the FM Switching Box. -
Page 3: Satellite System Control Unit (Scu)
AUDIO OUT AUDIO OUT TER. SAT. TO SCU POWER TER. SAT. TO SCU SATELLITE RADIO RECEIVER SATELLITE RADIO RECEIVER AUDIO OX POWER HARNESS SATELLITE CONTROL 6-DIN CABLE FM SWITCHING BOX ASSY SATELLITE ANTENNA RCA to RCA CABLE Figure 1. SIRIUS® Satellite Receiver System... -
Page 4: Satellite Radio Receiver Unit (Rru)
Power On/Off ( ) Button: Press this button to apply power to the Satellite Radio Receiver system. The associated radio must be turned on and off separately using its power switch. This button is also used to back light the number keys when the system is on. -
Page 5: Functional Operation
Functional Operation Functional operation of the system is controlled by the buttons on the SCU; i.e., the sequence in which they are pressed and the length of time button activation occurs. POWERING UP THE SYSTEM After the system has been properly installed it can be powered on in the following manner: Apply power to the vehicle’s radio. -
Page 6: Using The Up/Down Buttons
A typical channel display will appear as shown below. CHANNEL PRESET GROUP INDICATOR NAME SR1 -or - SR2 ARTIST NAME SONG TITLE CHANNEL NUMBER CATEGORY (only in Category Mode) PRESET CHANNEL Figure 5. Sample SIRIUS ® Display USING THE UP/DOWN BUTTONS This section describes two ways the Down ( ) and Up ( ) directional buttons are used to select an SIRIUS®... -
Page 7: Directly Accessing A Channel
CHANNEL NUMBER PRESS THE SHIFT BUTTON FLASHES Figure 7. Accessing Channels SELECTING CHANNEL CATEGORIES (only in Category Mode) This section describes the procedure used to select a specific group or category of entertainment. Entering into category mode can be accom- plished either by Pressing (SFT)+0981+(SFT) or to quickly shift between Category mode and Channel mode, momentarily Press and release (SFT) then Press and Hold (SFT) for 2 seconds, “ENTER CATEGORY... -
Page 8: Special Functions Using The Shift Button
Each category or group is assigned a sequential block of channels. To navigate within a category, enter Shift (SFT) 0981 Shift (SFT). This mode will allow the user to switch between channels within a chosen category.C 4. To program the second group of 10 preset channels (upper group) press and Hold the Shift (SFT) button for 2 seconds until a tone is heard. -
Page 9: Lcd Backlight Dimming Shift Code
LCD BACKLIGHT DIMMING SHIFT CODE To enable the LCD backlight dimming feature: 1. Enter shift code 36, “DIMMING ADJUST” will be displayed. 2. Use the Up and Down directional buttons to increase or decrease display dimming, respectively. 3. Press the (SFT) button to exit LCD backlight dimming mode. BUTTON CONFIRMATION TONE SHIFT CODE Normally, a beep confirmation tone is heard each time a button is pressed on the SCU. -
Page 10: Display Messages
DISPLAY MESSAGES When problems are encountered during SIRIUS ® system operation, a message may appear on the display. The following table outlines the most common problems and provides a probable cause(s) for each and a suggested corrective action(s) to restore normal operation. Troubleshooting Considerations The following table presents a few possible causes of system operating faults, their probable causes and the remedial action suggested to re-... -
Page 11: Specifications
1.2 A Dimensions: Satellite System Control 133mmL x 21.0mmW x 47.5mmH Unit (SCU) (5.24”) x (0.83”) x (1.87”) Satellite Radio Receiver 170mmL x 114.9mmW x 30.5mmH Unit (RRU) (6.7”) x (4.5”) x (1.03”) Weight: Satellite System Control 9.5 oz (0.269Kg) - Page 12 If you need help, just call Audiovox’s toll-free telephone assistance line at 1-800-645-4994 © 2002 AUDIOVOX ELECTRONICS CORP., HAUPPAUGE, N.Y. 128-6374A 128-6374A 12 of 12...
