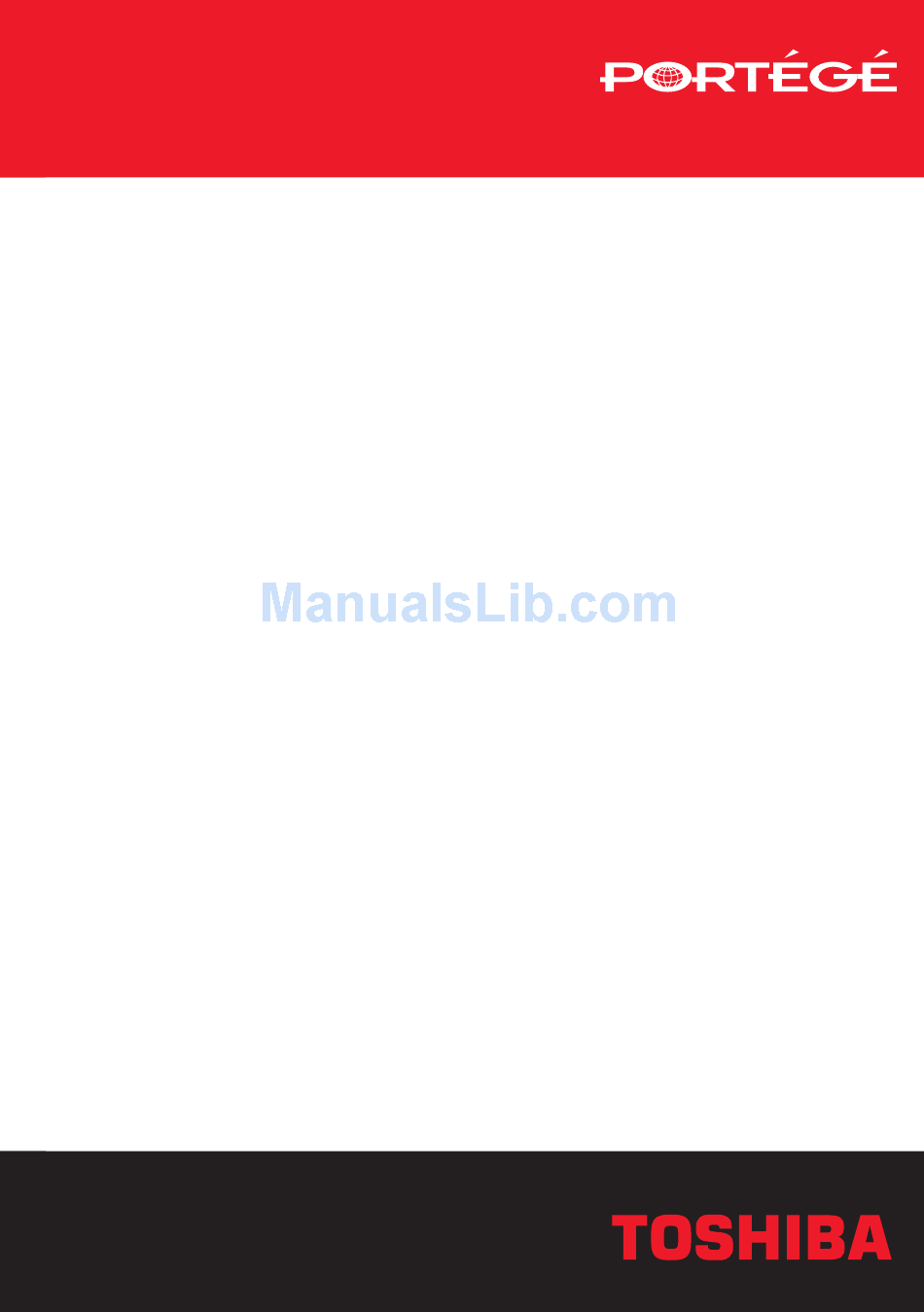

User's Manual
Portégé A200
Portégé A200
Choose freedom.
Choose freedom.
computers.toshiba-europe.com
PORTÉGÉA200
PORTÉGÉA200

Advertisement

Table of Contents
loading

Related Manuals for Toshiba Portege A200

Summary of Contents for Toshiba Portege A200

  • Page 1 User’s Manual Portégé A200 Portégé A200 PORTÉGÉA200 PORTÉGÉA200 PORTÉGÉA200 Choose freedom. Choose freedom. computers.toshiba-europe.com...
  • Page 2 User’s Manual Copyright © 2004 by TOSHIBA Corporation. All rights reserved. Under the copyright laws, this manual cannot be reproduced in any form without the prior written permission of TOSHIBA. No patent liability is assumed, with respect to the use of the information contained herein.

  • Page 3: Working Environment

    Any consequences resulting from the use of this product in working environments that are not approved or the use is restricted are not the responsibility of TOSHIBA Corporation. The consequences of the use of this product in those working environments may be:...
  • Page 4 This product and the supplied accessories are designed to observe the related EMC (Electromagnetic Compatibility) and safety standards. However, TOSHIBA cannot guarantee that this product still observes these EMC standards if accessories or cables not manufactured / distributed by TOSHIBA are connected or implemented. To avoid EMC problems in general, the following advice should be observed: Only CE marked accessories should be connected / implemented.

  • Page 5: Optical Disc Drive Safety Instructions

    User’s Manual The hookflash (timed break register recall) function is subject to separate national type approvals. It has not been tested for conformity to national type regulations, and no guarantee of successful operation of that specific function on specific national networks can be given. Optical disc drive safety instructions Be sure to check the international precautions at the end of this section.
  • Page 6 User’s Manual International precautions CAUTION: This appliance contains a laser system and is classified as a “CLASS 1 LASER PRODUCT.” To use this model properly, read the instruction manual carefully and keep this manual for your future reference. In case of any trouble with this model, please contact your nearest “AUTHORIZED service station.”...
  • Page 7 User’s Manual OBS! Apparaten innehåller laserkomponent som avger laserstråining överstigande gränsen för laserklass 1. VAROITUS. Suojakoteloa si saa avata. Laite sisältää laserdiodin, joka lähetää näkymätöntä silmilie vaarallista lasersäteilyä. CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED IN THE OWNER’S MANUAL MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

  • Page 8: Table Of Contents

    PORTÉGÉ A200 Table of Contents Preface Manual contents ......... . . xii Conventions .
  • Page 9 Table of Contents Chapter 4: Operating Basics Using the Touch Pad ........4-1 Using the USB floppy disk drive (optional) .
  • Page 10 TOSHIBA support ........
  • Page 11 PORTÉGÉ A200 Preface Congratulations on your purchase of the PORTÉGÉ A200 computer. This powerful notebook computer provides excellent expansion capability, including multimedia devices, and it is designed to provide years of reliable, high-performance computing. This manual tells how to set up and begin using your PORTÉGÉ A200 computer.

  • Page 12: Preface

    Preface Manual contents This manual is composed of the following nine chapters, five appendixes, a glossary and an index. Chapter 1, Introduction, is an overview of the computer’s features, capabilities, and options. Chapter 2, The Grand Tour, identifies the components of the computer and briefly explains how they function.

  • Page 13: Conventions

    Preface Conventions This manual uses the following formats to describe, identify, and highlight terms and operating procedures. Abbreviations On first appearance, and whenever necessary for clarity, abbreviations are enclosed in parentheses following their definition. For example: Read Only Memory (ROM). Acronyms are also defined in the Glossary. Icons Icons identify ports, dials, and other parts of your computer.
  • Page 14 Preface Messages Messages are used in this manual to bring important information to your attention. Each type of message is identified as shown below. Pay attention! A caution informs you that improper use of equipment or failure to follow instructions may cause data loss or damage your equipment.

  • Page 15: General Precautions

    PORTÉGÉ A200 General Precautions TOSHIBA computers are designed to optimize safety, minimize strain and withstand the rigors of portability. However, certain precautions should be observed to further reduce the risk of personal injury or damage to the computer. Be certain to read the general precautions below and to note the cautions included in the text of the manual.
  • Page 16 (41°F to 86°F) or >25°C (77°F) at high altitude (all temperature references are approximate and may vary depending on the specific computer model - please refer to appendix A or visit the TOSHIBA website at www.pcsupport.toshiba.com] for details). CPU performance may also vary from specifications due to design configuration.

  • Page 17: Chapter 1: Introduction

    Some of the features described in this manual may not function properly if you use an operating system that was not preinstalled by TOSHIBA. Equipment checklist Carefully unpack your computer. Save the box and packing materials for future use.
  • Page 18 TOSHIBA Console TOSHIBA Controls TOSHIBA PC Diagnostic Tool TOSHIBA Touch Pad On/Off Utility TOSHIBA Zooming Utility TOSHIBA Hotkey Utility for Display Devices TOSHIBA SD Memory Card Format TOSHIBA Acoustic Silencer Online manual Product Recovery Media TOSHIBA Tools & Utlities CD-ROM Documentation PORTÉGÉ...

  • Page 19: Features

    Introduction Features The computer uses TOSHIBA’s advanced Large Scale Integration (LSI), Complementary Metal-Oxide Semiconductor (CMOS) technology extensively to provide compact size, minimum weight, low power usage, and high reliability. This computer incorporates the following features and benefits: Processor Built-in ®...
  • Page 20 Introduction Disks Hard disk drive Available in two sizes. 40.0 billion bytes (37.26 GB) 60.0 billion bytes (55.88 GB) USB floppy disk Accommodates either 3 1/2" 1.44-megabyte or drive (Optional) 720-kilobyte floppy disks. It connects to a USB port. CD-RW/DVD-ROM The CD-RW/DVD-ROM drive module lets you drive run CDs/DVDs without using an adaptor.

  • Page 21: Pointing Device

    Introduction Keyboard ® Built-in 85 keys or 86 keys, compatible with IBM enhanced keyboard, embedded numeric overlay, dedicated cursor control, keys. Refer to Chapter 5, Keyboard, for details. Pointing Device Built-in Touch Pad A Touch Pad and control buttons in the palm rest enable control of the on-screen pointer and scrolling of windows.
  • Page 22 Introduction Headphone jack This jack lets you connect speakers or a stereo headphone (16 ohm minimum). When you connect a speaker or headphones, the internal speakers are automatically disabled. Microphone jack A 3.5 mm mini microphone jack enables connection of a three-conductor mini jack for monaural microphone input.
  • Page 23 Connects an optional security lock to anchor the computer to a desk or other large object. Software Operating System The Windows XP Professional operating system and TOSHIBA Utilities and drivers preinstalled on the hard disk. Refer to the Software section at the front of this chapter.

  • Page 24: Special Features

    Introduction Special features The following features are either unique to TOSHIBA computers or are advanced features, which make the computer more convenient to use. TOSHIBA Console Press this button to launch an application button automatically. The default is TOSHIBA Console.
  • Page 25 LCD display panel is opened. You can specify the setting in the When I close the lid item of the Setup Action tab in TOSHIBA Power Saver. Low battery When battery power is exhausted to the point that...

  • Page 26: Utilities

    Buttons: Assign applications to the Internet button (default setting is the browser) and to the TOSHIBA Console button (default setting is the TOSHIBA Console) and to the Mail button (default setting is the mail software). DVD Video Player The DVD Video Player is used to play DVD- Video.
  • Page 27 Introduction TOSHIBA ConfigFree TOSHIBA ConfigFree is a suite of utilities to allow easy control of communication devices and network connections. TOSHIBA ConfigFree also allows you to find communication problems and create profiles for easy switching between locations and communication networks. To start...

  • Page 28: Options

    (PC2700 DDR) can easily be installed in the computer. Battery pack An additional battery pack can be purchased from your TOSHIBA dealer. Use it as a spare or replacement. AC adaptor If you use your computer at more than one site...
  • Page 29 Introduction USB floppy disk Kit USB floppy disk drive accommodates 1.44-megabyte or 720-kilobyte floppy disk. It connects to a USB port (You cannot format 720-kilobyte floppy disks on Windows XP, but you can use previously formatted disks). Battery charger The battery charger lets you charge extra batteries outside the computer.

  • Page 30: Chapter 2: The Grand Tour

    PORTÉGÉ A200 Chapter 2 The Grand Tour This chapter identifies the various components of your computer. Become familiar with each component before you operate the computer. Certain notebook chassis are designed to accommodate all possible configurations for an entire product series. Your select model may not have all the features and specifications corresponding to all of the icons or switches shown on the notebook chassis, unless you have selected all those features.

  • Page 31: Left Side

    The Grand Tour Left side The following figure shows the computer’s left side. PC card Microphone jack Security lock PC card slot Headphone jack eject button slot Wireless Communication Volume control i.LINK(IEEE1394)port Switch The left side of the computer Security lock slot A security cable attaches to this slot.

  • Page 32: Right Side

    The Grand Tour Microphone jack A 3.5 mm mini microphone jack enables connection of a three-conductor mini jack for monaural microphone input. Headphone jack A standard 3.5 mm mini headphone jack enables connection of a stereo headphone (16 ohm minimum) or other device for audio output. When you connect headphones, the internal speakers are automatically disabled.

  • Page 33: Backside

    The Grand Tour SD card indicator The SD card slot indicator glows green when the computer is accessing the SD card slot. Optical media drive The computer is configured with a CD-RW/DVD- ROM drive. Universal Serial Bus One Universal Serial Bus port is on the right side. (USB 2.0) port The port complies with the USB 2.0 standard, which enables data transfer speeds 40 times...
  • Page 34 The Grand Tour S-Video out port This S-Video out port lets you transfer NTSC or PAL data to external devices. Refer to section in Chapter8, Optional Devices. Modem jack The modem jack lets you use a modular cable to connect the modem directly to a telephone line. In case of a lightning storm, unplug the modular cable from the telephone jack.

  • Page 35: Underside

    The Grand Tour Underside The following figure shows the underside of the computer. Make sure the LCD display panel is closed before turning over your computer. Battery pack The underside of the computer Battery pack The battery pack powers the computer when the AC adaptor is not connected.

  • Page 36: Front With The Display Open

    (Left) Internet button Mail button Touch Pad Microphone control buttons TOSHIBA Console button The front of the computer with the LCD panel open Display hinge The display hinge holds the LCD display panel at easy-to-view angles. LCD screen The LCD screen displays high-contrast text and graphics.
  • Page 37 Hibernation mode. Use the TOSHIBA Power Saver Utility to enable or disable this feature. The default is “enabled”. Refer to the TOSHIBA Power Saver Utility and Panel Power Off/On items in Chapter 1, Introduction, for details on settings.

  • Page 38: Indicators

    If the computer is off, button pressing this button starts the computer and launches the associated program automatically. The default is TOSHIBA Console. Indicators System indicators The following indicators of the computer can be monitored even when the LCD display panel is closed.
  • Page 39 The Grand Tour Battery The Battery indicator shows the condition of the battery’s charge: Green indicates full charge, orange indicates battery charging and flashing orange indicates a low battery charge. Refer to Chapter 6, Power. The HDD indicator glows green when the computer is accessing the built-in hard disk.
  • Page 40 The Grand Tour Mode 2 Glows orange Glows white Glows white Mode 3 Changes in order Glows yellow Glows orange of green, orange and blue When you remove both the AC adaptor and the battery pack, Mode 1 (default) is automatically selected. However, the setting will return to the mode you has selected when you power your computer on.

  • Page 41: Usb Floppy Disk Drive (Optional)

    The Grand Tour USB floppy disk drive (Optional) USB floppy disk drive accommodates 1.44-megabyte or 720-kilobyte floppy disks. It connects to the USB port. USB connector Disk-In-Use Floppy disk slot Indicator Eject button USB floppy disk drive USB connector Insert this connector to the USB port of your computer.

  • Page 42: Optical Media Drive

    The Grand Tour Optical media drive A CD-RW/DVD-ROM drive is installed in the computer. An ATAPI interface controller is used for CD/DVD-ROM operation. When the computer is accessing a CD/DVD, an indicator on the drive glows. For information on loading and unloading discs refer to the Using the optical media drive section in Chapter 4, Operating Basics.

  • Page 43: Ac Adaptor

    The Grand Tour Formats The drives support the following formats: DVD-ROM CD-Text CD-DA CD-ROM Mode 1, Mode 2 Photo CD (single/multi-session) Enhanced CD (CD-EXTRA) CD-ROM XA Mode 2 (Form1, Addressing Method 2 Form2) DVD -Video DVD-ROM&CD-R/RW drive The full-size DVD-ROM&CD-R/RW drive module lets you record data to rewritable CDs as well as run either 12 cm (4.72") or 8 cm (3.15") CD/DVDs without using an adaptor.
  • Page 44 Use only the AC adaptor that came with the computer or an equivalent optional adaptor. Use of the wrong adaptor could damage your computer. TOSHIBA assumes no liability for any damage in such case. Use only the AC adaptor supplied as an accessory. Other AC adaptors have different voltage and terminal polarities and use of them may produce heat and smoke or even result in fire or rupture.

  • Page 45: Chapter 3: Getting Started

    PORTÉGÉ A200 Chapter 3 Getting Started This chapter provides basic information to get you started using your computer. It covers the following topics: Setting up your work space — for your health and safety Be sure also to read the Safety Instruction Manual. This guide, which is included with the computer, explains product liability.

  • Page 46: General Conditions

    Getting Started General conditions In general, if you are comfortable, so is your computer, but read the following to make sure your work site provides a proper environment. Make sure there is adequate space around the computer for proper ventilation. Make sure the AC power cord connects to an outlet that is close to the computer and easily accessible.

  • Page 47: Seating And Posture

    Getting Started Seating and posture The height of your chair in relation to the computer and keyboard as well as the support it gives your body are primary factors in reducing work strain. Refer to the following tips. Below eye level 90°angles Foot rest Posture and positioning of the computer...

  • Page 48: Work Habits

    Use only the AC adaptor supplied with your computer or an equivalent adaptor that is compatible. Use of any incompatible adaptor could damage your computer. TOSHIBA assumes no liability for any damage caused by use of an incompatible adaptor. When you connect the AC adaptor to the computer, always follow the steps in the exact order as described in the User’s Manual.
  • Page 49 Getting Started 1. Connect the power cord to the AC adaptor. Connecting the power cord to the AC adaptor 2. Connect the AC adaptor’s DC output plug to the DC IN 15V jack on the backside of the computer. DC IN 15V jack Connecting the adaptor to the computer 3.

  • Page 50: Opening The Display

    Getting Started Opening the display The computer’s LCD display panel can be rotated in a wide range of angles for optimal viewing. 1. While holding down the palm rest with one hand so that the main body is not raised, lift the panel slowly. Adjust the angle of the panel to provide optimal clarity.

  • Page 51: Starting Up For The First Time

    Getting Started Power button Figure 3-5 Turning on the power Starting up for the first time When you first turn on the power, the computer’s initial screen is the Microsoft Windows XP Startup Screen Logo. Follow the on-screen directions for each screen. During setup, you can click the Back button to return to the previous screen.

  • Page 52: Hibernation Mode

    For the computer to shut down in hibernation mode, the hibernation feature must be enabled in two places: the Hibernate tab in Power Options and Setup Action tab in TOSHIBA Power Saver. Otherwise, the computer will shut down in Standby mode. If battery power becomes depleted, data saved in Standby mode will be lost.

  • Page 53: Automatic Hibernation

    When the AC adaptor is connected, the computer will go into Standby mode according to the settings in the TOSHIBA Power Saver utility. To restore operation from Standby mode, press the power button or press any key. The latter action works only if Wake-up on Keyboard is enabled in HW Setup.
  • Page 54 1. Click Start, click Turn Off Computer and click Standby. 2. Close the computer's LCD display panel. This feature must be enabled. Refer to the Setup Action tab in TOSHIBA Power Saver Utility described in the Control Panel. Open Performance and Maintenance and open TOSHIBA Power Saver.

  • Page 55: Restarting The Computer

    15 seconds, then turn the power on again by pressing the power button. Restoring the preinstalled software If preinstalled files are damaged, use the Product Recovery Media or the TOSHIBA Tools & Utlities CD-ROM to restore them. Restoring the complete system To restore the operating system and all preinstalled software, follow the steps below.

  • Page 56: Restoring Toshiba Utilities And Drivers

    Restoring TOSHIBA utilities and drivers If Windows is working properly, individual drivers or applications can be separately restored. The TOSHIBA Tools & Utilities CD-ROM contains drivers and applications, which were included with your computer system. If your system drivers or applications have become damaged in some way, this CD allows you to reinstall most of the components, which are not part of the Windows operating system.

  • Page 57: Chapter 4: Operating Basics

    PORTÉGÉ A200 Chapter 4 Operating Basics This chapter gives information on basic operations including using the Touch Pad, the USB floppy disk drive (optional), optical media drive, Sound System, Modem, Wireless LAN, and LAN. It also provides tips on care of the computer, floppy disks and CD/DVDs.

  • Page 58: Using The Usb Floppy Disk Drive (Optional)

    Operating Basics You can also tap the Touch Pad to perform functions similar to those of the left button. Click: Tap once Double-click: Tap twice Drag and drop: Tap to select the material you want to move. Leave your finger on the Touch Pad after the second tap and move the material.

  • Page 59: Using The Optical Media Drive

    Operating Basics Disconnecting USB floppy disk drive When you have finished using the floppy disk drive, follow the procedures below to disconnect it: 1. Wait for the indicator light to go out to make sure all floppy disk activity has stopped. If you disconnect the floppy disk drive or turn off the power while the computer is accessing the drive you may lose data or damage the floppy disk or the drive.
  • Page 60 Operating Basics 2. Grasp the disc tray gently and pull until it is fully opened. Pulling the disc tray open 3. Lay the CD/DVD, label side up, in the disc tray. Laser lens Inserting a CD/DVD When the disc tray is fully opened, the edge of the computer will extend slightly over the CD/DVD tray.

  • Page 61: Removing Discs

    Operating Basics 4. Press gently at the center of the CD/DVD until you feel it click into place. The CD/DVD should lie below the top of the spindle, flush with the spindle base. 5. Push the center of the disc tray to close it. Press gently until it locks into place.
  • Page 62 Operating Basics 2. The CD/DVD extends slightly over the sides of the disc tray so you can hold it. Hold the CD/DVD gently and lift it out. Removing a CD/DVD 3. Push the center of the disc tray to close it. Press gently until it locks into place.

  • Page 63: Sound System

    Operating Basics Sound System Using the microphone Your computer has a built-in microphone that can be used to record monaural sounds into your applications. It can also be used to issue voice commands to applications that support such functions. Since your computer has a built-in microphone and speaker, “howling” may be heard under certain conditions.

  • Page 64: Writing Cds On The Cd-Rw/Dvd-Rom Drive

    CD-RW (Ultra-Speed): MITSUBISHI CHEMICAL CORPORATION TOSHIBA has confirmed the operation of CD-R and CD-RW media of the manufacturers above. Operation of other media cannot be guaranteed. The actual number of rewrites to CD-RW is affected by the quality of the disc and the way it is used.

  • Page 65: When Writing Or Rewriting

    Operating Basics Do not run software such as a screen saver which can put a heavy load on the CPU. Operate the computer at full power. Do not use power-saving features. Do not write while virus check software is running. Wait for it to finish, then disable virus detection programs including any software that checks files automatically in the background.

  • Page 66: Media Care

    Operating Basics Media care This section provides tips on protecting data stored on your CD/DVDs and floppy disks. Handle your media with care. The following simple precautions will increase the lifetime of your media and protect the data stored on them: CD/DVDs 1.

  • Page 67: Modem

    To select a region, follow the steps below. 1. Click Start, point to All Programs, point to TOSHIBA, point to Networking and click Modem Region Select. Do not use the Country/Region Select function in the Modem setup utility in the Control Panel if the function is available.

  • Page 68: Modem Selection

    Operating Basics Setting You can enable or disable the following settings: AutoRun Mode The Region Select utility starts automatically when you start up the operating system. Open the Dialing Properties dialog box after selecting region. The dialing properties dialog box will be displayed automatically after you select the region.

  • Page 69: Wireless Lan

    Operating Basics 3. Plug the other end of the modular cable (optional) into a telephone jack. Telephone jack Cover Modem jack Connecting the internal modem Do not pull on the cable or move the computer while the cable is connected. If you use a storage device such as an optical drive or HDD connected to a 16-bit PC card, you might experience the following modem problems: Modem speed is slow or communication is interrupted.

  • Page 70: Wireless Communication Switch

    TOSHIBA strongly recommend the customer to enable the WEP function. TOSHIBA is not liable for the eavesdropping of data due to the use of Wireless LAN and the damage thereof. Wireless communication switch You can enable or disable Wireless LAN function with the on/off switch.

  • Page 71: Lan

    Operating Basics Wireless communication indicator The wireless communication indicator indicates the status of the wireless communication functions. Indicator status Indication Indicator off Wireless communication switch is set to off. Automatic power down because of overheating. Power malfunction Indicator glows Wireless communication switch is on. Wireless LAN is turned on by an application.

  • Page 72: Connecting Lan Cable

    Operating Basics Connecting LAN cable To connect the LAN cable, follow the steps below. Connect the AC adaptor before connecting the LAN cable. The AC adaptor must remain connected during LAN use. If you disconnect the AC Adaptor while the computer is accessing a LAN, the system may hang up.

  • Page 73: Cleaning The Computer

    Operating Basics Cleaning the computer To help ensure long, trouble-free operation, keep the computer free of dust and use care with liquids around the computer. Be careful not to spill liquids into the computer. If the computer does get wet, turn the power off immediately and let the computer dry completely before you turn it on again.

  • Page 74: Heat Dispersal

    CPU speed. Or, by lowering the CPU speed first, then if necessary, turning on the fan. Use the Cooling Method item of the Basic Setup tab in TOSHIBA Power Saver. Maximum Turns on the fan first, then if necessary, lowers the CPU Performance processing speed.

  • Page 75: Chapter 5: The Keyboard

    PORTÉGÉ A200 Chapter 5 The Keyboard The computer’s keyboard layouts are compatible with a 101/102-key enhanced keyboard. By pressing some keys in combination, all the 101/ 102-key keyboard functions can be executed on the computer. The number of keys on your keyboard depends on which country/region’s keyboard layout your computer is configured with.

  • Page 76: Function Keys: F1

    Soft keys: Fn key combinations The Fn (function) is unique to TOSHIBA computers and is used in combination with other keys to form soft keys. Soft keys are key combinations that enable, disable or configure specific features.

  • Page 77: Hot Keys

    The Keyboard Press Fn + F10 or Fn + F11 to access the integrated keypad. When activated, the keys with gray markings on the bottom edge become numeric keypad keys (Fn + F11) or cursor control keys (Fn + F10). Refer to Keypad overlay section in this chapter for more information on how to operate these keys.
  • Page 78 Fn, and release and press F2 again to toggle between the settings. Release both Fn and F2 to put the new setting into effect. You can also change this setting through the Profile options in TOSHIBA Power Saver.
  • Page 79 You can also change this setting through the Screen brightness item of the Basic Setup tab in TOSHIBA Power Saver. Internal LCD screen Brightness: Pressing Fn + F7 increases the LCD screen brightness in increments.

  • Page 80: Fn Sticky Key

    Fn key. Fn Sticky key You can use the TOSHIBA Accessibility Utility to make the Fn key sticky, that is, you can press it once, release it, and then press an “F number” key. To start the TOSHIBA Accessibility Utility, click Start, point to All Programs, point to TOSHIBA, point to Utilities and click Accessibility.

  • Page 81: Windows Special Keys

    The Keyboard Windows special keys The keyboard provides two keys that have special functions in Windows: Windows logo key activates the Start menu and the other, the application key, has the same function as the secondary mouse button. This key activates the Windows Start menu. This key has the same function as the secondary mouse button.
  • Page 82 The Keyboard Numeric mode To turn on the Numeric mode, press Fn + F11. The Numeric mode indicator lights. Now try numeric data entry using the keys in the figure below. Press Fn + F11 again to turn off the overlay. The numeric keypad overlay Temporarily using normal keyboard (overlay on) While using the overlay, you can temporarily access the normal keyboard...

  • Page 83: Temporarily Changing Modes

    The Keyboard Temporarily changing modes If the computer is in Numeric mode, you can switch temporarily to Arrow mode by pressing a shift key. If the computer is in Arrow mode, you can switch temporarily to Numeric mode by pressing a shift key. Generating ASCII characters Not all ASCII characters can be generated using normal keyboard operation.

  • Page 84: Chapter 6: Power

    PORTÉGÉ A200 Chapter 6 Power The computer’s power resources include the AC adaptor, battery pack and internal batteries. This chapter gives details on making the most effective use of these resources including charging and changing batteries, tips for saving battery power, and power up modes. Power conditions The computer’s operating capability and battery charge status are affected by the power conditions: whether an AC adaptor is connected, whether a...

  • Page 85: Power Indicators

    Power Table 6-1 Power conditions continued Battery charge • Operates adaptor is above low • LED: Battery off battery trigger DC IN off connected point Battery charge • Operates is below low • LED: Battery battery trigger flashes orange point DC IN off Battery charge Computer goes into...

  • Page 86: Battery Types

    Power DC IN indicator Check the DC IN indicator to determine the power status with the AC adaptor connected: Indicates the AC adaptor is connected and Green supplying proper power to the computer. Indicates a problem with the power supply. Plug Blinking orange the AC adaptor into another power outlet.

  • Page 87: Real Time Clock Battery

    The computer’s RTC battery is a Ni-MH battery and should be replaced only by your dealer or by a TOSHIBA service representative. The battery can explode if not properly replaced, used, handled or disposed of. Dispose of the battery as required by local ordinances or regulations.

  • Page 88: Care And Use Of The Battery Pack

    Power Care and use of the battery pack The battery pack is a vital component of portable computing. Taking proper care of it will help ensure longer operating time on battery power as well as a longer life for your battery pack. Follow the instructions in this section carefully to ensure safe operation and maximum performance.
  • Page 89 Never use the computer again until it has been checked by a TOSHIBA service provider. It might generate smoke or fire, or the battery pack might rupture. 3. Make sure the battery is securely installed in the computer before attempting to charge the battery pack.

  • Page 90: Charging The Batteries

    The Battery indicator glows orange when the battery is being charged. Use only the computer connected to an AC power source or the optional TOSHIBA Battery charger to charge the battery pack. Never attempt to charge the battery pack with any other charger.

  • Page 91: Battery Charging Notice

    Power Time The following table shows the approximate time required to fully charge a discharged battery. Charging time (hours) Battery type Power on Power off Battery pack (4400mAh) about 4.0 to 10.0 about 2.5 RTC battery Doesn’t charge The charging time when the computer is on is affected by ambient temperature, the temperature of the computer and how you use the computer.

  • Page 92: Monitoring Battery Capacity

    Therefore, an often used, older battery will not operate for as long as a new battery even when both are fully charged. In this case, TOSHIBA Power Saver will indicate a 100% charge for both the old and new battery, but the displayed estimated time remaining will be shorter for the older battery.

  • Page 93: Retaining Data With Power Off

    Power Operating time decreases at low temperatures. The condition of the battery terminals. Make sure the battery terminals stay clean by wiping them with a clean dry cloth before installing the battery pack. Retaining data with power off When you turn off your computer with fully charged batteries, the batteries retain data for the following approximate time periods.

  • Page 94: Replacing The Battery Pack

    Power Replacing the battery pack When the battery pack reaches the end of its operating life you will need to install a new one. The life of the battery pack is generally about 500 recharges. If the Battery indicator flashes orange shortly after fully recharging the battery, the battery pack needs to be replaced.

  • Page 95: Installing The Battery Pack

    7. Return your computer to the upright position. For environmental reasons, do not throw away a spent battery pack. Please return spent battery packs to your TOSHIBA dealer. Installing the battery pack To install a battery pack, follow the steps below.

  • Page 96: Starting The Computer By Password

    Turning off the power in Chapter 3, Getting Started. Windows utilities You can specify the setting in TOSHIBA Power Saver. Hot keys You can use hot keys Fn + F3 to enter Standby mode and Fn + F4 to enter Hibernation.

  • Page 97: Panel Power On/Off

    Power Panel power on/off You can set up your computer so that power turns off automatically when you close the computer's LCD display panel. When you open the computer's LCD display panel, power turns on in Standby or Hibernation mode but not in boot mode. If the panel power off function is enabled and you use Shut down Windows, do not close the computer's LCD display panel until the shut down function is completed.

  • Page 98: Chapter 7: Hw Setup And Passwords

    PORTÉGÉ A200 Chapter 7 HW Setup and Passwords This chapter explains how to use TOSHIBA HW Setup program to configure your computer and how to set passwords. HW Setup TOSHIBA HW Setup lets you configure settings for General, Password, Display, Boot Priority, Keyboard, CPU, LAN, Device Config, USB and Button Setting.

  • Page 99: User Password

    HW Setup and Passwords Setup This field displays BIOS Version and date. Password User Password This option allows you to set or reset the user password for power on. Change or remove the password (Default). Not Registered Set the password. A dialogue box will appear to Registered let you set the password.

  • Page 100: Supervisor Password

    HW Setup and Passwords If you click the OK button before entering the password, Registered will appear on the display. 3. Click the OK button. If the character string you enter matches the registered password, the password option is reset and the display changes to: The password was deleted If they do not match, the following message appears.

  • Page 101: Boot Priority

    HW Setup and Passwords Boot Priority Boot Priority Options This option sets the priority for booting the computer. Select from the following settings: HDD −> FDD −> CD- The computer looks for bootable files in the ROM −> LAN following order: HDD, floppy disk drive, CD-ROM and LAN (Default).
  • Page 102 HW Setup. Support of PC card boot is guaranteed only for TOSHIBA PC card HDDs. A PC card takes the position of HDD in the Boot Priority Options list.
  • Page 103 HW Setup and Passwords HDD Priority Options If more than one HDD is installed in the computer, this option lets you set the priority for HDD detection. If the first detected HDD has a boot command, the system will boot from the HDD. Built-in HDD −>...

  • Page 104: Device Config

    HW Setup and Passwords This function lets you set the CPU operating mode. It is displayed in Pentium-M model only. Dynamic CPU Frequency Mode This option lets you choose from the following settings: CPU power consumption and clock speed Dynamically automatic switching function is enabled.
  • Page 105 HW Setup and Passwords USB KB/Mouse Legacy Emulation Use this option to enable or disable USB KB/Mouse Legacy Emulation. If your operating system does not support USB, you can still use a USB mouse and keyboard by setting the USB KB/Mouse Legacy Emulation item to Enabled.

  • Page 106: Supervisor Password

    Supervisor password Refer to the readme file of the Supervisor Password Utility for instructions on setting the Supervisor Password. The path to the readme file is C:\Program Files\TOSHIBA\Windows Utilities\SVPWTool. In the SVPWTool directory, open the readme.htm file. To set a supervisor password, follow the steps below.

  • Page 107: Chapter 8: Optional Devices

    PORTÉGÉ A200 Chapter 8 Optional Devices Optional devices can expand the computer’s capabilities and its versatility. This chapter describes connection or installation of the following devices, which are available from your TOSHIBA dealer: Cards/memory PC card SD card Memory expansion...

  • Page 108: Pc Card

    The computer is equipped with a PC card slot that can accommodate one 5 mm Type II card. Any PC card that meets industry standards (manufactured by TOSHIBA or other vendor) can be installed. The slot supports 16-bit PC cards, including PC card 16’s multifunction card and CardBus PC cards.

  • Page 109: Sd Card

    Optional Devices Removing a PC card To remove the PC card, follow the steps below. 1. Open the Safety Remove Hardware icon on the Task Bar. 2. Point to PC card and click. 3. Press the PC card eject button to extend it. If the PC card is not inserted all the way, the eject button may not pop out.

  • Page 110: Formatting An Sd Card

    SD memory cards are sold with format in conformity to the Standards of SD memory card. If you format the SD card again, be sure to format it with the utility of TOSHIBA SD memory card format, not in the format defined as the Windows standard format.

  • Page 111: Sd Card Care

    Optional Devices 4. Grasp the card and remove it. SD card SD card indicator Removing an SD card Make sure the SD card indicator is out before you remove the SD card or turn off the computer’s power. If you remove the SD card or turn off the power while the computer is accessing the card you may lose data or damage the SD card.

  • Page 112: Memory Expansion

    Avoid the mat that generates static electricity. Use only memory modules approved by TOSHIBA. Do not try to install or remove a memory module under the following conditions. You can damage the computer and the module. Also, data will be lost.
  • Page 113 Optional Devices 5. Slip your finger under a notch at the end of the keyboard brace and lift up to release latches and remove the keyboard brace. Keyboard brace Removing the keyboard brace 6. Remove three screws securing the keyboard. Use a point size 0 Phillips screwdriver.
  • Page 114 Optional Devices 8. Raise the insulation sheet covering the memory module to appear the module. And keep the insulation sheet raised using adhesive tape. Insulation sheet Raising the insulation sheet 9. Fit the memory module’s connectors into the socket at about a 45 degree angle and push the module down until latches on either side snap into place.

  • Page 115: Removing Memory Module

    Optional Devices 12. Set the keyboard brace into its groove and press down to secure the latches. 13. Turn the computer upside down and replace the battery pack. (refer to Chapter 6, Power) 14. Return your computer to the upright position. 15.

  • Page 116: Battery Pack

    Optional Devices Latches Slot B Slot A Removing the memory module 6. Rotate the keyboard back into place and secure the keyboard brace as described in the previous section. 7. Turn the computer upside down and install the battery pack. 8.

  • Page 117: Usb Floppy Disk Drive

    Optional Devices USB floppy disk drive The USB floppy disk drive module can be connected to the USB port. For details on connecting the USB floppy disk drive module, refer to Chapter 4, Operating Basics. External monitor An external analog monitor can be connected to the external monitor port on the computer.
  • Page 118 Optional Devices You can connect a television set to the S-Video out port on the computer. Follow the steps below. 1. Turn the computer off. 2. Use the TV adaptor cable's Composite plug (not supplied) to connect the television to the S-Video out port. S-Video out port TV adaptor cable Connecting the TV adaptor cable to the S-Video out port...
  • Page 119 Optional Devices Changing the resolution to 640 × 480 for TV If you want to change the resolution into 640 × 480 because it is difficulty to read character on TV, follow the steps below. 1. Open Display properties and select the Settings tab. 2.

  • Page 120: I.link (Ieee1394)

    There is a possibility that the original data will be damaged. There is a particular risk that some frames will be deleted in the case of digital video transfer. TOSHIBA assumes no liability for such loss of data. Do not transfer data in areas where static electricity is easily generated or in areas subjected to electronic noise.
  • Page 121 Optional Devices Connecting 1. Make sure the connectors are properly aligned and plug the i.LINK (IEEE1394) cable into the i.Link port of your computer. i.Link port Connecting the i.LINK cable 2. Plug the other end of the cable into the device. Note the following when you use i.LINK: You may need to install drivers for your i.LINK devices.

  • Page 122: Security Lock

    Optional Devices Security lock A security lock enables you to anchor your computer to a desk or other heavy object to help prevent unauthorized removal of the computer. Attach one end of a cable to a desk and the other end to the security lock slot on the left side of the computer.

  • Page 123: Chapter 9: Troubleshooting

    PORTÉGÉ A200 Chapter 9 Troubleshooting TOSHIBA designed the computer for durability. However, should problems occur, following the procedures in this chapter can help to determine the cause. All readers should become familiar with this chapter. Knowing what might go wrong can help prevent problems from occurring.

  • Page 124: Preliminary Checklist

    Troubleshooting Preliminary checklist Consider the simplest solution first. The items in this checklist are easy to fix and yet can cause what appears to be a serious problem. Make sure you turn on all peripheral devices before you turn on the computer.

  • Page 125: Hardware And System Checklist

    Troubleshooting Software The problems may be caused by your software or disk. If you cannot load a software package, the media may be damaged or the program might be corrupted. Try loading another copy of the software. If an error message appears while you are using a software package, check the software documentation.

  • Page 126: Self Test

    This message remains on the screen for a few seconds. If the self test is successful, the computer tries to load the operating system, depending on how the Boot Priority is set in the TOSHIBA HW Setup program. If any of the following conditions are present, the self test failed: The computer stops and does not proceed to display information or messages except the TOSHIBA logo.
  • Page 127 Troubleshooting Problem Procedure Computer shuts down Indicates a problem with the heat dispersal and its DC IN indicator system. Please contact your dealer. is flashing green AC power If you have trouble turning on the computer with the AC adaptor connected, check the DC IN indicator.

  • Page 128: Real Time Clock

    Fully discharge the battery, then try to charge it again. Check the power consumption settings in TOSHIBA Power Saver utility. Consider using a power saving mode. Real Time Clock Problem Procedure The following The battery for RTC is wearing.

  • Page 129: Internal Lcd Display Panel

    Troubleshooting Keyboard Keyboard problems can be caused by your setup configuration. For more information refer to Chapter 5, Keyboard. Problem Procedure Some letter keys Check that the numeric keypad overlay is not produce numbers selected. Press Fn + F10 and try typing again. Output to screen is Make sure the software you are using is not garbled...
  • Page 130 Troubleshooting Problem Procedure Slow performance Your files may be fragmented. Run Disk Defragmenter to check the condition of your files and disk. Refer to your OS documentation or online HELP for information on running the Disk Defragmenter. As a last resort, reformat the hard disk. Then, reload the operating system and other files.
  • Page 131 Chapter 2, The Grand Tour. Cannot write correctly If you have trouble writing, make sure you are observing the following precautions: Use only media recommended by TOSHIBA. Do not use the mouse or keyboard during writing. Use only the software supplied with the computer for recording.

  • Page 132: Touch Pad

    Troubleshooting PC card Refer also to Chapter 8, Optional Devices. Problem Procedure PC card error occurs Reseat the PC card to make sure it is firmly connected. Make sure the connection between the external device and the card is firm. Check the PC card’s documentation.
  • Page 133 Troubleshooting Problem Procedure The mouse pointer Try changing the speed setting in the mouse moves too fast or too control utility. slow 1. Open the Control Panel, select the Mouse icon and press Enter. 2. Click the Pointer Options tab. 3.

  • Page 134: Usb Mouse

    Troubleshooting USB mouse Problem Procedure On-screen pointer The system might be busy. If the pointer is does not respond to shaped as an hourglass, wait for it to resume its mouse operation normal shape and try again to move it. Make sure the mouse is properly connected to the USB port.
  • Page 135 Troubleshooting Memory expansion Refer also to Chapter 8, Optional Devices, for information on installing memory modules. Problem Procedure Beeps sounds. Make sure the memory module installed in the (Two beeps a dash and expansion slot is compatible with the computer. a dot, for a defective If an incompatible module has been installed, memory module in slot...
  • Page 136 Troubleshooting External monitor Refer also to Chapter 8, Optional Devices, and to your monitor’s documentation. Problem Procedure Monitor does not turn Make sure that the external monitor’s power switch is on. Confirm that the external monitor’s power cable is plugged into a working power outlet.
  • Page 137 Troubleshooting Problem Procedure Character display In data transmission, make sure the parity bit and becomes garbled stop bit settings correspond with those of the during a remote computer. communication Check the flow control and communication protocol. You cannot receive an Check the rings before auto answer setting in incoming call your communications application.

  • Page 138: Toshiba Support

    If problems persist, contact your dealer. TOSHIBA support If you require any additional help using your computer or if you are having problems operating the computer, you may need to contact TOSHIBA for additional technical assistance. Before you call Some problems you experience may be related to software or the operating system, it is important to investigate other sources of assistance first.

  • Page 139: Appendix A: Specifications

    PORTÉGÉ A200 Appendix A Specifications This appendix summarizes the computer’s technical specifications. Physical Dimensions Weight (typical) 2.0kg typical*, configured with: 12.1” XGA, 256MB RAM, 60GB HDD, CD-RW/DVD-ROM drive, modem, LAN, Wireless LAN, battery pack. Size 279 (w) × 238 (d) × 34.8 (h) millimeters (not including parts that extend beyond the main body) * Weight will vary depending on whether or not and what kind of options are...

  • Page 140: Power Requirements

    Specifications Power Requirements AC adaptor 100-240 volts AC 50 or 60 hertz (cycles per second) Computer 15 VDC 4.0 amperes Built-in Modem Network control unit (NCU) Type of NCU Type of line Telephone line (analog only) Type of dialing Pulse Tone Control command AT commands...
  • Page 141 Specifications Transmitting level -10 dBm Receiving level -10 to -40 dBm Input/output 600 ohms ±30% impedance Error correcting MNP class 4 and ITU-T V.42 Data compression MNP class 5 and ITU-T V.42bis Power supply +3.3V (supplied by computer) User’s Manual...

  • Page 142: Display Controller

    PORTÉGÉ A200 Appendix B Display Controller and Video Modes Display controller The display controller interprets software commands into hardware commands that turn particular pels on or off. The controller is an advanced Video Graphics Array (VGA) that provides Extended Graphics Array (XGA) support for the internal LCD and external monitors.
  • Page 143 Display Controller and Video Modes Table1 Video modes (VGA) Video Type Resolution Character Scanning mode matrix colors colors frequency (pels) Vertical (Hz) 0, 1 40 × 25 8 × 8 16 of 256K 16 of 256K Text Characters 2, 3 80 ×...
  • Page 144 Display Controller and Video Modes Table1 Video modes (VGA) continued Video Type Resolution Character Scanning mode matrix colors colors frequency (pels) Vertical (Hz) 320 × 200 8 × 8 16 of 256K 16 of 256K Grph Pels 640 × 200 8 ×...
  • Page 145 Display Controller and Video Modes Table 2 Video modes (XGA) Resolution Vertical colors colors frequency (Hz) 640 × 480 256/256K 256/256K 800 × 600 256/256K 256/256K 1024 × 768 256/256K 256/256K 1280 × 1024 256/256K 256/256K (Virtual)* 1400 × 1050 256/256K 256/256K (Virtual)*...
  • Page 146 Display Controller and Video Modes Table 2 Video modes (XGA) continued Resolution Vertical colors colors frequency (Hz) 640 × 480 64K/64K 64K/64K 800 × 600 64K/64K 64K/64K 1024 × 768 64K/64K 64K/64K 1280 × 1024 64K/64K 64K/64K (Virtual)* 1400 × 1050 64K/64K 64K/64K (Virtual)*...
  • Page 147 Display Controller and Video Modes Table 2 Video modes (XGA) continued Resolution Vertical colors colors frequency (Hz) 640 × 480 16M/16M 16M/16M 800 × 600 16M/16M 16M/16M 1024 × 768 16M/16M 16M/16M 1280 × 1024 16M/16M 16M/16M (Virtual)* 1400 × 1050 16M/16M 16M/16M (Virtual)*...

  • Page 148: Card Specifications

    PORTÉGÉ A200 Appendix C Wireless LAN This appendix is intended to help you get your Wireless LAN network up and running, with a minimum of parameters. Card Specifications Form Factor Mini PCI TypeIII IEEE 802.11 Standard for Wireless LANs Compatibility Wi-Fi (Wireless Fidelity) certified by the Wi-Fi Alliance.

  • Page 149: Radio Characteristics

    Wireless LAN Radio Characteristics Radio Characteristics of Wireless LAN Cards may vary according to: Country/region where the product was purchased Type of product Wireless communication is often subject to local radio regulations. Although Wireless LAN wireless networking products have been designed for operation in the license-free 2.4GHz band, local radio regulations may impose a number of limitations to the use of wireless communication equipment.
  • Page 150 Wireless LAN Frequency Range 2400-2483.5 MHz Channel ID 2427 2432 2437 2442 2447 2452 2457* 2462 2467* 2472* *1 Factory-set default channels *2 Refer to the sheet Approved Countries/Regions for use for the countries/ regions that in which these channels can be used. When installing Wireless LAN cards, the channel configuration is managed as follows: For wireless clients that operate in a Wireless LAN Infrastructure, the...

  • Page 151: Ac Power Cord And Connectors

    PORTÉGÉ A200 Appendix D AC Power Cord and Connectors The power cord’s AC input plug must be compatible with the various international AC power outlets and the cord must meet the standards for the country/region in which it is used. All cords must meet the following specifications: Length: Minimum 2 meters...
  • Page 152 AC Power Cord and Connectors France: Switzerland: Germany: United Kingdom: In Europe, power cords must be VDE type, H05VVH2-F and two conductors. For the United States and Canada, plug configuration must be a 2-15P (250 V) or 1-15P (125 V) as designated in the U.S. National Electrical code handbook and the Canadian Electrical Code Part II.

  • Page 153: If Your Computer Is Stolen

    What is your address, phone, and fax number? To register the theft on paper, please follow these procedures: Fill in the TOSHIBA Theft Registration form (or a copy of it) below. Attach a copy of your receipt showing where your computer was purchased.
  • Page 154 If your computer is stolen TOSHIBA Theft Registration Send to: TOSHIBA Europe GmbH Technical Service and Support Leibnizstr. 2 93055 Regensburg Germany Fax number: +49 (0) 941 7807 921 Country stolen: Machine type: (e.g. Satellite A50) Model number: (e.g. PSA50 YXT) Serial number: (e.g.
  • Page 155 PORTÉGÉ A200 Glossary The terms in this glossary cover topics related to this manual. Alternate naming is included for reference. Abbreviations AC: alternating current AGP: accelerated graphics port ANSI: American National Standards Institute APM: advanced power manager ASCII: American Standard Code for Information Interchange BIOS: basic input output system CD-ROM: Compact Disc-Read Only Memory CD-RW: Compact Disc-ReWritable...
  • Page 156 Glossary FIR: fast infrared HDD: hard disk drive IDE: integrated drive electronics I/O: input/output IrDA: Infrared Data Association IRQ: interrupt request KB: kilobyte LCD: liquid crystal display LED: light emitting diode LSI: large scale integration MB: megabyte OCR: optical character recognition (reader) PCB: printed circuit board PCI: peripheral component interconnect RAM: random access memory...
  • Page 157 Glossary analog signal: A signal whose characteristics such as amplitude and frequency vary in proportion to (are an analog of) the value to be transmitted. Voice communications are analog signals. ANSI: American National Standards Institute. An organization established to adopt and define standards for a variety of technical disciplines. For example, ANSI defined the ASCII standard and other information processing requirements.
  • Page 158 Glossary bus: An interface for transmission of signals, data or electric power. byte: The representation of a single character. A sequence of eight bits treated as a single unit; also the smallest addressable unit within the system. cache memory: High speed memory which stores data that increases processor speed and data transfer rate.
  • Page 159 Glossary compatibility: 1) The ability of one computer to accept and process data in the same manner as another computer without modifying the data or the media upon which it is being transferred. 2) the ability of one device to connect to or communicate with another system or component.
  • Page 160 Glossary delete: To remove data from a disk or other data storage device. Synonymous with erase. device driver: A program that controls communication between a specific peripheral device and the computer. The CONFIG.SYS file contains device drivers that MS-DOS loads when you turn the computer on. dialog box: A window that accepts user input to make system settings or record other information.
  • Page 161 (FDD): An electromechanical device that reads and writes to floppy disks. Fn-esse: A TOSHIBA utility that lets you assign functions to hot keys. folder: An icon in Windows used to store documents or other folders. format: The process of readying a blank disk for its first use. Formatting establishes the structure of the disk that the operating system expects before it writes files or programs onto the disk.
  • Page 162 Fn, can be used to set system parameters, such as speaker volume. HW Setup: A TOSHIBA utility that lets you set the parameters for various hardware components. icon: A small graphic image displayed on the screen or in the indicator panel.
  • Page 163 Glossary IrDA 1.1: An industry standard that enables cableless infrared serial data transfer at speeds of up to 4 Mbps. jumper: A small clip or wire that allows you to change the hardware characteristics by electrically connecting two points of a circuit. K: Taken from the Greek word kilo, meaning 1000;...
  • Page 164 Glossary microprocessor: A hardware component contained in a single integrated circuit that carries out instructions. Also called the central processing unit (CPU), one of the main parts of the computer. mode: A method of operation, for example, the boot mode, standby mode or the hibernation mode.
  • Page 165 The electrical connection through which the computer sends and receives data to and from devices or other computers. Power Saver Utility: A TOSHIBA utility that lets you set the parameters for various power-saving functions. printed circuit board (PCB): A hardware component of a processor to which integrated circuits and other components are attached.
  • Page 166 Glossary RGB: Red, green, and blue. A device that uses three input signals, each activating an electron gun for a primary additive color (red, green, and blue) or port for using such a device. See also CRT. RJ11: A modular telephone jack. RJ45: A modular LAN jack.
  • Page 167 TFT display: A liquid crystal display (LCD) made from an array of liquid crystal cells using active-matrix technology with thin film transistor (TFT) to drive each cell. Touch Pad: A pointing device integrated into the TOSHIBA computer palm rest. TTL: Transistor-transistor logic. A logic circuit design that uses switching transistors for gates and storage.
