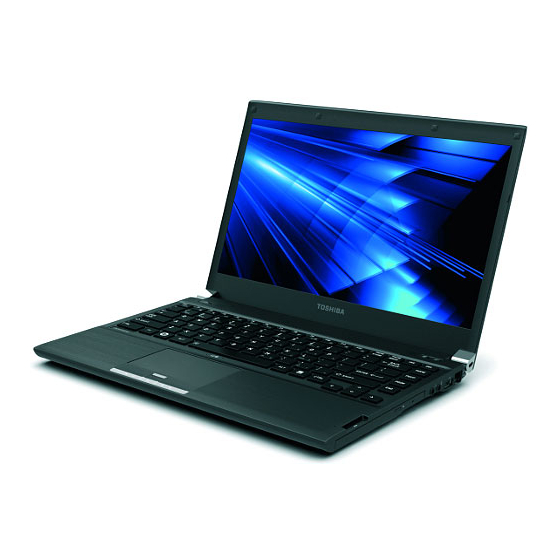

PORTÉGÉ R700 / Satellite R630
computers.toshiba-europe.com

Advertisement

Table of Contents
loading

  Related Manuals for Toshiba Portege R700

  Summary of Contents for Toshiba Portege R700

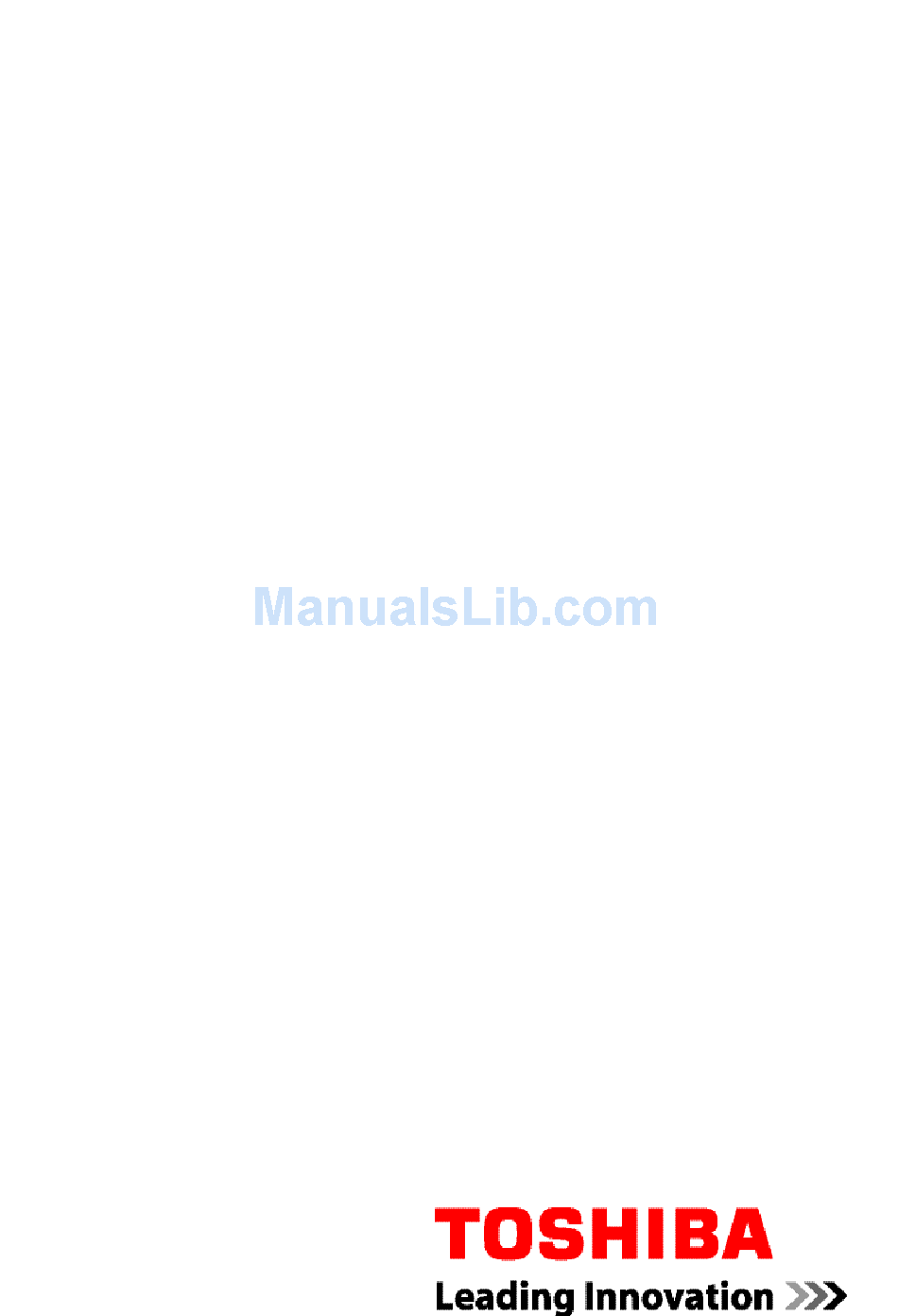

  • Page 1 User's Manual PORTÉGÉ R700 / Satellite R630 computers.toshiba-europe.com...
  • Page 2: Table Of Contents

    Operating Basics Using the Touch Pad ... 4-1 Using the Fingerprint Sensor ... 4-2 Web Camera ... 4-8 Using the TOSHIBA Face Recognition ... 4-9 Using optical disc drives ... 4-13 Writing CD/DVDs ... 4-17 TOSHIBA DVD PLAYER ... 4-26...
  • Page 3 Using the Hard Disk Drive (HDD) Protection ... 4-38 Taskbar icon ... 4-38 TOSHIBA HDD Protection Properties ... 4-39 Details ... 4-40 Using the TOSHIBA Sleep Utility ... 4-40 Heat dispersal ... 4-42 Chapter 5 The Keyboard Typewriter keys ... 5-1 Function keys: F1 …...
  • Page 4: Chapter 8 Troubleshooting

    LAN ... 7-5 Advanced ... 7-6 Chapter 8 Troubleshooting Problem solving process ... 8-1 Hardware and system checklist ... 8-3 TOSHIBA support ... 8-23 Appendix A Specifications Appendix B Display Controller and Video mode Appendix C Wireless LAN Appendix D...
  • Page 5 Intel Corporation. Windows, Microsoft and Windows logo are registered trademarks of Microsoft Corporation. Bluetooth is a trademark owned by its proprietor and used by TOSHIBA under license. ExpressCard is a trademark of PCMCIA. ConfigFree is a trademark of TOSHIBA Corporation.
  • Page 6 This product is carrying the CE-Mark in accordance with the related European Directives. Responsible for CE-Marking is TOSHIBA Europe GmbH, Hammfelddamm 8, 41460 Neuss, Germany. The complete and official EU Declaration of Conformity can be found on TOSHIBA’s web site http://epps.toshiba-teg.com on the Internet. CE compliance...
  • Page 7 Any consequences resulting from the use of this product in working environments that are not approved are not the responsibility of TOSHIBA. The consequences of the use of this product in non-approved working environments may be: Interference with other devices or machines in the near surrounding area.
  • Page 8 For more detailed information about the collection and recycling programmes available in your country, please visit our website (http://eu.computers.toshiba-europe.com) or contact your local city office or the shop where you purchased the product. User's Manual...
  • Page 9: Following Information Is Only For Turkey

    The new European Union (EU) chemical regulation, REACH (Registration, Evaluation, Authorization and Restriction of Chemicals), entered into force on 1 June 2007. TOSHIBA will meet all REACH requirements and is committed to provide our customers with information about the chemical substances in our products according to REACH regulation.
  • Page 10: Optical Disc Drive Safety Instructions

    Battery is a consumption product, since the battery time depends on the usage of your computer. If the battery can not be charged at all, then it is a defect or failure. The changes in battery time is not a defect or failure.
  • Page 11 PORTÉGÉ R700 / Satellite R630 Precautions CAUTION:This appliance contains a laser system and is classified as a “CLASS 1 LASER PRODUCT.” To use this model properly, read the instruction manual carefully and keep this manual for your future reference. In case of any trouble with this model, please contact your nearest “AUTHORIZED service station.”...
  • Page 12: Preface

    Preface Congratulations on your purchase of the PORTÉGÉ R700 / Satellite R630 computer. This powerful notebook computer provides excellent expansion capability, includes multimedia functionality, and is designed to provide years of reliable, high-performance computing. This manual tells how to set up and begin using your PORTÉGÉ R700 / Satellite R630 computer.
  • Page 13 Key operation Some operations require you to simultaneously use two or more keys. We identify such operations by the key top symbols separated by a plus sign (+). For example, CTRL + C means you must hold down CTRL and at the same time press C.
  • Page 14: General Precautions

    General Precautions TOSHIBA computers are designed to optimize safety, minimize strain and withstand the rigors of portability. However, certain precautions should be observed to further reduce the risk of personal injury or damage to the computer. Be certain to read the general precautions below and to note the cautions included in the text of the manual.
  • Page 15: Instruction Manual For Safety And Comfort

    Stress injury Carefully read the Instruction Manual for Safety and Comfort. It contains information on the prevention of stress injuries to your hands and wrists that can be caused by extensive keyboard use.Instruction Manual for Safety and Comfort also includes information on work space design, posture and lighting that can help reduce physical stress.
  • Page 16: Chapter 1 Getting Started

    Some of the features described in this manual may not function properly if you use an operating system that was not pre-installed by TOSHIBA. Equipment checklist Carefully unpack your computer, taking care to save the box and packaging materials for future use.
  • Page 17: Getting Started

    TOSHIBA HDD Protection TOSHIBA HDD/SSD Alert TOSHIBA Disc Creator TOSHIBA Web Camera Application TOSHIBA Face Recognition TOSHIBA eco Utility TOSHIBA PC Health Monitor TOSHIBA Service Station TOSHIBA HW Setup Utilities TOSHIBA Sleep Utility TOSHIBA Fingerprint Utility TOSHIBA Bulletin Board TOSHIBA ReelTime...
  • Page 18: Connecting The Ac Adaptor

    6, Always use the TOSHIBA AC adaptor that was included with your computer, or use AC adaptors specified by TOSHIBA to avoid any risk of fire or other damage to the computer. Use of an incompatible AC adaptor could cause fire or damage to the computer possibly resulting in serious injury.
  • Page 19 Never place your computer or AC adaptor on a wooden surface, furniture, or any other surface that could be marred by exposure to heat since the computer base and AC adaptor's surface increase in temperature during normal use. Always place your computer or AC adaptor on a flat and hard surface that is resistant to heat damage.
  • Page 20: Opening The Display

    Connect the AC adaptor’s DC output plug to the DC IN 19V jack on the left of the computer. DC IN 19V jack Plug the power cord into a live wall outlet - the Battery and DC IN indicators on the front of the computer should glow. Opening the display The display panel can be opened to a wide range of angles for optimal viewing.
  • Page 21: Turning On The Power

    Do not lift the computer by the display panel. Do not close the display panel with pens or any other objects left in between the display panel and the keyboard. When opening or closing the display panel, place one hand on the palm rest to hold the computer in place and use the other hand to slowly open or close the display panel (Do not use excessive force when opening or closing the display panel).
  • Page 22: Starting Up For The First Time

    Starting up for the first time The Windows 7 Startup Screen will be the first screen displayed when you turn on the power. Follow the on-screen instructions on each screen in order to properly install the operating system. When it is displayed, be sure to read the Software License Terms carefully.
  • Page 23 When you have to turn off your computer aboard an aircraft or in places where electronic devices are regulated or controlled, always completely shut down the computer. This includes turning off any wireless communication functionalities, and canceling settings that reactivate the computer automatically, such as a timer recording function.
  • Page 24: Hibernation Mode

    You can also enable Sleep Mode by pressing FN + F3 - please refer to chapter 5, You can enter Sleep Mode in one of three ways: Click Start, point to the arrow icon ( Sleep from the menu. Close the display panel. Please note that this feature must be enabled within the Power Options (to access it, click Start >...
  • Page 25: Restarting The Computer

    The Hibernation Mode feature provides the following benefits: Saves data to the hard disk drive when the computer automatically shuts down because of a low battery condition. You can return to your previous working environment immediately when you turn on the computer. Saves power by shutting down the system when the computer receives no input or hardware access for the time period set by the System Hibernate feature.
  • Page 26: System Recovery Options

    You change certain computer settings. An error occurs and the computer does not respond to your keyboard commands. If you need to restart the computer, there are three ways this can be achieved: Click Start, point to the arrow icon ( Restart from the menu.
  • Page 27 Restoring the pre-installed software from the Recovery hard disk drive Ordering Recovery Discs from TOSHIBA and restoring the pre- installed software from them* * Please note that this service is not free-of-charge. Creating Optical Recovery Discs This section describes how to create Recovery Discs Be sure to connect the AC adaptor when you create Recovery Discs.
  • Page 28 When you reinstall the Windows operating system, the hard disk will be reformatted and all data will be lost. Turn off your computer. Turn on the computer and when the TOSHIBA screen appears repeatedly press the F8 key. The Advanced Boot Options menu will be displayed. Use the arrow keys to select Repair Your Computer and press ENTER.
  • Page 29: Ordering Recovery Discs From Toshiba

    While holding down F12 key on the keyboard, turn on your computer - when the TOSHIBA Leading Innovation >>> logo screen appears, release the F12 key. Use the up and down cursor key to select the CD-ROM icon from the menu.
  • Page 30: Chapter 2 The Grand Tour

    The Grand Tour This chapter identifies the various components of the computer - it is recommended that you become familiar with each before you operate the computer. Legal Footnote (Non-applicable Icons) For more information regarding Non-applicable Icons, please refer to the Legal Footnotes section in appendix G.
  • Page 31 DC IN 19V jack Cooling vents External monitor port * Provided with some models. Product appearance depends on the model you purchased. DC IN 19V jack Cooling vents Do not block the cooling vents. Keep foreign metal objects, such as screws, staples and paper clips, out of the cooling vents.
  • Page 32: Right Side

    Universal Serial Bus (USB 2.0) port Keep foreign metal objects, such as screws, staples and paper clips, out of the eSATA/USB combo port or Universal Serial Bus Port. Foreign metal objects can create a short circuit, which can cause damage and fire, possibly resulting in serious injury.
  • Page 33 Figure2-5The right side of the computer (PC Card slot models) Bridge media slot Optical disc drive* Headphone jack Microphone jack Universal Serial Bus (USB 2.0) port 10. PC Card eject button* * Provided with some models. Product appearance depends on the model you purchased. Bridge media slot Keep foreign metal objects, such as screws, staples and paper clips, out of the Bridge media slot.
  • Page 34: Back

    LAN jack Do not connect any cable other than a LAN cable to the LAN jack. It could cause damage or malfunction. Do not connect the LAN cable to a power supply. It could cause damage or malfunction. Security lock slot ExpressCard slot Keep foreign metal objects, such as screws, staples and paper clips, out of the ExpressCard slot.
  • Page 35: Underside

    Battery pack Battery pack Underside The following figure shows the underside of the computer. You should ensure that the display is closed before the computer is turned over to avoid causing any damage. Battery lock Docking port* Battery pack Battery release latch * Provided with some models.
  • Page 36: Front With The Display Open

    Docking port Only the TOSHIBA Hi-Speed Port Replicator can be used with this docking port. Keep foreign objects out of the docking port. A pin or similar object can damage the computer's circuitry. A plastic shutter protects the connector. Do not use the computer's External monitor port, when connecting the TOSHIBA Hi-Speed Port Replicator to the computer.
  • Page 37 Web Camera LED* Bluetooth antenna, Wireless LAN antennas, Wireless WAN antennas (not shown)* Stereo speaker Display hinge TOSHIBA Presentation button TOSHIBA eco button Microphone * Provided with some models. Product appearance depends on the model you purchased. Display screen 10. Touch Pad On/OFF button 11.
  • Page 38 Connect display button in the Mobility Center. Press this button to launch the TOSHBIA eco Utility. The TOSHIBA eco Utility is not supported by ® Windows XP operating system. A built-in microphone allows you to import and...
  • Page 39: Indicators

    Touch Pad control buttons Touch Pad Fingerprint Sensor Keyboard Power button LCD Sensor switch Do not put any magnetic objects close to this switch as they may cause the computer to automatically enter Hibernation Mode and shut down even if the Panel Power Off feature is disabled.
  • Page 40: System Indicators

    System indicators The LED system indicators for specific computer operations glow when those operations are in progress. DC IN Power Battery Hard Disk Drive/ Optical Disc Drive/ eSATA Bridge media slot Wireless communication User's Manual Figure2-9System indicators The DC IN indicator normally glows green when power is being correctly supplied from the AC power adaptor.
  • Page 41: Optical Disc Drives

    Wireless WAN Keyboard indicators The following figures show the positions of the CAPS LOCK indicator which show the following conditions: When the CAPS LOCK indicator glows, the keyboard will produce capitals when any letter is typed. CAPS LOCK indicator CAPS LOCK Optical disc drives The computer may be installed with a DVD Super Multi drive or a DVD Super Multi drive with Double Layer.
  • Page 42: Writable Discs

    Writable discs This section describes the types of writable CD/DVD discs. Check the specifications of your drive to see the types of discs it can write. Use TOSHIBA Disc Creator to write compact discs. Refer to chapter 4, Operating Basics.
  • Page 43: Dvd Super Multi Drive Double Layer

    The full-size DVD Super Multi drive module lets you record data to rewritable CD/DVDs as well as run either 12 cm (4.72") or 8cm (3.15") CD/ DVDs without using an adaptor. When DVD-R DL or DVD+R DL format disc is read with this drive, the disc is available only to read.
  • Page 44: Ac Adaptor

    CD read CD-R write CD-RW write AC adaptor The AC adaptor can automatically adjust to any voltage ranging from 100 to 240 volts and to a frequency of either 50 or 60 hertz, enabling you to use this computer in almost all country/region. The adaptor converts AC power to DC power and reduces the voltage supplied to this computer.
  • Page 45 PORTÉGÉ R700 / Satellite R630 Always use the TOSHIBA AC adaptor that was included with your computer, or use AC adaptors specified by TOSHIBA to avoid any risk of fire or other damage to the computer. Use of an incompatible AC adaptor could cause fire or damage to the computer possibly resulting in serious injury.
  • Page 46: Hardware,, Utilities And Options Hardware,

    Chapter 3 The processor type varies depending on model. To check which type of processor is included in your model, open the TOSHIBA PC Diagnostic Tool Utility by clicking Start > All Programs > TOSHIBA > Utilities > PC Diagnostic Tool.
  • Page 47 Video RAM If your computer is configured with more than 3 GB memory, the memory might be displayed as approximately 3 GB only (depending on the computer’s hardware specifications). This is correct because the operating system usually displays the available memory instead of the physical memory (RAM) built into the computer.
  • Page 48 AC adaptor Disks Hard disk drive or Solid state drive In this manual, the word "HDD" or "Hard disk drive" also refers to the SSD unless otherwise stated. SSD is a large-capacity storage media which uses Solid-State Memory in place of a magnetic disk of the hard disk. Under certain unusual conditions of prolonged non-use and/or exposure to high temperatures, the SSD may be vulnerable to data retention errors.
  • Page 49: Optical Disc Drive

    For more information regarding Hard Disk Drive (HDD) Capacity, please refer to the Legal Footnotes section in appendix G. Optical disc drive Drive 2.6GB and 5.2GB DVD-RAM media cannot be read from or written to. Display The computer's internal display panel supports high-resolution video graphics and can be set to a wide range of viewing angles for maximum comfort and readability.
  • Page 50 You can use it for video chatting or video conferences using a communication tool such as Windows Live Messenger. TOSHIBA Web Camera Application will help you to add various video effects to your video or photograph.
  • Page 51: Special Features

    Footnotes section in appendix G . Wireless WAN Special features The following features are either unique to TOSHIBA computers or are advanced features which make the computer more convenient to use. Access each function using the following procedures. *1 To access the Power Options, click Start > Control Panel > System and Security >...
  • Page 52 Display automatic power off *1 HDD automatic power off *1 System automatic Sleep/Hibernation Mode *1 Keypad overlay Power on password Instant security Intelligent power supply *1 Battery save mode *1 This feature lets you configure the computer in Panel power on/off *1 This feature automatically turns power to the Low battery automatic Hibernation Mode *1...
  • Page 53 Heat dispersal *1 TOSHIBA HDD Protection The TOSHIBA HDD Protection function does not guarantee that the hard disk drive will not be damaged. During audio/video playback, when the computer detects a shock or vibration and the hard disk drive's head is parked, the playback might be temporarily interrupted.
  • Page 54: Utilities And Applications

    Refer to appendix F, TOSHIBA PC Health Monitor. TOSHIBA Power Saver provides you with the features of more various power supply managements. Using the...
  • Page 55 TOSHIBA Button Support TOSHIBA Zooming Utility TOSHIBA PC Diagnostic Tool TOSHIBA Password Utility TOSHIBA Flash Cards The TOSHIBA Flash Cards provide a quick way HW Setup TOSHIBA Accessibility 3-10 This utility controls the following computer button functions. Eco button TOSHIBA Presentation button The starting application from the button can be changed.
  • Page 56 Fingerprint security cannot be used in models that do not have a fingerprint module installed. TOSHIBA Face Recognition TOSHIBA DVD PLYER This software is provided for playback of DVD User's Manual This product has a fingerprint utility installed for the purpose of enrolling and recognizing...
  • Page 57 Make sure to connect the computer's AC adaptor when playing a DVD Video. Power-saving features may interfere with smooth playback. If you see the screen blinking while playing DVD with subtitle on at Media Player, please use TOSHIBA DVD PLYER or Media Center to play DVD. Bluetooth Stack for...
  • Page 58 You can realize measurable power savings by using it continuously. TOSHIBA eco Utility helps you monitor your power savings by showing approximate real time power consumption. Furthermore, it shows approximate accumulated...
  • Page 59 TOSHIBA HDD/SSD Alert Utility TOSHIBA Service Station TOSHIBA Sleep Utility This utility is able to either enable or disable the TOSHIBA Media Controller Trusted Platform Module (TPM) To enable TPM through the BIOS setup: Turn on the computer while pressing the F2 key. When the TOSHIBA Leading Innovation >>>...
  • Page 60: Optional Devices

    Some models are equipped with a single PC Card slot that can accommodate a Type II format card. Any PC Card that meets industry standards, either manufactured by TOSHIBA or another vendor, can be installed as the slot supports 16-bit PC Cards and 32-bit CardBus cards.
  • Page 61: Inserting A Pc Card

    Inserting a PC Card The Windows hot-install feature allows you to insert PC Cards while the computer is turned on. Do not insert a PC Card while the computer is in Sleep Mode or Hibernation Mode as you may find that some cards do not work properly. To insert a PC Card, follow the steps as detailed below: Press the PC Card eject button in order to eject the Dummy card partially out of the computer.
  • Page 62: Expresscard

    Some models are equipped with a single ExpressCard slot into which any ExpressCard device that meets industry standards, either manufactured by TOSHIBA or another vendor, can be installed. The slot supports hot plug connection and utilizes the PCI Express interface that supports the reading and writing of data at a theoretical maximum rate of 2.5Gbps.
  • Page 63: Removing An Expresscard

    Press the ExpressCard gently to ensure a firm connection is made. ExpressCard After inserting the ExpressCard you should refer to its documentation and also check the configuration in Windows in order to ensure that it is correct. Removing an ExpressCard To remove an ExpressCard, follow the steps as detailed below.
  • Page 64: Bridge Media Slot

    When you do not use an ExpressCard, please be sure to insert a Dummy card. Bridge media slot The computer is equipped with a Bridge media slot that can accommodate some kinds of memory media with various memory capacities so that you can easily transfer data from devices, such as digital cameras and Personal Digital Assistants.
  • Page 65 Points to note about the SD/SDHC/SDXC memory card SD/SDHC/SDXC memory cards comply with SDMI (Secure Digital Music Initiative), which is a technology adopted to prevent unlawful copy or playback of digital music. For this reason, you cannot copy or playback protected material on another computer or other device, and you may not reproduce any copyrighted material except for your personal enjoyment.
  • Page 66: Media Care

    Media care Observe the following precautions when handling the card. Card care Do not twist or bend cards. Do not expose cards to liquids or store in humid areas or lay media close to containers of liquid. Do not touch the metal part of a card or expose it to liquids or let it get dirty.
  • Page 67: Removing A Memory Media

    Press the memory media gently to ensure a firm connection is made. Bridge media slot Make sure memory media is oriented properly before you insert it. If you insert the media in wrong direction, you may not be able to remove it.
  • Page 68: Additional Memory Module

    Insert the two memory modules into Slot A and Slot B respectively. The computer will operate in dual channel mode. You can access the inserted memory modules efficiently in dual channel. Use only memory modules approved by TOSHIBA. User's Manual Figure3-7Removing memory media...
  • Page 69: Installing A Memory Module

    Do not try to install or remove a memory module under the following conditions. The computer is turned on. The computer was shut down in either Sleep or Hibernation Mode. Wake-up on LAN is enabled. The wireless communication functionalities are turned on. USB Sleep and Charge function is enabled.
  • Page 70 PORTÉGÉ R700 / Satellite R630 Slide your fingernail or a thin object under the cover and lift it off. Figure3-8Removing the memory module cover Screws Memory module cover User's Manual 3-25...
  • Page 71 Align the notch of the memory module with that of the memory slot and gently insert the module into the slot at about a 30 degree angle before holding it down until the latches on either side snap into place. Notch Slot B Never allow metal objects, such as screws, staples and paper clips, to...
  • Page 72: Removing A Memory Module

    Seat the memory module cover in place and secure it with the screws. Take care to ensure that the memory module cover is firmly closed. Memory module cover Install the battery pack - refer to chapter 6, Power and Power-Up Modes, if required. 10.
  • Page 73: External Monitor

    Grasp the module by its edges and remove it from the computer. If you use the computer for a long time, the memory modules and the circuits locating close to the memory modules will become hot. In this case, let them cool to room temperature before you replace them. Or you will get burnt if you touch any of them.
  • Page 74 Connecting the monitor cable Turn the computer's power off. Connect the monitor cable to the external monitor port. Figure3-12Connecting the monitor cable to the external monitor port External monitor port Turn the external monitor's power on. Turn the computer's power on. When you turn on the power, the computer will automatically recognize the monitor and determine whether it is a color or monochrome device.
  • Page 75: Disconnecting An Esata Device

    Make sure the connector is properly aligned with the socket. Do not try to force the connection, doing so can damage the connecting pins. Figure3-13Connecting an eSATA cable to the eSATA/USB combo port eSATA/USB combo port A connected eSATA device may not be recognized if it is connected to the computer's eSATA/USB combo port while the computer is in Sleep Mode or Hibernation Mode.
  • Page 76: Connecting The Hdmi Out Port

    HDMI A HDMI monitor can be connected to the HDMI out port on the computer. To connect monitor, follow the steps as detailed below: As the port operation of all HDMI (High-Definition Multimedia Interface) monitors have not been confirmed, some HDMI monitors may not function properly.
  • Page 77: Settings For Display Video On Hdmi

    Plug the other end of the HDMI cable into the HDMI out port on your computer. HDMI out port When connecting or disconnecting an HDMI device to or from the computer, only do so when the computer is turned on or when the computer is completely turned off.
  • Page 78 HDMI monitors. TOSHIBA Hi-Speed Port Replicator In addition to the ports available on the computer, the TOSHIBA Hi-Speed Port Replicator also provides several kinds of ports. The TOSHIBA Hi-Speed Port Replicator connects directly to the docking interface on the underside of the computer.
  • Page 79: Security Lock

    When a TOSHIBA Hi-Speed Port Replicator is connected to the computer, you can not use the following computer’s ports: LAN jack, DC IN 19V jack and External monitor port. When connecting an AC Adaptor to the TOSHIBA Hi-Speed Port Replicator, use only the AC Adaptor included with TOSHIBA Hi-Speed Port Replicator.
  • Page 80: Optional Accessories

    Serial port, a HDMI out port (some models are equipped with a HDMI out port), a Microphone jack and a Line out (Headphones, Speakers). Please refer to the TOSHIBA Hi- Speed Port Replicator User's manual for more details.
  • Page 81: Chapter 4 Operating Basics

    Operating Basics This chapter describes the basic operations of your computer, highlights the precautions that should be taken when using it. Using the Touch Pad To use the Touch Pad, simply touch and move your fingertip across it in the direction you want the on-screen pointer to go. Touch Pad ON/OFF button Touch Pad Touch Pad control buttons (right)
  • Page 82: Using The Fingerprint Sensor

    Using the Fingerprint Sensor This product has a fingerprint utility installed for the purpose of enrolling and recognizing fingerprints. By enrolling the ID and password onto the fingerprint authentication feature, it is no longer necessary to input the password from the keyboard. Fingerprint feature enables you to: Logon to Windows and access a security enabled homepage through Internet Explorer.
  • Page 83: Points To Note About The Fingerprint Sensor

    Avoid swiping with your finger stiff or pressed too hard onto the sensor, and take care to ensure that the center of the fingerprint is touching the sensor before swiping. Either of these conditions may cause fingerprint reading to fail. Check the center of the fingerprint whorl before swiping and then ensure this is swiped along the center line of the sensor.
  • Page 84: Fingerprint Utility Limitations

    TOSHIBA does not guarantee that the fingerprint utility technology will be completely secure or error-free, or that it will accurately screen out unauthorized users at all times. TOSHIBA is not liable for any failure or damage that might arise out of the use of the fingerprint software.
  • Page 85 You might be able to register more fingerprint patterns depending on the sensor memory usage. Click Start > All Programs > TOSHIBA > Utilities > TOSHIBA Fingerprint Utility, or click the Fingerprint utility icon in the Taskbar. The Enroll screen is displayed. Enter the current account password into the Windows Password field.
  • Page 86: Windows Logon Via Fingerprint Authentication

    Delete the fingerprint data for the currently logged in user Click Start > All Programs > TOSHIBA > Utilities > TOSHIBA Fingerprint Utility, or double click the utility icon in the Taskbar. Swipe your finger across the fingerprint sensor. The TOSHIBA Fingerprint Utility main menu is displayed. Select Enroll in the main menu.
  • Page 87 Authentication screen is displayed. This will switch the password input screen across to the keyboard-based one. You must ensure that you use the TOSHIBA Password Utility to register a User Password before using the Fingerprint boot authentication and its extended function to allow fingerprints to be used to access the computer when it is turned on.
  • Page 88: Web Camera

    How to Enable Fingerprint boot authentication and Single Sign-On feature It is necessary to first enroll your fingerprint with the TOSHIBA Fingerprint Utility prior to enabling and configuring the boot authentication and Single Sign-On feature. You should check that your fingerprint is enrolled before configuring the settings.
  • Page 89: Using The Toshiba Face Recognition

    Using the TOSHIBA Face Recognition Some models are preinstalled with a TOSHIBA Face Recognition. TOSHIBA Face Recognition uses a face verification library to verify the face data of users when they log in to Windows. The user can thus avoid having to enter a password or the like, which makes the login process easier.
  • Page 90: How To Register The Face Recognition Data

    TOSHIBA does not guarantee that the face recognition utility will accurately screen out unauthorized users at all times. TOSHIBA is not liable for any failure or damage that might arise out of the use of the face recognition software or utility.
  • Page 91: How To Delete The Face Recognition Data

    Delete image data, account information, and personal record data created during registration. To delete the Face Recognition Data, follow the steps as described below: To launch this utility, click Start > All Programs > TOSHIBA > Utilities > Face Recognition. User's Manual...
  • Page 92: How To Launch The Help File

    How to launch the help file For further information on this utility, please refer to help file. To launch the help file, click Start > All Programs > TOSHIBA > Utilities > Face Recognition Help. Windows Logon via TOSHIBA Face Recognition This section explains how to login to Windows with TOSHIBA Face Recognition.
  • Page 93: Using Optical Disc Drives

    Select the account, and click the arrow button. "Please face the camera" will be displayed. Verification will be performed. If the authentication is successful, the image data taken in step 6 will be faded in and placed over one another. If an error occurs during authentication, you will be returned to the Select Tiles screen.
  • Page 94 Grasp the disc tray gently and pull until it is fully opened. Figure4-4Pressing the eject button and pulling the disc tray open Disc tray Lay the CD/DVD, label side up, in the disc tray. Laser lens When the disc tray is fully opened, the edge of the computer will extend slightly over the CD/DVD tray.
  • Page 95: Removing Discs

    Press gently at the center of the CD/DVD until you feel it click into place. The CD/DVD should lie below the top of the spindle, flush with the spindle base. Push the center of the disc tray to close it. Press gently until it locks into place.
  • Page 96: How To Remove Cd/Dvd When The Disc Tray Will Not

    The CD/DVD extends slightly over the sides of the disc tray so you can grasp it. Gently lift out the CD/DVD. Figure4-7Removing a CD/DVD (DVD Supter Multi Double Layer drive models) Figure4-8Removing a CD/DVD (DVD Supter Multi drive models) Push the center of the disc tray to close it. Press gently until it locks into place.
  • Page 97: Writing Cd/Dvds

    You can use the DVD Super Multi drive Double Layer to write data to either CD-R, CD-RW, DVD-R, DVD-R DL, DVD-RW, DVD+R, DVD+R DL, DVD +RW or DVD-RAM discs. The TOSHIBA Disc Creator is provided as writing software with this computer. Please refer to the of writable CD and DVD discs that can be supported by this computer.
  • Page 98: Important Message

    CD-R, CD-RW, DVD-R, DVD-RW, DVD+R, DVD+RW or DVD-RAM media, however, it must be noted that disc quality can affect write or rewrite success rates. Please also be aware that in no event does TOSHIBA guarantee the operation, quality or performance of any disc. 4-18...
  • Page 99 CD-R: TAIYO YUDEN CO., Ltd. MITSUBISHI KAGAKU MEDIA CO., LTD. CD-RW: (Multi-Speed, High-Speed and Ultra-Speed) MITSUBISHI KAGAKU MEDIA CO., LTD. DVD-R: DVD Specifications for Recordable Disc for General Version 2.0 MITSUBISHI KAGAKU MEDIA CO., LTD. (for 8x and 16x speed media) Panasonic Co.,Ltd.
  • Page 100 PORTÉGÉ R700 / Satellite R630 There are two types of DVD-R media available, authoring discs and general use discs. Do not attempt to use authoring discs as only general use discs can be written to by a computer drive. You can use both DVD-RAM discs that can be removed from a cartridge and DVD-RAM discs designed without a cartridge.
  • Page 101 Writing with software other than TOSHIBA Disc Creator has not been confirmed, therefore operation with other software applications cannot be guaranteed. Before writing or rewriting with the DVD Super Multi drive Double Layer Based on TOSHIBA's limited compatibility testing, we suggest the...
  • Page 102 CD-R: TAIYO YUDEN CO., Ltd. MITSUBISHI KAGAKU MEDIA CO., LTD. CD-RW: (Multi-Speed, High-Speed and Ultra-Speed) MITSUBISHI KAGAKU MEDIA CO., LTD. DVD-R: DVD Specifications for Recordable Disc for General Version 2.0 MITSUBISHI KAGAKU MEDIA CO., LTD. (for 8x and 16x speed media) TAIYO YUDEN Co.,Ltd.
  • Page 103 PORTÉGÉ R700 / Satellite R630 DISC created in DVD-R DL format4 (Layer Jump Recording) cannot be read. If the disc is poor in quality, or is dirty or damaged, writing or rewriting errors may be noted - ensure that you check all discs for dirt or damage before you use them.
  • Page 104: When Writing Or Rewriting

    CD/DVD - do not try to write from shared devices such as a server or any other network device. Writing with software other than TOSHIBA Disc Creator has not been confirmed, therefore operation with other software applications cannot be guaranteed.
  • Page 105: Toshiba Disc Creator

    "Disc Backup" function of TOSHIBA Disc Creator. TOSHIBA Disc Creator cannot record in packet format. You might not be able to use the "Disc Backup" function of TOSHIBA Disc Creator to back up a DVD-R, DVD-R DL, DVD-RW, DVD+R, DVD+R DL or DVD+RW disc that was made with other software on a different optical media recorder.
  • Page 106: Toshiba Dvd Player

    Please refer to the Help files for additional TOSHIBA Disc Creator information. TOSHIBA DVD PLAYER Please be aware of the following limitations when you use the TOSHIBA DVD PLAYER: Notes on use TOSHIBA DVD PLAYER software is supported for playback of DVD- Video and DVD-VR.
  • Page 107 When playing DVD-Video using battery power, set the Power Options to "Balance". Screen savers will not display while playing a movie in the TOSHIBA DVD PLAYER. The computer will also not go into Sleep Mode, Hibernation Mode or shutdown while using TOSHIBA DVD PLAYER.
  • Page 108: Media Care

    DVD-Video cannot be displayed simultaneously (in clone mode) on both the computer's display panel and an external display. Do not change the display device while running the TOSHIBA DVD PLAYER. Do not change the screen resolution while running the TOSHIBA DVD PLAYER.
  • Page 109: Sound System

    Hold the CD or DVD by its outside edge or the edge on the center hole - any fingerprints on the surface of the disc can prevent the drive from properly reading data. Do not expose the CD or DVD to direct sunlight, extreme heat or cold. Do not place heavy objects on your CD's or DVD's.
  • Page 110: Realtek Hd Audio Manager

    If you feel the microphone volume level is inadequate, move the Microphone Boost slider to a higher level. Audio Enhancements In order to apply the sound effects for your current speaker, follow the steps below. Right click on the speaker icon on the Taskbar, and select Playback Devices from the sub menu.
  • Page 111: Toshiba Mic Effect

    You can change the sample rate and bit depth of sound. TOSHIBA Mic Effect TOSHIBA Mic Effect provides you with a hands-free environment for holding mutual communication via the Internet Protocol or Local Area Network. If you wish to communicate with someone on your computer, you can use a messenger application.
  • Page 112: Wireless Communications

    the microphone input is output to the speaker (throughput) and the speaker volume is too loud or too close to the microphone. You can control throughput by adjusting the volume of your speaker or through the Mute function in the Master Volume panel. Refer to your Windows documentation for details on using the Master Volume panel.
  • Page 113: Bluetooth Wireless Technology

    TOSHIBA is not liable for the loss of data due to eavesdropping or illegal access through the wireless LAN and the damage thereof. Bluetooth wireless technology...
  • Page 114: Radio Links

    This Bluetooth Stack is based on the Bluetooth Version 1.1/1.2/2.0+EDR/ 2.1+EDR specification. However, TOSHIBA cannot confirm the compatibility between any computing products and/or other electronic devices that use Bluetooth, other than TOSHIBA notebook computers. Release Notes related to the Bluetooth Stack for Windows by TOSHIBA Fax application software: Please be aware that there is some fax application software that you cannot use on this Bluetooth Stack.
  • Page 115: Lan

    Wireless communication Indicator The wireless communication indicator shows the status of the computer's wireless communication functions. Indicator status Indicator off Indicator glows If you used the Taskbar to disable the wireless LAN, restart the computer or perform the following procedure to re-enable it: Start > Control Panel > System and Security >...
  • Page 116: Connecting The Lan Cable

    If you are using Fast Ethernet LAN (100 megabits per second, 100BASE- TX), be sure to connect with a CAT5 cable or higher. You cannot use a CAT3 cable. If you are using Ethernet LAN (10 megabits per second, 10BASE-T), you can connect with a CAT3 or higher cable.
  • Page 117: Computer Handling

    Disconnect the cable from the LAN hub or router in the same manner. Check with your LAN administrator and hardware or software vendor before disconnecting from the hub. Computer Handling This section explains computer handling and maintenance. Cleaning the computer To help ensure long, trouble-free operation, keep the computer free of dust and dirt, and use care with all liquids around it.
  • Page 118: Using The Hard Disk Drive (Hdd) Protection

    This computer has a function for reducing the risk of damage on the hard disk drive. Using an acceleration sensor built into the computer, TOSHIBA HDD Protection detects vibration shocks and similar signs of movement of the computer, and automatically moves the Hard Disk Drive head to a safe position to reduce the risk of damage that could be caused by head-to-disk contact.
  • Page 119: Toshiba Hdd Protection Properties

    You can change the TOSHIBA HDD Protection settings by using the TOSHIBA HDD Protection Properties window. To open the window, click Start > All Programs > TOSHIBA > Utilities > HDD Protection Settings. The window can also be started from the icon on the Taskbar or from the Control Panel.
  • Page 120: Details

    Details To open the Details window, click the Setup Detail button in the TOSHIBA HDD Protection Properties window. Detection Level Amplification When the AC adaptor is disconnected or the lid is closed, HDD Detection assumes that the computer will be carried and sets the detection level to the maximum for 10 seconds.
  • Page 121 USB ports. Do not allow USB ports to come into contact with metal products, for example when carrying the computer in your bag. Starting the Sleep Utility To start the utility, click Start > All Programs > TOSHIBA > Utilities > Sleep Utility. Enabling Sleep and Charge This utility can be used to enable and disable the USB Sleep and Charge function.
  • Page 122: Heat Dispersal

    Power supply mode settings Your PC has multiple charging modes so that many different USB devices can be supported for USB Sleep and Charge function. Typical Mode (Default) is suitable for a wide range of digital audio players. However, determining which mode is suitable for your USB device is unknown without trying.
  • Page 123: Chapter 5 The Keyboard

    The Keyboard The computer’s keyboard layouts are compatible with a 104/105-key enhanced keyboard - by pressing some keys in combination, all of the 104/105-key enhanced keyboard functions can be performed on the computer. The number of keys available on your keyboard will depend on which country/region your computer is configured for, with keyboards being available for numerous languages.
  • Page 124: Soft Keys: Fn Key Combinations

    Soft keys: FN key combinations The FN (function) is unique to TOSHIBA computers and is used in combination with other keys to form soft keys. Soft keys are key combinations that enable, disable or configure specific features.
  • Page 125: Hot Keys

    Press FN + F12 ( ScrLock ) to lock the cursor on a specific line. The power on default is off. Hot keys Hot keys (pressing FN + a function or ESC key) let you enable or disable certain features of the computer. Mute: Pressing FN + ESC turns the volume on and off.
  • Page 126: Windows Special Keys

    Volume up: Pressing FN + 4 increases the volume in increment. FN Sticky key You can use the TOSHIBA Accessibility Utility to make the FN key sticky, that is, you can press it once, release it, and then press an "F Number"...
  • Page 127: Keypad Overlay

    application key has the same function as the secondary (right) mouse button. This key activates the Windows Start menu. This key has the same function as the secondary (right) mouse button. Keypad overlay Your computer's keyboard may not have a separate numeric keypad but includes a numeric keypad overlay which functions like one - this is located in the center of the keyboard with the relevant keys having grey letters at their front edge.
  • Page 128: Generating Ascii Characters

    Temporarily using normal keyboard (overlay on) While using the overlay, you can temporarily access the normal keyboard functions without having to turn the overlay off: Hold down FN key and press any other key - this key will operate as if the overlay were off.
  • Page 129: Chapter 6 Power And Power-Up Modes

    Power and Power-Up Modes The computer's power resources include the AC adaptor, battery pack and any internal batteries. This chapter provides details on making the most effective use of these resources, and includes information on charging and changing batteries, tips for saving battery power, and information on the different power-up modes.
  • Page 130: Monitoring Of Power Condition

    adaptor connecte Monitoring of power condition As shown in the below table, the Battery, DC IN and Power indicators on the system indicator alert you to the computer’s operating capability and battery charge status. Battery indicator Check the Battery indicator to determine the status of the battery pack. The following indicator lights indicate the battery status: Flashing orange Orange...
  • Page 131: Battery

    If the battery pack becomes too hot while it is being charged, the charge will stop and the Battery indicator will go out. When the battery pack's temperature falls to a normal range, charging will resume - this process will occur regardless of whether the computer's power is on or off.
  • Page 132: Care And Use Of The Battery Pack

    **** RTC Power Failure **** Check system. Then press [F2] key. You can change the Real Time Clock settings by turning the computer on while pressing the F2 key and then release the F2 key when the TOSHIBA Leading Innovation >>> screen appears. Please refer to chapter 8...
  • Page 133: Charging The Batteries

    The computer's RTC battery is a Ni-MH battery and should be replaced only by your dealer or by a TOSHIBA service representative. The battery can explode if not properly replaced, used, handled or disposed. Dispose of the battery as required by local ordinances or regulations.
  • Page 134: Monitoring Battery Capacity

    The battery is extremely hot or cold (if the battery is extremely hot, it might not charge at all). To ensure the battery charges to its full capacity, you should charge it at room temperature of between 5° to 35°C (41° to 95°F). The battery is nearly completely discharged.
  • Page 135: Retaining Data With Power Off

    Processor speed Screen brightness System Sleep Mode System Hibernation Mode Display power off period Hard disk drive power off period How often and for how long you use the hard disk drive and external disk(c) drives, for example, optical disc and floppy diskette drive. How much charge the battery contained to begin with.
  • Page 136: Replacing The Battery Pack

    At least once a month, disconnect the computer from a power source and operate it on battery power until the battery pack fully discharges. Before doing so, follow the steps as detailed below. Turn off the computer's power. Disconnect the AC adaptor and turn on the computer's power - if it does not turn on then go to Step 4.
  • Page 137: Removing The Battery Pack

    Removing the battery pack To remove a discharged battery, follow the steps as detailed below: Save your work. Turn the computer's power off - ensure that the Power indicator is off. Remove all cables and peripherals that are connected to the computer.
  • Page 138: Toshiba Password Utility

    TOSHIBA Password Utility The TOSHIBA Password Utility provides two levels of password security: User and Supervisor. Passwords set by the TOSHIBA Password Utility function are different from the Windows password. User Password To start the utility, point to or click the following items: Start >...
  • Page 139 HDD Master Password. To start BIOS Setup: Turn on the computer while pressing the F2 key. Release the F2 key when the TOSHIBA Leading Innovation >>> screen appears. To end the BIOS Setup: Press F10, and then press Y to accept the changes.
  • Page 140: Supervisor Password

    If you forget your HDD User Password, TOSHIBA will NOT be able to assist you, and your HDD will be rendered COMPLETELY and PERMANENTLY INOPERABLE. TOSHIBA will NOT be held responsible...
  • Page 141: Power-Up Modes

    To enter a password manually, follow the steps as detailed below: Turn on the power as described in chapter 1, Getting Started. The following message will appear in the screen: Password= Enter the Password. Press ENTER. If you enter the password incorrectly three times in a row, the computer shuts off.
  • Page 142: System Automatic Sleep/Hibernation

    System automatic Sleep/Hibernation This feature automatically turns off the system in Sleep or Hibernation Mode if the computer is not used for a set duration. Refer to features, in chapter 3 for an explanation of how to set the duration. 6-14 Special User's Manual...
  • Page 143: Chapter 7 Hw Setup

    Accessing HW Setup To run the HW Setup program, click Start > All Programs > TOSHIBA > Utilities > HWSetup. HW Setup window The HW Setup window contains a number of tabs (General, Display, CPU, Boot Priority, Keyboard, USB, SATA ,LAN and Advanced) to allow specific functions of the computer to be configured.
  • Page 144: Cpu

    Power On Display This tab allows you to select the display to be used when the computer is started. Please note that this setting is only available on standard VGA mode and is not available as part of the Windows Desktop properties. The Power On Display is supported with some models.
  • Page 145 To change the boot drive, follow the steps below. Hold down F12 and boot the computer. when the TOSHIBA Leading Innovation >>> screen appears, release the F12 key. Use the up and down cursor keys to select the boot device you want and press ENTER.
  • Page 146: Keyboard

    Keyboard Wake-up on Keyboard When this feature is enabled, and the computer is in Sleep Mode, you can turn on the system by pressing any key. However, please be aware that this option will only work with the internal keyboard and only when the computer is in Sleep Mode.
  • Page 147: Sata

    Enabled Disabled SATA eSATA This feature allows you to set conditions for SATA. Enabled Disabled SATA Interface setting This feature allows you to set SATA interface setting. Performance Battery life Wake-up on LAN This feature lets the computer's power be turned on from shudown when it receives a wake-up packet (Magic packet) from the LAN.
  • Page 148: Advanced

    when this function is enabled. Refer to the section in chapter 6, data with power Enabled Disabled Built-in LAN This feature enables or disables the Built-in LAN. Enabled Disabled Advanced Enable/Disable This tab allows you to set the conditions for each device or function. You can enable or disable the selected device or function for power management.
  • Page 149: Troubleshooting

    Troubleshooting TOSHIBA have designed this computer for durability, however, should problems occur you are able to use the procedures detailed in this chapter to help determine the cause. All users should become familiar with this chapter as knowing what might go wrong can help prevent problems from occurring in the first place.
  • Page 150: Analyzing The Problem

    Make sure all optional accessories are configured properly in the computer's setup program and that all required driver software has been loaded (please refer to the documentation included with the optional accessories for further information on its installation and configuration). Check all cables to ensure they are correctly and firmly attached to the computer - loose cables can cause signal errors.
  • Page 151: Hardware And System Checklist

    Hardware Before using a peripheral device or application software that is not an authorized Toshiba part or product, make sure the device or software can be used with your computer. Use of incompatible devices may cause injury or may damage your computer.
  • Page 152: Self Test

    This message remains on the screen for a few seconds. If the self test is successful, the computer tries to load the operating system according to how the Boot Priority option is set within the TOSHIBA HWSetup program. If any of the following conditions are present, the self test has failed: The computer stops and does not proceed to display information or messages except for the TOSHIBA logo.
  • Page 153: Ac Power

    Problem Computer shuts down and DC IN indicator blinks orange It is recommended to leave the computer off until the interior reaches room temperature even though the DC IN indicator stops blinking. Computer shuts down and its DC IN indicator is flashing green AC power If you have trouble turning on the computer with the AC adaptor connected...
  • Page 154 Problem Battery doesn’t power the computer Battery doesn’t charge when the AC adaptor is attached ( Battery indicator does not glow orange). Battery doesn’t power the computer as long as expected Procedure The battery may be discharged - connect the AC adaptor to recharge the battery.
  • Page 155: Real Time Clock

    BIOS setup application by using the following steps: Turn on the computer while pressing the F2 key. Release the F2 key when the TOSHIBA Leading Innovation >>> screen appears - the BIOS setup application will load. Set the date in the System Date field.
  • Page 156: Hard Disk Drive

    Alternatively you may wish to run the TOSHIBA PC Diagnostic Tool to check the general operation of the computer. If you are still unable to resolve the problem, contact your reseller, dealer or service provider.
  • Page 157: Dvd Super Multi Drive

    Problem Slow performance DVD Super Multi drive For more information, refer to chapter 4, Problem You cannot access a CD/DVD in the drive User's Manual Procedure The files on the hard disk drive may be fragmented - in this instance you should run the disk Defragmentation utility to check the condition of your files and the hard disk drive.
  • Page 158 Problem Some CD/DVDs run correctly, but others do not PC Card For further information, please refer to chapter 3, Options. Problem PC Card error occurs ExpressCard For further information, please refer to chapter 3, Options. 8-10 Procedure The software or hardware configuration may be causing a problem.
  • Page 159: Sd/Sdhc/Sdxc Card

    Problem ExpressCard Card error occurs SD/SDHC/SDXC Card For further information, please refer to chapter 3, Options. Problem SD/SDHC/SDXC Card error occurs You cannot write to an SD/SDHC/SDXC Card You cannot read a file MultiMediaCard For further information, please refer to chapter 3, Options.
  • Page 160: Pointing Device

    Problem MultiMediaCard error occurs You cannot write to a MultiMediaCard You cannot read a file Pointing device If you are using a USB mouse, you should also refer to both the mouse section in this chapter, and the documentation supplied with your mouse.
  • Page 161: Usb Mouse

    Problem The on-screen pointer moves too fast or too slow The reaction of Touch pad is either too sensitive or not sensitive enough. USB mouse Problem On-screen pointer does not respond to mouse operation User's Manual Procedure In this instance, you should initially try changing the speed setting within the Mouse Control utility.
  • Page 162 Problem Double-clicking does not work The on-screen pointer moves too fast or too slow The on-screen pointer moves erratically 8-14 Procedure In this instance, you should initially try changing the double-click speed setting within the Mouse Control utility. To access this utility, click Start > Control Panel >...
  • Page 163: Fingerprint Sensor

    Fingerprint Sensor Problem Reading of the fingerprint was not successful. The fingerprint cannot be read due to injuries to the finger. USB device In addition to the information in this section, please also refer to the documentation supplied with your USB device. User's Manual Procedure In this instance you should try the fingerprint...
  • Page 164: Usb Sleep And Charge Function

    USB, you are still able to use a USB mouse and/or USB keyboard by setting the USB KB/Mouse Legacy Emulation option within the TOSHIBA HW Setup utility to Enabled. If you are still unable to resolve the problem, contact your reseller, dealer or service provider.
  • Page 165 Procedure USB Sleep and Charge function may be disabled. Select the "Enable Sleep and Charge" check box in the TOSHIBA USB Sleep utility to enable this function. When there is a current overflow of the external device connected to the compatible port, USB bus power (DC5V) supply may be stopped for safety reasons.
  • Page 166: Esata Device

    Problem External devices connected to the compatible ports do not work when connected to a compatible port. The "USB Wakeup function" does not work. eSATA device In addition to the information in this section, please also refer to the documentation supplied with your eSATA device. Problem eSATA device does not work...
  • Page 167 Additional memory module Please also refer to chapter 3, information on installing and removing memory modules. Problem If there is a memory malfunction, the Power indicator will repeatedly flash (on for 0.5 seconds, off for 0.5 seconds) in the following patterns;...
  • Page 168 Problem No sound is heard Annoying sound is heard External monitor Please also refer to chapter 3, documentation supplied with your monitor for further information. 8-20 Procedure Adjust the volume. To increase the volume click the volume up button, and to decrease it click the volume down button. Check the software volume settings.
  • Page 169 Problem Monitor does not turn on No display Display error occurs User's Manual Procedure After confirming that the monitor's power switch is on, you should check the connections to make sure that the power cord/adaptor is firmly connected to the monitor and to a working power outlet.
  • Page 170: Wireless Lan

    Problem Cannot access LAN Wake-up on LAN does not work Wireless LAN If the following procedures do not restore LAN access, consult your LAN administrator. For more information on wireless communication, refer to chapter 4, Operating Basics Problem Cannot access Wireless LAN Bluetooth For further information on Bluetooth wireless communication, please refer...
  • Page 171: Recovery Media

    Where to write If you are still unable to solve the problem and suspect that it is hardware related, write to TOSHIBA at the location listed in the enclosed warranty booklet or visit www.toshiba-europe.com on the Internet. User's Manual...
  • Page 172: Specifications

    Specifications This appendix summarizes the computer’s technical specifications. Physical Dimensions Refer to User Information Guide about Size. Environmental Requirements Conditions Operating Non-operating Wet-bulb temperature 26°C maximum Conditions Operating Non-operating Power Requirements AC adaptor Computer User's Manual Appendix A Ambient temperature Relative humidity 5°C (41°F) to 35°C 20% to 80%...
  • Page 173: Appendix B Display Controller And Video Mode

    Display Controller and Video mode Display controller The display controller interprets software commands into hardware commands that turn particular parts on the screen on or off. Due to the display panel's increased resolution, lines may appear broken in when displaying images in full-screen text mode. The display controller also controls the video mode and uses industry standard rules to govern the screen resolution and the maximum number of colors that can be displayed at any one time.
  • Page 174: Appendix C Wireless Lan

    Wireless LAN This appendix is intended to help you get your Wireless LAN network up and running, with a minimum of parameters. Card Specifications Form Factor Compatibility Network Operating System Media Access Protocol Radio Characteristics Radio Characteristics of Wireless LAN module may vary according to: Country/region where the product was purchased Type of product Wireless communication is often subject to local radio regulations.
  • Page 175 Subject to the radio regulations that apply in the countries/regions, your Wireless LAN module may support a different set of 5 GHz/2.4 GHz channels. Consult your Authorized Wireless LAN or TOSHIBA Sales office for information about the radio regulations that apply in the countries/ regions.
  • Page 176 different at each country or region. When using these channels in any country or region, refer to the section Approved Countries/Regions for use in the printed user’s manual. The channel configuration is managed as follows: For wireless clients that operate in a Wireless LAN Infrastructure, the Wireless LAN module will automatically start operation at the channel identified by the Wireless LAN Access Point.
  • Page 177 *1 Factory-set default channels *2 The band width and the channel which can be used depends on the installed wireless LAN module. And the approved channels on using are different at each country or region. When using these channels in any country or region, refer to the section Approved Countries/Regions for use in the printed user’s manual.
  • Page 178: Appendix D Bluetooth Wireless Technology Interoperability

    Logo certification with Bluetooth wireless technology as defined by The Bluetooth Special interest Group. When you use Bluetooth Adaptor from TOSHIBA close to 2.4 GHz Wireless LAN devices, Bluetooth transmissions might slow down or cause errors. If you detect certain interference while you use Bluetooth Adaptor from TOSHIBA, always change the frequency, move your computer to the area outside of the interference range of 2.4 GHz...
  • Page 179: Regulatory Statements

    Because products with Bluetooth wireless technology operate within the guidelines found in radio frequency safety standards and recommendations, TOSHIBA believes Bluetooth wireless technology is safe for use by consumers. These standards and recommendations reflect the consensus of the scientific community and result from deliberations of panels and committees of scientists who continually review and interpret the extensive research literature.
  • Page 180: Ac Power Cord And Connectors

    AC Power Cord and Connectors The power cord’s AC input plug must be compatible with the various international AC power outlets and the cord must meet the standards for the country/region in which it is used. All cords must meet the following specifications: Length: Wire size:...
  • Page 181 In Europe, two conductors power cord must be VDE type, H05VVH2-F or H03VVH2-F and for three conductors power cord must be VDE type, H05VV-F. For the United States and Canada, two pin plug configuration must be a 2-15P (250V) or 1-15P (125V) and three pin plug configuration must be 6-15P (250V) or 5-15P (125V) as designated in the U.S.
  • Page 182: Toshiba Pc Health Monitor

    Once enabled, you may disable the TOSHIBA PC Health Monitor at any time by uninstalling the software via Uninstall a program in the Control Panel. Doing so will automatically delete all collected information from the HDD.
  • Page 183 Acceptance screen. Please carefully read the information displayed. Selecting ACCEPT and clicking OK will enable the program. By enabling the TOSHIBA PC Health Monitor software, you agree with these terms and conditions and to the use and sharing of the collected information. Once...
  • Page 184: Legal Footnotes

    Legal Footnotes This chapter states the Legal Footnotes information applicable to TOSHIBA computers. Non-applicable Icons Certain computer chassis are designed to accommodate all possible configurations for an entire product series. Therefore, please be aware that your selected model may not have all the features and specifications corresponding to all of the icons or switches shown on the computer chassis.
  • Page 185: Battery Life

    Published battery life numbers are achieved on select models and configurations tested by Toshiba at the time of publication. Recharge time varies depending on usage. Battery may not charge while computer is consuming full power.
  • Page 186: Usb Sleep And Charge

    Hard Disk Drive (HDD) Capacity 1 Gigabyte (GB) means 10 computer operating system, however, reports storage capacity using powers of 2 for the definition of 1 GB = 2 therefore shows less storage capacity. Available storage capacity will also be less if the product includes one or more pre-installed operating systems, such as Microsoft Operating System and/or pre-installed software applications, or media content.
  • Page 187: Copy Protection

    Copy Protection Applicable copy protection standards included in certain media may prevent or limit recording or viewing of the media. User's Manual...
  • Page 188 8-18 ExpressCard inserting 3-17 removing 3-18 External monitor problems 8-21 Fingerprint Sensor problems 8-15 using 4-2 FN + 1 (TOSHIBA Zooming Utility reduce) 5-4 FN + ESC (Mute) 5-3 FN + F12 (ScrLock) 5-3 FN + F2 (Power Plan) 5-3...
  • Page 189 FN + F3 (Sleep) 5-3 FN + F4 (Hibernate) 5-3 FN + F5 (Output) 5-3 FN + F6 (Brightness Down) FN + F7 (Brightness Up) 5-3 FN + F8 (Wireless) 5-4 FN + F9 (Touch Pad) 5-4 FN + space (Zoom) 5-4 FN+F10 5-2 FN+F11 5-2 Function keys 5-1...
  • Page 190 Real Time Clock 8-7 Recovery Media 8-23 SD/SDHC/SDXC Card 8-11 Self test 8-4 Sound system 8-19 System start-up 8-4 TOSHIBA support 8-23 Touch Pad 8-12 USB device 8-15 USB mouse 8-13 Wireless LAN 8-22 Processor 3-1 Recovery hard disk drive 1-13...
  • Page 191 Soft keys enhanced keyboard 5-2 ScrLock 5-3 Sound system problems 8-19 TOSHIBA Disc Creator 4-25 Touch Pad 8-12 USB device problems 8-15 Web Camera 4-8 Wireless communication indicator 4-35 Wireless communication switch 4-34 Wireless LAN problems 8-22 User's Manual...

This manual is also suitable for:

Satellite r630Pt310u-01r01qPt311u-01200u
