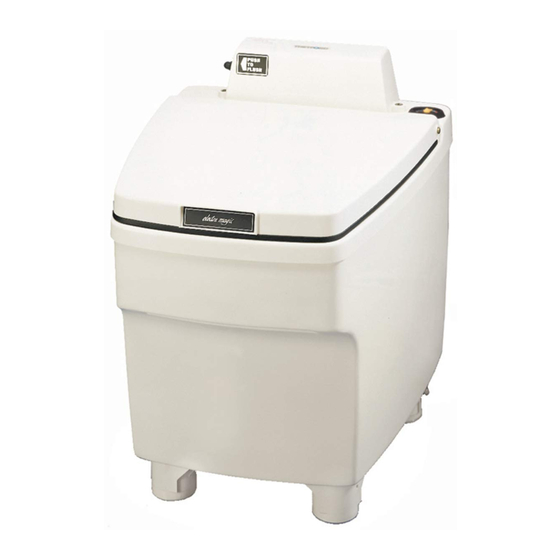

- Page 1 MAGiC ® owner’s Manual RV and Marine Recirculating Toilets Because We Take Your Leisure Seriously...
-
Page 2: Operating Instructions
(an optional holding tank may be installed to increase total capacity). The Electra Magic is operated by a simple D.C. hookup, available in a 1-Volt or a 4-Volt model, and may be discharged directly into the sewer or into an optional holding tank. -
Page 3: Electrical Hookup
Electrical Hookup RV and Marine Models Connect your 1-Volt or 4-Volt model Electra Magic directly to the appropriate D.C. source as a separate circuit. Use minimum size #14 gauge wire. (Black wire to positive [hot], white to negative [ground].) Important – Be sure polarity of power supply has been properly determined and correctly connected to lead wires before operating. - Page 4 Installation Marine Model CAUTION: Toilet is not explosion proof and must not be located in an area where an explosive atmosphere exists, such as gasoline fumes, etc. 1. Install white fork- shaped slides on brackets. Make one right bracket as- sembly and one left bracket assembly.
- Page 5 Installation Continued RV and Marine Models 7. Insert a screwdriver or other long rigid instrument under toilet. With a sharp blow drive each slide back until it slides under nut and snaps into position. 8. If slides cannot be driven by one or two blows, remove toilet and adjust each nut one-half turn upward and repeat procedure from Step 6.
-
Page 6: Parts List
Parts List RV and Marine Models (12- and 24-Volt Models are available.) Product ID Label K e y p a r t Key part no. no. Description no. no. Description 19 03905 Right Hinge* 1 03921 Hinge pin (2) 20 03927 nut (4) 2 03922 Retaining Ring (2) 21 03990 lock Washer (4) 3 03916 seat Cover Assy.*... - Page 7 RV Slide-EZ Valve Key part no. no. Description 1 12836 slide-eZ Valve 2 03911 Handle* 3 03913 Retaining Ring 4 08637 slides (2) 5 08737 screw (4) 6 24304 Flange seal 7 02690 nut (2) 8 12525 Closet Bolt (2) 9 08636 Mtg.
- Page 8 Disassembly RV and Marine Models 1. Fuse Replacement A. Remove two () #09 cover mounting screws and #094 Motor Cover Assembly. B. The fuse is now readily accessible for checking or changing. 2. Switch Removal A. Disconnect lead wires from power source. B.
-
Page 9: Service Parts
Service Parts For parts and/or service – including those under warranty – contact a local Thetford Certified Service Center (CSC), or a RV or Marine Dealer. Or, call Thetford’s Customer Relations Department for information at 1-800-51-0. 1-800-543-1219. For warranty consideration, parts must be sent to Thetford. -
Page 10: Maintenance
Maintenance To clean unit, use Thetford’s Aqua-Clean or other high grade, non-abrasive cleaner. DO NOT use highly concentrated or high-acid content household cleaner, nor those containing abrasive, such as cleaning or scouring powder. These may damage the seals or the plastic parts of the toilet. - Page 11 Limitation of Remedy the responsibility of thetford Corporation under this warranty is limited to the repair or replacement, at the option of thetford Corporation, of any defective part or product provided such repair or replacement is performed by thetford Corporation.
- Page 12 Porta Potti line – the first two-piece, ® hand-carried portable toilet – remains the world’s top-seller. See your dealer for more information about Thetford products. Or, write or call: Thetford Sanitation Ltd. Thetford Corporation 2710 Slough St. P.O. Box 1285...
