Aqua-Magic V
Hand or pedal flush

Operation

To flush, press
all the way
To add water,
press halfway

Installation

Fig. 1
Required Tools
• Adjustable wrench
• /2" ratchet or box wrench
If carpeted:
• Carpet cutting tool
• Marker or chalk
Plumbing required:
For adequate flush, a 3/8" I. D. water supply line
with good flow is required.
Procedure
. Remove old toilet and closet flange seal.
2. Attach new closet flange seal to new toilet,

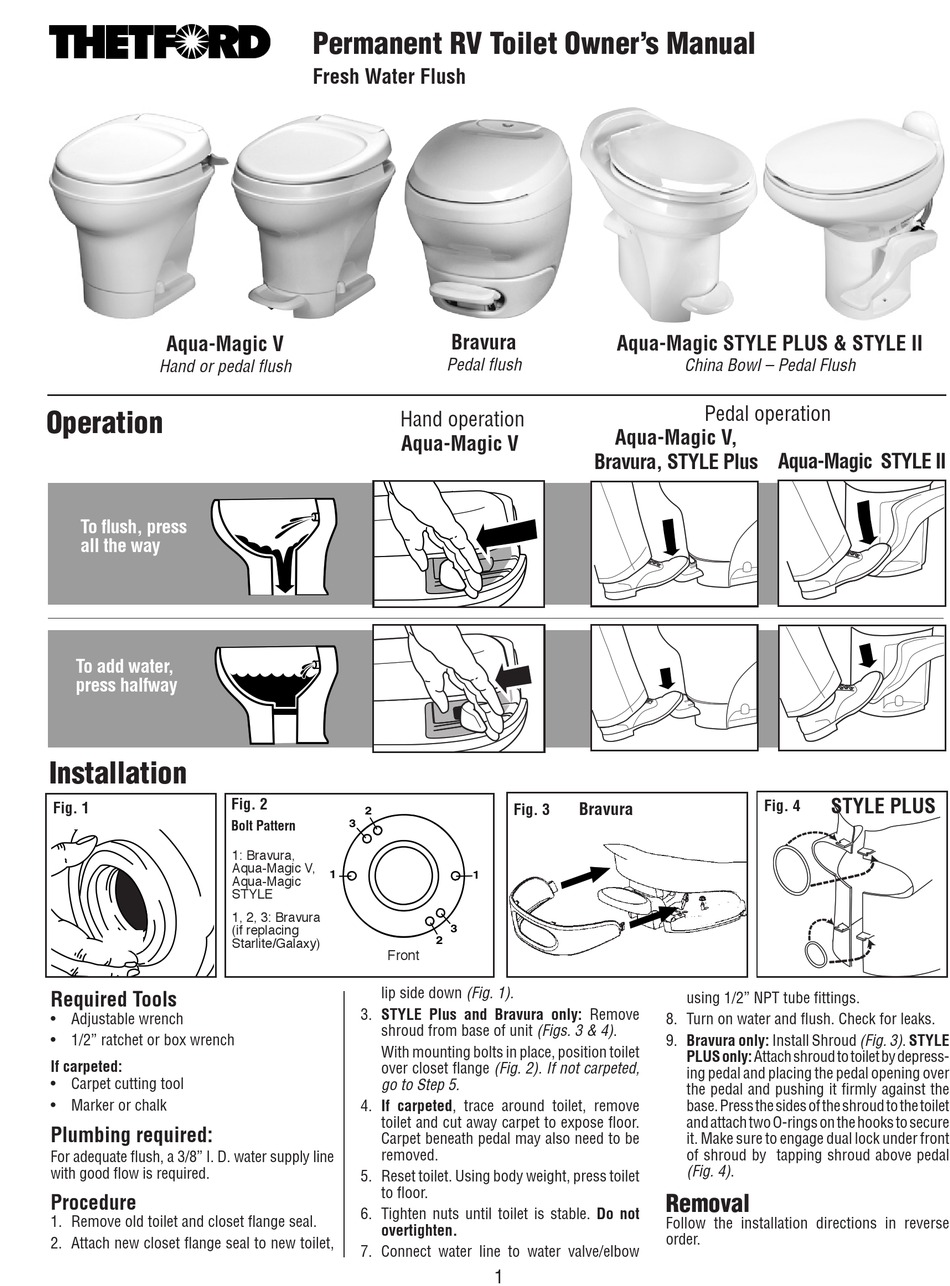

Permanent RV Toilet Owner's Manual
Fresh Water Flush
Hand operation
Aqua-Magic V
Fig. 2
2
3
Bolt Pattern
1: Bravura,
Aqua-Magic V,
1
Aqua-Magic
STYLE
1, 2, 3: Bravura
(if replacing
Starlite/Galaxy)
Front
Front/Devant
lip side down (Fig. 1).
3. STYLE Plus and Bravura only: Remove
shroud from base of unit (Figs. 3 & 4).
With mounting bolts in place, position toilet
over closet flange (Fig. 2). If not carpeted,
go to Step 5.
4. If carpeted, trace around toilet, remove
toilet and cut away carpet to expose floor.
Carpet beneath pedal may also need to be
removed.
5. Reset toilet. Using body weight, press toilet
to floor.
6. Tighten nuts until toilet is stable. Do not
overtighten.
7. Connect water line to water valve/elbow
Bravura
Aqua-Magic STYLE PLUS & STYLE II
Pedal flush
Aqua-Magic V,
Bravura, STYLE Plus
Bravura
Fig. 3
1 Aqua-Magic IV
1
2 Aqua-Magic Galaxy/Starlite
3 Sealand 510, 910, 2000
3
2

China Bowl – Pedal Flush
Pedal operation
Aqua-Magic STYLE II
STYLE PLUS
Fig. 4
using /2" NPT tube fittings.
8. Turn on water and flush. Check for leaks.
9. Bravura only: Install Shroud (Fig. 3). STYLE
PLUS only: Attach shroud to toilet by depress-
ing pedal and placing the pedal opening over
the pedal and pushing it firmly against the
base. Press the sides of the shroud to the toilet
and attach two O-rings on the hooks to secure
it. Make sure to engage dual lock under front
of shroud by tapping shroud above pedal
(Fig. 4).
Removal
Follow the installation directions in reverse
order.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Aqua-Magic V and is the answer not in the manual?

Questions and answers

Summary of Contents for Thetford Aqua-Magic V

  • Page 1 Permanent RV Toilet Owner’s Manual Fresh Water Flush Bravura Aqua-Magic STYLE PLUS & STYLE II Aqua-Magic V Pedal flush China Bowl – Pedal Flush Hand or pedal flush Pedal operation Operation Hand operation Aqua-Magic V, Aqua-Magic V Aqua-Magic STYLE II Bravura, STYLE Plus...
  • Page 2: Trouble Shooting

    4) Poor flush: Pedals or hand levers must be held fully open during flush. A good flush Thetford Toilet Riser Hand spray should be obtained within 2 to 3 seconds. If • Increases comfort (Option with Bravura, Aqua-Magic V & Aqua- problem persists, remove the water supply line • Raises toilet 2.5 inches Magic STYLE ) and check flow rate. The flow rate should be • Fits all Aqua-Magics and Bravura • Easy to attach to existing water valve at least ten quarts (9.5 liters) per minute.
  • Page 3: Service & Parts

    Aqua-Magic V Aqua-Magic STYLE PLUS Bravura Aqua-Magic STYLE II Sold as set only Product ID Label Product ID Label Product ID Label † Parts Service & Parts Before ordering parts, record the Product For parts and/or service, contact a local Thetford 2 Pedal Pkg. † ID information. Specify High or Low. 3 Return Spring (Style Plus) Certified Service Center (CSC) or an RV Dealer. 4 Waste Ball For warranty issues or more information, call No.
