One for All 5 User Manual & Code Book

Hide thumbs Also See for 5:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual , User Manual
URC-7550
Universal Remote
U S E R G U I D E & C O D E B O O K
R e t a i n F o r F u t u r e R e f e r e n c e

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for One for All 5

Summary of Contents for One for All 5

  • Page 1 URC-7550 Universal Remote U S E R G U I D E & C O D E B O O K R e t a i n F o r F u t u r e R e f e r e n c e...

  • Page 2: Table Of Contents

    Your ONE FOR ALL 5 needs 2 new “AA/LR6” batteries. Your ONE FOR ALL 5 is designed to let you use one remote to operate your Video and Audio equipment; any device designed to be operated by an infrared signal.

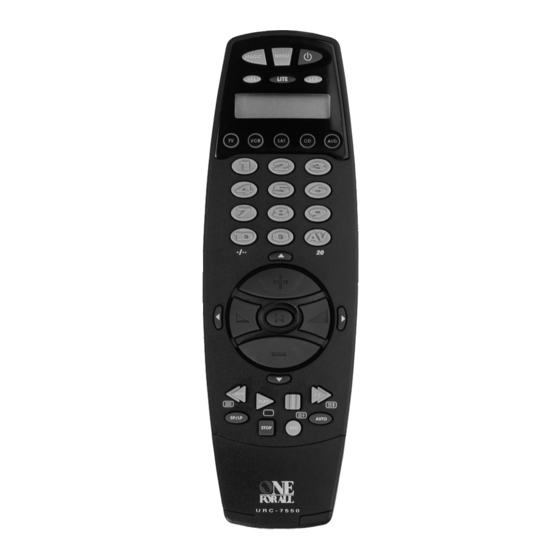

  • Page 3 Menu Magic Power LCD Lite Key Clock setting keys Backlit Device Keys Number Keys Menu up Programme(+) Mute/OK Volume(+) Menu left Menu right Volume(-) Programme(-) Menu down Pause/Hold Rewind/ Fast Forward/ Text on Expand Teletext Keys Play/Text off SP/LP/Red Auto/Blue Stop/Green Record/Yellow Custom...

  • Page 4: Quick Set-Up

    The Quick Search can also be used even if your brand is not listed at all. Make sure you install the batteries in your ONE FOR ALL before following the instructions below. Make sure your device is switched on (not in standby).

  • Page 5: Quick Search

    Quick Search Make sure your device is switched on (not in standby). Make sure you aim your ONE FOR ALL at your device during “Quick Search”. Aim your ONE FOR ALL at your device and press a device key: or SAT...

  • Page 6: Installing The Batteries

    - On the inside of the battery compartment door you will find a label on which to write your Set-Up codes after your ONE FOR ALL 5 is set up for your device. Please write down your codes for easy, future reference.
  • Page 7 The Keypad Function Lite Key LITE This key will light up the display of your clock. SEL and SET Keys The SEL and SET keys are used to set up the clock functions (see page 7) Backlit Device Keys The TV, VCR, SAT, CD and AUD keys select the home entertainment device to be controlled.
  • Page 8 (page 33 and 35). These keys can also be used to program Macros (see page 31). For your convenience, the ONE FOR ALL 5 comes with an adhesive overlay to label the “custom keys”. To use the overlay: 1. Remove the label from under the door.

  • Page 9: Setting The Clock

    Use the SEL key to set the hour of the alarm time. 3. Press once the SET key. 4. Set the minutes for the alarm time using the SEL key. 5. When the alarm time is set up, press the SET key once to exit the alarm adjustment time. Notes: - The Alarm time hour format will update automatically to the real time hour format.

  • Page 10: Installation

    Installation Setting Up Your Television To set up the ONE FOR ALL 5 for your TV, follow the instructions below. Find your 4-digit Television code in the Set-Up Code section (starting on page 13). Codes are listed by brand name. The most popular code is listed first.

  • Page 11: Setting Up Your Other Devices

    Installation Setting Up Your Other Devices To set up the ONE FOR ALL 5 for your other devices: Find the code for your device in the Set-Up ONE FOR ALL Fernseher Code section (starting on page 13). Codes are Admiral...

  • Page 12: The Search Method

    - If the original remote control of your device does not have a power key, press PLAY instead of POWER during step 5. - During step 5, you may have to press these keys many times (up to 150!) so be patient. Remember you must aim the ONE FOR ALL at your device the entire time you are searching for your code.
  • Page 13 Installation After you have used the Search Method, you can find out which code the ONE FOR ALL responded to by blinking back the code. It is useful to know the device code for future reference. Remember, you can only blink back your code after the ONE FOR ALL is operating your device.

  • Page 14: Set-Up Codes

    The most popular codes for each brand are listed first. Write down the codes for your devices in the boxes below and in the battery compartment for quick and easy reference. Device Type Code 1._________________________ 2._________________________ 3._________________________ 4._________________________ 5._________________________ WWW.ONEFORALL.COM...
  • Page 15 Set-Up Codes (4 digits) 2510085 Autovox 0087 0206 0237 Televisions 0076 0349 0217 0247 2511156 Awa 0011 2510991 A.R.Systems 0037 0352 2511081 Ayomi 0238 2510005 Acura 0009 2510091 Baird 0109 0193 0343 2510010 Admiral 0087 0093 0418 0190 0192 0072 0305 0264 0073 0217 0208 2510012 Adyson...
  • Page 16 2511075 Continental 2510297 Fidelity 0193 0216 0371 Edison 0109 0237 0399 0163 0264 0037 0333 0287 0487 2510301 Finlandia 0208 0346 0359 0568 0548 0361 2510194 Cosmel 0009 0337 2510302 Finlux 0105 0104 0037 2510196 Crosley 0087 0247 0074 0346 0217 0072 0084 0076 0163 0163 0076 0516 2510197 Crown...
  • Page 17 2510362 Hanseatic 0037 0292 0282 2510425 JVC 0653 0053 0094 0190 0036 0192 0349 0163 0361 0193 0371 0218 0394 0320 0370 0606 0009 0294 0217 2510427 Kaisui 0218 0282 0037 0519 0216 0455 0217 2510363 Hantarex 0009 0037 0009 2510364 Hantor 0037 2510428 Kamp...
  • Page 18 2510513 McMichael 0043 2510610 Otto Versand 0010 0505 0036 2510517 Mediator 0037 0556 0012 0093 0512 0037 2510518 Medion 0037 0668 0556 0195 0349 2511010 Melvox 0400 0554 0361 0235 2510520 Memorex 0009 0109 0294 0226 2510521 Memphis 0337 0072 0009 0247 0303 0320 2510522 Mercury 0037 0009...
  • Page 19 2510678 Quelle 0037 0010 0011 2511019 Serino 0455 0610 0109 0512 0349 2510762 Sharp 0093 0157 0036 0554 0361 0036 0294 0053 0217 0247 0074 2510769 Shorai 0294 0179 0084 0327 0070 2510772 Siarem 0163 0087 0102 0104 0105 0157 2510773 Siemens 0554 0200 0195 0195 0200 0264...
  • Page 20 2510871 Telefunken 0109 0471 0399 2510956 Vortec 0037 0287 0074 0084 2510957 Voxson 0087 0076 0037 0101 0335 0262 0418 0073 0343 0037 2510958 Waltham 0217 0356 0418 0486 0568 0625 0287 0037 2510874 Telegazi 0037 0163 0259 2510959 Watson 0037 0320 0163 0218 0264 0218 0305 0579...
  • Page 21 2520172 Clatronic 0020 0072 2520401 Inno Hit 0020 0240 0278 2520180 Combitech 0352 0072 2520187 Condor 0020 0278 2520404 Interbuy 0037 0072 2520197 Crown 0278 0072 0020 2520405 Interfunk 0081 0104 2520205 Daewoo 0278 0020 0045 2520408 Intervision 0000 0278 0037 0352 0348 2520207 Dansai...

  • Page 22: Satellite Receivers

    2520632 Perdio 0000 2520871 Telefunken 0041 0320 0493 2520634 Philco 0038 0072 0494 0529 0530 2520636 Philips 0081 0006 2520884 Teletech 0072 0278 2520640 Phonola 0081 2520890 Tenosal 0072 2520642 Pioneer 0067 0081 0042 2520891 Tensai 0000 0037 0072 2520648 Portland 0020 0278 0004 2520656 Prinz...
  • Page 23 2530095 Barcom 0217 2531046 Fagor 0592 0364 2530103 Beko 0455 2530295 Ferguson 0067 0183 0455 0336 0614 0711 2530106 Best 0217 0369 2530297 Fidelity 0252 0461 0675 2530113 Blaupunkt 0173 0501 2530114 Blue Sky 0713 2530301 Finlandia 0455 0108 2530117 Boca 0243 0589 0513 2530302 Finlux 0455 0108 0414...
  • Page 24 2530453 Lasat 0513 0520 0369 2530588 Oceanic 0586 0333 0607 0366 0243 2530589 Octagon 0373 0421 0220 0366 0613 0683 0132 2530590 Okano 0243 0502 0331 2531049 Lemon 0692 2531069 OnDigital 0133 0134 0241 2530454 Lenco 0335 0220 0373 2530597 Optex 0394 0592 0364 0421 0713 0692 0831 0593...

  • Page 25: Cable Converters

    2530735 Satec 0183 0713 2530915 Tristar 0373 2531057 Satelco 0369 2530922 Uniden 0831 0675 2530737 Satford 0346 2530923 Unisat 0366 0243 0200 2530738 Satline 0628 2530927 Unitor 0217 0332 2530739 Satmaster 0346 2530929 Universum 0173 0571 0397 2530740 Satpartner 0332 0502 0421 0607 0675 0461 0335 0520 0613 0742...

  • Page 26: Televisions 13 Miscellaneous Audio

    2540153 Carver 0179 2550636 Philips 0269 2540204 Cyrus 0157 2550642 Pioneer 0013 0269 2540217 Denon 0003 0873 2550675 Quad 0269 2540249 Eclipse 0625 2550701 Roadstar 0847 2540297 Fidelity 0625 2550857 Technics 0308 2540305 Fisher 0179 2550896 Thorens 0269 2531076 General 2550977 Yamaha 0143 0354 Instrument 0276...

  • Page 27: Bskyb And On Digital Information

    BskyB Sky digibox SAT code 0847 for Amstrad, Grundig, Pace, Panasonic Functions on the Placement of the functions on the BskyB remote ONE FOR ALL remote control control Standby Standby Program (+) PROGRAM (+) Program (-) PROGRAM (-) Volume (+)

  • Page 28: Advanced Features

    Brightness down = Press then hold Note: You have 5 seconds to press the Volume or Channel keys for colour or brightness adjustment after pressing MAGIC. Volume Punch Through You may be able to use some features of your Television, Video Recorder and Satellite Receiver at the same time.

  • Page 29: Changing The Device Keys

    Advanced Features Changing the Device Keys If you want to change any of the device keys (TV, VCR, SAT, CD or AUD) to operate another type of device you can use this formula: MAGIC* + 992 + device key that you want to use + device key that will change Example: If you want to program a second TV, you can use this formula...

  • Page 30: Menu

    Advanced Features Menu If your original remote had Menu control, your ONE FOR ALL 5 will be able to control this feature. To use Menu, find the description below which describes how your original remote navigated through menu. Original remote used Up, Down, Left, Right:...

  • Page 31: Auto Scan

    Favorite Programme Scan Instead of Auto Scan, you can set your ONE FOR ALL 5 to scan through up to 10 of your favorite programmes. To set up your favorite programmes for your TV: Press and release the ONE FOR ALL 5’s TV key.
  • Page 32 MAGIC until the TV key blinks twice. Remember, the ONE FOR ALL 5 can hold a maximum of 10 of your favorite programmes. After you have entered the 10 favorite programmes it will automaticallly exit the Favorite Program Scan.

  • Page 33: Macros

    Advanced Features Macros You can program your ONE FOR ALL 5 to issue a sequence of commands at the press of one button. For example, you may want to turn off your TV, VCR and Satellite at the same time.
  • Page 34 + Sequence of commands + MAGIC* • To erase any Shifted Macro, press: MAGIC* + 9 9 5 + MAGIC + Key to be cleared + MAGIC* *Here you must hold down MAGIC until the device key blinks twice.

  • Page 35: Learning Feature

    The ONE FOR ALL 5 comes with a complete library of preprogrammed codes. After you have set up the ONE FOR ALL 5 for your device, you may find that there are one or more keys which you had on your original remote which do not have a place on the ONE FOR ALL keypad.
  • Page 36 Advanced Features Shifted Learning You can also learn a function on a key of the ONE FOR ALL without sacrificing the original ONE FOR ALL function. The "custom keys" are an ideal location for this. A Shifted Learning function can also be put on any key EXCEPT the following: Device keys, Magic key, Number keys.

  • Page 37: Key Magic

    Advanced Features Key Magic ® Key Magic is an exclusive ONE FOR ALL feature. The design of the ONE FOR ALL ensures that many functions of your original remote control can be operated - even those that do not have their own key on the ONE FOR ALL keypad.

  • Page 38: Trouble-Shooting

    A) Try all the codes listed for not operate your your brand. B) Try the search device(s)? method on page 10. The ONE FOR ALL is not You may be using the wrong performing commands code. Try repeating the Direct properly?

  • Page 39: Consumer Help-Line

    CUSTOMER SERVICE If you still have questions about the operation of your ONE FOR ALL 5 universal remote and you could not find the answer(s) in the trouble shooting section, you may want to contact the customer service department for assistance.
  • Page 40 God. This warranty does not cover cartons, carrying cases, batteries, broken or marred cabinets, or any other items used in connection with the product. There are no express warranties except as listed above. ONE FOR ALL SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY BREACH OF WARRANTY.
