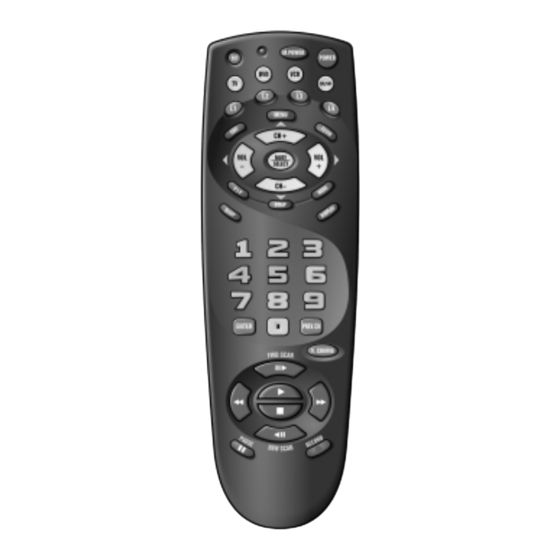

One For All URC 4880 User Manual

4-device video expert plus with learning.
Hide thumbs

Advertisement

URC 4880 VIDEO EXPERT PLUS
WITH LEARNING
Universal Remote Control
4-DEVICE
User's Guide

Advertisement

   Related Manuals for One for All URC 4880

   Summary of Contents for One for All URC 4880

  • Page 1

    URC 4880 VIDEO EXPERT PLUS WITH LEARNING Universal Remote Control 4-DEVICE User’s Guide...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Introduction ....... . 3 Features And Functions .

  • Page 3: Features And Functions, Key Charts

    FEATURES AND FUNCTIONS Use the illustration below to locate One For All 4-Device Video Expert Plus With Learning remote control features and then study the Key Charts (on the next two pages) to learn how they function. Key Charts Use SET for all programming sequences.

  • Page 4: Installing Batteries

    FEATURES AND FUNCTIONS Key Charts (Continued) Press PIP once to view or turn off the picture-in-picture feature. Press SWAP once to exchange the PIP with the main TV picture. Use MOVE to the picture-in-picture position on the TV screen. Press SLEEP once to enable (or disable) a selected component’s sleep timer (if available).

  • Page 5: Programming Tv Control, Setup Codes For Tvs

    PROGRAMMING TV CONTROL NOTE: If you own a TV/VCR combination, skip this section and perform “Programming TV/VCR Combo Control” on page 16. Locate the brand name of your TV in the Setup Codes For TVs section below, and write it in the following space. TV Brand: __________________________________ The brands are listed in alphabetical order with the most popular codes listed first.

  • Page 6

    0150, 0030, 0178, 0019 0060, 0030, 0019, 0056 Magnavox 0054, 0030, 0179, 1254 Marantz 0054, 0030 Matsushita 0250 Megatron 0178, 0145 Memorex 0154, 0250, 0463, 0150, 0178, 0056 Midland 0047, 0017, 0051, 0039, 0135 Mitsubishi 0093, 0150, 0178, 0019 Motorola 0093 Multitech 0180...

  • Page 7: Programming Vcr Control, Setup Codes For Vcrs, Programming Tv/vcr Combo Control

    PROGRAMMING VCR CONTROL NOTE: If you own a TV/VCR combination, skip this section and perform “Programming TV/VCR Combo Control” on page 16. Locate the brand name of your VCR in the Setup Codes For VCRs section below, and write it in the following space. VCR Brand: __________________________________ The brands are listed in alphabetical order with the most popular codes listed first.You will use one of these codes...

  • Page 8

    0035, 0039, 0081, 0000, 0149 Magnin 0240 Marantz 0035, 0081 Marta 0037 Matsushita 0035, 0162, 0454 Memorex 0035, 0037, 0048, 0039, 0047, 0240, 0000, 0104, 0209, 0454, 1037, 1162, 1262 Minolta 0042 Mitsubishi 0048, 0067, 0043 Motorola 0035, 0048 Multitech...

  • Page 9: Setup Codes For Tv/vcrs

    Hitachi 0000 Lloyd's 0000 Magnasonic 0278 Magnavox 0000, 0081 (TV:0054) Magnin 0240 Memorex 1162, 1262, 0162 (TV:0250), 0037 (TV:0056), 1037 0240 Mitsubishi 0048 (TV:0093) Optimus 1162, 1262, 0162 (TV:0250) Orion 0002, 0479 (TV:0463) Panasonic 1162, 1262, 0162 (TV:0250), 0035 (TV:0051)

  • Page 10: Programming Cable Converter Or Satellite Receiver Control, Setup Codes For Cable Converters

    Hamlin 0020, 0259, 0009, 0034 Hitachi 0011 Hytex 0007 Jasco 0015, 0153, 0315 Jerrold 0003, 0012, 0476, 0276, 0014, 0015, 0011, 0810 Linsay 0440 Memorex 0000 Movie Time 0063 0063 Novaplex 0618 0019, 0007 Optimus 0021 Panasonic 0000, 0107, 0021...

  • Page 11: Programming Dvd Player Control

    Expressvu 0775 General Instrument 0627, 0361, 0869 0775 Hitachi 0819 Hughes Network 0749 0775 Jerrold 0627, 0361 Magnavox 0724, 0722 Memorex 0724 Next Level 0869 Panasonic 0701 Philips 0724, 0722 Primestar 0627, 0361 0566, 0143, 0392, 0855 Radio Shack 0869...

  • Page 12: Setup Codes For Dvd Players, Setup Codes For Ld Players, Searching For Your Code

    PROGRAMMING DVD PLAYER CONTROL (Continued) Setup Codes for DVD Players: Denon 0490, 0634 0522 Harman/Kardon 0582 0558, 0623 Kenwood 0534 Magnavox 0503 Marantz 0539 Mitsubishi 0521 Onkyo 0503, 0627 Optimus 0571 Panasonic 0490, 0632 Philips 0503, 0539 Pioneer 0525, 0571, 0632 Proscan 0522 0522...

  • Page 13: Checking The Codes

    CHECKING THE CODES If you have set up the One For All 4-Device Video Expert Plus With Learning remote control using the Searching For Your Code procedure, you may need to find out which four-digit code is operating your equipment. For example, to find out which code is operating your TV: Turn on your TV.Set it to the TV mode.

  • Page 14: Re-assigning Device Keys, Changing Volume Lock, To Change Volume Lock To The Cbl/sat Mode

    RE-ASSIGNING DEVICE KEYS The One For All 4-Device Video Expert Plus With Learning remote control can be set up to control a second TV or VCR, or any combination of four video compo- nents. For example, to have the unit control a TV, a Cable Converter, and two VCRs, you will need to re-assign the unused DVD key to operate the second VCR as follows: On the remote control, press and hold SET until...

  • Page 15: To Change Volume Lock Back To The Tv Mode, Using The Menu Key, Using Keymover

    CHANGING VOLUME LOCK (Continued) To change Volume Lock back to the TV mode: On the remote control, press and hold SET until the LED blinks twice, then release SET. Enter 9 - 9 - 3 and then press TV once. The LED will blink twice.

  • Page 16: Using Learning Keys, Programming The L Keys, Deleting Functions From The L Keys

    USING LEARNING KEYS Use the learning keys (L1, L2, L3, L4) to add functions that are unique to your home entertainment components (e.g., Tracking Up or Down for a VCR). NOTE: Please have your original remote controls handy before programming learning. Be sure to press each key within 10 sec- onds of the previous entry.

  • Page 17: Using The Video Configuration Mode, An Example Video Configuration

    USING THE VIDEO CONFIGURATION MODE The One For All 4-Device Video Expert Plus With Learning remote control includes a powerful Video Configuration feature that allows you to combine the most used functions of your Audio/Video equipment into one V.CONFIG mode. The features you can combine are orga- nized into five groups and can be defined by specific modes as follows: Function Groups...

  • Page 18: Troubleshooting

    USING THE VIDEO CONFIGURATION MODE An Example Video Configuration (Continued) Press TV once and then press VOL+. The LED will blink twice. Press CBL/SAT once and then press CH+. The LED will blink twice. Press CBL/SAT once and then press MENU. The LED will blink twice.

  • Page 19: Additional Information

    ADDITIONAL INFORMATION The One For All 4-Device Video Expert Plus With Learning remote control does not have any user-service- able parts. Opening the case, except for the battery cover, may cause permanent damage to your remote control. ©2000 by Universal Electronics Inc. No part of this publi- cation may be reproduced, transmitted, transcribed, stored in any retrieval system, or translated to any lan- guage, in any form or by any means, electronic, mechani-...
