Important
R-933S
MICROWAVE OVEN WITH GRILL AND
CONVECTION
OPERATION MANUAL
OPERATION MANUAL
This operation manual contains important information which you should read carefully before using
your microwave oven.
IMPORTANT: There may be a serious risk to health if this operation manual is not followed or if the
oven is modified so that it operates with the door open.
900 W (IEC 60705)

Advertisement

Table of Contents
loading

Related Manuals for Sharp R-933S

Summary of Contents for Sharp R-933S

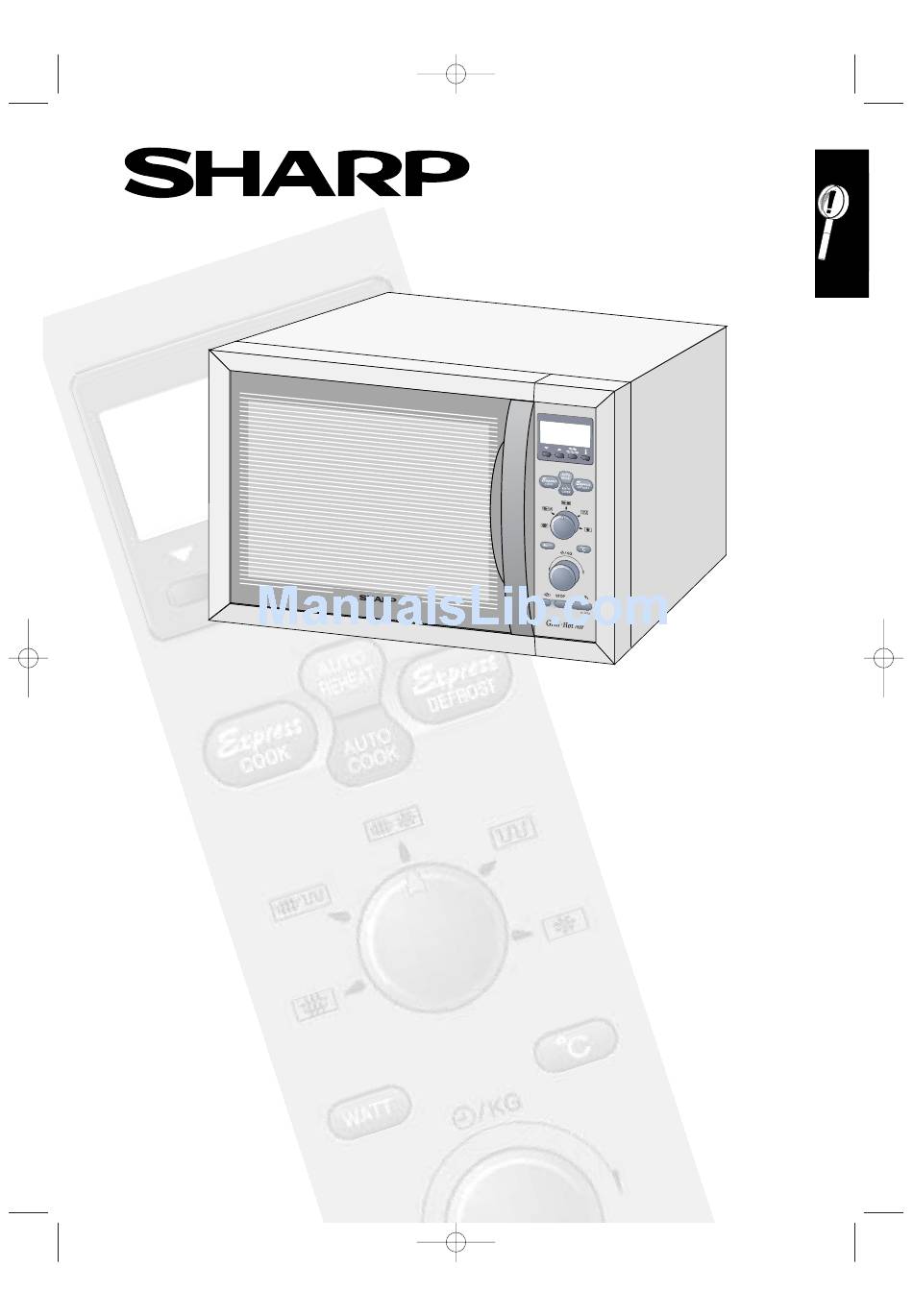

  • Page 1 R-933S English 01/07/2002 15:14 Page A Important R-933S MICROWAVE OVEN WITH GRILL AND CONVECTION OPERATION MANUAL OPERATION MANUAL This operation manual contains important information which you should read carefully before using your microwave oven. IMPORTANT: There may be a serious risk to health if this operation manual is not followed or if the oven is modified so that it operates with the door open.
  • Page 2 R-933 English 05/05/2000 07:11 Page B...

  • Page 3: Table Of Contents

    R-933 English 05/05/2000 07:11 Page 1 CONTENTS OVEN AND ACCESSORIES ........... .2 CONTROL PANEL .

  • Page 4: Oven And Accessories

    • When you order accessories, please mention two items: part name and model name to your dealer or SHARP authorised service agent. This oven will be supplied with 2 racks (High and Low) and 1 baking tin.

  • Page 5: Control Panel

    R-933 English 05/05/2000 07:11 Page 3 CONTROL PANEL Digital display and indicators: 1 COOKING IN PROGRESS indicator 2 GRILL indicator 3 CONVECTION indicator 4 MICROWAVE indicator 5 INFO indicator Operating buttons: 6 INFORMATION button 7 LANGUAGE button 8 AUTO REHEAT button 9 EXPRESS DEFROST button 10 AUTO COOK button 11 COOKING MODE dial...

  • Page 6: Important Safety Instructions

    WARNING: kitchen cabinet, the installation frame EBR-9900 Do not operate the oven if it is damaged or licensed by SHARP must be used. This is available malfunctioning. Check the following before use: from your dealer. Refer to the frame installation a)The door;...
  • Page 7 SHARP to do so. If the oven lamp fails, children or the elderly. please consult your dealer or an authorised SHARP Temperature of the container is not a true service agent.

  • Page 8: Installation

    R-933 English 05/05/2000 07:12 Page 6 IMPORTANT SAFETY INSTRUCTIONS Do not use metal utensils, which reflect microwaves NOTE: and may cause electrical arcing. Do not put cans If you are unsure how to connect your oven, please in the oven. consult an authorised, qualified electrician.

  • Page 9: Before Operation

    R-933 English 05/05/2000 07:12 Page 7 BEFORE OPERATION Your oven has an energy save mode. 5. Set the clock (See page 8). 1. Plug in the oven. Nothing will appear on the 6. Heat the oven without food (See page 11). display at this time.

  • Page 10: Using The Stop Button

    R-933 English 05/05/2000 07:12 Page 8 USING THE STOP BUTTON Use the STOP button to: Erase a mistake during programming. Stop the oven temporarily during cooking. Cancel a programme during cooking, press the STOP button twice. SETTING THE CLOCK There are two setting modes: 12 hour clock and 24 hour clock. Step 2 Step 1 1.

  • Page 11: Energy Save Mode

    R-933 English 05/05/2000 07:12 Page 9 ENERGY SAVE MODE Your oven comes set for the energy save mode. If you do nothing for 3 minutes after a preceding operation, i.e. plugging in and opening the door or at the end of cooking, the power will go off automatically. To restore power on, open the door. To start energy save mode, follow the instructions below.

  • Page 12: Microwave Cooking

    R-933 English 05/05/2000 07:12 Page 10 MICROWAVE COOKING Your oven can be programmed for up to 90 minutes. Cooking Time: Increasing unit: (90.00). The input unit of cooking (defrosting) time 0-5 minutes 10 seconds varies from 10 seconds to five minutes. It depends on 5-10 seconds 30 seconds the total length of the cooking (defrosting) time as...

  • Page 13: Grill Cooking

    R-933 English 05/05/2000 07:12 Page 11 GRILL COOKING The grill heating element at the top of the oven cavity has one power setting only. Example: Suppose you want to cook cheese on toast for 5 minutes (Place toast on the high rack.) 1.

  • Page 14: Convection Cooking

    R-933 English 05/05/2000 07:12 Page 12 CONVECTION COOKING Your oven can be used as a conventional oven using the convection facility and 10 pre-set oven temperatures. Press CONVECTION button Oven Temp (˚ C) Example 1: To cook with preheating Suppose you want to pre-heat to 180° C and cook for 20 minutes at 180° C. 1.
  • Page 15 R-933 English 05/05/2000 07:13 Page 13 CONVECTION COOKING Example 2: To cook without preheating Suppose you want to cook at 250° C for 20 minutes. 1. Select the cooking 2. Use the TIMER/WEIGHT 3. Select the desired 4. Press the +1 min mode by rotating the knob to input the cooking cooking temperature.

  • Page 16: Dual Cooking

    R-933 English 05/05/2000 07:13 Page 14 DUAL COOKING Your oven has 2 DUAL cooking modes combining the heat of the grill with the power of the microwave. To select the DUAL cooking mode rotate the COOKING MODE dial to the desired setting, then choose the cooking time.
  • Page 17 R-933 English 05/05/2000 07:13 Page 15 DUAL COOKING Example 2: Suppose you want to cook for 20 minutes on DUAL 2 using 90 W microwave power and GRILL. 1. Select the cooking 2. Enter the desired 3. Press the MICROWAVE mode by rotating the cooking time (20 min.).

  • Page 18: Other Convenient Functions

    R-933 English 05/05/2000 07:14 Page 16 OTHER CONVENIENT FUNCTIONS Example: 1. LESS ( ) / MORE ( ) button Suppose you want to cook 1,0 kg Gratin using the AUTO COOK and MORE button. The LESS ( ) and MORE ( ) buttons allow you to decrease or increase programmed setting times easily, (for a less well or more well cooked result),...
  • Page 19 R-933 English 05/05/2000 07:14 Page 17 OTHER CONVENIENT FUNCTIONS 2. +1min function The +1 min /START button allows you to operate the two following functions: a) 1 minute cooking You can cook on your desired cooking mode for 1 minute without entering the cooking time. Example: Suppose you want to cook for 1 minute on 630 W microwave power.
  • Page 20 R-933 English 05/05/2000 07:14 Page 18 OTHER CONVENIENT FUNCTIONS 3. TO CHECK SETTINGS WHILE THE OVEN IS OPERATING You can check the power level and the actual oven temperatures ie: when pre-heating. TO CHECK THE POWER LEVEL: As long as your finger is To check the microwave power level during cooking pressing the button, the press the MICROWAVE POWER LEVEL button.

  • Page 21: Automatic Operations

    R-933 English 05/05/2000 07:14 Page 19 AUTOMATIC OPERATIONS The AUTOMATIC OPERATIONS automatically work out the correct cooking mode and cooking time. You can choose from 2 AUTO REHEAT menus, 3 EXPRESS COOK menus, 6 AUTO COOK menus and 7 EXPRESS DEFROST menus. Warning: For EXPRESS COOK and AUTO COOK: The oven cavity, door, outer cabinet,...

  • Page 22: Express Cook Chart

    R-933 English 05/05/2000 07:14 Page 20 AUTOMATIC OPERATIONS Example: Suppose you want to cook 1,2 kg of Gratin using AUTO COOK. 1. Press the AUTO COOK 2. Enter the weight by rotating the 3. Press the +1 min /START button 5 times to select TIMER/WEIGHT knob until the button to start cooking.

  • Page 23: Express Defrost Chart

    R-933 English 05/05/2000 07:15 Page 21 EXPRESS DEFROST CHART MENU NO. WEIGHT (Increasing PROCEDURE Unit) / UTENSILS D-1 Defrost 0,2 - 1,0 kg (100 g) • Place the food on a plate in the centre of the turntable. Steaks, Chops (see note on page 22) •...

  • Page 24: Auto Reheat Chart

    R-933 English 05/05/2000 07:15 Page 22 EXPRESS DEFROST NOTES NOTES: 1 Steaks, Chops and Chicken legs should be frozen in one layer. 2 Minced meat should be frozen in the thin shape. 3 After turning over, shield the defrosted portions with small, flat pieces of aluminium foil. 4 The poultry should be processed immediately after defrosting.

  • Page 25: Auto Cook Chart

    1 tsp salt aluminium foil for approx. 10 minutes. AC-5 0,5 - 2,0 kg (100 g) • Prepare the gratin referring to the SHARP cookbook. Gratin Shallow, oval or round • Place the gratin dish on the low rack.

  • Page 26: Care And Cleaning

    R-933 English 05/05/2000 07:15 Page 24 CARE AND CLEANING CAUTION! DO NOT USE COMMERCIAL 2. Make sure that mild soap or water does not OVEN CLEANERS, ABRASIVE, HARSH penetrate the small vents in the walls which may CLEANERS OR SCOURING PADS ON ANY cause damage to the oven.

  • Page 27: Service Call Check

    Is the inside of the oven hot after 3 minutes? If you answer “NO” to any of the above questions, call a Service Technician appointed by SHARP and report the results of your check. See inside back cover for details of address.

  • Page 28: Specifications

    R-933S English 17/06/2002 12:55 Page 26 SPECIFICATIONS AC Line Voltage : 230 V, 50 Hz, single phase Distribution line fuse/circuit breaker : Minimum 16 A AC Power required: Microwave : 1.5 kW Grill : 2.65 kW Grill/Microwave : 2.8 kW Convection : 2.75 kW...

  • Page 29: Service Addresses

    . SERVICE NIEDERLASSUNGEN . ADDRESSES D’ENTRETIEN . ONDERHOUDSADRESSEN . DIRECCIONES DE SERVICIO . INDIRIZZI DI SERVIZIO . ÖSTERREICH Bei einer Reklamation Ihrer SHARP Mikrowelle wenden Sie sich bitte an Ihren Fachhändler oder an eine der nachfolgend aufgeführten SHARP SERVICE Niederlassungen.
  • Page 30 Eisenach, Bahnhofstraße 17, Blitz Elektro-Elektronik GmbH, Tel: 03691-292930, Fax: 03691-292915. FRANCE En cas de réclamation pour les fours micro-ondes SHARP, nous vous prions de vous adresser à votre spécialiste ou à l’une des stations techniques agréées SHARP suivantes : A.A.V.I.: 1, Rue du Mont de Terre, 59818 Lesquin Cédex. Tél: 03 20 62 18 98 - Fax: 03 20 86 20 60. Départements desservis: 02, 08, 59, 62, 80 / ATELIER ROUSSEL: 12, Bld Flandre Dunkerque, 56100 Lorient.
  • Page 31 09100 Cagliari, Phone: 070-524153, Fax: 070-504109 ESPANA En caso de una reclamación con vuestra SHARP Microwave, preguntan por favor la casa dónde han comprado su máquina o infórmanse en una de las SHARP Service casas siguientes. MERINO NICOLAS JOSE A., - 945/ 25.18.92 - AV JUDIZMENDI 24, 01003 VITORIA-GASTEIZ, ALAVA / TELE- COLOR - 96/585.24.60, CL DEL VENT 9, 03500 BENIDORM, ALICANTE / TELECOM ELECTRONICA -...
  • Page 32 R-933 English 05/05/2000 07:16 Page 30 . SERVICE NIEDERLASSUNGEN . ADDRESSES D’ENTRETIEN . ONDERHOUDSADRESSEN . DIRECCIONES DE SERVICIO . INDIRIZZI DI SERVIZIO . ORS 105, 08203 SABADELL, BARCELONA / VILLARET POLO RAMON - 798.02.48, CL MOLI DE VENT 21, 08303 MATARO, BARCELONA / ESTARLICH PRADAS VICENTE - 766.22.33, CL INDUSTRIA 131, 08370 CALELLA, BARCELONA / VIDEOCOLOR - 93/ 454.99.08, CL VILLARROEL 44, 08011 BARCELONA, BARCELONA / ELDE - 872.85.42, CL BRUCH 55, 08240 MANRESA, BARCELONA / PULGAR I EDO S.L.
  • Page 33 R-933 English 05/05/2000 07:16 Page 31 . SERVICE NIEDERLASSUNGEN . ADDRESSES D’ENTRETIEN . ONDERHOUDSADRESSEN . DIRECCIONES DE SERVICIO . INDIRIZZI DI SERVIZIO . DR. VENANCIO MTEZ. 7, 33710 NAVIA, ASTURIAS / ASTUSETEL S.L., 98/539.10.11, CL CEA BERMUDEZ 9, 33208 GIJON, ASTURIAS / ASTURSERVICE, 98/556.83.87, CL SANCHEZ CALVO 6 bjos., 33401 AVILES, ASTURIAS / JUAN MORILLON DEL CORRO, 98/567.40.24, AV DE GIJON 19, 33930 LA FELGUERA/LANGREO, ASTURIAS / S.A.T.
  • Page 34 R-933 English 05/05/2000 07:16 Page 32 . SERVICE NIEDERLASSUNGEN . ADDRESSES D’ENTRETIEN . ONDERHOUDSADRESSEN . DIRECCIONES DE SERVICIO . INDIRIZZI DI SERVIZIO . APOSTOL 12, 28400 COLLADO VILLALBA, MADRID / VARIOSAT, S.L., 91/662.04.68, CL ISLA DE CORCEGA 24, 28100 ALCOBENDAS, MADRID / ELBESERVI, S.A., 91/386.27.11, CL DR.R. CASTROVIEJO 19, 28029 MADRID, MADRID / ALCALA SERVITEC C.B., 91/889.00.32, CL SANTA URSULA 5, 28801 ALCALA DE HENARES, MADRID / GARMAN C.B., , CL CARLOS SOLE 38 local, 28038 MADRID, MADRID / AVILES SANCHEZ ANTONIO, 952/ 36.16.02, CL CIUDAD DE ANDUJAR 2, 29006 MALAGA, MALAGA / VIDEO TALLER, S.C., 952/ 54.23.95,...
  • Page 35 R-933 English 05/05/2000 07:16 Page 33...
  • Page 36 Wäldern sostenibles worden Gedruckt in Grossbritannien Imprimé au Royaume-Uni SHARP ELECTRONICS (EUROPE) GMBH. Gedrukt in Groot-Brittannie Sonninstrasse 3, 20097 Hamburg Stampato in Gran Bretagna TINS-A308URR0 Germany Impreso en el Reino Unido...
  • Page 37 Altpapier de papier réutilisé della carta riciclata gemaakt reciclado Gedruckt in Grossbritannien Imprimé au Royaume-Uni SHARP ELECTRONICS (EUROPE) GMBH. Gedrukt in Groot-Brittannie Sonninstrasse 3, 20097 Hamburg Stampato in Gran Bretagna TINS-A308URR0 Germany Impreso en el Reino Unido...
