Sharp R-933F Operation Manual

Sharp R-933F Operation Manual

900 w microwave oven with grill and convection
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
R-933F English
2/7/02
12:37 PM

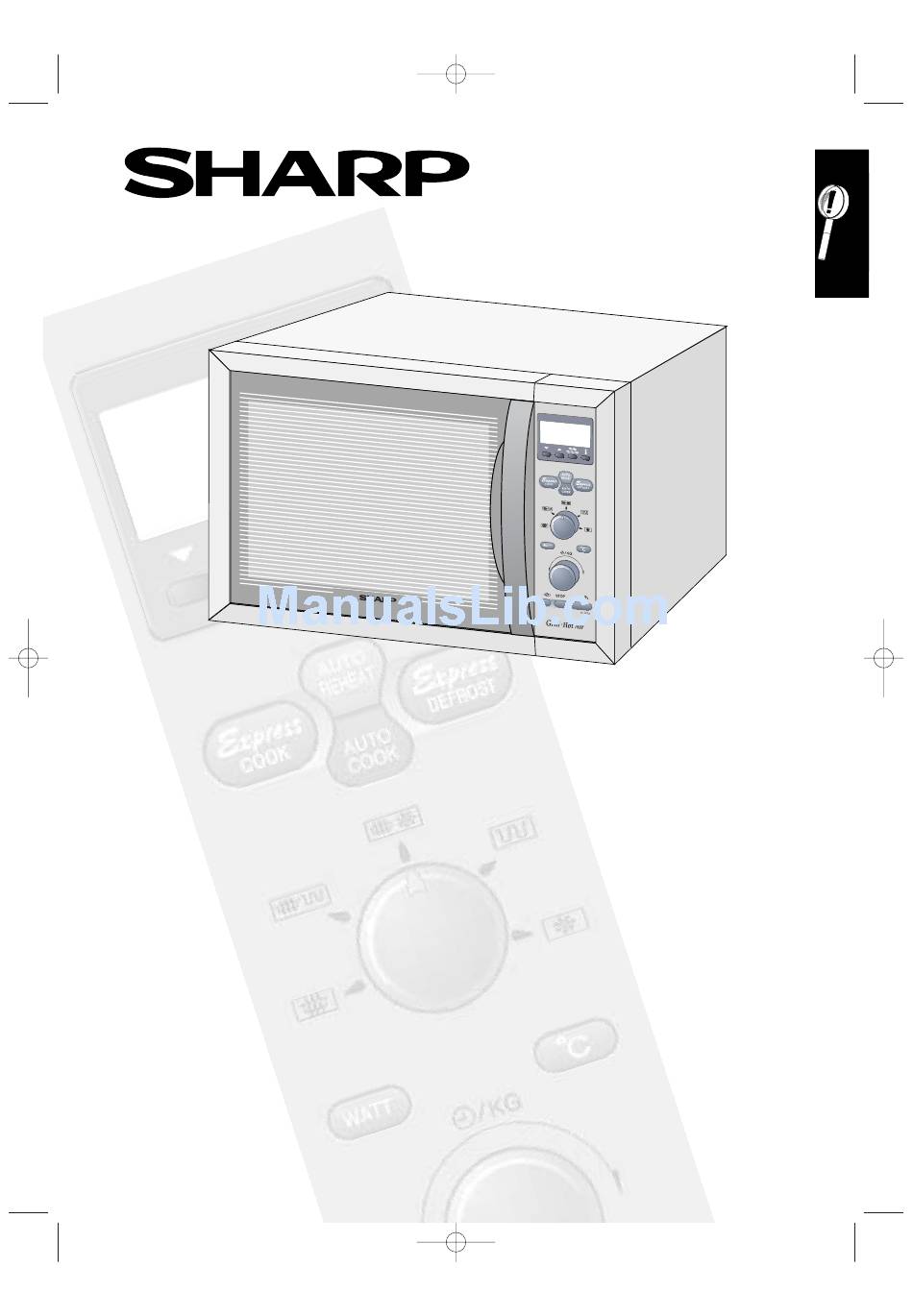

Page A
Important
R-933F
MICROWAVE OVEN WITH GRILL AND
CONVECTION
OPERATION MANUAL
OPERATION MANUAL
This operation manual contains important information which you should read carefully before using
your microwave oven.
IMPORTANT: There may be a serious risk to health if this operation manual is not followed or if the
oven is modified so that it operates with the door open.
900 W (IEC 60705)

Advertisement

Table of Contents
loading

Related Manuals for Sharp R-933F

Summary of Contents for Sharp R-933F

  • Page 1 R-933F English 2/7/02 12:37 PM Page A Important R-933F MICROWAVE OVEN WITH GRILL AND CONVECTION OPERATION MANUAL OPERATION MANUAL This operation manual contains important information which you should read carefully before using your microwave oven. IMPORTANT: There may be a serious risk to health if this operation manual is not followed or if the oven is modified so that it operates with the door open.
  • Page 2 R-933F English 2/7/02 12:37 PM Page B...

  • Page 3: Table Of Contents

    R-933F English 2/7/02 12:37 PM Page 1 CONTENTS OVEN AND ACCESSORIES ........... .2 CONTROL PANEL .

  • Page 4: Oven And Accessories

    The rotary direction may change each time you start the oven. This does not affect cooking performance. • When you order accessories, please mention two details: part Use for convection only. See page13. name and model name to your dealer or SHARP authorised service facility.

  • Page 5: Control Panel

    R-933F English 2/7/02 12:37 PM Page 3 CONTROL PANEL Digital display and indicators: 1 COOKING IN PROGRESS indicator 2 GRILL indicator 3 CONVECTION indicator 4 MICROWAVE indicator 5 INFO indicator Operating buttons: 6 INFORMATION button 7 LANGUAGE button 8 AUTO REHEAT button...

  • Page 6: Important Safety Instructions

    WARNING: kitchen cabinet, the installation frame EBR-9900 Do not operate the oven if it is damaged or licensed by SHARP must be used. This is available malfunctioning. Check the following before use: from your dealer. Refer to the frame installation a)The door;...
  • Page 7 SHARP to do so. If the oven lamp fails, children or the elderly. please consult your dealer or an authorised SHARP Temperature of the container is not a true service agent.

  • Page 8: Installation

    R-933F English 2/7/02 12:37 PM Page 6 IMPORTANT SAFETY INSTRUCTIONS Do not use metal utensils, which reflect microwaves NOTE: and may cause electrical arcing. Do not put cans If you are unsure how to connect your oven, please in the oven.

  • Page 9: Before Operation

    R-933F English 2/7/02 12:37 PM Page 7 BEFORE OPERATION Your oven has an energy save mode. 5. Set the clock (See page 8). 1. Plug in the oven. Nothing will appear on the 6. Heat the oven without food (See page 11).

  • Page 10: Using The Stop Button

    R-933F English 2/7/02 12:37 PM Page 8 USING THE STOP BUTTON Use the STOP button to: Erase a mistake during programming. Stop the oven temporarily during cooking. Cancel a programme during cooking, press the STOP button twice. SETTING THE CLOCK There are two setting modes: 12 hour clock and 24 hour clock.

  • Page 11: Energy Save Mode

    R-933F English 2/7/02 12:37 PM Page 9 ENERGY SAVE MODE Your oven comes set for the energy save mode. If you do nothing for 3 minutes after a preceding operation, i.e. closing the door or at the end of cooking, the power will go off automatically.

  • Page 12: Microwave Cooking

    R-933F English 2/7/02 12:37 PM Page 10 MICROWAVE COOKING Your oven can be programmed for up to 90 minutes. Cooking Time: Increasing unit: (90.00). The input unit of cooking (defrosting) time 0-5 minutes 10 seconds varies from 10 seconds to five minutes. It depends on...

  • Page 13: Grill Cooking

    R-933F English 2/7/02 12:37 PM Page 11 GRILL COOKING The grill heating element at the top of the oven cavity has one power setting only. Example: Suppose you want to cook cheese on toast for 5 minutes (Place toast on the high rack.) 1.

  • Page 14: Convection Cooking

    R-933F English 2/7/02 12:37 PM Page 12 CONVECTION COOKING Your oven can be used as a conventional oven using the convection facility and 10 pre-set oven temperatures. Press CONVECTION button Oven Temp (˚ C) Example 1: To cook with preheating Suppose you want to pre-heat to 180°...

  • Page 15: Convection Cooking

    R-933F English 2/7/02 12:37 PM Page 13 CONVECTION COOKING Example 2: To cook without preheating Suppose you want to cook at 250° C for 20 minutes. 1. Select the cooking 2. Use the TIMER/WEIGHT 3. Select the desired 4. Press the +1 min...

  • Page 16: Dual Cooking

    R-933F English 2/7/02 12:37 PM Page 14 DUAL COOKING Your oven has 2 DUAL cooking modes combining the heat of the grill with the power of the microwave. To select the DUAL cooking mode rotate the COOKING MODE dial to the desired setting, then choose the cooking time.

  • Page 17: Dual Cooking

    R-933F English 2/7/02 12:37 PM Page 15 DUAL COOKING Example 2: Suppose you want to cook for 20 minutes on DUAL 2 using 90 W microwave power and GRILL. 1. Select the cooking 2. Enter the desired 3. Press the MICROWAVE mode by rotating the cooking time (20 min.).

  • Page 18: Other Convenient Functions

    R-933F English 2/7/02 12:37 PM Page 16 OTHER CONVENIENT FUNCTIONS Example: 1. LESS ( ) / MORE ( ) button Suppose you want to cook 1,0 kg Gratin using the AUTO COOK and MORE button. The LESS ( ) and MORE (...
  • Page 19 R-933F English 2/7/02 12:37 PM Page 17 OTHER CONVENIENT FUNCTIONS 2. +1min function The +1 min /START button allows you to operate the two following functions: a) 1 minute cooking You can cook on your desired cooking mode for 1 minute without entering the cooking time.

  • Page 20: Other Convenient Functions

    R-933F English 2/7/02 12:37 PM Page 18 OTHER CONVENIENT FUNCTIONS 3. TO CHECK SETTINGS WHILE THE OVEN IS OPERATING You can check the power level and the actual oven temperatures ie: when pre-heating. TO CHECK THE POWER LEVEL: As long as your finger is...

  • Page 21: Automatic Operations

    R-933F English 2/7/02 12:37 PM Page 19 AUTOMATIC OPERATIONS The AUTOMATIC OPERATIONS automatically work out the correct cooking mode and cooking time. You can choose from 2 AUTO REHEAT menus, 3 EXPRESS COOK menus, 6 AUTO COOK menus and 7 EXPRESS DEFROST menus.

  • Page 22: Express Cook Chart

    R-933F English 2/7/02 12:37 PM Page 20 AUTOMATIC OPERATIONS Example: Suppose you want to cook 1,2 kg of Gratin using AUTO COOK. 1. Press the AUTO COOK 2. Enter the weight by rotating the 3. Press the +1 min /START...

  • Page 23: Express Defrost Chart

    R-933F English 2/7/02 12:37 PM Page 21 EXPRESS DEFROST CHART MENU NO. WEIGHT (Increasing PROCEDURE Unit) / UTENSILS D-1 Defrost 0,2 - 1,0 kg (100 g) • Place the food on a plate in the centre of the turntable. Steaks, Chops (see note on page 22) •...

  • Page 24: Auto Reheat Chart

    R-933F English 2/7/02 12:37 PM Page 22 EXPRESS DEFROST NOTES NOTES: 1 Steaks, Chops and Chicken legs should be frozen in one layer. 2 Minced meat should be frozen in the thin shape. 3 After turning over, shield the defrosted portions with small, flat pieces of aluminium foil.

  • Page 25: Auto Cook Chart

    1 tsp salt aluminium foil for approx. 10 minutes. AC-5 0,5 - 2,0 kg (100 g) • Prepare the gratin referring to the SHARP cookbook. Gratin Shallow, oval or round • Place the gratin dish on the low rack.

  • Page 26: Recipes For Using Square Tin/Shelf

    R-933F English 2/7/02 12:37 PM Page 24 RECIPES FOR USING SQUARE TIN/SHELF ONION GATEAU Preparation This recipe makes approx. 1,6 kg. Total Cooking Time: 35-37 minutes 1. Prepare from the mentioned ingredients a yeast Utensils: Bowl with lid (3 l capacity) dough.
  • Page 27 LINZER BISCUITS Preparation 1. Prepare the biscuits referring to the attached Total Cooking Time: 12-15 minutes Sharp cookbook on page XX. Utensils: Square tin 2. Preheat the oven to 230° C. Square shelf 3. Line the square tin and the baking tin with round baking tin greaseproof paper.
  • Page 28 R-933F English 2/7/02 12:37 PM Page 26 RECIPES FOR USING SQUARE TIN/SHELF LASAGNE AL FORNO Preparation 1. Cut the tomatoes into slices, mix with the ham Total Cooking Time: 40-46 minutes and onion cubes, garlic, minced meat and Utensils: Bowl with lid (3 l capacity) mashed tomato.

  • Page 29: Care And Cleaning

    R-933F English 2/7/02 12:37 PM Page 27 CARE AND CLEANING CAUTION! DO NOT USE COMMERCIAL 2. Make sure that mild soap or water does not OVEN CLEANERS, ABRASIVE, HARSH penetrate the small vents in the walls which may CLEANERS OR SCOURING PADS ON ANY cause damage to the oven.

  • Page 30: Service Call Check

    Is the inside of the oven hot after 3 minutes? If you answer “NO” to any of the above questions, call a Service Technician appointed by SHARP and report the results of your check. See inside back cover for details of address.

  • Page 31: Service Addresses

    291292 / Audio Video Service, Sonnengasse 13, 9020 Klagenfurt, Phone: 463-43114, Fax: 463-43113 BELGIUM En cas d´une réclamation concernant une four a micro-onde SHARP, nous vous prions de vous adresser à votre spècialiste ou à une adresse des SHARP Services suivantes.
  • Page 32 983654 / 99817 Eisenach, Bahnhofstraße 17, ”Blitz Elektro-Elektronik, GmbH”, Tel: 03691-292930, Fax: 03691-292915 FRANCE En cas de réclamation pour les fours micro-ondes SHARP, nous vous prions de vous adresser à votre spécialiste ou à l’une des stations techniques agréées SHARP suivantes : A.A.V.I.: 1, Rue du Mont de Terre, 59818 Lesquin Cédex.
  • Page 33 R-933F English 2/7/02 12:37 PM Page 31 . SERVICE NIEDERLASSUNGEN . ADDRESSES D’ENTRETIEN . ONDERHOUDSADRESSEN . DIRECCIONES DE SERVICIO . INDIRIZZI DI SERVIZIO . El.S.A.R., Via S.Sotero 36, 00165, Roma, Tel: 06-6380516, Fax: 06-6380973 / Elettronica 81, Via Ezio 56/58, 04100, Latina, Tel: 0773- 694608, Fax: 0773-663511 / Italreg Di Abano, Parco Belvedere Conca 74, 04024, Gaeta, Tel: 0771-470851, Fax: 0771-470851 / Palmieri F., Via S.Polledrara 219, 03100, Frosinone, Tel: 0775-291485, Fax: 0775-291485 / S.A.R.E.
  • Page 34 Venezia, Tel: 041-2750670, Fax: 041-2757273 ESPANA En caso de una reclamación con vuestra SHARP Microwave, preguntan por favor la casa dónde han comprado su máquina o infórmanse en una de las SHARP Service casas siguientes. Merino Nicolas Jose A., - 945/ 25.18.92 - Av Judizmendi 24, 01003 Vitoria-Gasteiz, Alava / Tele-Color - 96/585.24.60, Cl Del Vent 9, 03500 Benidorm, Alicante / Telecom Electronica - 96/539.50.21, Cl Hernan Cortes 8, 03600 Elda, Alicante / Eurosat, S.L.
  • Page 35 Medina Del Campo, Valladolid / R.T.V. Blanco, 980/ 51.14.41, Cl Eduardo Julian Perez 9, 49018 Zamora SWITZERLAND Sharp Electronics AG, Langwiesenstrasse 7, 8108 Dällikon, Tel: +41 1 846 61 11. SWEDEN Vid förfrågningar angående din mikrovågsugn var vänlig kontakta din återförsäljare eller nägon av Sharps representanter Centralservice Umeå, Formvägen 8, 90621 Umeå, Phone: 090-125001, Fax: 090-131135 / MN Elektronikservice AB,...

  • Page 36: Specifications

    93/68/EEC. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AS PART OF CONTINUOUS IMPROVEMENT Le papier de ce mode d'emploi est fait de 100 % de papier réutilisé SHARP ELECTRONICS (EUROPE) GMBH. Sonninstrasse 3, 20097 Hamburg TINS-A305URR0 Imprimé au Royaume-Uni Germany...
  • Page 37 SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AS PART OF CONTINUOUS IMPROVEMENT Ce papier est entièrement fabriqué à partir de pâte à papier provenant de forêts durables SHARP ELECTRONICS (EUROPE) GMBH. Sonninstrasse 3, 20097 Hamburg TINS-A305URR0 Imprimé au Royaume-Uni Germany...
