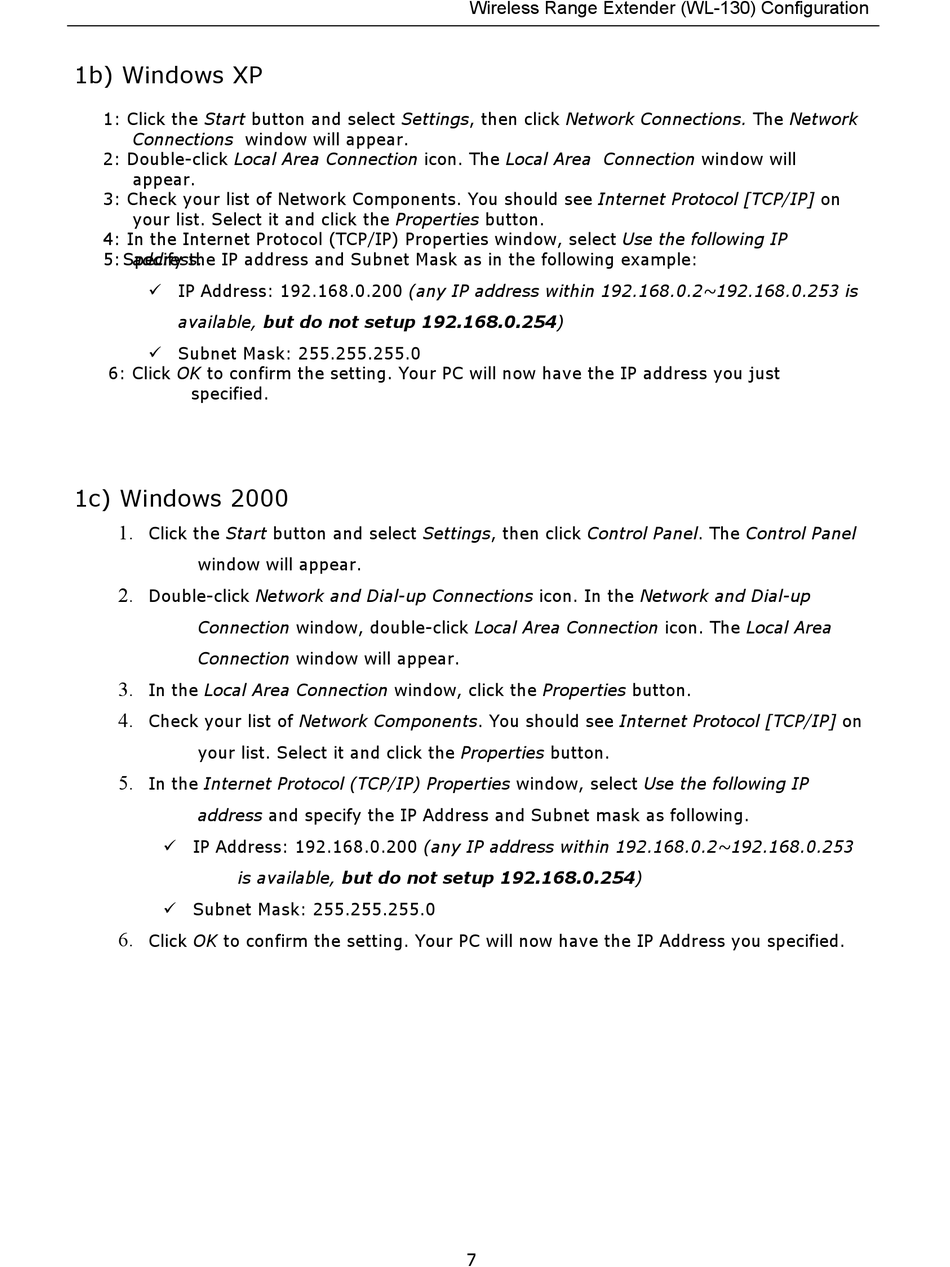

Sitecom WL-130 Manual page 9

1b) Windows XP
1: Click the Start button and select Settings, then click Network Connections. The Network
Connections window will appear.
2: Double-click Local Area Connection icon. The Local Area Connection window will
appear.
3: Check your list of Network Components. You should see Internet Protocol [TCP/IP] on
your list. Select it and click the Properties button.
4: In the Internet Protocol (TCP/IP) Properties window, select Use the following IP
5: Specify the IP address and Subnet Mask as in the following example: address.
IP Address: 192.168.0.200 (any IP address within 192.168.0.2~192.168.0.253 is
available, but do not setup 192.168.0.254)
Subnet Mask: 255.255.255.0
6: Click OK to confirm the setting. Your PC will now have the IP address you just
specified.
1c) Windows 2000
1.
Click the Start button and select Settings, then click Control Panel. The Control Panel
window will appear.
2.
Double-click Network and Dial-up Connections icon. In the Network and Dial-up
Connection window, double-click Local Area Connection icon. The Local Area
Connection window will appear.
3.
In the Local Area Connection window, click the Properties button.
4.
Check your list of Network Components. You should see Internet Protocol [TCP/IP] on
your list. Select it and click the Properties button.
5.
In the Internet Protocol (TCP/IP) Properties window, select Use the following IP
address and specify the IP Address and Subnet mask as following.
IP Address: 192.168.0.200 (any IP address within 192.168.0.2~192.168.0.253
is available, but do not setup 192.168.0.254)
Subnet Mask: 255.255.255.0
6.
Click OK to confirm the setting. Your PC will now have the IP Address you specified.
