What can I do in the settings menu of my WL-330 (which settings are there
and what can I change)?
Introduction
The settings menu of your WL-330 allows you to customise the settings of this range extender. If you
have a stable internet connection, we advise you not to change anything here. If you nevertheless
decide to do so, prepare thoroughly:
Please read this entire FAQ carefully so you know which settings you can change.
Make a note of the current settings! Take screenshots, for example. That way you can always
go back to the current situation if something should go wrong. You can also back up the
current settings in a separate file, so you can restore them later if something goes wrong. For
more information about this feature, see the section entitled Tools tab.
If in doubt, always read the entire manual for the WL-330, which is on the accompanying CD-
ROM.
Applying Changes in the GUI
The WL-330 will reboot itself after changes are made in the settings menu. After a reboot you must
often reconnect to the WL-330. For more information, see the section entitled Applying changes.
Login
You always log in through a browser.
Home screen of the Settings menu
Once you are logged in, you always start out on the screen shown below (Home). This is the first tab
of the settings menu. You cannot make any changes here. This page provides an overview of the
current settings. Here you can see which network the range extender is connected to and which
channel it is transmitting on.

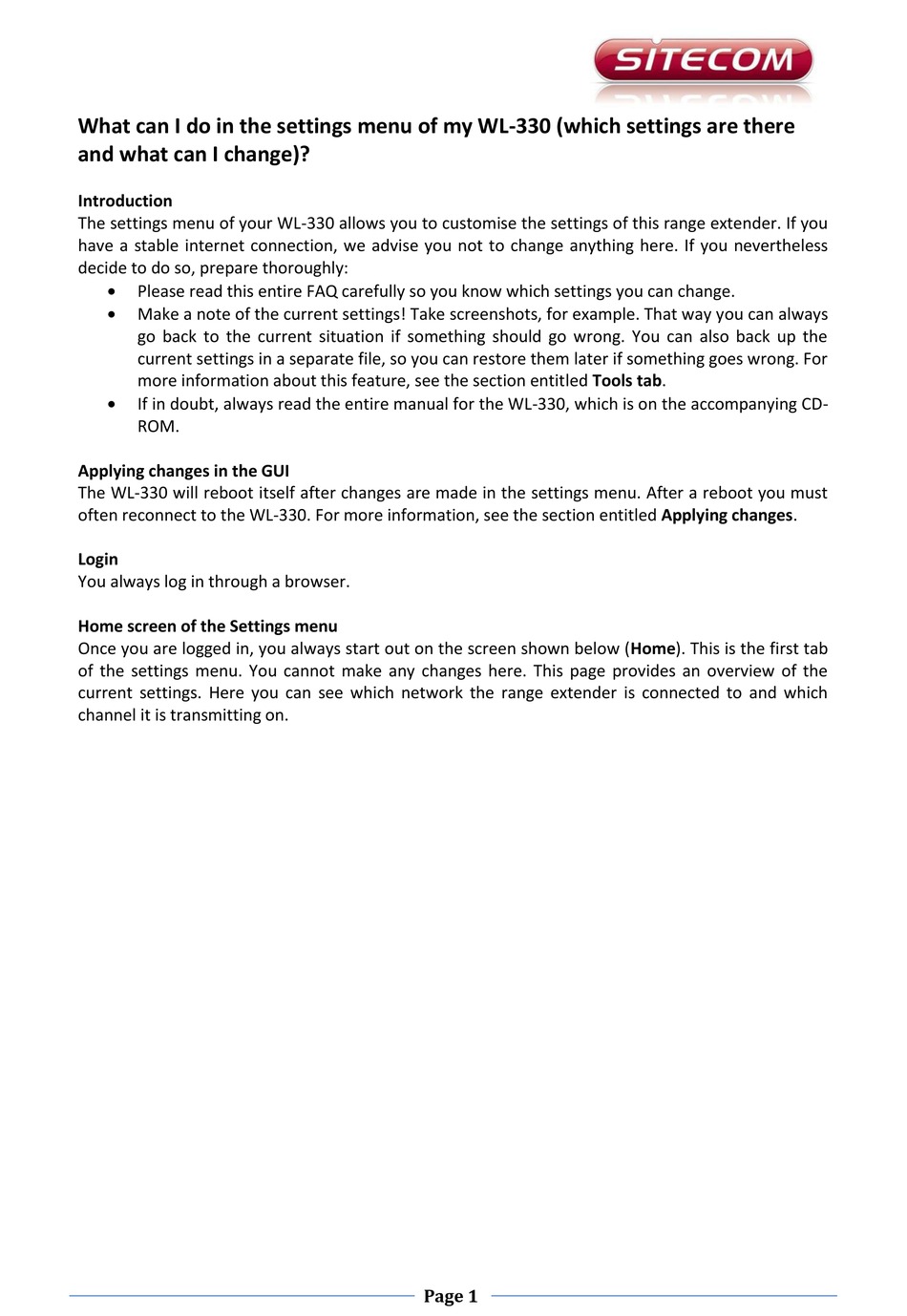

Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sitecom WL-330
Summary of Contents for Sitecom WL-330
- Page 1 I change)? Introduction The settings menu of your WL-330 allows you to customise the settings of this range extender. If you have a stable internet connection, we advise you not to change anything here. If you nevertheless decide to do so, prepare thoroughly: ...
- Page 2 Basic Settings tab On the Basic Settings tab you manage all the settings for the current connection between your range extender and your modem (or modem router) or access point (if connected). Page 2...
- Page 3 (or modem router) to which you are making a connection. Under Mode you can also configure the WL-330 as an access point. In that case the connection between the WL-330 and your router (or modem router) is not made wirelessly but rather via a network cable.
- Page 4 This must be the same security standard used on your router (or modem router) or access point. Sitecom always recommends making use of the WPA Pre-Shared Key standard. For the WPA Unicast Cipher Suite preferably choose WPA2(AES). The password you use to connect to your router (or modem router) or access point is shown by for shared Key.
- Page 5 This should preferably be left Off! This is necessary in order to establish a good connection. Because virtually all routers and access points now also have a DHCP table, and you can only have one active DHCP table in your network, Sitecom recommends always leaving this Off. Save sub-tab On this tab you can save the current settings to a file.
- Page 6 The Reset button is used to reset the WL-330 to the factory settings. You will lose all your changes, so only do this if you really must. You can also reset the WL-330 with the reset button on the device itself.
- Page 7 Once the countdown is complete, click OK. In some cases (e.g. when changing your network name), you will have to reconnect the PC or laptop to the range extender to be able to connect to the internet again. This is necessary if you see the following screen.
