Setting Up The Router; Physical Installation - Sitecom WL-143 Quick Installation Manual

2

Setting up the router

2.1

Physical installation

1 For the installation of the router it is assumed that you have at least one PC with a working broadband
Internet connection. It is also assumed that the modem is configured in accordance with the requirements of
your ISP and of the modem manufacturer. If not, consult your ISP support literature.
2 Before you begin, ensure that the power lead is not connected to either the router or the cable modem/DSL
modem. Leave your cable modem/DSL modem plugged in (telephone line or cable input).
Installation WL-143

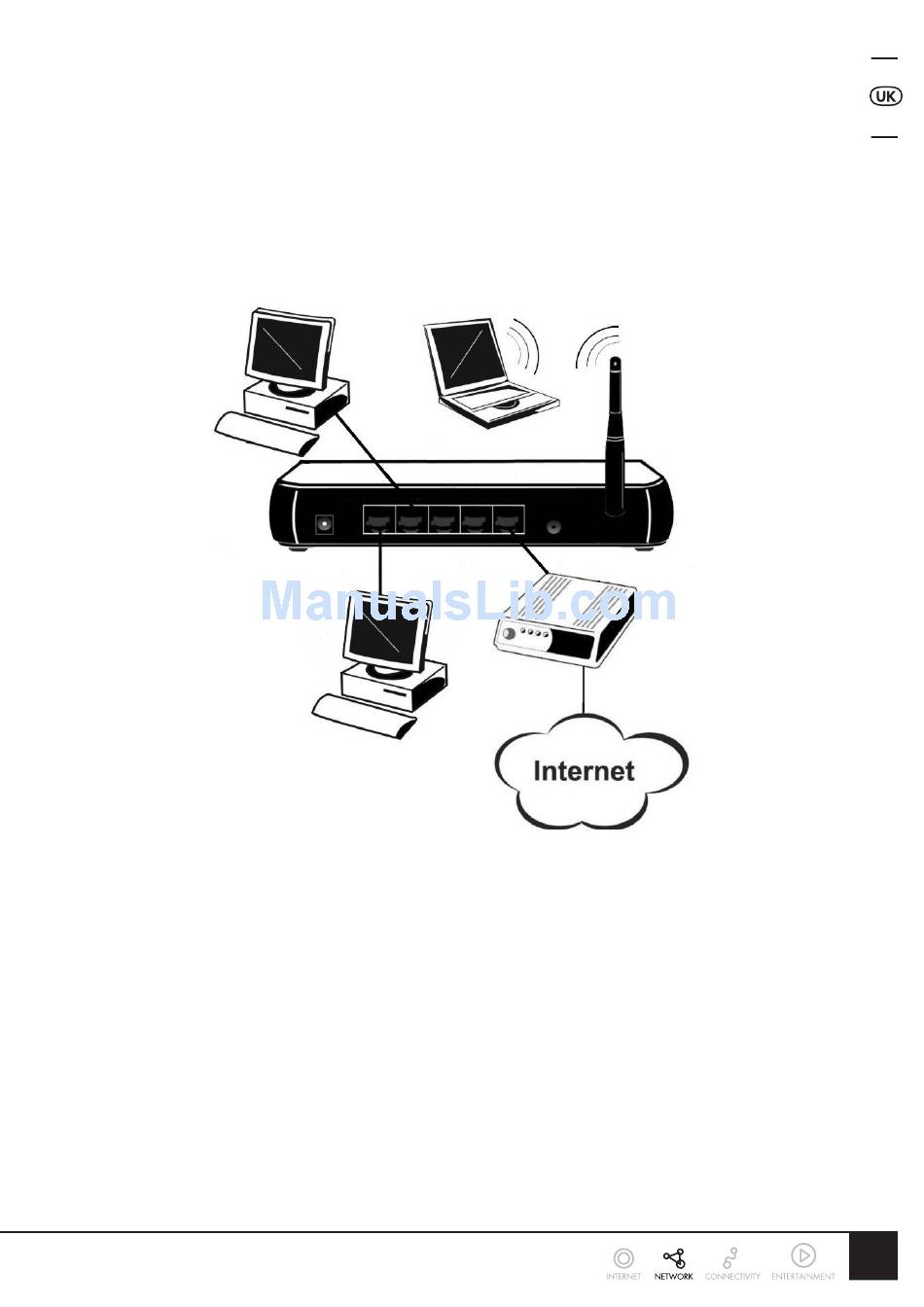

3 Connect the LAN cables: For the WL-143, use standard LAN cables to connect the PCs to the LAN ports
(switch) on the router.
4 Connect your cable modem/DSL modem to the WAN -port on the router. Use the cable supplied with your
cable modem/DSL modem. If no cable was supplied with your modem, use a standard network cable.
5 Switch on the cable modem/DSL modem.
6 Connect the power supply adapter to the router. Use only the adapter supplied with the router.
7 Check the LEDs:
• The Power LED should be ON.
• The Status LED should flash, then turn Off. If it stays on, there is a hardware error.
• For each LAN (PC) connection, the LAN Link/Act LED should be ON (provided the PC is also ON.)
• The WAN LED should be ON.
• The WLAN LED should be ON.
