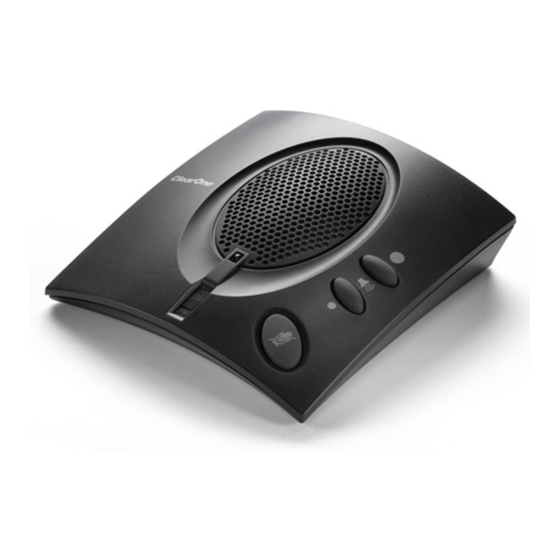

ClearOne CHAT 60 User Manual
  1. Manuals
  2. Brands
  3. ClearOne Manuals
  4. Telephone
  5. CHAT 60
  6. User manual

ClearOne CHAT 60 User Manual

Personal speakerphone for skype
Hide thumbs Also See for CHAT 60:
Table of Contents

Advertisement

Quick Links

Download this manual
|
®
CHAT
60
Personal Speakerphone for Skype™
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CHAT 60 and is the answer not in the manual?

Questions and answers

Related Manuals for ClearOne CHAT 60

Summary of Contents for ClearOne CHAT 60

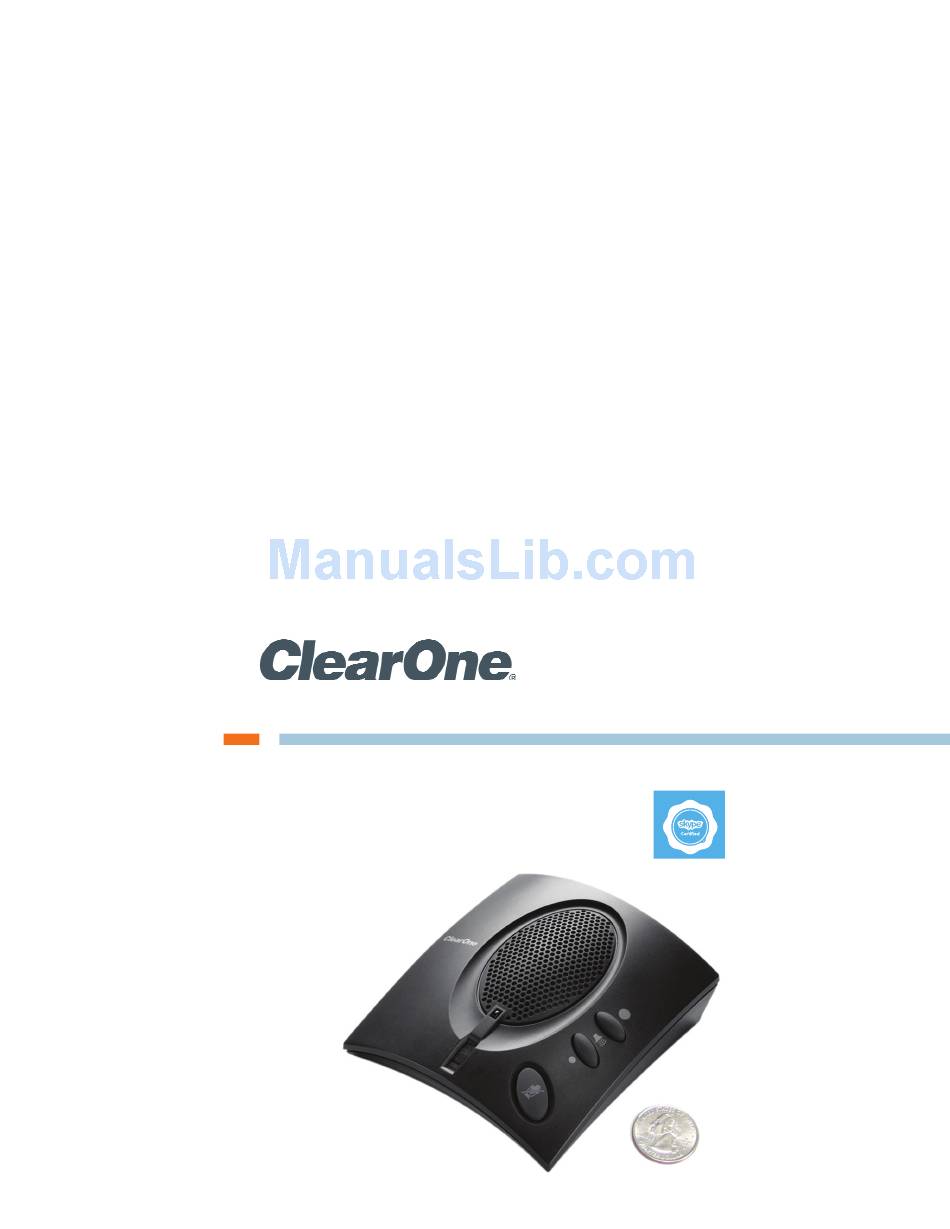

  • Page 1 ® CHAT Personal Speakerphone for Skype™ USER’S MANUAL...
  • Page 2 CHAT 60 USER’S MANUAL CLEARONE PART NO. 800-159-251. November 2010 (REV. 2.1) © 2010 ClearOne All rights reserved. No part of this document may be reproduced in any form or by any means without written permission from ClearOne. ClearOne reserves specific privileges.

  • Page 3: Table Of Contents

    ............3 oLume anD uttons CONNeCTINg THe CHAT 60 TO A PC ........4 CHAPTER 3: CONFIGURING THE CHAT 60 INSTAllINg THe CHAT SOfTwAre fOr wINdOwS ....5 uSINg A 3rd-Party APPlICATION ..........5 uSINg THe CHAT APPlICATION ..........6 ............

  • Page 4: Chapter 1: Introduction

    Cancellation, Noise reduction and Automatic level Controls, producing crystal clear conversations. Though designed specifically to be used with Skype, the CHAT 60 can also be used with other devices such as enterprise telephones and other applications such as voIP softphones, web conferencing, instant messaging and PC-based gaming.

  • Page 5: Important Safety Information

    IMPORTANT SAFETy INFORMATION read the safety instructions before using this product. This personal speakerphone is not designed for making emergency telephone calls when the power fails. You must make alternative arrangements for telephone access to emergency services. • read and understand all instructions. follow all warnings marked on the product. •...

  • Page 6: Chapter 2: Getting Started

    CHAPTER 2: GETTING STARTED CHAT 60 CONTROLS Power LED Indicator The led status indicator lights blue when the CHAT 60 is connected to a PC via uSb. The led status indicator changes to red when mute is on. Volume and Mute Buttons use the Volume Up/Down buttons to adjust the volume level of the CHAT 60.

  • Page 7: Connecting The Chat 60 To A Pc

    CONNECTING THE CHAT 60 TO A PC using the included uSb cable, connect the CHAT 60 to your PC or laptop. The status led on the front of the CHAT 60 turns blue, then red, then blue again to indicate that windows recognizes the CHAT 60 The Windows New Hardware Found dialog appears and windows installs the uSb 2.0 device drivers for CHAT on your system.

  • Page 8: Chapter 3: Configuring The Chat 60

    The CHAT 60 can be used right out of the box and there’s no software to download or install since it is only used with a PC. However, ClearOne will occasionally release new versions of the devices’ firmware which will need to be downloaded and installed.

  • Page 9: Using The Chat Application

    USING THE CHAT APPLICATION If not already open, start the CHAT application. for the CHAT software, click the My Devices button and select the device you want to tune (select the Other or All option if your device/application is not listed), then click the Apply to CHAT button. Adjust the speaker and volume settings on the external device or in the application to 50% (half volume).

  • Page 10: Manual Updates

    Ok button or Cancel to cancel the update and return to the previous screen. If the update file was downloaded directly off the ClearOne website, use the folder list in the center-right side of this window to navigate to the appropriate folder where the downloaded file was saved.

  • Page 11: Help

    A series of messages appears under the progress bar indicating the update is in progress. WARNING: do not unplug the CHAT 60 while the manual update is in progress. when the update is complete, a message will appear below the progress bar stating that the update has been successful with the appropriate revision level information if applicable.

  • Page 12: Advanced Settings

    CHAT 60 log files generated that describe issues that the device has encountered or updates that have been made to the CHAT 60 device.

  • Page 13: Chapter 4: Maintenance

    Getting Started of this manual for more information. • If your CHAT 60 is connected to a uSb hub, the uSb hub must be connected to an external power source. • If you have another uSb device (such as a digital camera) connected to your computer on the same uSb bus as your CHAT 60, windows may generate the error message “uSb Controller bandwidth exceeded.”...

  • Page 14: Interrupted Firmware Update Recovery

    INTERRUPTED FIRMWARE UPDATE RECOVERy If a firmware update is interrupted by loss of power to the CHAT 60, the uSb cable being disconnected, or an unexpected programming error, the CHAT 60 may not function properly. To restore firmware, boot the CHAT 60 in generic mode using the instructions shown below.

  • Page 15: Chapter 5: Appendix

    Input Impedance: 10 kΩ ICeS-003 Ce listed Tip - line Output ul listed Output Impedance: 50 Ω Model Numbers Sleeve - ground 910-159-251 CHAT 60 Controls volume up volume down microphone mute Audio Speaker: bandwidth: 220 Hz - 14 kHz max Output level: 82 db SPl @ 1 foot (0.30 meter) Microphone: bandwidth: 50 Hz - 7.75 kHz...

  • Page 16: European Compliance

    (2) this device must accept any interference received, including interference that may cause undesirable operation. WARRANTy ClearOne (the manufacturer) warrants that this product is free of defects in both materials and workmanship. for complete warranty information including length, coverage, and limitations, visit ClearOne on the web @ www.ClearOne.com. ClearOne...
