CHAT
50 Personal Speaker Phone
™
QUICK START GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Chat 50 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ClearOne Chat 50

Summary of Contents for ClearOne Chat 50

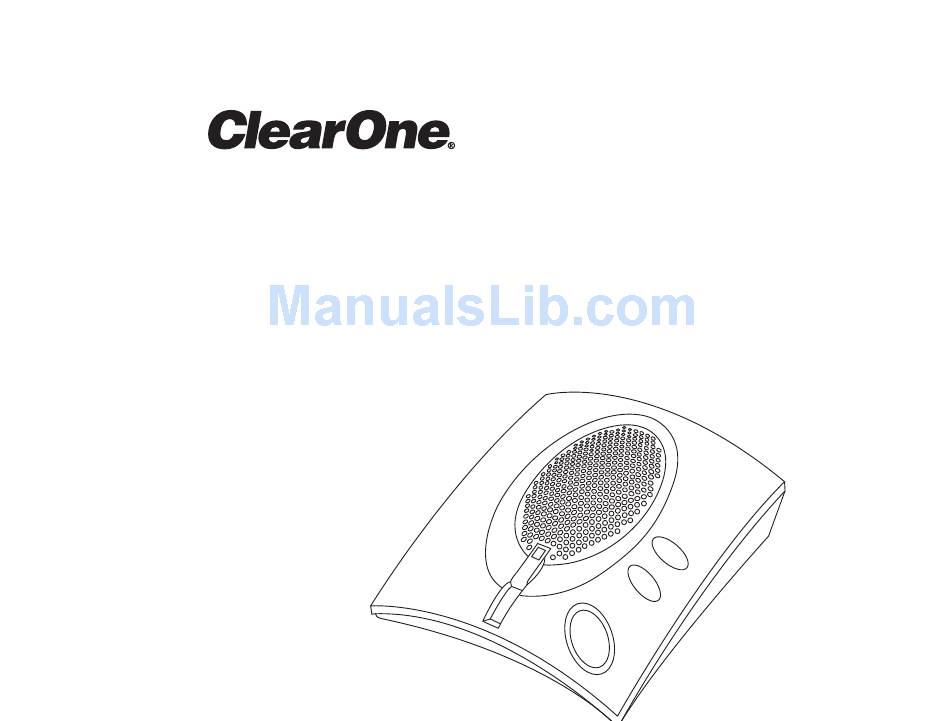

  • Page 1 CHAT 50 Personal Speaker Phone ™ QUICK START GUIDE...
  • Page 2 CHAT 50 Personal Speakerphone ™ INSTALLING THE CHAT 50 SOFTWARE (WINDOWS) 1. Insert the Chat 50 CD into your computer’s CD-ROM/DVD drive. > Note: This procedure shows Windows XP screenshots. The installation instruction apply to both Windows XP and Windows Vista.
  • Page 3 CHAT 50 Personal Speakerphone ™ CONFIGURING AND TESTING YOUR CHAT 50 1. Using the included USB 2.0 cable, connect the Chat 50 to your PC (Figure 1.0). FIGURE 1.0 Connecting Chat 50 to a PC...
  • Page 4 CHAT 50 Personal Speakerphone ™ 2. Start the Chat 50 configuration software by double-clicking the Clearone Chat icon on your desktop. ClearOne Chat desktop icon 3. Click the Device Setup button. Chat 50 Device Setup button...
  • Page 5 CHAT CHAT 50 Personal Speakerphone 50 Personal Speakerphone ™ ™ 4. Click the type of device you are using with your Chat 50 (Figure 2.0). FIGURE 2.0 Chat 50 Device Setup: Select 1st column...
  • Page 6 CHAT 50 Personal Speakerphone ™ 5. Click the manufacturer of your device; click Other or All, if not listed (Figure 3.0). FIGURE 3.0 Chat 50 Device Setup: Select 2nd column...
  • Page 7 CHAT CHAT 50 Personal Speakerphone 50 Personal Speakerphone ™ ™ 6. Click the model of your device; click Other or All, if not listed (Figure 4.0). FIGURE 4.0 Chat 50 Device Setup: Select 2nd column...
  • Page 8 > NOTE: When connecting to an analog device, you can leave the Chat 50 connected to your PC if you wish. (If you do, then you do not need to connect the power supply because the Chat 50 is being powered through the USB 2.0 cable.)
  • Page 9 Refer to the tuning procedures in the Optimizing Sound Quality section in the user manual. 10. If you wish to further adjust the Chat 50 audio settings for this device, refer to the Chat 50 User’s Manual for more information.
  • Page 10 50 Personal Speakerphone ™ CONNECTING YOUR CHAT 50 The following paragraphs show how to connect your Chat 50 to a number of different devices: CONNECTING CHAT 50 TO A TELEPHONE 1. Using the included power supply (USB Plus only), connect the Chat 50 to a power outlet (Figure 5.0).
  • Page 11 50 Personal Speakerphone 50 Personal Speakerphone ™ ™ DO NOT plug the cable into the telephone’s line jack as damage to the telephone and/or Chat 50 might occur. (Custom cable not included) FIGURE 5.0 Connecting Chat 50 to a telephone...

  • Page 12: Connecting Chat 50 To A Cellphone

    1. Using the included power supply (USB Plus only), connect the Chat 50 to a power outlet (Figure 6.0). 2. Using the included 2.5mm-3.5mm cellphone connection cable, connect the Chat 50 to your cellphone’s headset jack (or 2.5mm jack) (Figure 6.0). 3.5mm 2.5mm...

  • Page 13: Connecting Chat 50 To An Mp3 Player

    50 to a power outlet (Figure 7.0). 2. Using a ClearOne MP3 connection cable (available separately), connect the Chat 50 to your MP3 player’s headset jack (or 2.5mm jack) (Figure 7.0). FIGURE 7.0 Connecting Chat 50 to an MP3 player...

  • Page 14: Connecting Chat 50 To A Desktop Video Conferencing Device

    ™ ™ CONNECTING CHAT 50 TO A DESKTOP VIDEO CONFERENCING DEVICE 1. Using the included power supply, connect the Chat 50 to a power outlet (Figure 8.0). 2. Using a ClearOne desktop video conferencing device connection cable (available separately), connect the Chat 50 to your desktop video conferencing device’s headset jack (or 2.5mm jack)(Figure 8.0).

  • Page 15: Power Led Indicator

    50. Use the Mute button to mute the Chat 50’s microphone until the Mute button is pressed again. If you are using the Chat 50 with a PC, you can also use the Volume Control in Windows to make these adjustments.

  • Page 17: Technical Support

    Caution: Read the Safety Information in the user manual TECHNICAL SUPPORT TELEPHONE 1.800.283.5936 1.801.974.3760 1.801.977.0087 EMAIL tech.support@clearone.com © 2006 ClearOne Communications, Inc. All rights reserved. Information in this document is subject to change with- out notice. 800-159-002 Rev. 1.2.
