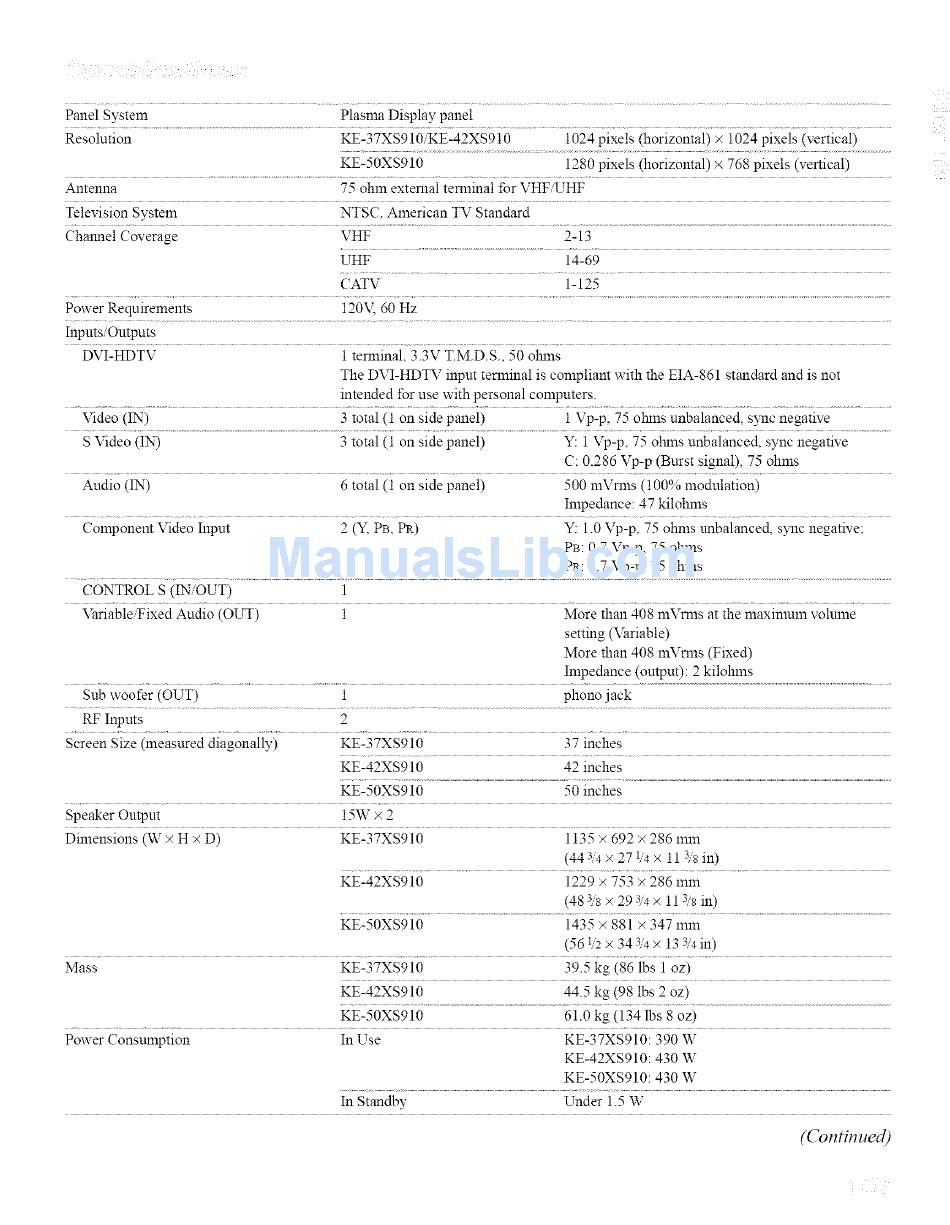

Panel System Plasma Display panel
Resolution KE-37XS910 KE-42XS910 1024 pixels (horizontal) ×1024 pixels (vertical)
KE-50XS910 1280 pixels (horizontal) x768 p ixels (vertical)
Antenna 75 ohm external temlinal for V HF UHF
Television System NTSC_ American TVStandard
Chalmel Coverage VHF 2-13
UHF 14-69
(ATV 1-125
Power Requirements 120\:. 60 Hz
Inputs/Outputs
DVI-HDTV 1tem_inal. 3.3\: T.M.D.S.. 50 obans
The D VI-HDTV input terminal iscompliant with the EIA-861 standard and i snot
intended for u se w ith p ersonal computers.
Video (IN) 3total (1on side p anel) 1Vp-p. 75 ohns u nbalance& sync negative
S Video (IN) 3total (ton side panel) Y:1Vp-p. 75 ohms unbalanced, sync negative
C:0.286 Vp-p ( Burst signal), 75 ohms
Audio (IN) 6total (1 on side p anel) 500 m Vrms (100% m odulation)
hnpedance: 47 kilohms
Component Video Input 2 (Y. PB, PR) Y: 1.0 Vp-p, 75 ohms tmbalanced, sync negative:
Ps: 0.7 Vp-p, 75 ohms
PR: 0.7 Vp-p, 75 ohms
CONTROL S (IN/OUT) 1
\Sriable Fixed Audio (OUT) 1 More than 408 mVmls at the maximum volume
setting (\hriable)
More than 408 mVmls (Fixed)
Impedance (output): 2 kilohms
Sub woofer (OUT) 1 phono jack
ILl = Inputs 2
Screen Size (measared diagonally) KE-37XS910 37 inches
KE-42XS910 42 inches
KE-50XS910 50 inches
Speaker Output 15W × 2
Dimensions (W × H x D) KE-37XS910 1135 x 692 x 286 mm
(4434 x 271/4 x tl in)
KE-42xsg10 1229 x 753 x 286 mm
(48_s x 2934x 113,s in)
KE-50XS910 1435 x 881 x 347 mm
(56 x 34 -_/4 x 13 _4 in)
Mass KE-37XS910 39.5 kg (86 lbs 1 oz)
KE-42XS910 44.5 kg (98 ibs 2 oz)
KE-50XS910 61.0 kg (134 lbs 8 oz)
Power ( onsmnption In Use KE-37XS910:390 W
KE-42XS910:430 W
KE-50XS910:430 W
In Standby Under 1.5 W
(('ontimled)
