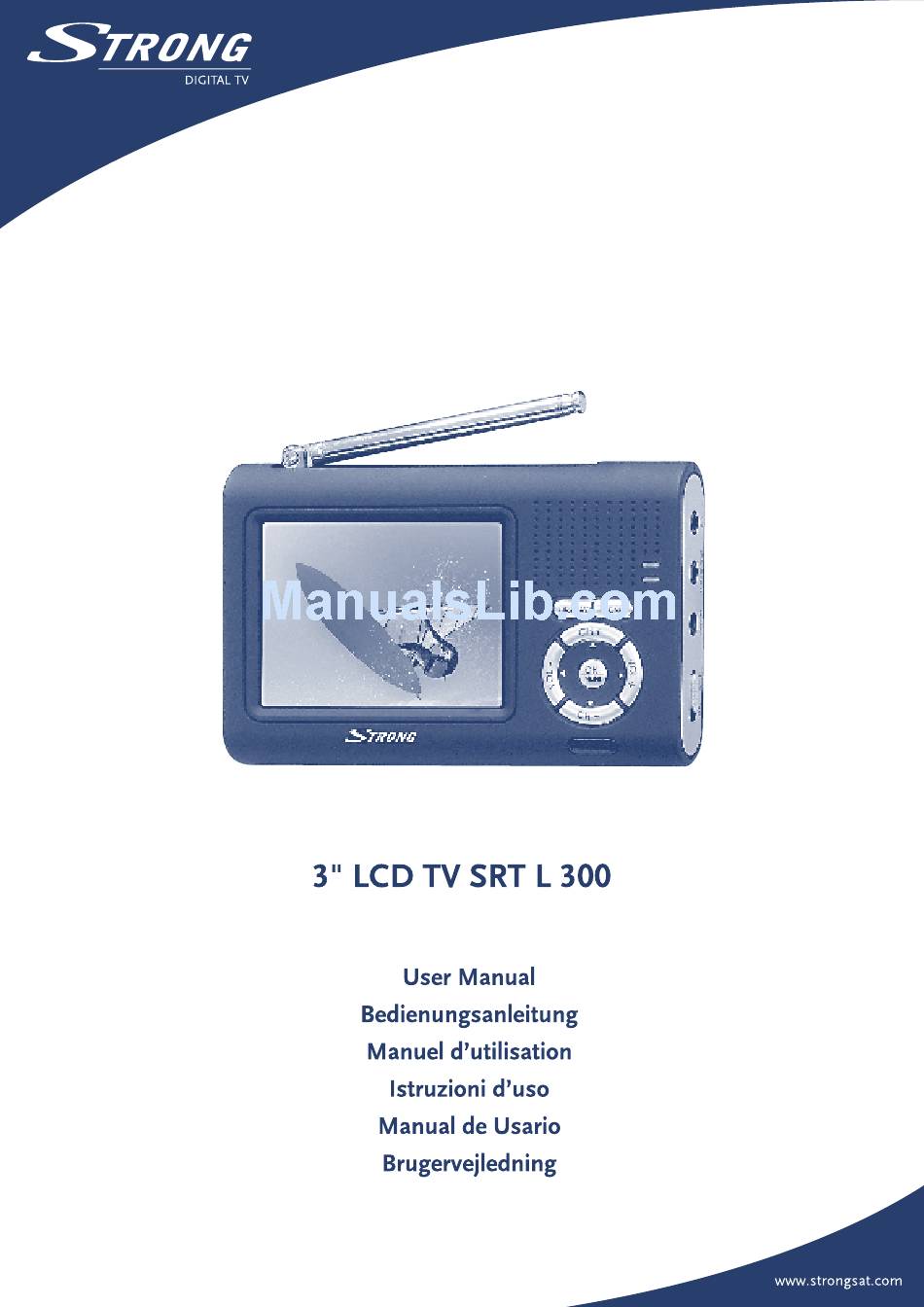

Strong SRT L 300 User Manual

3" lcd tv
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Strong SRT L 300

Summary of Contents for Strong SRT L 300

  • Page 2 PART 1 • English...

  • Page 3: Table Of Contents

    PART 1 • English Thank you for purchasing this Strong portable LCD TV. This LCD TV is of our latest development and it is designed to be capable of safely install your LCD TV and to achieve its optimum performance.

  • Page 4: Important Safety Instructions & Caution

    PART 1 • English IMPORTANT SAFETY INSTRUCTIONS & CAUTION WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE 1. Read Instructions All the safety and operating instructions should be read before the product is operated. 2.
  • Page 5 PART 1 • English 13. Protective Attachment Plug The product is equipped with an attachment plug having overload protection. This is a safety feature. See Instruction Manual for replacement or resetting of protective device. If replacement of the plug is required, be sure the service technician has used a replacement plug specified by the manufacturer that has the same overload protection as the original plug.

  • Page 6: Precautions

    PART 1 • English 22. Safety Check Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition. 23. Wall or Ceiling Mounting The product should be mounted to a wall or ceiling only as recommended by the manufacturer. 24.

  • Page 7: Batteries

    Aim at the sensor, avoiding obstacles, at a maximum range of 7 m (23 feet) directly in front of the unit Keep the transmission window and the unit’s sensor free from dust Operation can be affected by strong light sources, such as direct sunlight, and the glass doors on cabinets...
  • Page 8 PART 1 • English Connecting to the AC/DC power adapter Insert the DC plug into the jack on the side of the unit Attach the AC plug to the AC outlet DC plug AC Plug Connecting to the car cigarette lighter adapter Insert the DC plug into the jack on the side of the unit Attach the car cigarette lighter plug to the car’s cigarette lighter power receptacle...

  • Page 9: Operation Panel

    PART 1 • English OPERATION PANEL FRONT SIDE Antenna. LCD panel. Infrared remote sensor. Allows remote controller to navigate this unit. Battery LED. When the unit operates, the LED will glow green. When the battery is getting low, the LED will glow red. After successfully charging, it will glow green.
  • Page 10 PART 1 • English KEY FUNCTION Menu. Press this button to enter or exit the menu mode. OK/Mute control. Press this button to mute or restore the volume. Make selection. In menu mode, press this button to make your selection. Navigation the menu.

  • Page 11: Menu

    PART 1 • English MENU By pressing the VOL+ button, you can switch between the program and system page. Program page Service Type: selection of either TV or Radio Program list: to show the information of available channels Preview: of up to 9 selected channels Audio channel: selection of master or secondary language Subtitle language: if supported by system operator, use CH+/CH- to choose language.

  • Page 12: Buttons On Your Remote Control

    PART 1 • English BUTTONS ON YOUR REMOTE CONTROL Electronic Program Guide It shows the information of all available channels. Use CH+ button and CH- button to select the channel, with VOL+ and VOL+ you see details of the channel. Current program Program List TV scene...

  • Page 13: First Setup

    PART 1 • English FIRST SETUP When the unit is turned on the first time, please follow these steps to initialize. 1. Press MENU button, then VOL+ button to enter the menu for system configuration. 2. Press VOL+ button to adjust the brightness level of the display, exit with OK and then CH- button for the next step. 3.

  • Page 14: The Remote Control

    PART 1 • English THE REMOTE CONTROL Normal KEYS SOURCE: no function POWER: power on/stand-by selection Channel selection up or move the cursor up MENU: enter the setup menu OK: select the highlighted item VOLUME down or move the cursor left Channel selection down or move the cursor down EXIT: exit the current setup Digital keys...

  • Page 15: General Operating Instructions

    PART 1 • English GENERAL OPERATING INSTRUCTIONS TURNING THE UNIT ON OR OFF To turn ON the system, slide the POWER switch on the right side of the unit to the position labelled ON To turn OFF the system, slide the POWER switch on the right side of the unit to the position labelled OFF CONNECTING TO THE EARPHONE Insert the earphone plug into the jack “...

  • Page 16: Trouble Shooting Q&A

    PART 1 • English TROUBLE SHOOTING Q&A Before requesting service for this player, please check the following table illustrating possible reasons of the problems that you might encounter. Certain simple checks or adjustments on your DTV may eliminate the problem and restore the proper operation. Trouble Possible Reason Solution...

  • Page 17: Specification

    PART 1 • English SPECIFICATION Model number: SRT L 300 Display window: 3” LTPS (Low Temperature Poly Silicon) TFT LCD Tuner Frequency range: 470 ~ 862 MHz (UHF) Channel bandwidth: 6/7/8 MHz Antenna: Built-in telescopic antenna for UHF band reception...
