Summary of Contents for StarTech.com ST100SLP

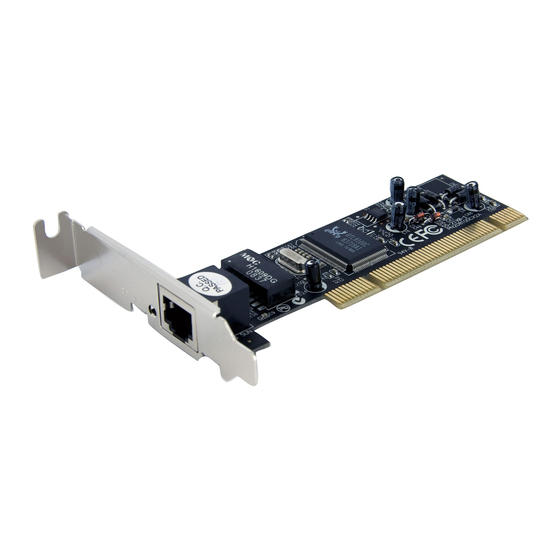

- Page 1 NETWORK ADAPTER 10/100 Mbits/sec PCI Ethernet Network Card ST100S ST100SW ST100SLP Instruction Guide * Actual product may vary from photo The Professionals’ Source For Hard-to-Find Computer Parts...
- Page 2 FCC COMPLIANCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
-
Page 3: Table Of Contents
Table of Contents Introduction ............2 Installation . -
Page 4: Introduction
WARNING! PCI cards, like all computer equipment, can be severely damaged by static electricity. Be sure that you are properly grounded before opening your computer case or touching your PCI card. StarTech.com recommends that you wear an anti-static strap when installing any computer component. If an anti-static strap is unavailable, discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds. -
Page 5: Installation
Contents This package should contain: • 1 x PCI Ethernet Adapter card • 1 x driver disk Installation This section will guide you through the installation of your card and the related software. Please read through the instructions carefully and complete each step in the order listed. -
Page 6: Connecting Your Card To Your Network
If you are unsure of the type of cable required for your device, consult your device manufacturer. NOTE: StarTech.com carries a wide range of Ethernet cables in various colors and lengths. For more information on these products, as well as tips and ideas for setting up and running your network, visit http://www.startech.com and click on the Networking... -
Page 7: Installing The Drivers
Windows 95 1. Windows will automatically detect the new hardware. Click Next. 2. Select “Driver from disk provided by hardware manufacturer.” 3. Insert the driver disk into your disk drive and specify the following path (where “A:\” is the location of your driver disk): •A:\WIN95 Windows NT 4.0 1. -
Page 8: Monitoring Your Card
Monitoring Your Card The LEDs on the front of the card are the best indication of the card’s activity. Color Status Description 10M/Link/Activity Yellow Card is in 10Mbits/sec mode Blinking Network activity 100M/Link/Activity Green Card is in 100Mbits/sec mode Blinking Network activity If neither Link/Activity LED is lit, there is a connection error. -
Page 9: Tips For Setting Up Your Network
Tips for Setting Up Your Network For information and help on setting up your network, please consult the manufacturer of your operating system. The following is for tips and troubleshooting purposes only and is intended for Microsoft users on a local area network. Make sure your computers are configured properly For your convenience, you should configure each of your computers so that they can “see”... - Page 10 Windows XP 1. Click Start and then Control Panel. 2. Double-click System then click on the computer name tab. Windows 2000 1. Click on Start, then Settings, then Control Panel. 2. Double-click on System. 3. Click on the Network Identification tab. Windows Me/98/95 1.
-
Page 11: Technical Support
Limitation of Liability In no event shall the liability to StarTech.com Ltd. (or its officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of related to the use of the product exceed the actual price paid for the product. - Page 12 Revised: April 22, 2003...
