Summary of Contents for Strong STR 8105
- Page 1 Digital High Definition Terrestrial Receiver SRT 8101/8105 User manual Manuel d’Utilisateur Manuale Utente Manual del usuario Manual do Usuário Felhasználói kézikönyv Instrukcja obsługi Руководство пользователя...
-
Page 4: Table Of Contents
7.5 Games 7.6 Media+ 8.0 TRoublEshooTIng 9.0 TEChnICAl sPECIfICATIons sTRong declares that this item complies with the basic requirements and other relevant regulations of directives CE 2004/108/EEC and 73/23EEC; Rohs 2002/95EEC Subject to alterations. In consequence of continuous research and development technical specifications, design and appearance of products may change. -
Page 5: Introduction
PART 1 • English 1.0 InTRoduCTIon 1.1 safety Instructions do noT InsTAll YouR RECEIvER: In a closed or poorly ventilated cabinet; directly on top of or under any other equipment; on a surface which might obstruct the ventilation slots. do noT EXPosE ThE RECEIvER oR ITs ACCEssoRIEs: To direct sunlight or any other equipment that generates heat;... -
Page 6: Equipment Set-Up
„ „ the receiver. Always make backups of data on your USB storage device before using it with this receiver. STRONG will not take responsibility for any loss of information or circumstances caused by loss of information. 2.0 YouR RECEIvER 2.1 PIn-CodE dEfAulT: 0000... -
Page 7: Rear Panel

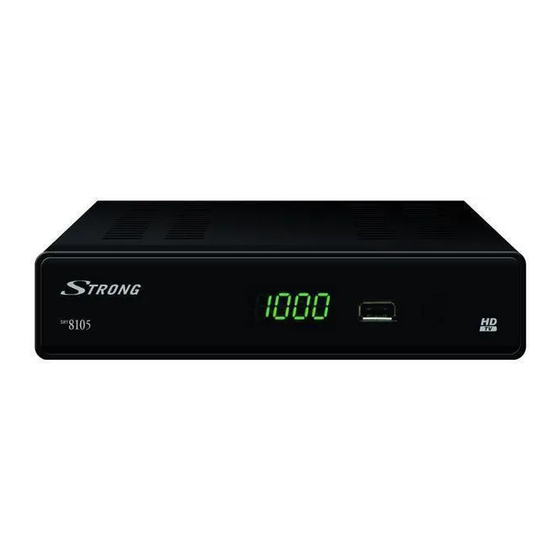

PART 1 • English 1. 4 digits display: Indicates current time in STAND-BY mode* Indicates current channel number in OPERATING mode* 2. usb: Connector for USB devices. 3. IR sensor: Point your remote control towards this sensor. 4. mode indicator: REd indicates that the receiver is in STAND-BY mode. -
Page 8: Connection
PART 1 • English 17. AudIo Sets the current audio channel to left, right or stereo 18. Tv/RAdIo Toggles between TV or RADIO mode 19. fAv Favourite group selection 20. fIlE Shows the Media Player list 21. TTX Shows Teletext on OSD (On Screen Display) 22. -
Page 9: Connecting A Usb Storage Device
For proper functioning of Time Shift and recording functions, a fast USB device (such as a hard disk drive) is needed. Interrupted playback or a distorted picture during playback or Time Shift are indications for a low device speed. STRONG cannot guarantee proper functioning of recoding and or Time Shift functions with all USB devices. -
Page 10: Quick Guide To Using Your Receiver
5.0 QuICk guIdE To usIng YouR RECEIvER We at STRONG understand that you can’t wait to enjoy your new high definition digital terrestrial receiver. The following quick guide will make you familiar with the basic operation of this device. We do, however, advice you to read the full manual to get the best performance from your receiver. -
Page 11: Info Banner
PART 1 • English Use tu to toggle between the All Channel list and favourite lists or press TIP: fAv for a list of available favourite lists. 6.1.3 using the keys Pg+/Pg- p switches to the next channel. q switches to the previous channel. Pg+ switches to the next 10 channels. -
Page 12: Epg (Electronic Programme Guide)
PART 1 • English 6.7 EPg (Electronic Programme guide) The Electronic Programme Guide is a very useful function that allows you to view event schedules and information and to mark programmes for recording. To access the EPG, press the EPg button in viewing mode. -
Page 13: Locking Channels
PART 1 • English Once all changes are made, press EXIT twice. A confirmation banner will pop up. Select Yes to save the changes or No to discard. 7.1.1.2 locking channels Locked channels can only be watched after entering the pin code. (dEfAulT PIn: 0000) To lock or unlock a channel, press REd while in TV Channel List. -
Page 14: Installation
PART 1 • English Rename Press gREEn in Edit Channel to enable the Rename function. The Rename sign will move up to indicate that Rename is selected. Use pq to highlight the desired channel and press ok to select it. A text field will now pop up at the right of the screen. -
Page 15: System Setup
PART 1 • English 7.2.3 Antenna Adjustment Use pq to select Installation, press ok or u to advance. Use pq to select Aerial Adjustment and press ok to enter. Use pq move the highlight to the setting you wish to alter and use tu to change values. The following settings are available: Antenna Power: Set to On if you use an active antenna. -
Page 16: Local Time Setting
PART 1 • English Aspect Mode: Use this option to select the aspect ratio of your TV and the preferred conversion method. Options are: Auto (automatic detection of aspect ratio), 4:3 Panscan (Displays 16:9 widescreen broadcasts full screen on your 4:3 TV), 4:3 letterbox (black bars on top and under the picture on a 4:3 TV) and 16:9 (use this setting for 16:9 TV sets). -
Page 17: Tools
This submenu shows receiver specific information such as hardware version and software version. It also displays our web address www.strong.tv. Please have the Receiver Information screen on hand when you call our hotline. The person who answers your call might ask for the information given in... -
Page 18: Load Factory Setting
This receiver is equipped with an Over The Air software upgrade option. An Over The Air update might not be available in your region. Please visit our website www.strong.tv or contact your local service hotline for more information about this option. -
Page 19: Games
PART 1 • English 7.5 games Your receiver is equipped with two games which can be played on your TV screen using the receiver remote control. Use pq to select Game from the Main menu and press ok or u to proceed. Select one of the available games (Othello or Sudoku) using pq and press ok to start the game. -
Page 20: Troubleshooting
Formatting will permanently delete ALL data stored on the connected device. Please make a backup copy of all data you wish to keep before entering the HDD Format menu. STRONG cannot be held responsible for loss of data from USB devices used with this receiver. -
Page 21: Technical Specifications
Remote batteries exhausted Replace remote batteries Forgotten PIN code Contact local Service Hotline or send email to our Support via www.strong.tv After moving the receiver Antenna signals are too weak Press the INFO button on to another room/area you remote 2x to call up signal... - Page 22 Cinch (Audio L&R and Video CVBS)* USB 2.0 port: 5 V/800 mA (max.) supported *SRT 8105 only **STRONG cannot guarantee the playback of video files although extensions are listed, as it depends on codec used, data bit rate and resolution . general data: Supply Voltage:...
- Page 23 PART 1 • English...
